Motor-Multi-Vane

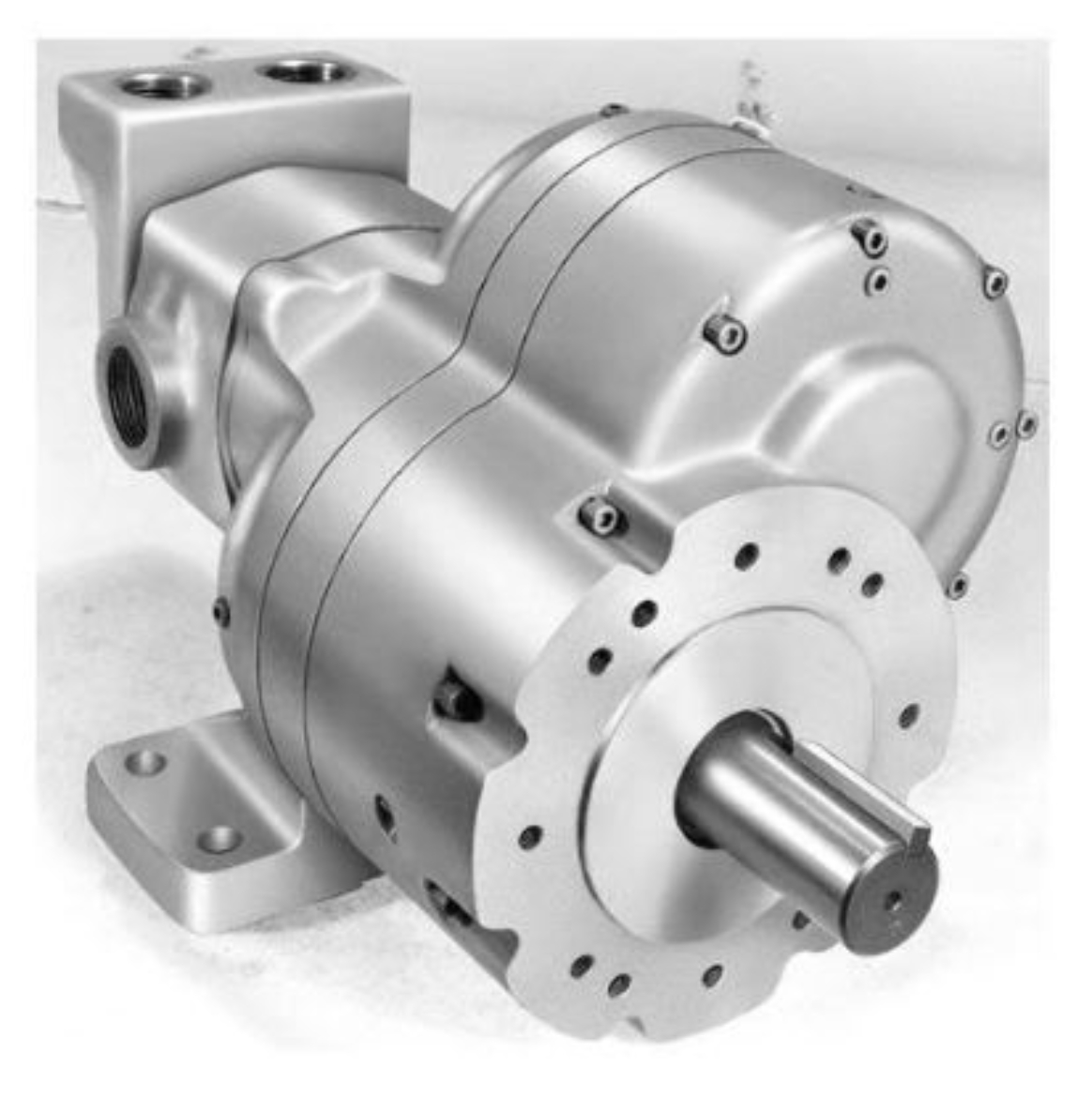

IR 92RA005

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1390 RPM, 8.15 HP, 102 NM, Reversible

• Air Consumption at Max HP (scfm): 230
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Single
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 1390
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 75
• Max Torque (in-lb): 903
• Max Torque (nm): 102
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 46
• Rated Power (hp): 8.15
• Rated Power (kW): 6.08
• Reversible: Reversible

• Speed at Max Power (rpm): 910
• Starting Torque (ft-lb): 56
• Starting Torque (nm): 75.9

• Warranty: 1-year
