INGERSOLL-RAND IR TOOL S12880
INGERSOLL-RAND IR TOOL S12880 branded products
BUSHING
IR 2920P-465
IR 2920P-465
Inlet Bushing for Ingersoll Rand 259, 261, 271, 1720P Series Impact Wrench
For Use With- 1720P1
- 1720P3
- 259
- 261
- 261-3
- 261-6
- 271
$33.00
VANE PACK
IR 2934-42-7
IR 2934-42-7
Vane Pack Service Part for Ingersoll Rand Power Tools, QTY 7
$114.00
SUPER DUTY IMPACTOOL
IR 2934B9
IR 2934B9
1" Air Impact Wrench, Super Duty, 750 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.Features And Benefits
- Durability: This Series features an iron hammer case and metal housing that’ll withstand harsh conditions and drops.
- Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
- Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.
Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 47
Average Air Consumption (l/min): 1331
Blows per Min: 780
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 93.2 / 104.2
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.5 / 105.5
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 750
Max Torque (in-lb): 9001
Max Torque (nm): 1017
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 18.63
Product Width (in): 4.4
Product Height (in): 6.7
Product Weight (lb): 35.75
Recommended Forward Torque Range (ft-lb): 500-656
Recommended Forward Torque Range (in-lb): 6001-7877
Recommended Forward Torque Range (nm): 678-890
Recommended Reverse Torque (ft-lb): 500-656
Recommended Reverse Torque (nm): 678-890
Retainer Type: Thru-hole
Side to Center Distance (in): 1.63
Side to Center Distance (mm): 41
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 30.8
Warranty: 1-year
Similar IR
- 2934B2
- 2934P2
$7,850.00
Anvil
IR 2940-726
IR 2940-726
1" Square Drive Anvil Replacement Part for Ingersoll Rand 3940 & 3942 Series Impact Wrenches
Product Application and Uses: For use with 3940and 3942 Series 1" drive square anvil impact wrenches.For Use With
- 3940B2TI
- 3940B2TIEX
- 3940P2TI
- 3942B2TI
- 3942B2TIEX
$885.00
IMPACTOOL
IR 2940B2
IR 2940B2
1" Air Impact Wrench, Industrial Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger
Find the top impact tools in the industry. The 2940 Series from Ingersoll Rand has over 100 years of legacy behind it.Features And Benefits
- 2,000 ft.-lbs. of maximum torque
- Cast iron hammer case and metal housing that will withstand harsh conditions and repeated drops
- Finely Tuned twin hammer impact mechanism delivers more balanced blows that reduces vibration and increases durability
- Bronze end-plate that increases durability and is corrosion resistant
- Pressure-fed mechanism lubrication
- Reverse Bias Motor and Integral muffler
Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 850
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
End Plates: Bronze
Exhaust Location: Bottom
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1601
Max Torque (in-lb): 19206
Max Torque (nm): 2170
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 10.2
Product Width (in): 22.1
Product Height (in): 6.5
Product Weight (lb): 22
Recommended Forward Torque Range (ft-lb): 1003-1601
Recommended Forward Torque Range (in-lb): 12037-19206
Recommended Forward Torque Range (nm): 1360 - 2170
Recommended Reverse Torque (ft-lb): 1003-1601
Recommended Reverse Torque (nm): 1360-2170
Retainer Type: Thru-hole
Side to Center Distance (in): 11.1
Side to Center Distance (mm): 282
Sound Pressure/Power Db(A): 94.8 / 105.8
Standards/Certifications: CE, Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 17.8
Vibration Uncertainy K* (m/s2): 3.4
Warranty: 1-year
Similar IR
- 2940A2
$3,795.00
1.5 IMPACTOOL
IR 2955B2
IR 2955B2
1-1/2" Air Impact Wrench, Heavy Duty, 4500 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle Inside Trigger
This powerful and innovative 1-1/2” square drive Impact Wrench delivers durability at an unmatched economic value. The 2955 Series delivers a competition leading 4,500 ft-lb of Max Reverse torque powered by Ingersoll Rand’s finely tuned cold forged twin-hammer impact mechanism. The innovative auxiliary handle allows the tool to be configured for the operator or application. The handle is fully adjustable to any orientation around the hammer case body allowing the tool to reach into confined bolt locations or fit to the most user-friendly position, reducing operator fatigue. Cold forged twin hammers, steel endplates and steel housing deliver unmatched durability in the most rugged applications. The 2955 Series is engineered with Ingersoll Rand’s legendary impact mechanism that makes maintenance simple for long life and low total cost of ownership. The 2955 Series is proudly assembled in our Southern Pines, NC facility with domestic and globally sourced components ensuring quality and fast, dependable delivery.Features And Benefits
- 4,500 Ft-lbs of torque for tough applications, neutral bias air motor
- 360 Degree side-handle for added versatility when working on pipe flange applications
- Steel hammer case housing and aluminum handle provides durable design for industrial environments
- Cold Forged Twin Hammer mechanism
- Steel Endplates provide wear resistance
- 6-vane motor with optimized air flow
- Assembled in the USA of domestic and global components ensures quality, and fast delivery
Includes: Bare Tool
Product Application and Uses: Oil and Gas Repair and Maintenance, Dredging Companies, Mining Equipment Repair and Maintenance, Foundry Shops, River Dams, Hydro and Thermal Power Plants
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 95
Air Consumption @ Load (l/min): 2690
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.2 / 109.2
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 103.3 / 114.3
Max Bolt Diameter (in): 1 1/2
Max Free Speed (rpm): 3300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4500
Max Torque (in-lb): 53990
Max Torque (nm): 6100
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Width (in): 5.3
Product Height (in): 8.1
Product Weight (lb): 35.3
Recommended Forward Torque Range (ft-lb): 1601-3762
Recommended Forward Torque Range (in-lb): 19206-45139
Recommended Forward Torque Range (nm): 2170-5100
Recommended Reverse Torque (ft-lb): 1601-3762
Recommended Reverse Torque (nm): 2170-5100
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 2.7
Side to Center Distance (mm): 69
Special Features: 360 degree adjustable handle
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18
Warranty: 1-year
Similar IR
- 3955B2TI
- W9491
- 3940B2TI
$5,727.00
IMPACT
IR 295A
IR 295A
1" Air Impact Wrench, 1475 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol
The 295A Series Impact Wrench combines exceptional power, control and durability is great for any garage. They deliver 1,770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The top-mounted dead handle provides great leverage for difficult underbody work.Features And Benefits
- Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
- Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
- Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
- Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job.
- Control: Features top mounted dead handle, Feather Touch trigger and 3 position power regulator in both forward and reverse.
- Speed: The impact wrench has a free speed of 5,250 rpm.
- Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1727
Air Inlet: 1/2" NPT
Air Pressure (psi): 120
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 830
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Hammer Case: Aluminum
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Rocking Dog
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 5250
Max Torque (ft-lb): 1770
Max Torque (in-lb): 21242
Max Torque (nm): 2400
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 10.5
Product Width (in): 8
Product Height (in): 7.5
Product Weight (lb): 22
Recommended Forward Torque Range (ft-lb): 120-1080
Recommended Forward Torque Range (in-lb): 1443-12957
Recommended Forward Torque Range (nm): 163-1464
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 4
Side to Center Distance (mm): 102
Sound Pressure/Power Db(A): 102.5/113.5
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 12.7
Vibration Uncertainy K* (m/s2): 2.5
Warranty: 1-year
Similar IR
- 2146Q2MAX
- 2155QIMAX
- 2175MAX
- 290
- 2922P3
- 2925RBP3TI
- 2934P2
$934.80
VALVE SEAT
IR 295A-303
IR 295A-303
Valve Seat for Ingersoll Rand 295A Series Impact Wrench
Product Application and Uses: For use with Ingersoll Rand 295A Series Air Impact WrenchFor Use With
- 295A
$15.00
THROTTLE VALVE
IR 295A-50
IR 295A-50
Throttle Valve for Ingersoll Rand 295A Series Impact Wrench
For Use With- 295A
$15.00
THROTTLE VALVE SPRING
IR 295A-51
IR 295A-51
Throttle Valve Spring for Ingersoll Rand 295A Impact Wrench
For Use With- 295A
$15.00
CHIPPER
IR 2DA2SA
IR 2DA2SA
Air Chipping Hammer, 2" Stroke, 2200 BPM, Round Shank Oval Collar
The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.Features And Benefits
- Weight: At 11.75 lbs., these tools are lightweight and easy to use.
- Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.
Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 2200
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 13.75
Product Weight (lb): 11.75
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 2
Warranty: 1-year
$555.75
Bearing (307A-22)
IR 301-22
IR 301-22
Ball Bearing Replacement Part for Ingersoll Rand Power Tools
Product Application and Uses: For use with Ingersoll Rand 301 Series, 307 Series, 1105 Series, 3107 Series, 3101 Series, 302 Series, 308 Series Air Die Grinder and QIS Series $20.00
Bearing (307A-24)
IR 301-24
IR 301-24
Bearing for Ingersoll Rand Air Ratchet Wrenches
Product Application and Uses: For use with 301, 302, 307, 308, 5102MAX, 5108MAX, 1105MAX, 3101, 3107 Series Air Die Grinders $15.00
Vane Pack
IR 301-42-4
IR 301-42-4
Vane Pack for Ingersoll Rand Air Ratchet Wrench
Product Application and Uses: For use with Ingersoll Rand 301 Series, 307 Series, 3101 Series, 3107 Series Air Die Grinders and 105 Series, 1105 Series ratchet wrenchesFor Use With
- 301B
- 301B-M
- 301B2MK
- 301B32MK
- 301B3MK
- 301BK
- 307B
- 307B-M
- 307BK
$15.00
SPACER (307A-17)
IR 301-448
IR 301-448
Spacer Replacement Part for Ingersoll Rand Air Die Grinders
Product Application and Uses: For use with Ingersoll Rand 301, 307, 3101, 3107, 302, and 308 Series air die gringersFinish: Black Oxide
$15.00
Pinion Key
IR 301-579
IR 301-579
Pinion Key for Ingersoll Rand Air Die Grinders
Product Application and Uses: For use with 301, 302, 307, 308, 5102MAX, and 5108MAX Series die grinders. $15.00
NUT (307A-698)
IR 301-699
IR 301-699
Collet Nut for Ingersoll Rand Air Die Grinder
Product Application and Uses: For use with Ingersoll Rand 301 Series, 307 Series, 5102 Series, 5108 Series, 3101 Series, 3107 Series, 302 Series, 308 Series die grinders $13.00
WRENCH, SMALL
IR 301-69A
IR 301-69A
Small Wrench for Ingersoll Rand Air Die Grinders
Product Application and Uses: For use with 5102 Series, 5108 Series, 301 Series, 307 Series, 302 Series, 308 Series, and M2 Series die grindersFor Use With
- 307B
- 307B-M
- 307BK
- 308B
- 308B-M
- 308BK
- M2A090RP95
- M2A120RG4
- M2A120RP1045
- M2A120RP64
- M2A120RP945
- M2A120RP95
- M2A135RP64
- M2A180RG4
- M2E145RP64
- M2H200RG4
- M2L120RP1045
- M2X075RG4
- M2X180RG4
- M2X200RG4
- M2X250RG4
$15.00
WRENCH, LARGE
IR 301-69B
IR 301-69B
Large Wrench for Ingersoll Rand Air Die Grinder
Product Application and Uses: For use with the following Ingersoll Rand 301, 307, 5102, 5108, 302, 308 Series die grinders. $15.00
COLLET 1/8"
IR 301-700C
IR 301-700C
Collect Replacement Part for Ingersoll Rand 301 and 307 Die Grinder
$23.00
Die Grinder, 0.25 HP, 21K, Angle, 1/4in C
IR 301B
IR 301B
Angle Air Die Grinder, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" collet and a integral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
Includes: Tool, 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Similar IR
- 302B
- 5102MAX
- 307B
- 308B
$83.79
DIE GRINDER KIT, 2"
IR 301B2MK
IR 301B2MK
Angle Air Die Grinder 2" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
- Kit Includes: (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.
Includes: 301B Air Angle Die Grinder, (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Similar IR
- 302B
- 5102MAX
- 307B
- 308B
$265.00
DIE GRINDER KIT, 2" & 3"
IR 301B32MK
IR 301B32MK
Angle Air Die Grinder 2" & 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit Includes (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
- Kit Includes: (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.
Includes: 301B Air Angle Die Grinder, (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Similar IR
- 302B
- 5102MAX
- 307B
- 308B
$300.00
COLLET (307A-700) 1/4"
IR 301-700
IR 301-700
Collet Replacement Part for Ingersoll Rand Air Die Grinders
Product Application and Uses: For use with Ingersoll Rand 301, 307, 3101, 3107, 302, 308, 5102, 5108, 409 Series die grinders $18.00
DIE GRINDER KIT, 3"
IR 301B3MK
IR 301B3MK
Angle Air Die Grinder 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 3” coarse pads, (4) 3” medium pads, and a Blow-molded case.Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
- Kit Includes: (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case.
Includes: 301B Angle Die Grinder, (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Similar IR
- 302B
- 5102MAX
- 307B
- 308B
$285.00
ANGLE DIE GRINDER KIT
IR 301BK
IR 301BK
Angle Air Die Grinder Stone Kit, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes 10 mounted grinding tips and a Blow-molded case.Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
- Kit Includes: 10 mounted grinding tips and a Blow-molded case.
Includes: 301B Angle Die Grinder, 10 mounted grinding tips, Blow-molded case, 1/4" collet, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Wheel Type: Burr
Similar IR
- 302B
- 5102MAX
- 307B
- 308B
$107.73
ARBOR KIT
IR 301-K591A
IR 301-K591A
Arbor Kit for Ingersoll Rand Air Die Grinders
Product Application and Uses: For use with Ingersoll Rand 301, 307, 3101, 302, and 308 Series die grindersFor Use With
- 301B
- 301B-M
- 301B2MK
- 301B32MK
- 301B3MK
- 301BK
- 302B
- 302B-M
- 302BK
$30.00
Die Grinder, 0.33 HP, 25K, Straight, 1/4in C
IR 308B
IR 308B
Air Die Grinder, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Also available in the 308BK kit which includes 4 burrs.Features And Benefits
- Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
- Rear exhaust directs air away from the operator.
- Also available in the 308BK kit which includes 4 burrs and a blow-molded carrying case.
Includes: 308B Pneumatic Straight Die Grinder, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year
Similar IR
- 307B
- 409
- 5108MAX
$113.43
ANGLE HOUSING
IR 302B-A550
IR 302B-A550
Angle Housing Replacement Part for Ingersoll Rand 302, 308 Series Die Grinder
$28.00
STRAIGHT DIE GRINDER KIT
IR 307BK
IR 307BK
Air Die Grinder Stone Kit, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Kit includes 10 mounted grinding tips and a blow-molded case.Features And Benefits
- Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Kit includes 10 abrasive stones, and a blow-molded carrying case.
Includes: 307B Air Die Grinder, (10) Abrasive Stones, a Blow-molded Case, (2) Wrenches, 1/4" Collet.
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr
Similar IR
- 307B
- 308B
- 409
$98.04

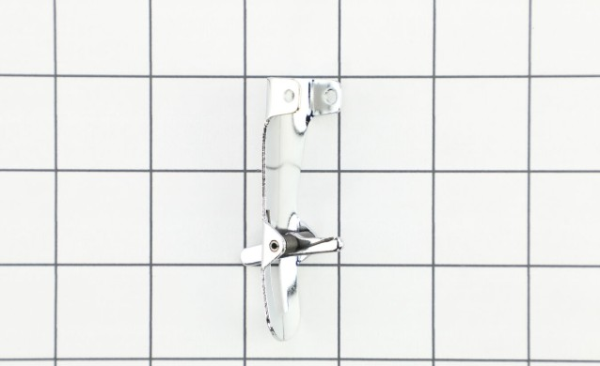

Lever Assembly
IR 307B-A400
IR 307B-A400
Lever Assembly for Ingersoll Rand for 301B and 307B Grinder
$15.00
ANGLE DIE GRINDER KIT
IR 302BK
IR 302BK
Angle Air Die Grinder 2" & 3" Pad Kit, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polish-ing and grinding. Kit includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying CaseFeatures And Benefits
- Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
- Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
- Reliability: Integral safety-lock throttle lever prevents accidental start up.
- Built-In Lubrication: Built-in lubricating wick increases angle gear life.
- Rear exhaust directs air away from the operator.
- Kit Includes: 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case
Includes: Right Angle 302B Die Grinder, 2” and 3” Quick Change Backing Pads, A Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, Blow-molded Carrying Case, 1/4" Collet.
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2
Pad Diameter or Size (in): 3
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year
Similar IR
- 301BK
- 301B2MK
- 301B32MK
$253.65
Die Grinder, 0.33 HP, 18K, Angle, 1/4in C
IR 302B
IR 302B
Angle Air Die Grinder, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. 302BK Kit also available that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.Features And Benefits
- Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
- Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
- Reliability: Integral safety-lock throttle lever prevents accidental start up.
- Built-In Lubrication: Built-in lubricating wick increases angle gear life.
- Rear exhaust directs air away from the operator.
- Also available in the 302BK Kit that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.
Includes: Tool, (2) Wrenches, 1/4" Collet and Manuals
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year
Similar IR
- 301B
- 5102MAX
$139.65
HOUSING ASSEMBLY
IR 308A-A40
IR 308A-A40
Housing Assembly for Ingersoll Rand for 302 and 308 Air Die Grinder
$78.00
MOTOR ASSEMBLY
IR 308A-A53
IR 308A-A53
Motor Assembly for Ingersoll Rand for 409 Air Die Grinder
$42.00
DIE GRINDER, 0.25 HP, 28K, STRAIGHT, 1/4" C
IR 307B
IR 307B
Air Die Grinder, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Also available in the 307BK kit which includes 10 mounted grinding tips and a blow-molded case.Features And Benefits
- Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Also available in the 307BK kit which includes 10 abrasive stones, and a blow-molded carrying case.
Includes: 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Similar IR
- 308B
- 5108MAX
- 409
$75.24
Lever Assembly
IR 308B-A400
IR 308B-A400
Lever Assembly for Ingersoll Rand for 302 and 308 Air Die Grinder
$15.00
INLET BUSHING ASSEMBLY
IR 308B-A565
IR 308B-A565
Inlet Bushing Assembly for Ingersoll Rand 302 and 308 Air Die Grinder
$15.00
STRAIGHT DIE GRINDER KIT
IR 308BK
IR 308BK
Air Die Grinder Burr Kit, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Kit includes 4 burrs.Features And Benefits
- Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
- Rear exhaust directs air away from the operator
- Kit Includes: 4 burrs and a blow-molded carrying case.
Includes: 308B Straight Air Die Grinder, 4 Burrs (Cylindrical bit super cut burr, Cylindrical bit super cut burr, 3/8" ball shaped super cut burr, Tree shaped super cut burr), a Blow-molded Carrying Case, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year
Wheel Type: Burr
Similar IR
- 307BK
- 5108MAX
$300.00
Gasket 3101G-36
IR 3101G-36
IR 3101G-36
Gasket for Ingersoll Rand 3101G, 3107G, 302B, 308B, 5102MAX, 5108MAX Grinder
$15.00
SPRING PIN
IR 3101G-504
IR 3101G-504
Spring Pin Replacement Part for Ingersoll Rand Grinders
Product Application and Uses: For use with Ingersoll Rand 3101G, 302B, 308B, 5102MAX, 5108MAX Series grinders $15.00
GASKET
IR 3102-283
IR 3102-283
Gasket Replacement Part for Ingersoll Rand 302, 308, 3101, 3102, 3108 Series Grinder
$15.00
Vane Pack
IR 3102-42-4
IR 3102-42-4
Vane Pack Set of 4 for Ingersoll Rand 302B, 308B Die Grinder
For Use With- 302B
- 302B-M
- 302BK
- 308B
- 308B-M
- 308BK
$15.00
Mini Surface Prep Kit
IR 3103KA
IR 3103KA
Mini Surface Prep Air Sander 2" & 3" 14-Piece Pad Kit, 15,000 RPM, 0.2 HP, Handle Exhaust
This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places. With smooth power delivery and durable casing, this tool is ready to work.Features And Benefits
- Variety: With a 2-speed gearbox and variable speed options, you can adjust your tool for your application as needed.
- Comfort: This lightweight, pistol grip design is engineered for balance and one-handed precision.
- Access: Thanks to its ergonomic design and compact size, this tool can be used in even the tightest spaces.
- Durable: Ball-bearing construction enhances durability and smooth power delivery.
- Includes: 14-piece 2” (50mm) and 3” (75mm) sanding discs and pads.
Includes: 3103XPA sander, 14-piece 2” (50mm) and 3” (75mm) sanding discs and pads.
Product Application and Uses: This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (l/min): 538
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Pistol Grip
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2 and 3
Pad Face: Roloc
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.1
Rated Power (hp): 0.2
Sound Pressure/Power Db(A): 79.8 / 90.8
Special Features: Compact
Speed Setting: Dual speed
Vibration Level (m/s2): 1.3
Warranty: 1-year
Similar IR
- 3103XPA
$165.30
MINI SURFACE PREP SANDER
IR 3103XPA
IR 3103XPA
Mini Surface Prep Air Sander, 15000 RPM, 0.2HP, 2" & 3" Pad, Handle Exhaust
This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places. With smooth power delivery and durable casing, this tool is ready to work.Features And Benefits
- Variety: With a 2-speed gearbox and variable speed options, you can adjust your tool for your application as needed.
- Comfort: This lightweight, pistol grip design is engineered for balance and one-handed precision.
- Access: Thanks to its ergonomic design and compact size, this tool can be used in even the tightest spaces.
- Durable: Ball-bearing construction enhances durability and smooth power delivery.
Product Application and Uses: This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (l/min): 538
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Pistol Grip
Duty Rating: Standard Duty
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Mounting Type: Arbor
Pad Diameter or Size (in): 2 and 3
Pad Face: Roloc
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.1
Rated Power (hp): 0.2
Sound Pressure/Power Db(A): 79.8 / 90.8
Special Features: Compact
Speed Setting: Dual speed
Vacuum: None
Vibration Level (m/s2): 1.3
Warranty: 1-year
Wheel Diameter (in): 2
$235.00
SANDING PAD
IR 311A-825-6
IR 311A-825-6
6" Dual Action Backing Pad, Standard Duty, Vinyl for Ingersoll Rand 311 Series Air Sander
Product Application and Uses: For use with Ingersoll Rand 311A and 311G air sanderArbor/Collet: 5/16"-24 Thread
Max Free Speed (rpm): 10000
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 6
Pad Face: Adhesive
For Use With
- 311A
- 311G
$25.00
MOTOR COVER ASSEMBLY
IR 311A-A109
IR 311A-A109
Motor Cover Assembly for Ingersoll Rand 311A Angle Sander
$19.00
Sander
IR 311A
IR 311A
Dual Action Angle Air Sander, 6" Adhesive Pad, 12,000 RPM, 0.25 HP, Side Exhaust
This quality air sander features a 6-inch pad that’s great for feather edging, metal preparation, and finish work on body filler. Its dual-action pad motion produces swirl-free finishes.Features And Benefits
- The Dual Action Quiet Air Sander comes with a built-in silencer.
- A built-in, adjustable regulator allows for positive speed control, while its compact size lets you access tight, hard-to-reach spaces.
- Durable ball bearing construction improves balance, reduces vibration, and ensures a longer life.
- Motor delivers 0.25 HP and 12,000 RPM and is great for feather edging, metal preparation, and finish work on body filler. Its dual-action pad motion produces swirl-free finishes.
Includes: Bare Tool
Product Application and Uses: Feather Edging, Metal Preparation, Finish Work On Body Filler
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Type: None
Duty Rating: Maintenance Duty
Exhaust Location: Side
Housing Material: Aluminum+Bushing
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Motor: Air Gear Motor
Number of Vacuum Holes: 0
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 9.76
Product Width (in): 12
Product Height (in): 5
Product Weight (lb): 4.2
Rated Power (hp): 0.25
Shroud Style: No
Sound Pressure/Power Db(A): 84.3 / 95.3
Special Features: Quiet, Low vibration
Speed Setting: Variable Speed
Standards/Certifications: Ce
Vacuum: None
Vibration Level (m/s2): 32.3
Warranty: 1-year
Similar IR
- 4151
- 4152
- 311G
$105.45
REGULATOR ASSEMBLY
IR 311A-A165
IR 311A-A165
Regulator Assembly for Ingersoll Rand 311A Angle Sander
$15.00
VALVE STEM
IR 311A-A161
IR 311A-A161
Valve Stem for Ingersoll Rand 311A Angle Sander
For Use With- 311A
$15.00
DRIVE PLATE ASSEMBLY
IR 311A-A800
IR 311A-A800
Drive Plate Assembly for Ingersoll Rand 311A Angle Sander
$15.00
RANDOM ORBITAL SANDERKIT
IR 3128KA
IR 3128KA
Mini Air Random Orbital Sander 71-Piece Kit, 3" Hook & Loop Pad, 15,000 RPM, 0.2HP, Pistol
The mini random orbital sander is the ideal sander for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish. 71-piece kit includes 3" hook and loop backing pad and 180, 220, 320 and 800 grits aluminum oxide pads.Features And Benefits
- Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
- Comfort: At only 1 lb., this sander is extremely lightweight, reducing user fatigue.
- Access: This ergonomic sander is able to fit in the tightest of spaces.
- Usage: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
- 71-piece Kit Includes: 3" hook & loop backing pad and 180, 220, 320 and 800 grits aluminum oxide pads.
Includes: 3128XPA Mini RO Sander, 3" Hook & Loop backing Pad and 180, 220, 320 and 800 grits aluminum oxide pads.
Product Application and Uses: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Color: Grey
Configuration/Handle Type: Pistol Grip
Dust Collection Port Size: No sleeve
Dust Collection Type: None
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Motor: Air Gear Motor
Number of Power Settings: 2
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 5.7
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.3
Rated Power (hp): 0.2
RPM Setting 1: 12000
Sound Pressure/Power Db(A): 79.6 / 90.6
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year
$188.10
MINI RANDOM ORBITAL
IR 3128XPA
IR 3128XPA
Mini Air Random Orbital Sander, 3" Hook & Loop Pad, 15,000 RPM, 0.2HP, Pistol
The mini random orbital sander is the ideal sander for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.Features And Benefits
- Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
- Comfort: At only 1 lb., this sander is extremely lightweight, reducing user fatigue.
- Access: This ergonomic sander is able to fit in the tightest of spaces.
- Usage: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
- Also available in the 3128KA 71-piece Kit which includes a 3" hook & loop backing pad and 180, 220, 320 and 800 grits aluminum oxide pads.
Product Application and Uses: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Color: Grey
Configuration/Handle Type: Pistol Grip
Dust Collection Port Size: No sleeve
Dust Collection Type: None
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Motor: Air Gear Motor
Number of Power Settings: 2
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 5.7
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.3
Rated Power (hp): 0.2
RPM Setting 1: 12000
Sound Pressure/Power Db(A): 79.6 / 90.6
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year
$159.60
MINI POLISHER KIT
IR 3129KA
IR 3129KA
Mini Air Polisher and Buffer 4-Piece Kit, 6,000 RPM, 0.3 HP, 3" Hook & Loop Pad, Pistol
This mini polisher excels in buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish. Performing at a speed of 6,000 RPM, this tool delivers as well as ones twice its size. Kit includes a 3" Hook and Loop Backing Pad and (3) Foams.Features And Benefits
- Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
- Comfort: This tool’s composite housing and ergonomic textured grip provides user comfort, and its lightweight pistol grip design is engineered for balance and one-handed operation.
- Access: Small and lightweight, this tool can fit into tough spaces with ease.
- Usage: This mini polisher excels in buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish.
- Kit Includes: 3129XPA Mini Polisher/Buffer, 3" Hook and Loop Backing Pad and (3) Foams
Includes: 3129XPA Mini Polisher/Buffer, 3" Hook and Loop Backing Pad and (3) Foams
Product Application and Uses: Buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Power Settings: 2
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.1
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.4
Rated Power (hp): 0.3
Sound Pressure/Power Db(A): 83.5 / 94.5
Speed Setting: Variable Speed
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 1.3
Warranty: 1-year
$335.00
