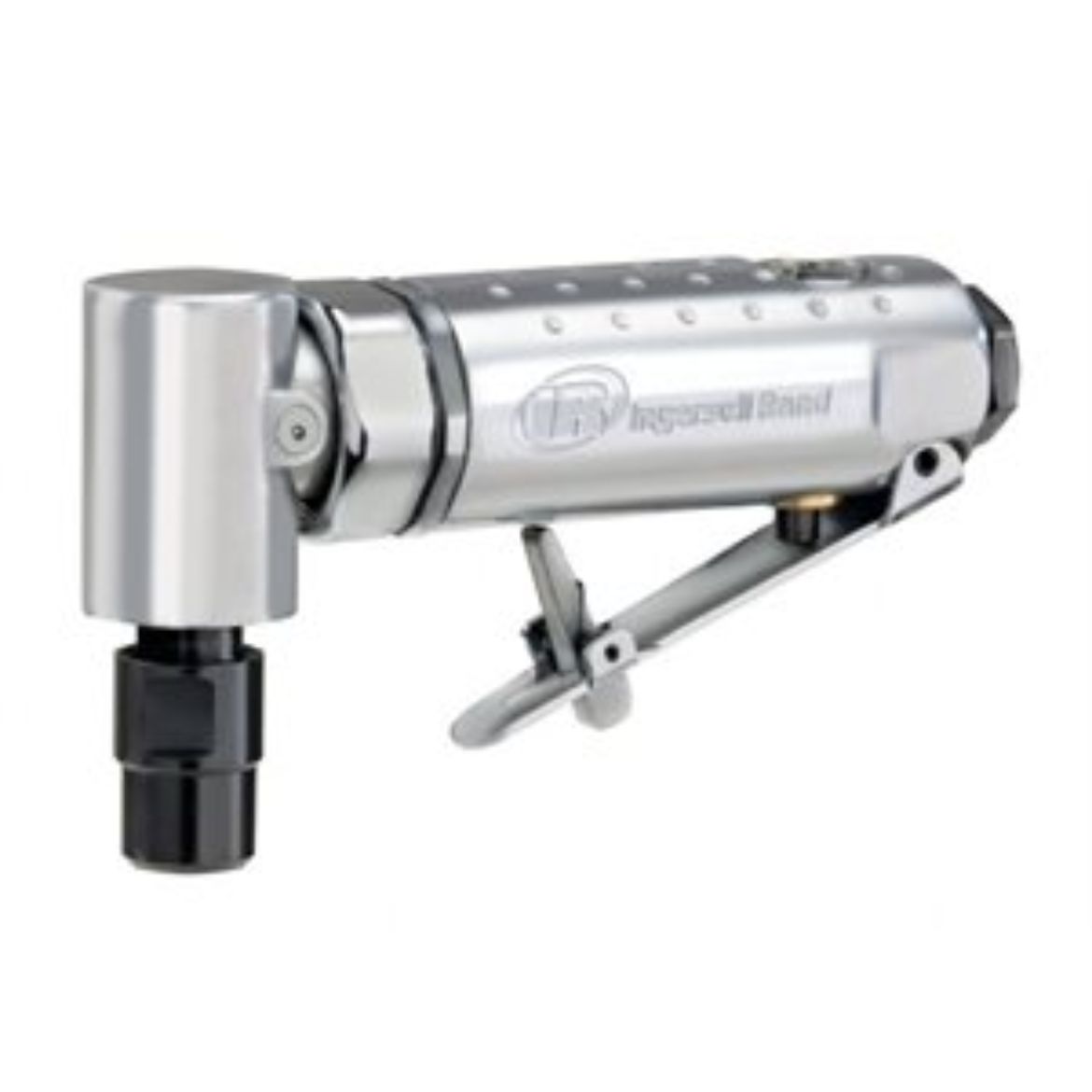

IR 301B
Angle Air Die Grinder, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
Description: As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!
Features And Benefits:
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" collet and a integral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
Product Application and Uses:
Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
- Includes: Tool, 1/4" collet, (2) Wrenches and Manuals
- Actuation/Throttle Type/Switch Location: Bottom
- Actuation/Throttle Type/Switch Type: Lever
- Air Consumption @ Load (cfm): 24
- Air Consumption @ Load (l/min): 680
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 1/4"
- Average Air Consumption (cfm): 6
- Average Air Consumption (l/min): 170
- Bearing Type: Ball Bearing
- Configuration/Handle Type: Right Angle
- Duty Rating: Medium Duty
- Grinder Type: Die Grinder
- Handle Material: Aluminum
- Height Over Spindle (in): 3
- Housing Material: Aluminum
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 21000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/8
- Power Source: Air Powered
- Product Length (in): 5.27
- Product Width (in): 3.5
- Product Height (in): 2
- Product Weight (lb): 1.02
- Rated Power (hp): 0.25
- Right Angle Length (in): 2
- Right Angle Length (mm): 51
- Side to Center Distance (in): 0.54
- Side to Center Distance (mm): 14
- Sound Pressure/Power Db(A): 91.8 / 104.8
- Speed Setting: Variable Speed
- Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
- Vibration Level (m/s2): 5.9
- Warranty: 1-year
- Complete Tool Kits: 301BK
- Complete Tool Kits: 301B2MK
- Complete Tool Kits: 301B3MK
- Complete Tool Kits: 301B32MK
- Lubrication: 10G
- Lubrication: 10P
- Parts: 02A-VAR-KIT
- Parts: 301-42-4
