Angle Die Grinder Kit

IR 302BK

Angle Air Die Grinder 2" & 3" Pad Kit, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Description: Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polish-ing and grinding. Kit includes 2" and 3" Quick Change Backing Pads, a Variety of 2" and 3" Quick Change Sanding Disks, 2" and 3" Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Features And Benefits:

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with "piped away" exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.

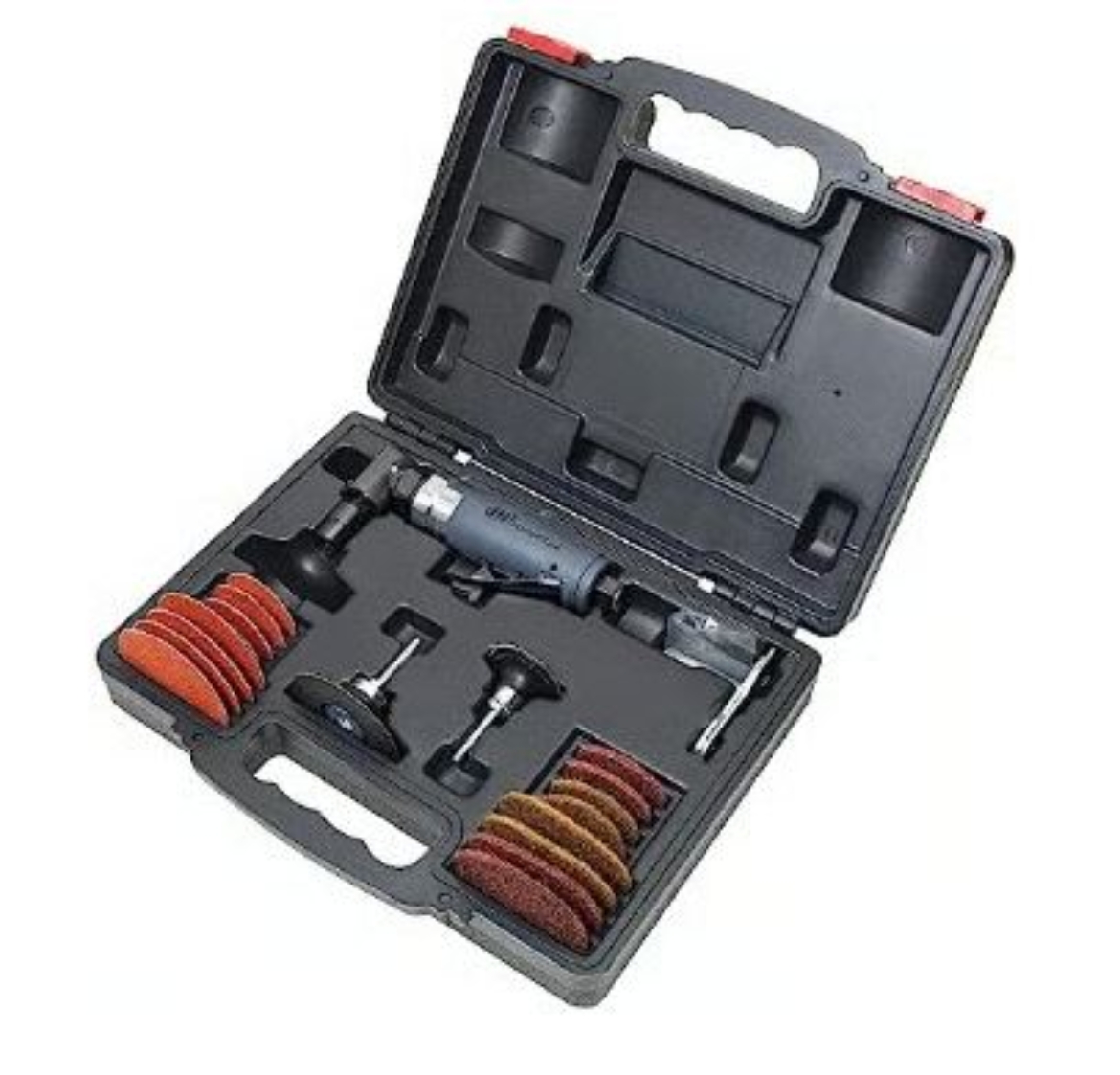

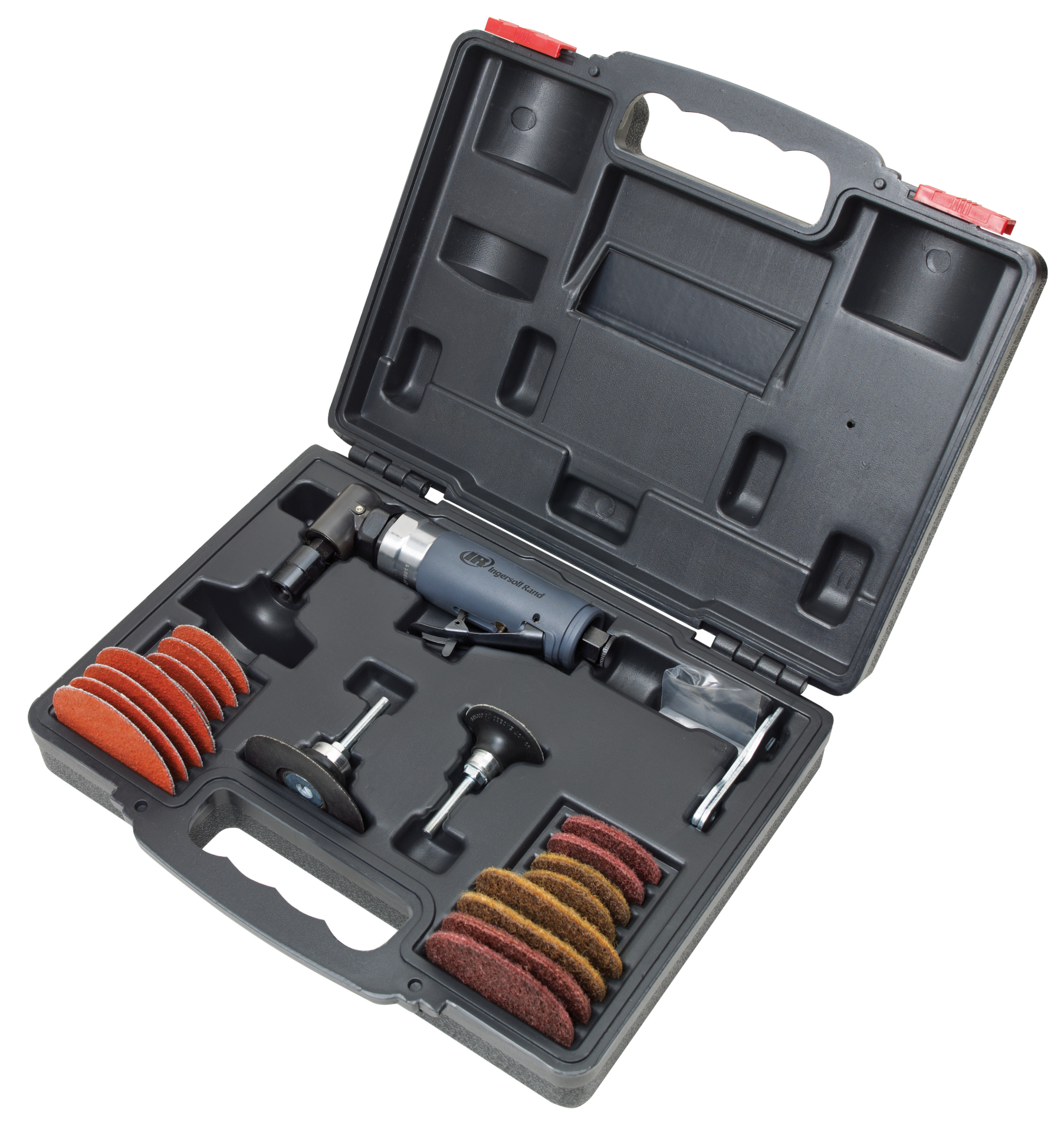

• Kit Includes: 2" and 3" Quick Change Backing Pads, a Variety of 2" and 3" Quick Change Sanding Disks, 2" and 3" Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Product Application and Uses:

Deburring, Grinding, Polishing, Porting, Weld Breaking

• Includes: Right Angle 302B Die Grinder, 2" and 3" Quick Change Backing Pads, A Variety of 2" and 3" Quick Change Sanding Disks, 2" and 3" Quick Change Coarse and Medium Polishing Disks, Blow-molded Carrying Case, 1/4" Collet.
• Actuation/Throttle Type/Switch Location: Bottom
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 23
• Air Consumption @ Load (l/min): 651
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Average Air Consumption (cfm): 6
• Average Air Consumption (l/min): 170

• Bearing Type: Ball Bearing

• Configuration/Handle Type: Right Angle
• Duty Rating: Medium Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Handle Material: Composite
• Height Over Spindle (in): 3
• Housing Material: Aluminum
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 20000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Pad Diameter or Size (in): 2
• Pad Diameter or Size (in): 3
• Power Source: Air Powered
• Product Length (in): 6.93

• Product Width (in): 3.74
• Product Height (in): 2.36
• Product Weight (lb): 1.28
• Rated Power (hp): 0.33
• Right Angle Length (in): 2
• Right Angle Length (mm): 51

• Side to Center Distance (in): 0.53
• Side to Center Distance (mm): 13

• Sound Pressure/Power Db(A): 90.0 / 101.0
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9

• Vibration Level (m/s2): 5.5
• Vibration Uncertainy K* (m/s2): 1.5
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Parts: 03A-VAR-KIT
• Parts: 301-K591A
