IR 301BK
Angle Air Die Grinder Stone Kit, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes 10 mounted grinding tips and a Blow-molded case.
Features And Benefits
- Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
- Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
- Strong: Aluminum housing withstands tough operating conditions.
- Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
- Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
- Kit Includes: 10 mounted grinding tips and a Blow-molded case.

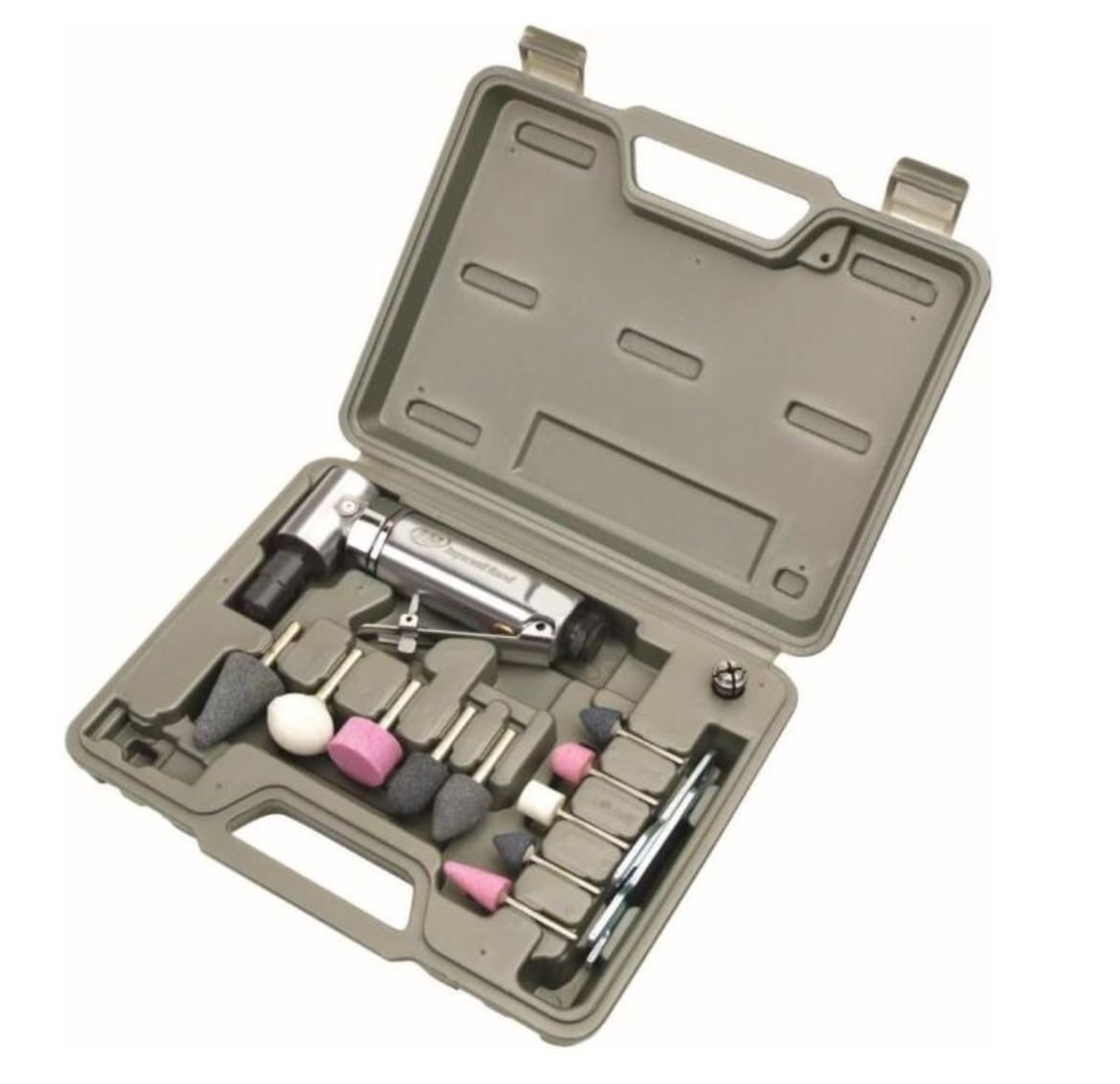

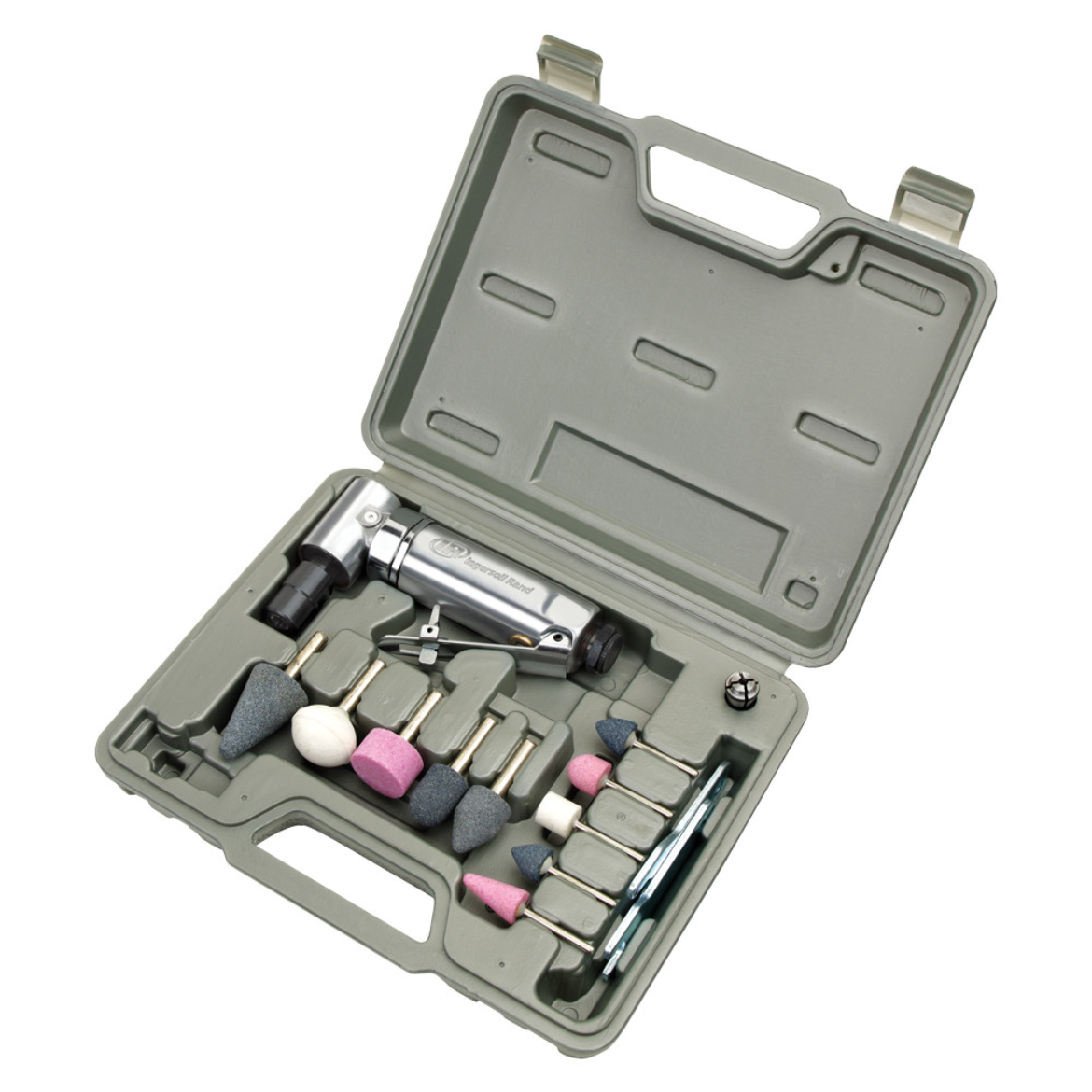

Includes: 301B Angle Die Grinder, 10 mounted grinding tips, Blow-molded case, 1/4" collet, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Wheel Type: Burr
