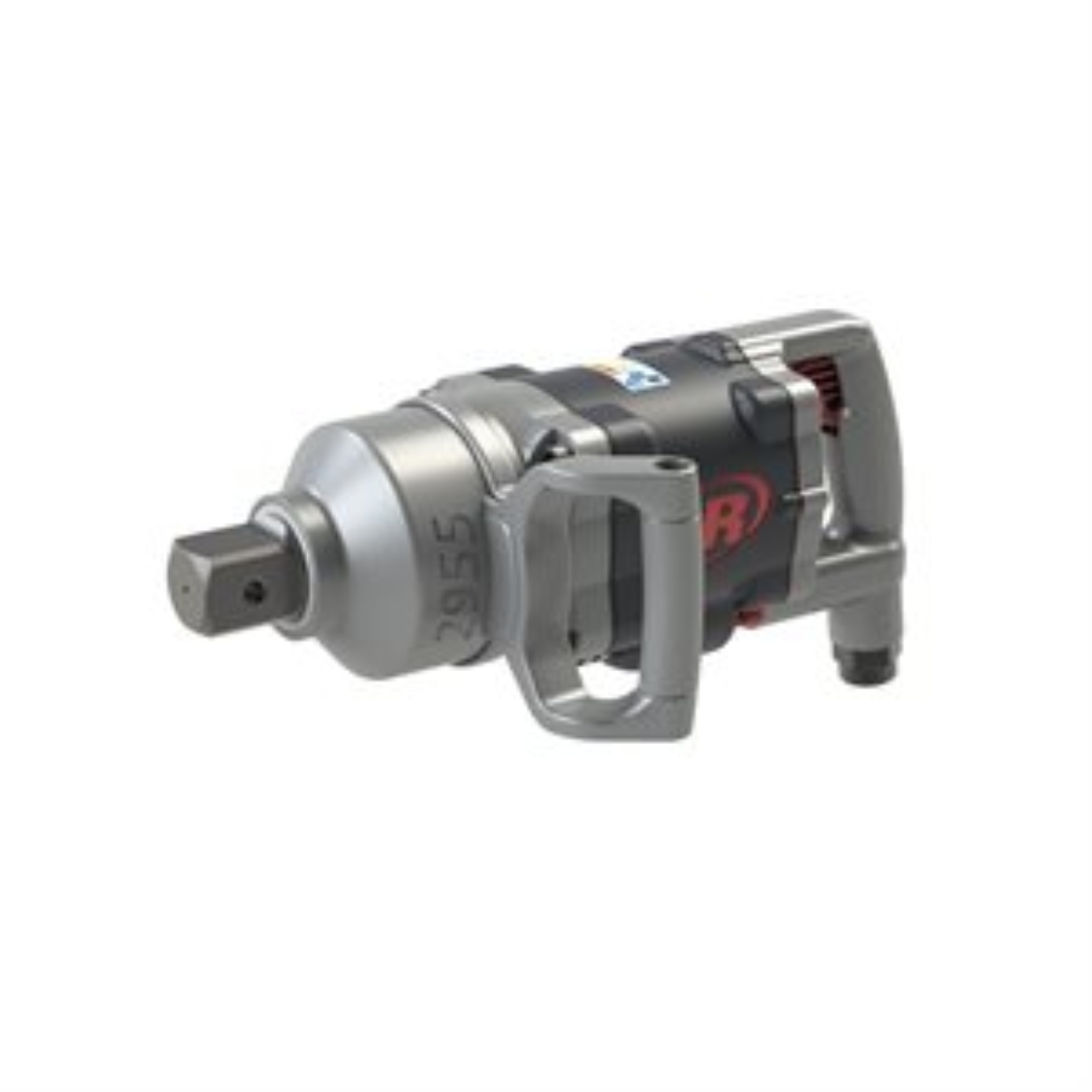

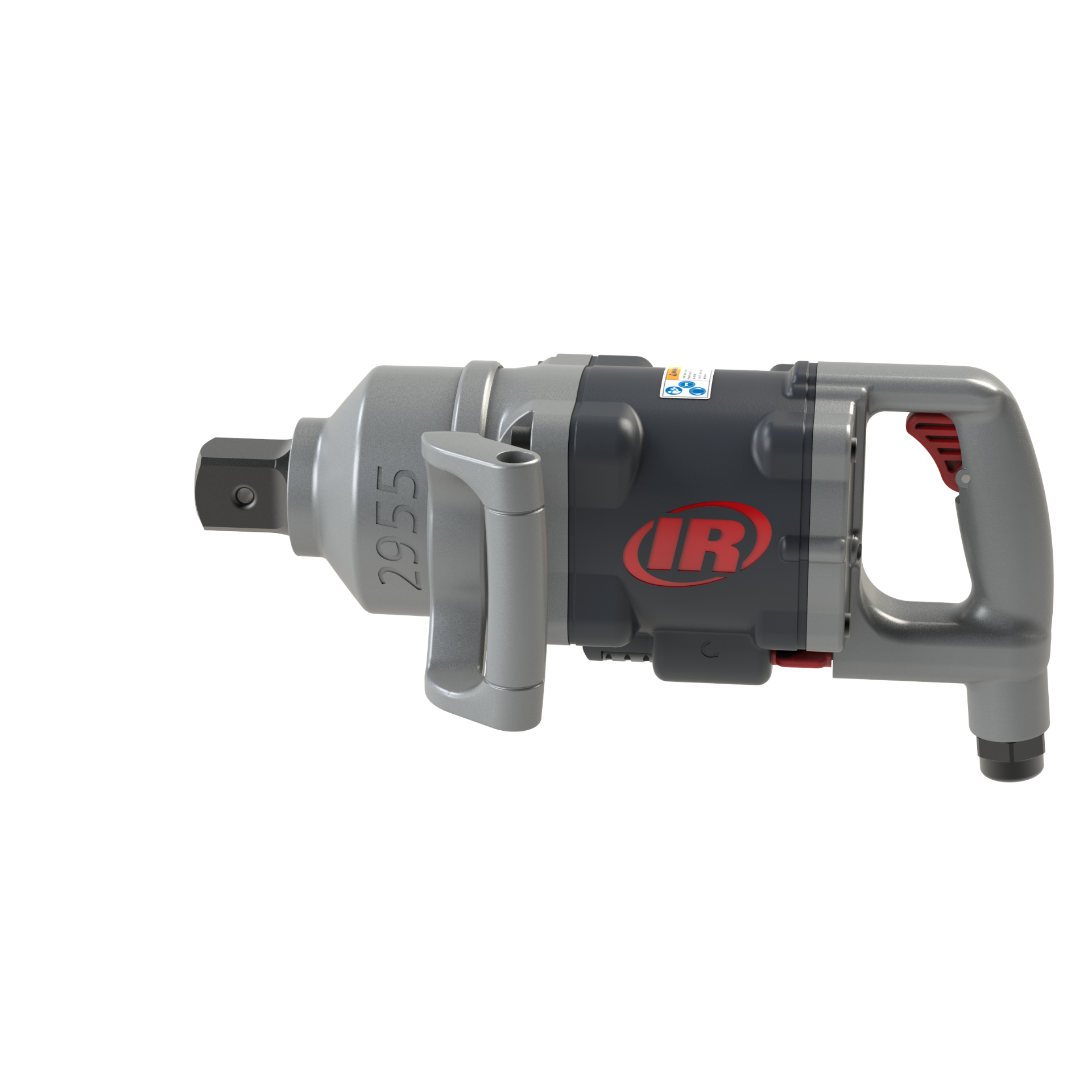

IR 2955B2
1-1/2" Air Impact Wrench, Heavy Duty, 4500 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle Inside Trigger
This powerful and innovative 1-1/2” square drive Impact Wrench delivers durability at an unmatched economic value. The 2955 Series delivers a competition leading 4,500 ft-lb of Max Reverse torque powered by Ingersoll Rand’s finely tuned cold forged twin-hammer impact mechanism. The innovative auxiliary handle allows the tool to be configured for the operator or application. The handle is fully adjustable to any orientation around the hammer case body allowing the tool to reach into confined bolt locations or fit to the most user-friendly position, reducing operator fatigue. Cold forged twin hammers, steel endplates and steel housing deliver unmatched durability in the most rugged applications. The 2955 Series is engineered with Ingersoll Rand’s legendary impact mechanism that makes maintenance simple for long life and low total cost of ownership. The 2955 Series is proudly assembled in our Southern Pines, NC facility with domestic and globally sourced components ensuring quality and fast, dependable delivery.
Features And Benefits
- 4,500 Ft-lbs of torque for tough applications, neutral bias air motor
- 360 Degree side-handle for added versatility when working on pipe flange applications
- Steel hammer case housing and aluminum handle provides durable design for industrial environments
- Cold Forged Twin Hammer mechanism
- Steel Endplates provide wear resistance
- 6-vane motor with optimized air flow
- Assembled in the USA of domestic and global components ensures quality, and fast delivery
Includes: Bare Tool
Product Application and Uses: Oil and Gas Repair and Maintenance, Dredging Companies, Mining Equipment Repair and Maintenance, Foundry Shops, River Dams, Hydro and Thermal Power Plants
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 95
Air Consumption @ Load (l/min): 2690
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.2 / 109.2
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 103.3 / 114.3
Max Bolt Diameter (in): 1 1/2
Max Free Speed (rpm): 3300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4500
Max Torque (in-lb): 53990
Max Torque (nm): 6100
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Width (in): 5.3
Product Height (in): 8.1
Product Weight (lb): 35.3
Recommended Forward Torque Range (ft-lb): 1601-3762
Recommended Forward Torque Range (in-lb): 19206-45139
Recommended Forward Torque Range (nm): 2170-5100
Recommended Reverse Torque (ft-lb): 1601-3762
Recommended Reverse Torque (nm): 2170-5100
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 2.7
Side to Center Distance (mm): 69
Special Features: 360 degree adjustable handle
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 18
Warranty: 1-year
