Die Grinder, 0.33 Hp, 25K, Straight, 1/4in C

IR 308B

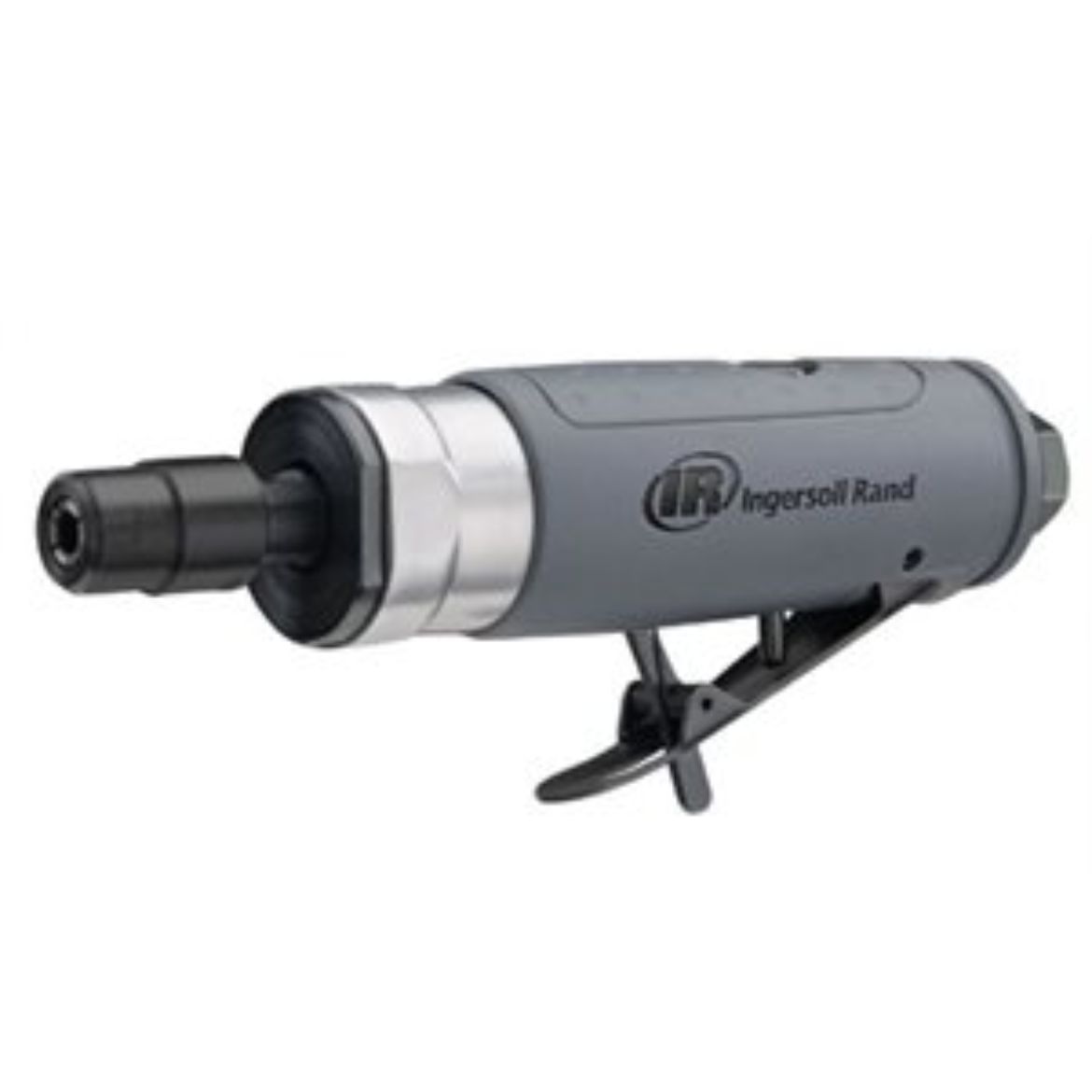

Air Die Grinder, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Description: Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Also available in the 308BK kit which includes 4 burrs.

Features And Benefits:

• Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Piped Away Exhaust Ready: These die grinders are compatible with "piped away" exhaust kits, so you can transfer exhaust away from you and your workspace.
• Rear exhaust directs air away from the operator.
• Also available in the 308BK kit which includes 4 burrs and a blow-molded carrying case.

Product Application and Uses:

Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.

• Includes: 308B Pneumatic Straight Die Grinder, 1/4" Collet, (2) Wrenches.
• Actuation/Throttle Type/Switch Location: Top, Bottom (straight tool)
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 28
• Air Consumption @ Load (l/min): 793
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Average Air Consumption (cfm): 7
• Average Air Consumption (l/min): 198

• Bearing Type: Ball Bearing

• Color: Grey
• Configuration/Handle Type: Straight
• Duty Rating: Medium Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Housing Material: Composite
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 25000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 6.85

• Product Width (in): 4
• Product Height (in): 2.5
• Product Weight (lb): 1.02
• Rated Power (hp): 0.33

• Side to Center Distance (in): 0.71
• Side to Center Distance (mm): 18

• Sound Pressure/Power Db(A): 92.0 / 103.0
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9

• Vibration Level (m/s2): 3.7
• Warranty: 1-year

• Accessories: 814TIN

• Complete Tool Kits: 308BK

• Lubrication: 10G
• Lubrication: 10P
• Parts: 301-69A
• Parts: 3102-42-4
