IR 307BK
Air Die Grinder Stone Kit, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust
Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Kit includes 10 mounted grinding tips and a blow-molded case.
Features And Benefits
- Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
- Front exhaust: Helps keep work surface clean.
- Kit includes 10 abrasive stones, and a blow-molded carrying case.

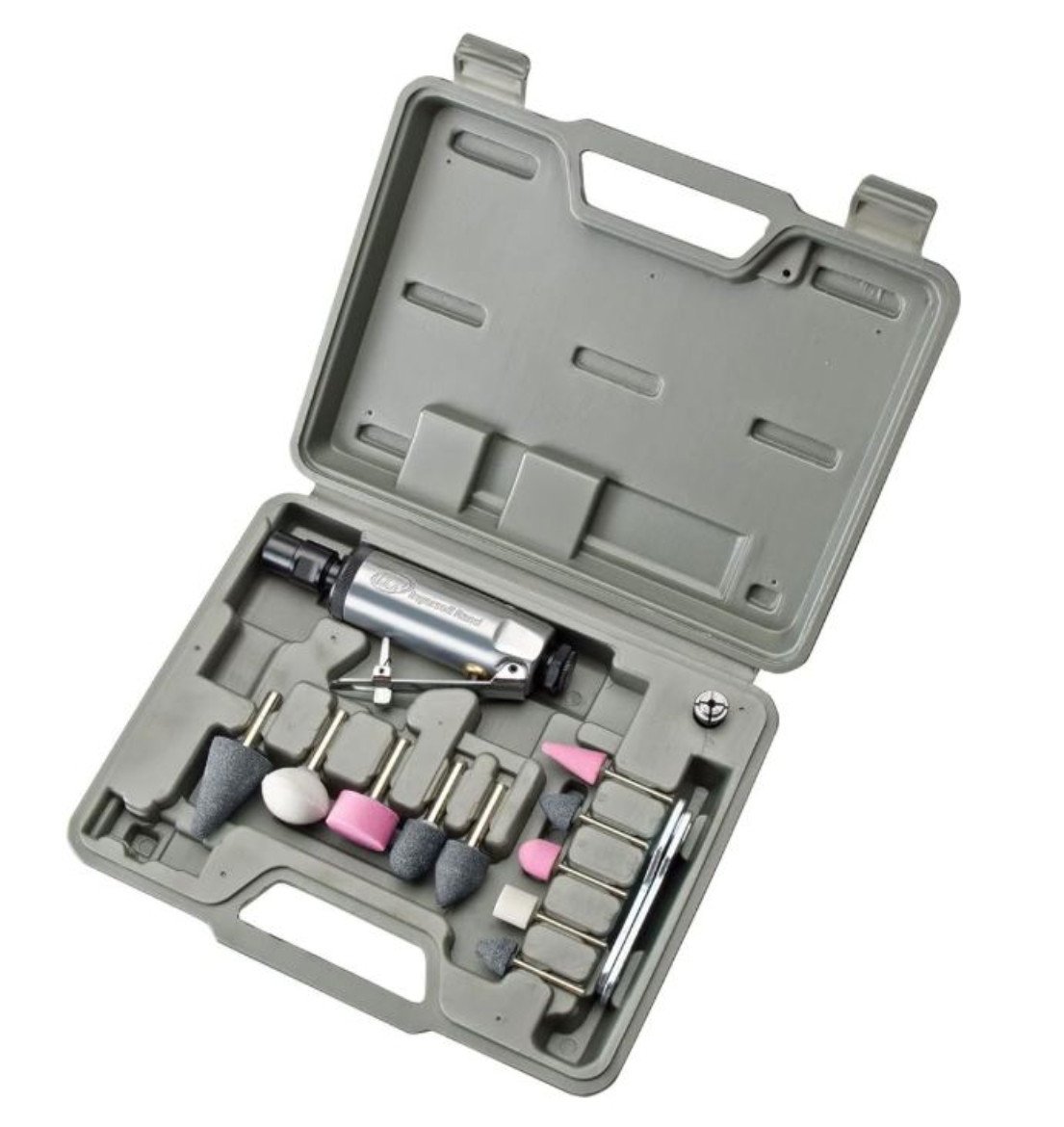

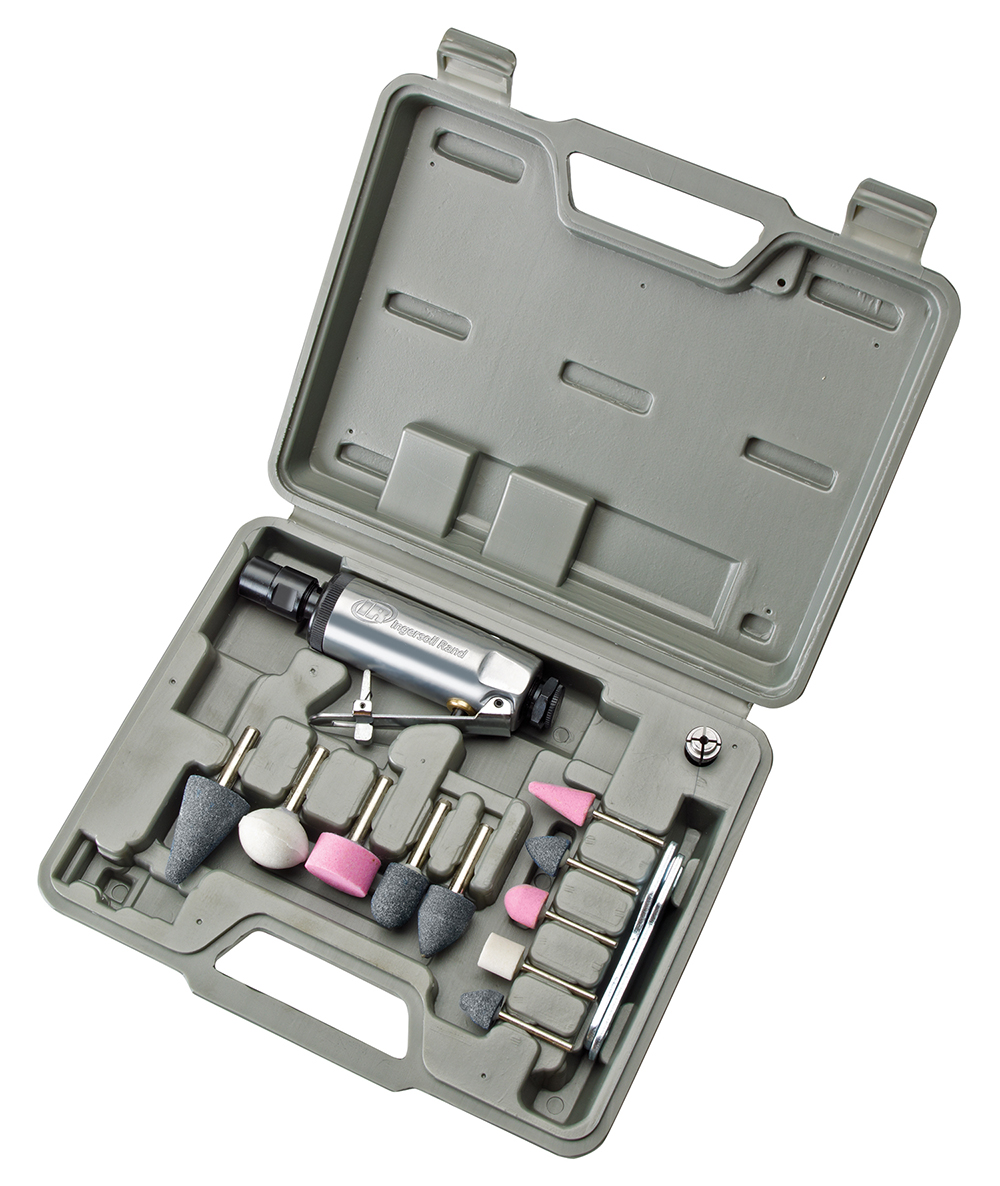

Includes: 307B Air Die Grinder, (10) Abrasive Stones, a Blow-molded Case, (2) Wrenches, 1/4" Collet.
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr
