Impactool

IR 2940B2

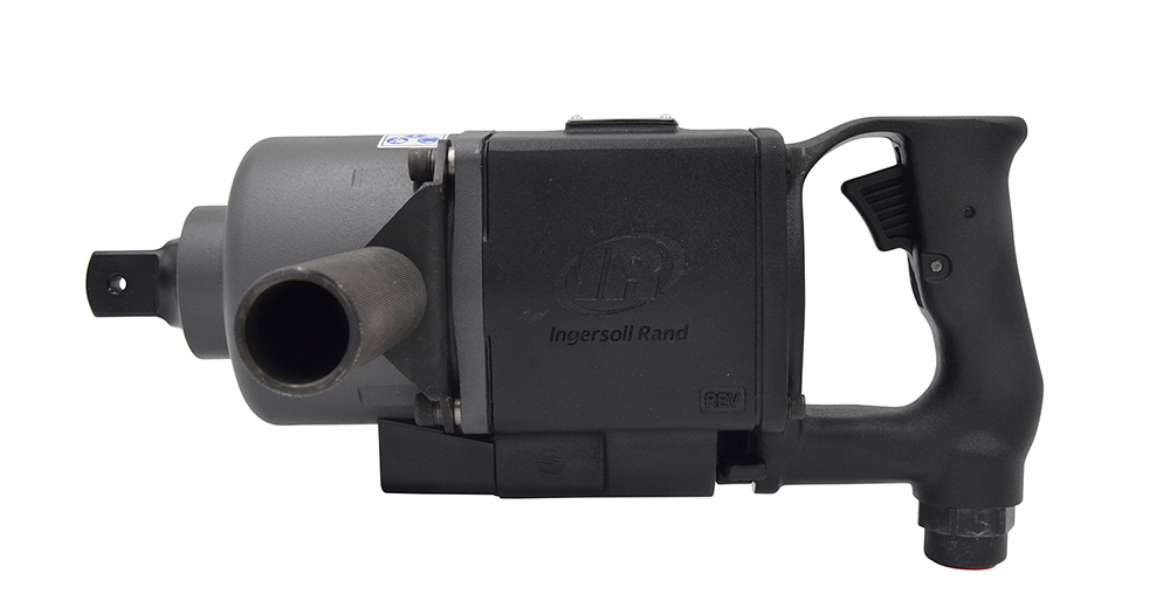

1" Air Impact Wrench, Industrial Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

Description: Find the top impact tools in the industry. The 2940 Series from Ingersoll Rand has over 100 years of legacy behind it.

Features And Benefits:

• 2,000 ft.-lbs. of maximum torque
• Cast iron hammer case and metal housing that will withstand harsh conditions and repeated drops
• Finely Tuned twin hammer impact mechanism delivers more balanced blows that reduces vibration and increases durability
• Bronze end-plate that increases durability and is corrosion resistant
• Pressure-fed mechanism lubrication
• Reverse Bias Motor and Integral muffler

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 850

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Industrial Duty

• End Plates: Bronze
• Exhaust Location: Bottom

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1-3/8
• Max Free Speed (rpm): 5000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 10.2

• Product Width (in): 22.1
• Product Height (in): 6.5
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170
• Retainer Type: Thru-hole

• Side to Center Distance (in): 11.1
• Side to Center Distance (mm): 282

• Sound Pressure/Power Db(A): 94.8 / 105.8
• Standards/Certifications: CE, Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 17.8
• Vibration Uncertainy K* (m/s2): 3.4
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-A703
• Parts: 2940-TK3
