IR 308BK
Air Die Grinder Burr Kit, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust
Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Kit includes 4 burrs.
Features And Benefits
- Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
- Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
- Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
- Safety: Integral safety-lock throttle lever prevents accidental start up.
- Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
- Rear exhaust directs air away from the operator
- Kit Includes: 4 burrs and a blow-molded carrying case.

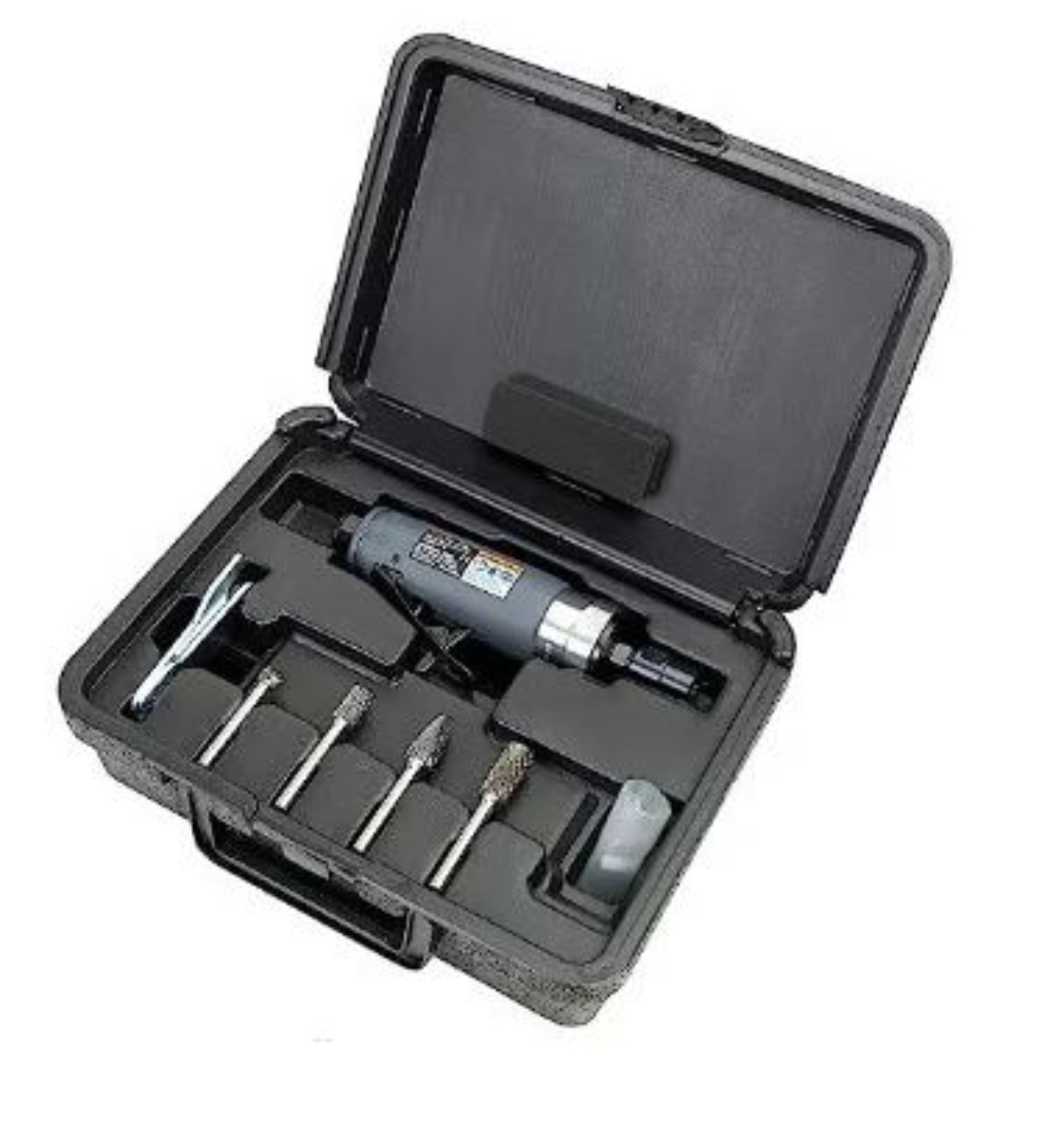

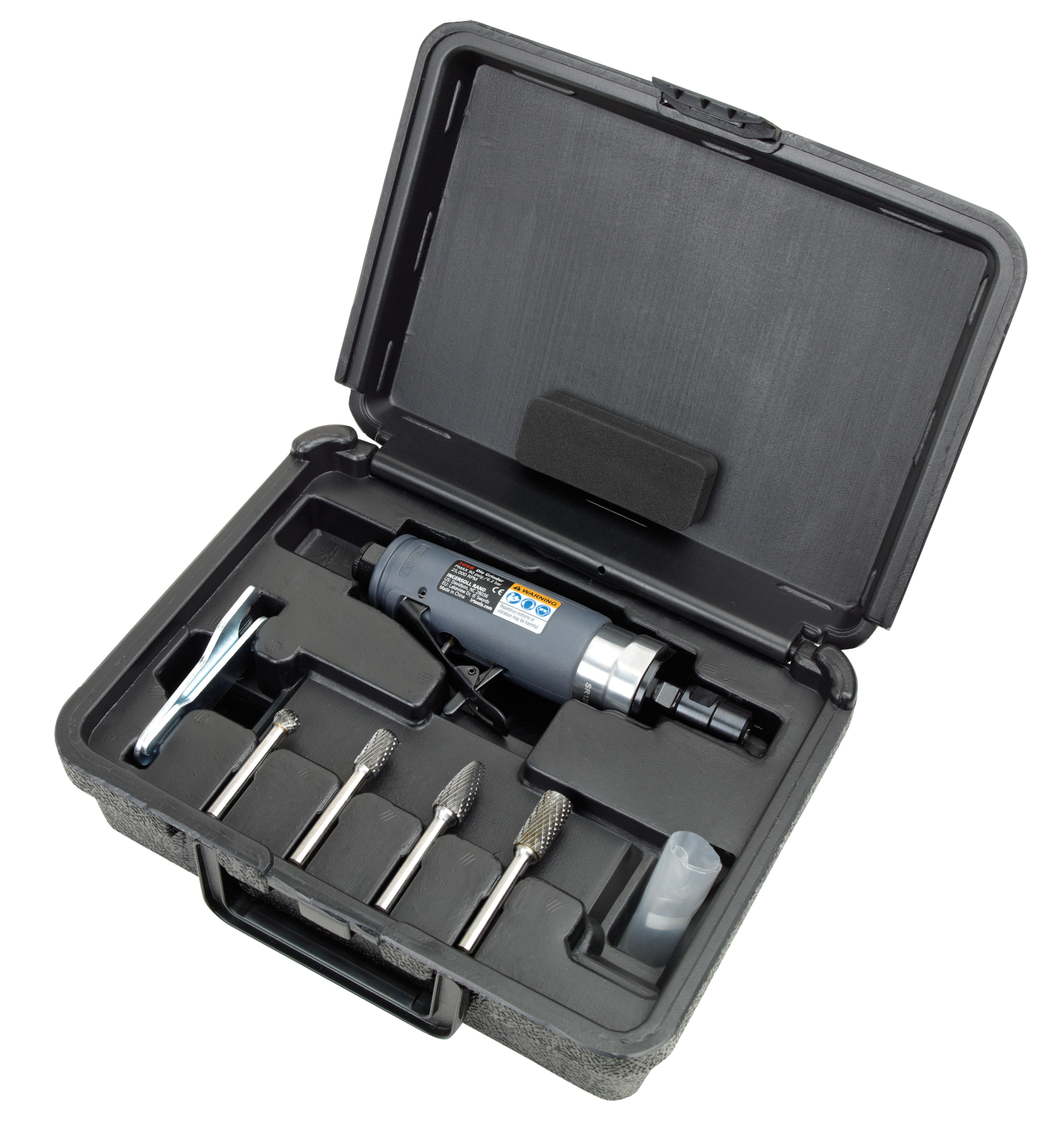

Includes: 308B Straight Air Die Grinder, 4 Burrs (Cylindrical bit super cut burr, Cylindrical bit super cut burr, 3/8" ball shaped super cut burr, Tree shaped super cut burr), a Blow-molded Carrying Case, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year
Wheel Type: Burr
