INGERSOLL-RAND IR TOOL S12880
INGERSOLL-RAND IR TOOL S12880 branded products

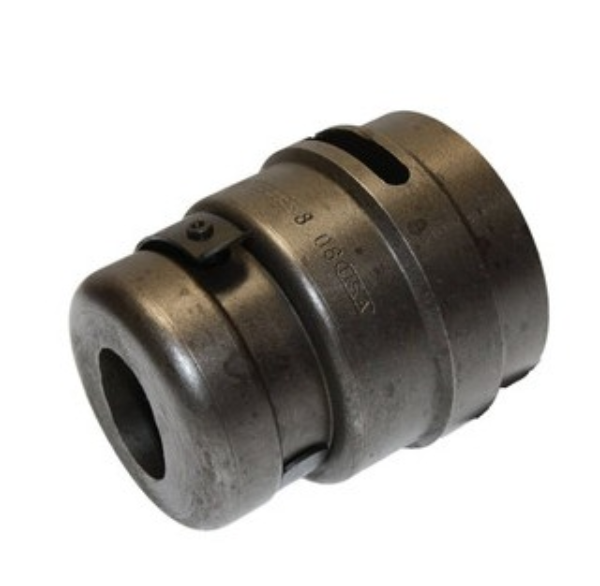

QUICK CHANGE RETAINER FITS GRVD, QTY 1
IR HH1-1191
IR HH1-1191
QUICK CHANGE RETAINER FITS GRVD, QTY 1 $142.00
1" FLAT CHISEL - 18" .58 HX SHK OV COL, QTY 1
IR HH1-214F-18
IR HH1-214F-18
1" Flat Chipping Hammer Chisel Steel - 18"L Hex Shank Oval Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Features And Benefits
- Chipping hammer steels are available with round or hex shanks and oval or round collars.
Includes: (15) Chipping Hammer Chisel Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand 2DA1SA, 3DA1SA, 4DA1SA, 1A1SA, 2A1SA, 3A1SA, 4A1SA chipping hammers
Chisel Edge Style: Flat
Chisel Style: Flat
Collar Thickness (in): 0.813
Collar Type: Oval
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 15.625
Product Length (in): 18
Product Width (in): 1
Product Weight (lb): 2.5
Shank Length (in): 2.375
Shank SIze (in): 0.58
Shank Type: Hex
For Use With
- 1A1SA
- 2A1SA
- 2DA1SA
- 3A1SA
- 3DA1SA
- 4A1SA
- 4DA1SA
$53.00

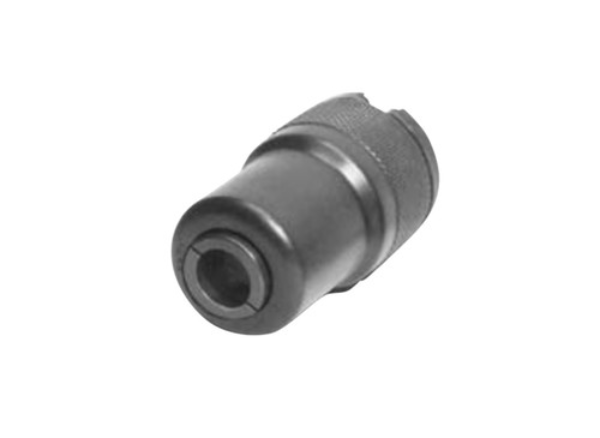

QUICK CHANGE RETAINER FITS THD, QTY 1
IR HHW1-3450
IR HHW1-3450
QUICK CHANGE RETAINER FITS THD, QTY 1 $290.00
CASE
IR ILA578A1-A727
IR ILA578A1-A727
Aluminum Hammer Case Assembly Service Part for Ingersoll Rand 5980 Series Impact Wrench
For Use With- 5980A1
$3,000.00
JACKHAMMER 7/8 X 3 1/4 50896398
IR JH40C1
IR JH40C1
Jack Hammer, 7/8 x 3-1/4" Hex Shank, 2.63" Stroke
The JH40 Series jackhammer sports a hole capacity of up to 18 feet deep and 2 inches across, and is tough enough to blast away hard rock. Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.Features And Benefits
- Wet or Dry Drilling: Take the JH40 to any environment you need to work in.
- Capacity: Hole capacity of up to 18 feet deep and 2 inches across.
- Powerful: With 2000 blows per minute, the JH40 Series jackhammer lives up to the strength and power our customers have come to expect from Ingersoll Rand tools.
- Applications: Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.
Product Application and Uses: Blasting holes, industrial work, and excavation projects.
Air Consumption @ Load (cfm): 115
Air Consumption @ Load (l/min): 3257
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2000
Bore Diameter (in): 2.5
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side
Max Hole Depth (ft): 18
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 22.5
Product Weight (lb): 61
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 2.63
Warranty: 1-year
Similar IR
- JH40C2
- JH40C3
$5,350.00
JACKHAMMER 7/8 X 4 1/450780402
IR JH40C2
IR JH40C2
Jack Hammer, 7/8 x 4-1/4" Hex Shank, 2.63" Stroke
The JH40 Series jackhammer sports a hole capacity of up to 18 feet deep and 2 inches across, and is tough enough to blast away hard rock. Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.Features And Benefits
- Wet or Dry Drilling: Take the JH40 to any environment you need to work in.
- Durable: Tough enough for any workspace, the JH40 will become a trusted companion anytime you need a rugged jackhammer on the job.
- Powerful: The JH40 Series jackhammer lives up to the strength and power our customers have come to expect from Ingersoll Rand tools.
Product Application and Uses: Blasting holes, industrial work, and excavation projects.
Air Consumption @ Load (cfm): 115
Air Consumption @ Load (l/min): 3257
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2000
Bore Diameter (in): 2.5
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side
Max Hole Depth (ft): 18
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 22.5
Product Weight (lb): 61
Shank SIze (in): 7/8 x 4-1/4
Shank Type: Hex
Stroke Length (in): 2.63
Warranty: 1-year
Similar IR
- JH40C1
- JH40C3
$3,135.00
ROCKDRILL 7/8 X 4 1/4
IR JRD30-B
IR JRD30-B
Rock Drill, 7/8 x 4-1/4" Hex Shank, 1.44" Stroke
The JRD30 Series rock drill is one of our most versatile units. Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.Features And Benefits
- Easy Access: The JRD30 Series is easy enough to maneuver in tight spaces, and light enough to use when the occasion calls for horizontal drilling.
- Wet Drilling Capabilities: Take this drill anywhere it needs to go - but wet drilling environments in particular can extend the life of your tool.
- Capacity: Can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
- Lightweight: This rock drill is lightweight but powerful, and durable enough to stand up to the toughest conditions.
Product Application and Uses: Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
Air Consumption @ Load (cfm): 73
Air Consumption @ Load (l/min): 2067
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2700
Bore Diameter (in): 2.38
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Front
Max Hole Depth (ft): 10
Max Hole Diameter (in): 1.5
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 19.5
Product Weight (lb): 29
Shank SIze (in): 7/8 x 4-1/4
Shank Type: Hex
Stroke Length (in): 1.44
Warranty: 1-year
Similar IR
- JRD30-A
- JRD50-A
$2,322.75
COLLET BODY (49450-39)
IR LG2-290
IR LG2-290
Collet Body for Ingersoll Rand M2 Series Grinder
Product Application and Uses: For use with Ingersoll Rand M2X and M2H Model GrindersFor Use With
- M2H180RG4
- M2H200RG4
- M2H250RG4
- M2X075RG4
- M2X180RG4
- M2X200RG4
- M2X250RG4
$91.00
MOTOR
IR M004RVR000AR3
IR M004RVR000AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 16000 RPM, 0.4 HP, 0.57 NM, Reversible
Features And Benefits- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 19
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 16000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.4
Max Torque (in-lb): 5.0
Max Torque (nm): 0.57
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.06
Rated Power (hp): 0.4
Rated Power (kW): 0.3
Reversible: Reversible
Speed at Max Power (rpm): 8000
Standards/Certifications: ATEX
Starting Torque (ft-lb): 0.3
Starting Torque (nm): 0.43
Warranty: 1-year
$1,583.40
MOTOR
IR M007RVR374BR6
IR M007RVR374BR6
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 47 RPM, 0.61 HP, 274 NM, Reversible
Features And Benefits- Safety: Meets ATEX Standards
Product Application and Uses: Limited to 224 lb-ft (304) Nm
Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 374:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 47
Max Pressure (bar): 6.2
Max Torque (ft-lb): 202
Max Torque (in-lb): 2425
Max Torque (nm): 274
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.61
Rated Power (kW): 0.46
Reversible: Reversible
Speed at Max Power (rpm): 23
Standards/Certifications: ATEX
Starting Torque (ft-lb): 152
Starting Torque (nm): 206
Warranty: 1-year
$3,349.50
ANGLE DIE GRINDER, 12K
IR M2A120RG4
IR M2A120RG4
Angle Air Die Grinder, 12,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust
You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.Features And Benefits
- Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
- Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
- Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
- Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.
Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.94
Product Weight (lb): 3.56
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87.1 / 98.1
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.3
Warranty: 1-year
Wheel Type: Burr
Similar IR
- M2A180RG4
$1,170.00

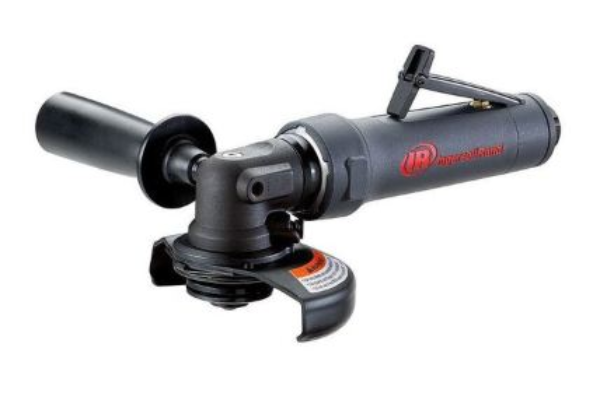

MERCURY ANGLE GRINDER
IR M2A135RP64
IR M2A135RP64
Angle Air Grinder, 4" Type 27 Wheel, 13,500 RPM, 1 HP, 3/8"-24 Thread, Rear Exhaust
Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.Features And Benefits
- Power: With a powerful, lube-free 1 HP 13,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
- Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
- Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
- Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.
Includes: Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 13500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.72
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87.7 / 98.7
Speed Setting: Variable Speed
Vibration Level (m/s2): 5
Warranty: 1-year
Wheel Diameter (in): 4
Wheel Thickness (in): 1/4
Wheel Type: Type 27
Similar IR
- M2E145RP64
$810.75
DIE GRINDER, 1 HP, 20K, STRAIGHT, 1/4 C
IR M2H200RG4
IR M2H200RG4
Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust
You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.Features And Benefits
- Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
- Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
- Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.38
Product Weight (lb): 1.69
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 4.4
Warranty: 1-year
Wheel Type: Burr
Similar IR
- M2H180RG4
$770.00
EXT ANGLE GRINDER, LG,
IR M2L100RP106
IR M2L100RP106
Extended Angle Air Grinder, 6" Type 27 Wheel, 10,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust
Features And Benefits- Power: With a powerful, lube-free 1 HP 10,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
- Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
- Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
- Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 5.46
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88.8 / 98.8
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.3
Warranty: 1-year
Wheel Diameter (in): 6
Wheel Thickness (in): 1/4
Wheel Type: Type 27
$1,460.00
MERCURY ANGLE GRINDER,
IR M2L120RP1045
IR M2L120RP1045
Extended Angle Air Grinder, 4.5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust
Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.Features And Benefits
- Power: With a powerful, lube-free 1 HP 12,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
- Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
- Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
- Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.
Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel and optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding,
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 4.55
Rated Power (hp): 1
Right Angle Length (in): 11.17
Right Angle Length (mm): 284
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 /98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.8
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27
Similar IR
- M2L100RP106
$1,007.40
EXT DIE GRINDER, 1HP, 7.5K, STRAIGHT, 1/4" C
IR M2X075RG4
IR M2X075RG4
Extended Air Die Grinder, 7500 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust
You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.Features And Benefits
- Power: With a powerful, lube-free 1 HP 7,500 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
- Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
- Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
Includes: Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 780
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 11.95
Product Weight (lb): 2.97
Rated Power (hp): 1
Sound Pressure/Power Db(A): 88 / 99
Speed Setting: Variable Speed
Vibration Level (m/s2): 0.8
Warranty: 1-year
Wheel Type: Sanding Drum (Mounted)
Similar IR
- M2X180RG4
$810.75
EXT DIE GRINDER, 1HP, 20K, STRAIGHT, 1/4" C
IR M2X200RG4
IR M2X200RG4
Extended Air Die Grinder, 20,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust
You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.Features And Benefits
- Power: With a powerful, lube-free 1 HP 20,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
- Productivity: Speed-governed motor on this grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
- Durable: Built to last, these grinders have an aluminum-core housing with a composite sleeve and can withstand harsh environments and repeated drops.
- Ergonomic: Low-profile throttle lever and ergonomic handle designed for enhanced operator comfort, to reduce fatigue, and to improve productivity while using this die grinder.
- Efficient: Quick-change spindle-lock eliminates the need for additional tools. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: Heavier-duty grinding, cutting, cleaning, and polishing applications
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 2.15
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 13.08
Product Weight (lb): 2.68
Rated Power (hp): 1
Sound Pressure/Power Db(A): 84.9 / 95.9
Speed Setting: Variable Speed
Vibration Level (m/s2): 1.9
Warranty: 1-year
Wheel Type: Burr
Similar IR
- M2X180RG4
$734.85
MOTOR -- MULTI-VANE
IR MVA034A
IR MVA034A
Direct Drive Air Motor, 7/8" Keyed Shaft, 6250 RPM, 4.15 HP, 17.4 NM, Reversible
Air Consumption at Max HP (scfm): 181Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 7/8
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 6250
Max Pressure (bar): 6.2
Max Torque (ft-lb): 13
Max Torque (in-lb): 154
Max Torque (nm): 17.4
Motor: Rotary Vane
Motor: Direct Drive
Mounting Type: Foot
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 16.5
Rated Power (hp): 4.15
Rated Power (kW): 3.09
Reversible: Reversible
Speed at Max Power (rpm): 3000
Starting Torque (ft-lb): 8.3
Starting Torque (nm): 11.3
Warranty: 1-year
$1,560.00
PAVING BREAKER 1 1/4 X 6
IR MX60B
IR MX60B
Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 1250 BPM, 2.06" Bore
The most versatile of our available pavement breakers, the MX60 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service.Features And Benefits
- Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
- Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
- Power: The MX60 pavement breakers deliver large blow energy at 1250 BPM thanks to our Power-Strok™ piston technology.
Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/4 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year
Similar IR
- MX60BF
$1,362.30
SPIKE DRIVER
IR MX90F-SD
IR MX90F-SD
Spike Driver, Vibration Reduced Flex T-Handle, 5.75" Stroke, 1250 BPM, 2.62" Bore
The MX90 Series spike drivers deliver more blow energy to each spike than you’ll find anywhere else thanks to our Power-Strok™ piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.Features And Benefits
- Powerful: The MX Series spike drivers are powerful, but still easy to handle.
- Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series’ 360-degree directional exhaust capabilities.
- Vibration-Reduced Flex Handle: The flex handles of the MX Series provide vibration dampening in a full 360-degree range of movement, increasing maximum operator comfort and productivity.
- Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.
Product Application and Uses: The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Exhaust Location: Side - Adjustable
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 86
Stroke Length (in): 5.75
Warranty: 1-year
$1,789.80

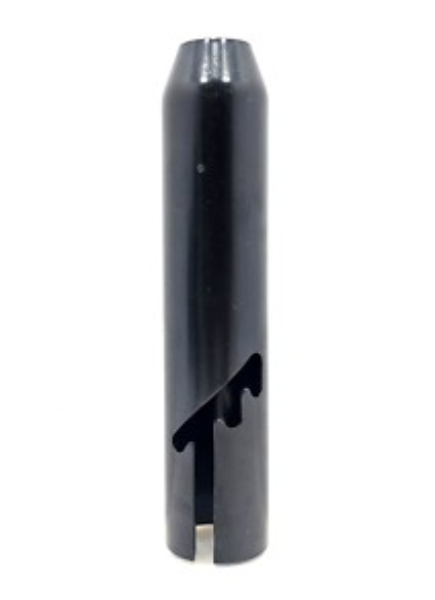

HOUSING
IR NS11-A24
IR NS11-A24
Needle Housing Assembly, Round for Ingersoll Rand 172 and 182 Series Percussive Scaler
For Use With- 172L
- 172LNA1
- 182K1
- 182L
- 182LNA1
$232.00
PAVING BREAKER PB50AS1
IR PB50AS1
IR PB50AS1
Pavement Breaker, 1-1/8 X 6" Hex Shank, 6.25" Stroke Length, 1150 BPM, 1-3/4" Bore
Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB50 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.Features And Benefits
- Power: With 1150 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
- Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
- Built-in lubricator helps ensure adequate lubrication.
- Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
- 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
- Muffler Reduces Noise
Product Application and Uses: These paving breakers are suitable for breaking concrete, asphalt and stone paving in road construction work; breaking large boulders in mines, quarries and general demolition work.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 58
Air Consumption @ Load (l/min): 1643
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1150
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 55
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year
Similar IR
- PB50AL1
$1,345.20
