Fluid Regulators

BB 845001

GG 206019

REGULATOR, PRESS, BACK

Graco 206019 Low Pressure Fluid Back Pressure Regulator, 180 psi (12 bar) max pressure, AL wetted parts, manual, 1(f) inlet, 1(f) outlet with gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Electroless nickel plated aluminum housing with smooth flow orifices
• Tungsten and carbide materials to resist wear
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 2.54
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (MPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 2.54
• Outlet Size (in): 1
• Outlet Size (mm): 25.4
• Outlet Thread Type: NPT

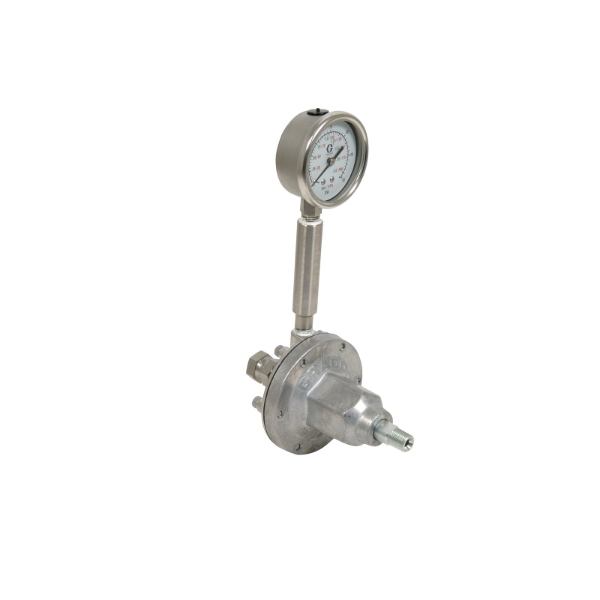

GG 214980

REGULATOR, PRESS FLUID

Graco 214980 Low Pressure Fluid Regulator, 250 Max psi, 0-30 psi Range, 3.0 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• Tungsten and carbide materials ensure low wear and long life

• Actuation Type: Air

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 2.1
• Maximum Regulated Pressure (kPa): 210
• Maximum Regulated Pressure (MPa): 0.21
• Maximum Regulated Pressure (psi): 30

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (MPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

BB 84-120

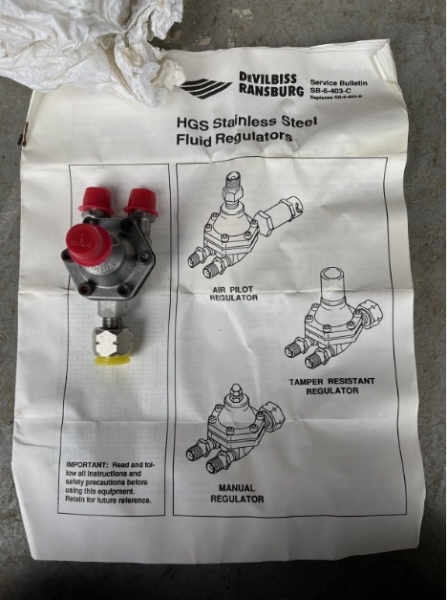

DD HGS-5112

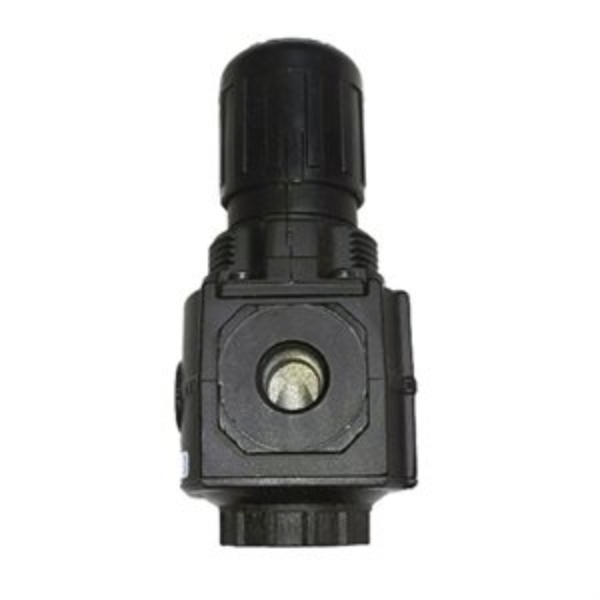

GG 15T536

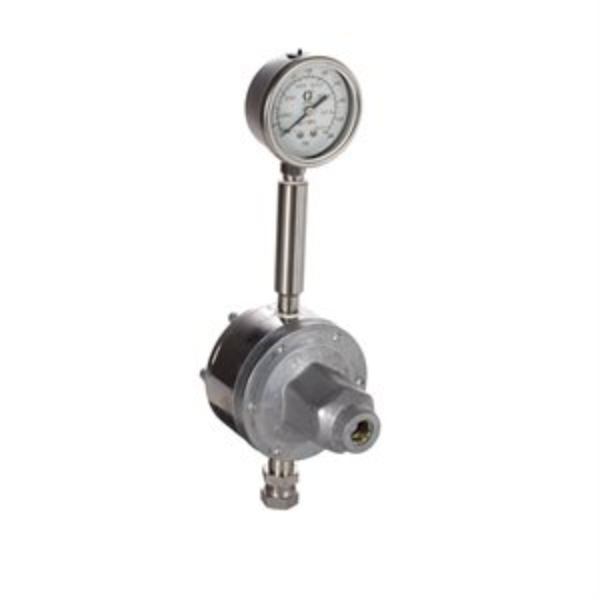

GG 217576

REGULATOR, PRESSURE

Graco 217576 High Pressure Fluid Regulator, 3000 Max psi, 200-1000 psi Range, 3.5 GP (m), SST, Spring Type, 3/8 (f) x 1/4 (f), 1/4 (f) Port

For use in airless spray systems to control and regulate fluid pressure to one spray gun, dispensing valve, or atomizing head

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 70
• Maximum Regulated Pressure (kPa): 7000
• Maximum Regulated Pressure (MPa): 7
• Maximum Regulated Pressure (psi): 1000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 14
• Minimum Regulated Pressure (kPa): 1400
• Minimum Regulated Pressure (MPa): 1.4
• Minimum Regulated Pressure (psi): 200

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Gender: Female

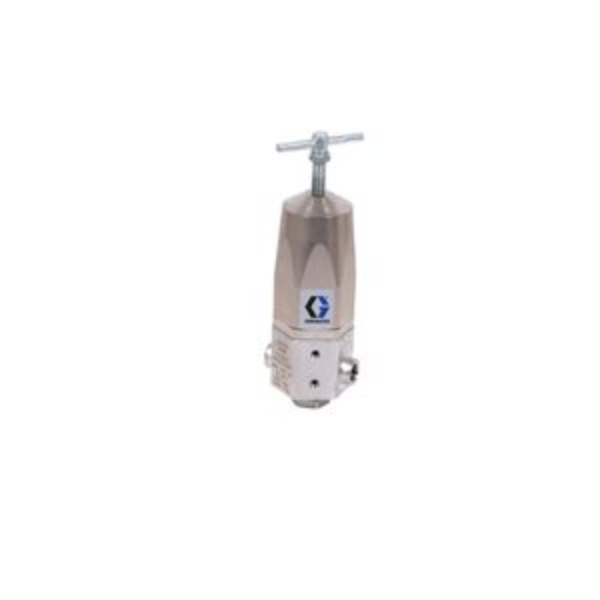

GG 222121

REGULATOR, PRESSURE, FLUID

Graco 222121 Mini High Pressure Corrosion Resistant Fluid Regulator, 1500 Max psi, 150-1200 psi Range, 1.0 GPM, SST, Spring Type, 1/4(f) x 1/4(m)

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Valve cartridge for quick cleaning and replacement - reduce downtime
• Pressure adjustment key with locking mechanism protects production settings

• Actuation Type: Spring

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Regulated Pressure (bar): 83
• Maximum Regulated Pressure (kPa): 8300
• Maximum Regulated Pressure (MPa): 8.3
• Maximum Regulated Pressure (psi): 1200

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Minimum Regulated Pressure (bar): 10.4
• Minimum Regulated Pressure (kPa): 1040
• Minimum Regulated Pressure (MPa): 1.0
• Minimum Regulated Pressure (psi): 150

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35

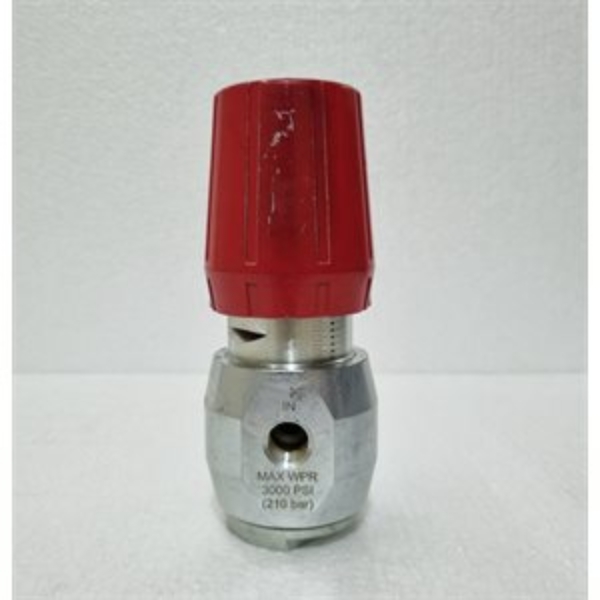

GG 206661

REGULATOR, PRESS, FLUID

Graco 206661 High Pressure Fluid Regulator, 3000 Max psi, 1000-3000 psi Range, 3.5 GPM, CS, Spring Type, 3/8(f) x 1/4(f), 1/4(f) Port, with gauge

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (MPa): 21
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 70
• Minimum Regulated Pressure (kPa): 7000
• Minimum Regulated Pressure (MPa): 7
• Minimum Regulated Pressure (psi): 1000

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Gender: Female

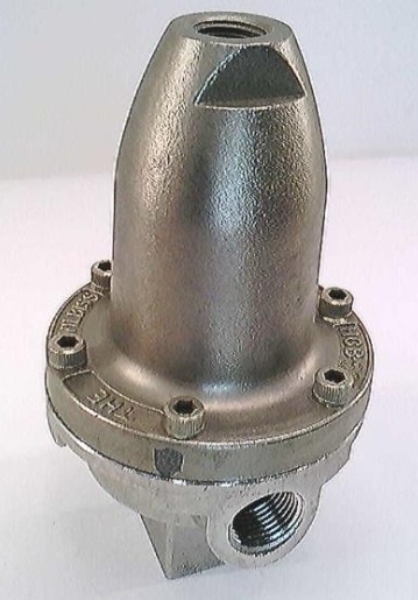

DD HGB-502-1

GG 238894

REGULATOR, PRESSURE, FLUID

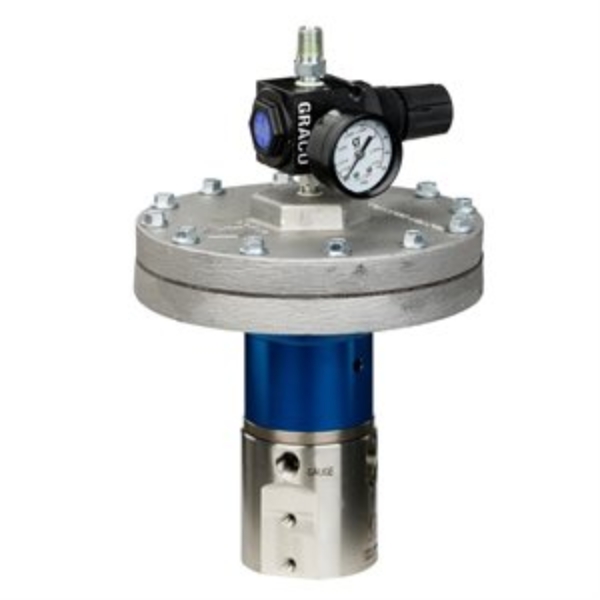

Graco 238894 Corrosion Resistant High Fluid Pressure Regulator, 500-4000 psi Range, 1.0 gpm, SST, Air, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Valve cartridge for quick cleaning and replacement - reduce downtime

• Actuation Type: Air

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Regulated Pressure (bar): 276
• Maximum Regulated Pressure (kPa): 27600
• Maximum Regulated Pressure (MPa): 28
• Maximum Regulated Pressure (psi): 4000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 34
• Minimum Regulated Pressure (kPa): 3400
• Minimum Regulated Pressure (MPa): 3.4
• Minimum Regulated Pressure (psi): 500

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

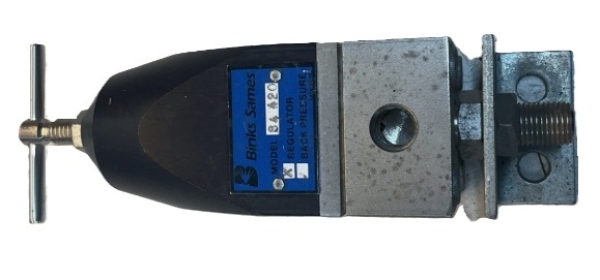

BB 84-520

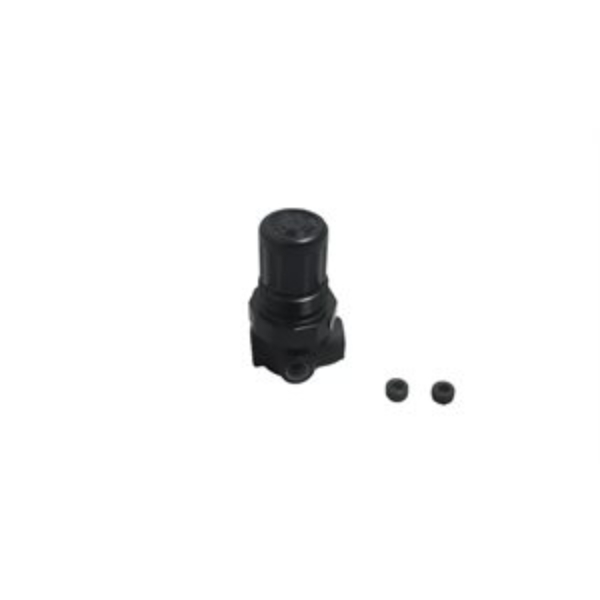

GG 15T499

GG 208997

VALVE, PRESS, BACK

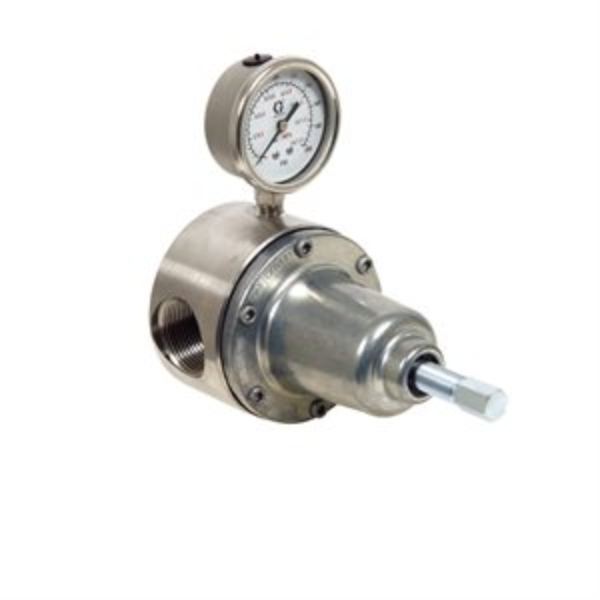

Graco 208997 Back Pressure Regulator, Low Pressure Corrosion Resistant, 200 Max psi, SST, Manual, 1-1/4 (f) x 1-1/4 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Hardened stainless steel seat ensure low wear and long life
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
• Air operated models available for automated control, Conversion kit (15J498)

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 3.175
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Regulated Pressure (bar): 14
• Maximum Regulated Pressure (kPa): 1400
• Maximum Regulated Pressure (psi): 200

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.35
• Minimum Regulated Pressure (kPa): 35
• Minimum Regulated Pressure (MPa): 0.035
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 3.175
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

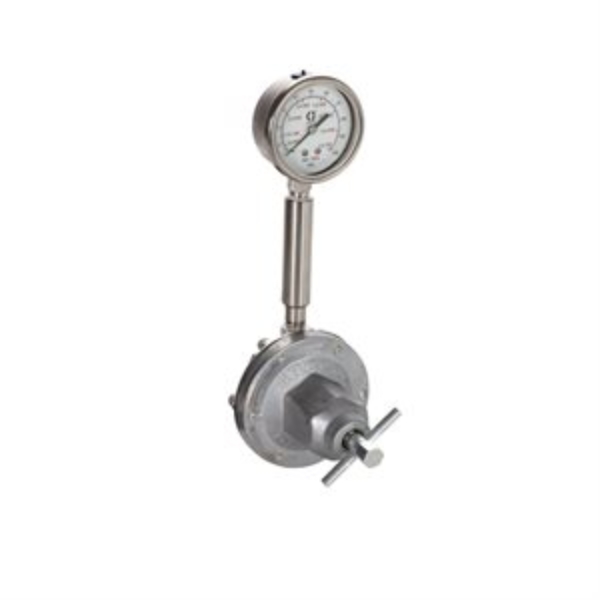

GG 209030

REGULATOR, PRESS, FLUID

Graco 209030 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port

Use on circulating line drops to regulate fluid pressure to one air spray gun or dispensing valve

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.3

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0.4
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male

GG 244734

REGULATOR, ASSEMBLY, XL

Graco 244734 Air Operated High Pressure Fluid Pressure Regulator with EZ Flush Gauge Port

• Actuation Type: Air

• Application: Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating

• Compatible Material: Waterborne

• Flow Control Type: Regulation

• Gauge Port Type: NPT

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Regulated Pressure (bar): 276
• Maximum Regulated Pressure (kPa): 27600
• Maximum Regulated Pressure (MPa): 28
• Maximum Regulated Pressure (psi): 4000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 34
• Minimum Regulated Pressure (kPa): 3400
• Minimum Regulated Pressure (MPa): 3.4
• Minimum Regulated Pressure (psi): 500

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPT

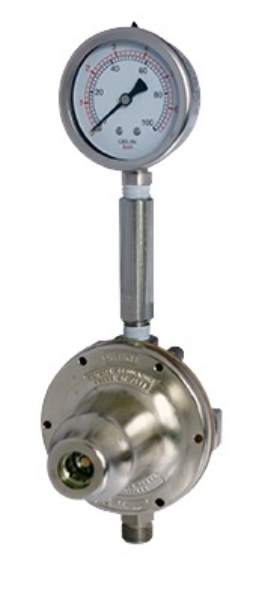

BB 84-409

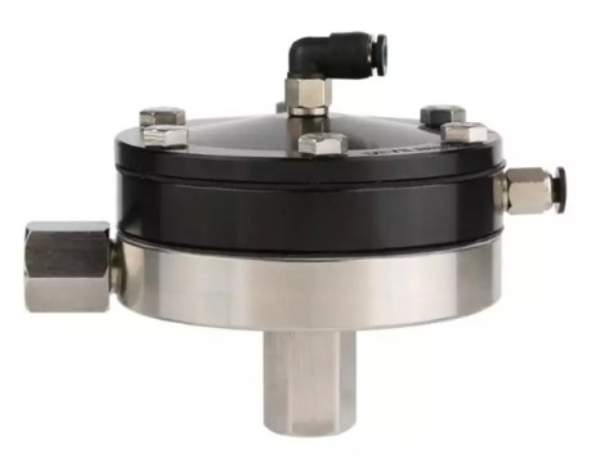

DD HGB-510-R2-CO

DD HGB-609-A

GG 233757

REGULATOR, PRESSURE, P20-VM

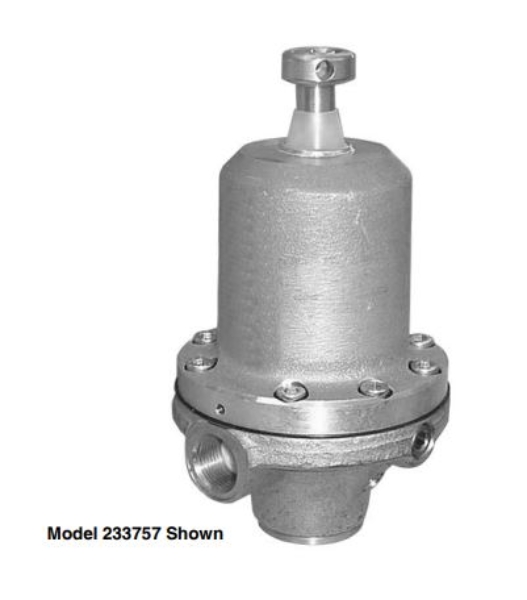

Graco 233757 Mechanical Fluid Pressure Regulator, 580 psi max inlet pressure, 15-290 psi pressure range

For use in air-assisted spray systems to ensure accurate, positive control of fluid pressure to a spray gun, low pressure dispensing valve, or atomizing head.

• Actuation Type: Spring

GG 234273

REGULATOR, PRESS, P10-VM, NPT

Graco 234273 Low Pressure Fluid Regulator, 580 Max psi, 15-145 psi Range, 7.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.

• Actuation Type: Spring

• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 7
• Maximum Flow Rate (L/min): 26.5

• Maximum Regulated Pressure (bar): 10
• Maximum Regulated Pressure (kPa): 1000
• Maximum Regulated Pressure (MPa): 1.0
• Maximum Regulated Pressure (psi): 145

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 40
• Maximum Working Pressure (kPa): 4000
• Maximum Working Pressure (MPa): 4
• Maximum Working Pressure (psi): 580

• Minimum Regulated Pressure (bar): 1
• Minimum Regulated Pressure (kPa): 10
• Minimum Regulated Pressure (MPa): 100
• Minimum Regulated Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 24E471

REGULATOR, FLUID, 2:1 RATIO

Graco 24E471 1:2 Precision Flow Fluid Pressure Regulator, 50 psi (3.4 bar) max pressure, green ratio spacer

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Working Pressure (bar): 3.5
• Maximum Working Pressure (kPa): 350
• Maximum Working Pressure (MPa): 0.4
• Maximum Working Pressure (psi): 50

• Minimum Working Pressure (bar): 0.069
• Minimum Working Pressure (kg/cm 2): 0.07
• Minimum Working Pressure (kPa): 6.9

• Minimum Working Pressure (psi): 1

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175

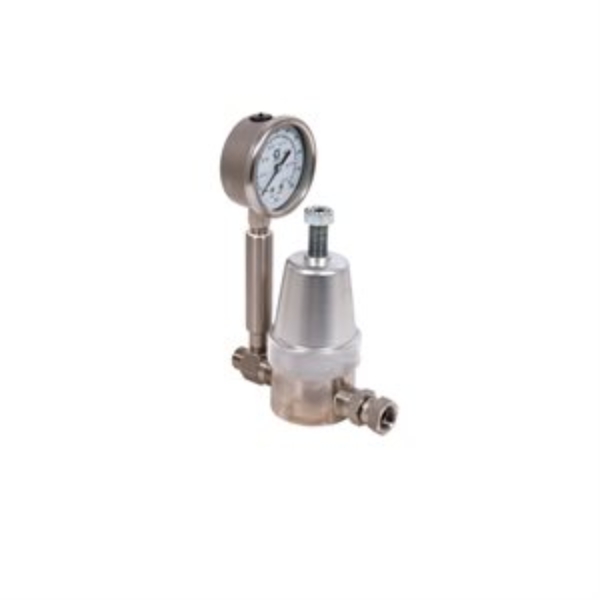

GG 205122

REGULATOR, PRESSURE BACK

Graco 205122 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Compact and lightweight design saves space and reduces payload for small circulation systems
• Air operated model available for automated control, Conversion kit (237448)

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPSM

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.6

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (MPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPSM

GG 234263

REGULATOR, PRESS, P20-VM, NPT

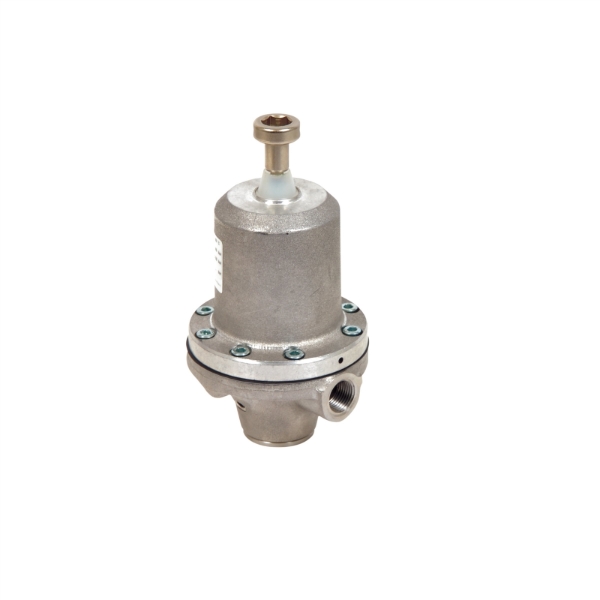

Graco 234263 Low Pressure Fluid Regulator, 580 Max psi, 15-290 psi Range, 7.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.

GG 240197
