GG 205122
REGULATOR, PRESSURE BACK

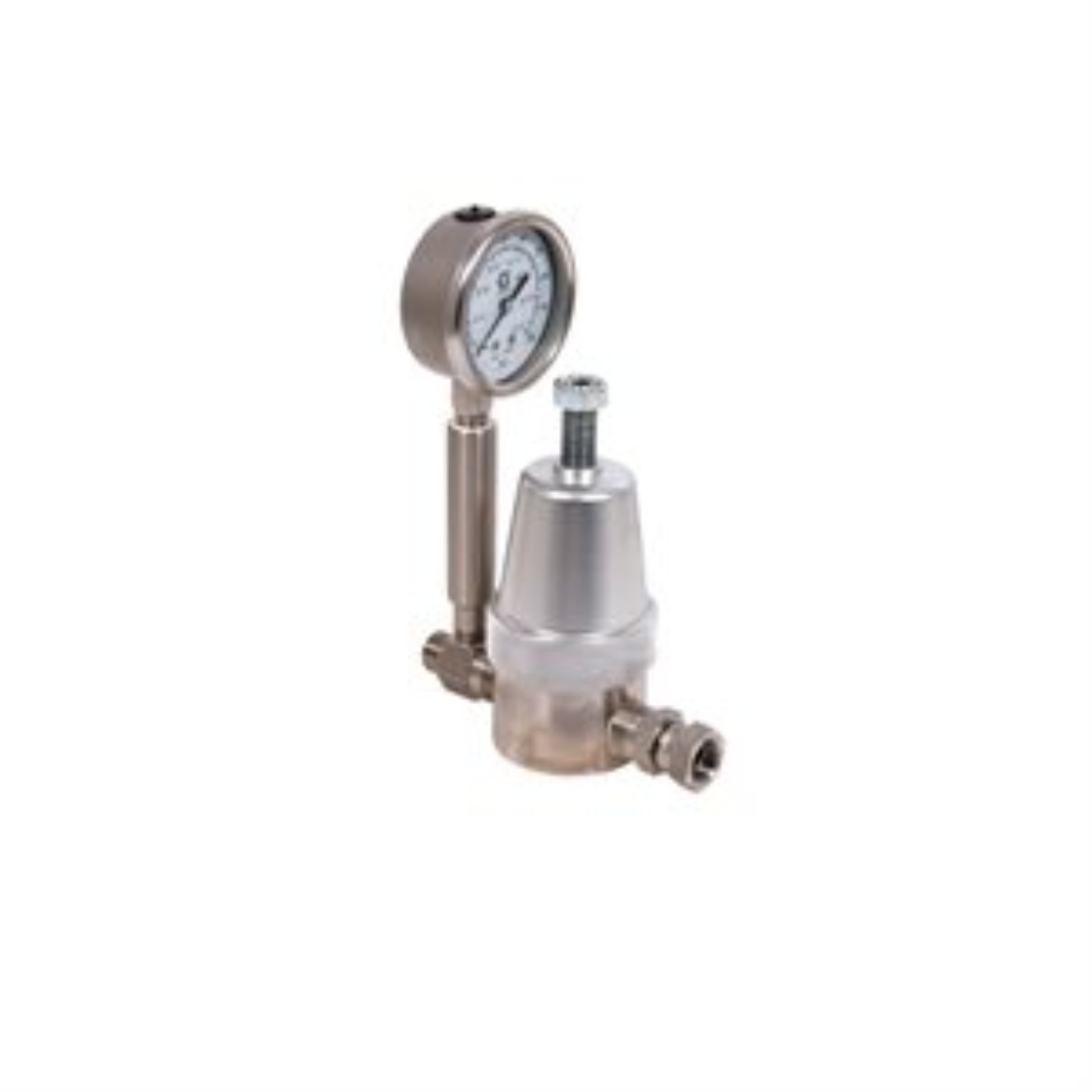

Graco 205122 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (f), with Gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Compact and lightweight design saves space and reduces payload for small circulation systems
- Air operated model available for automated control, Conversion kit (237448)
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Maximum Flow Rate (GPM): 2
- Maximum Flow Rate (L/min): 7.6
- Maximum Regulated Pressure (bar): 12.4
- Maximum Regulated Pressure (kPa): 1240
- Maximum Regulated Pressure (psi): 180
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 0
- Minimum Regulated Pressure (kPa): 0
- Minimum Regulated Pressure (MPa): 0
- Minimum Regulated Pressure (psi): 0
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: NPSM
