Fluid Regulators
B/P Regulator,3/8in,SS,150-5000 psi
GG 222200
GG 222200
VALVE, RESTRICTOR
Graco 222200 Back Pressure Valve with Carbide Needle and Seat
Application: For use in air–assisted circulating system to control back pressure to the gun(s) and maintain proper pressure for circulation
$1,245.00

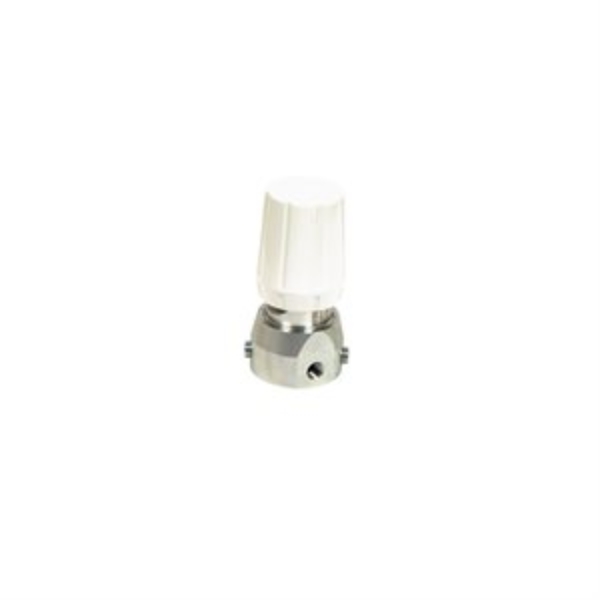

B/P Regulator,1/4in,CS,0-1000 psi
GG 222405
GG 222405
VALVE, BACK PRESSURE
Graco 222405 High Pressure Fluid Back Pressure Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f)
- Tungsten and carbide materials ensure low wear and long life
- Plated carbon steel housing is compatible with solvent-borne materials
- Laser-marked indication lines for easy pressure adjustment and process control
- Compatible Material: Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 3.5
- Maximum Flow Rate (L/min): 13.25
- Maximum Regulated Pressure (bar): 70
- Maximum Regulated Pressure (kPa): 7000
- Maximum Regulated Pressure (psi): 1000
- Maximum Viscosity (cP): 500
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Regulated Pressure (bar): 0
- Minimum Regulated Pressure (kPa): 0
- Minimum Regulated Pressure (MPa): 0
- Minimum Regulated Pressure (psi): 0
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Type: NPT
$1,625.00
B/P Regulator
GG 233810
GG 233810
REGULATOR, PRESSURE, P10-RP
Graco 233810 Pneumatic Back Pressure Regulator, Model P10-RP, 145 psi (10 bar) max permanent supply pressure, 15-145 psi regulated pressure range
Limits the supply pressure to a set value by opening an outlet and guiding back excess material when the predetermined pressure has been achieved. Used in circulating systems.
$1,260.00

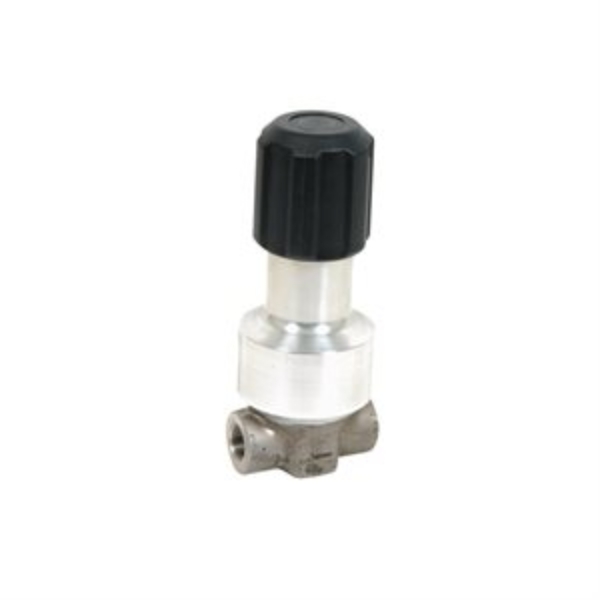

Fluid Regulator
GG 234265
GG 234265
REGULATOR, PRESS, P270-VM, NPT
Graco 234265 High Pressure Fluid Regulator, 5000 Max psi, 1300-4000 psi Range, 9.2 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f)
Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
$1,290.00

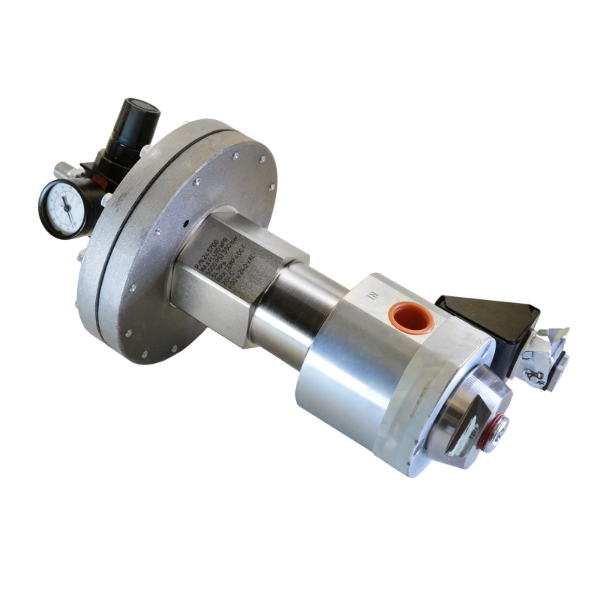

Regulator,Htd 230V
GG 243700
GG 243700
REGULATOR, HTD, 230V
Graco 243700 230 V Heated Fluid Pressure Regulator
Application: These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.- Actuation Type: Air
- Application: Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Infusion, Metering, Regulating
- Flow Control Type: Regulation
- Gauge Port Size (cm): 1.905
- Gauge Port Size (in): 3/4
- Gauge Port Size (mm): 19.05
- Gauge Port Type: NPT
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Inlet Thread Type: NPT
- Maximum Regulated Pressure (bar): 241
- Maximum Regulated Pressure (kPa): 24100
- Maximum Regulated Pressure (MPa): 24.1
- Maximum Regulated Pressure (psi): 3500
- Maximum Viscosity (cP): 80000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34.4
- Maximum Working Pressure (psi): 5000
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kPa): 1700
- Minimum Regulated Pressure (MPa): 1.7
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
$5,610.00
Regulator
GG 244740
GG 244740
REGULATOR, MASTIC, 5000 PSI
Graco 244740 Air Operated Mastic Fluid Pressure Regulator
The mastic regulator is ideal for low to high viscosity sealants or adhesives.
Application: These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.- Actuation Type: Air
- Flow Control Type: Regulation
- Gauge Port Size (cm): 1.905
- Gauge Port Size (in): 3/4
- Gauge Port Size (mm): 19.05
- Gauge Port Type: NPT
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Inlet Thread Type: NPT
- Maximum Regulated Pressure (bar): 310
- Maximum Regulated Pressure (kPa): 31000
- Maximum Regulated Pressure (MPa): 31.0
- Maximum Regulated Pressure (psi): 4500
- Maximum Viscosity (cP): 80000
- Maximum Working Pressure (bar): 344
- Maximum Working Pressure (kPa): 34400
- Maximum Working Pressure (MPa): 34.4
- Maximum Working Pressure (psi): 5000
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kPa): 1700
- Minimum Regulated Pressure (MPa): 1.7
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
$3,400.00
