GG 208997
VALVE, PRESS, BACK

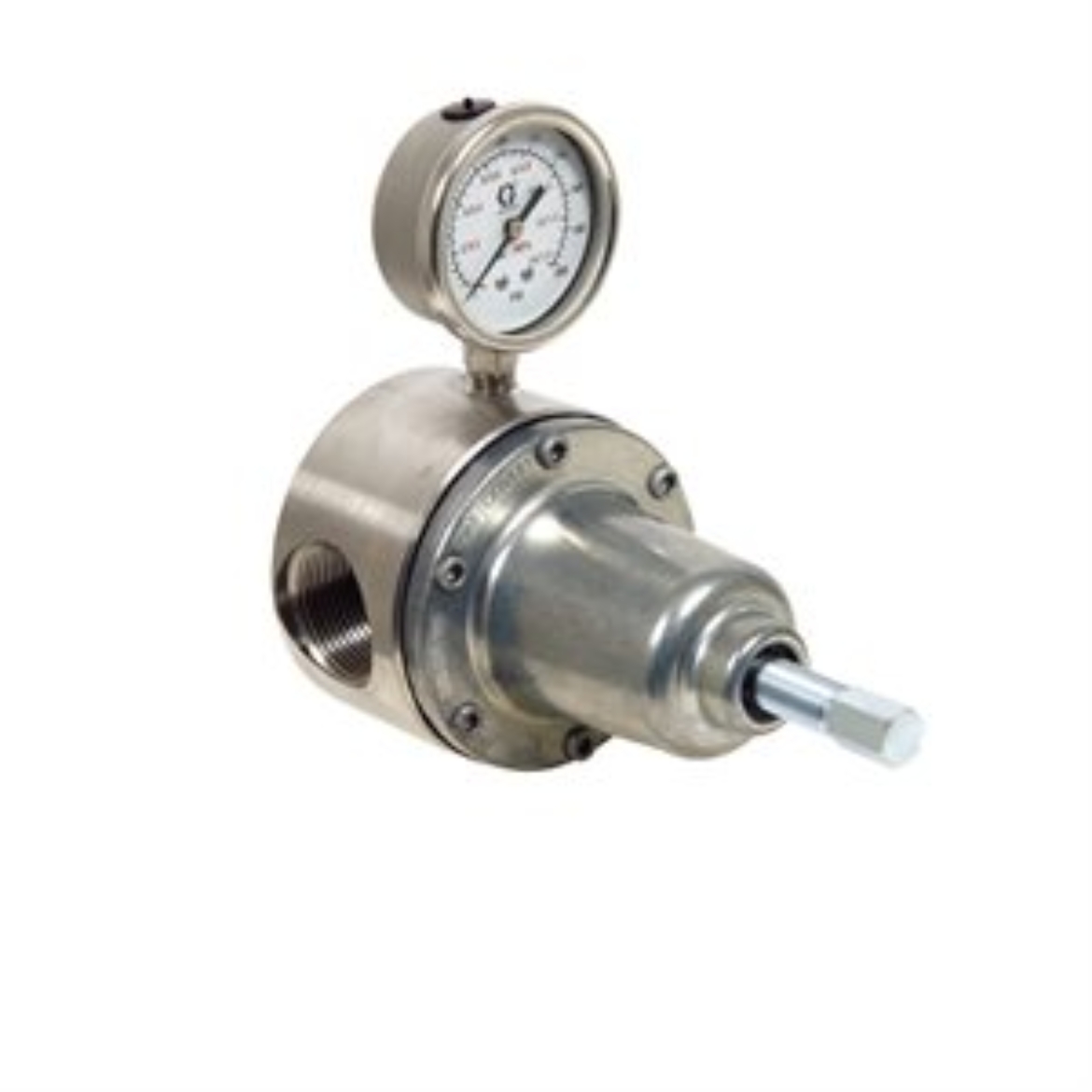

Graco 208997 Back Pressure Regulator, Low Pressure Corrosion Resistant, 200 Max psi, SST, Manual, 1-1/4 (f) x 1-1/4 (f), with Gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Air operated models available for automated control, Conversion kit (15J498)
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Includes: Gauge
- Inlet Size (cm): 3.175
- Inlet Size (in): 1-1/4
- Inlet Size (mm): 31.75
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Regulated Pressure (bar): 14
- Maximum Regulated Pressure (kPa): 1400
- Maximum Regulated Pressure (psi): 200
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 0.35
- Minimum Regulated Pressure (kPa): 35
- Minimum Regulated Pressure (MPa): 0.035
- Minimum Regulated Pressure (psi): 5
- Outlet Size (cm): 3.175
- Outlet Size (in): 1-1/4
- Outlet Size (mm): 31.75
- Outlet Thread Type: NPT
