REGULATOR, PRESSURE, FLUID

Manufacturer: GRACO INC. S10595

GG 222121

REGULATOR, PRESSURE, FLUID

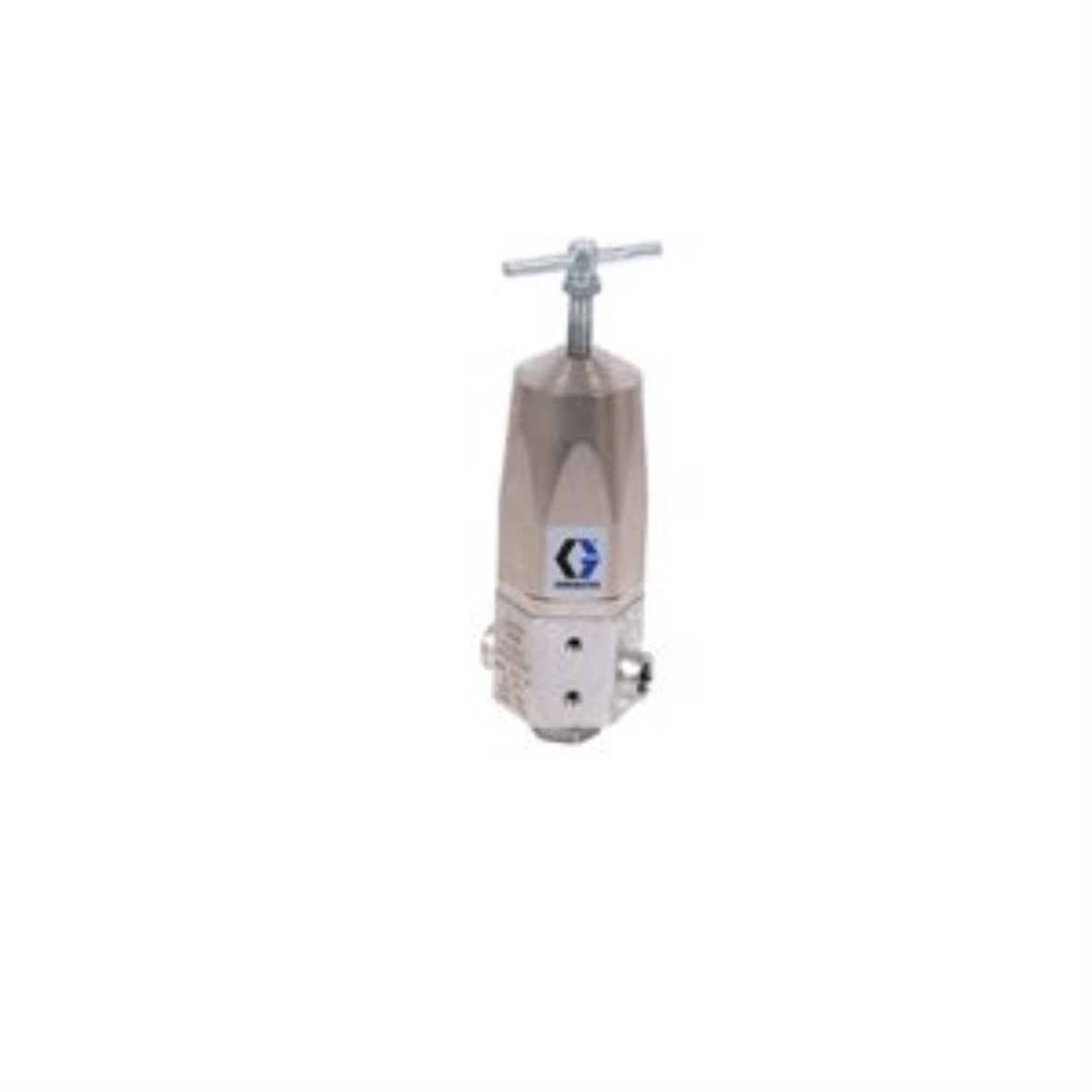

Graco 222121 Mini High Pressure Corrosion Resistant Fluid Regulator, 1500 Max psi, 150-1200 psi Range, 1.0 GPM, SST, Spring Type, 1/4(f) x 1/4(m)

  • Stainless steel wetted materials are compatible with catalyst and waterborne materials
  • Tungsten and carbide materials ensure low wear and long life
  • Valve cartridge for quick cleaning and replacement – reduce downtime
  • Pressure adjustment key with locking mechanism protects production settings


  • Actuation Type: Spring
  • Includes: Regulator Only
  • Inlet Size (cm): 0.635
  • Inlet Size (in): 1/4
  • Inlet Size (mm): 6.35
  • Inlet Thread Type: NPT
  • Maximum Flow Rate (GPM): 1
  • Maximum Flow Rate (L/min): 3.8
  • Maximum Regulated Pressure (bar): 83
  • Maximum Regulated Pressure (kPa): 8300
  • Maximum Regulated Pressure (MPa): 8.3
  • Maximum Regulated Pressure (psi): 1200
  • Maximum Viscosity (cP): 500
  • Maximum Working Pressure (bar): 103
  • Maximum Working Pressure (kPa): 10300
  • Maximum Working Pressure (MPa): 10.3
  • Maximum Working Pressure (psi): 1500
  • Minimum Regulated Pressure (bar): 10.4
  • Minimum Regulated Pressure (kPa): 1040
  • Minimum Regulated Pressure (MPa): 1.0
  • Minimum Regulated Pressure (psi): 150
  • Outlet Size (cm): 0.635
  • Outlet Size (in): 1/4
  • Outlet Size (mm): 6.35
SKU: GG 222121
Availability:
Price: $1,420.00
