Fluid Regulators

GG 111804

GG 244375

REGULATOR, PRESSURE, FLUID

Graco 244375 Air Operated Fluid Regulator, 100 psi max regulated air pressure, 250 psi max inlet pressure, no guage

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

GG 246643

REGULATOR, MASTIC, HEATED

Graco 246643 Air Operated Heated Mastic Fluid Pressure Regulator

The heated mastic regulator is ideal for low to high viscosity warm-melt and hot-melt sealants or adhesives

• Actuation Type: Air

• Flow Control Type: Regulation

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 241
• Maximum Regulated Pressure (kPa): 24100
• Maximum Regulated Pressure (MPa): 24.1
• Maximum Regulated Pressure (psi): 3500

• Maximum Working Pressure (bar): 344
• Maximum Working Pressure (kPa): 34400
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 7
• Minimum Regulated Pressure (kPa): 700
• Minimum Regulated Pressure (MPa): 0.7
• Minimum Regulated Pressure (psi): 100

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Gender: Female

GG C58318

BB 845010

GG 15T539

GG 177430

GG 233760

REGULATOR, PRESSURE, P60-VP DN7

Graco 233760 High Pressure Pneumatic Fluid Regulator, 5000 psi (360 bar) max fluid inlet pressure, 70-900 psi (5-60 bar) regulated pressure range

For use in air-assisted spray systems to ensure accurate, positive control of fluid pressure to a spray gun, dispensing valve, or atomizing head.

• Actuation Type: Air

GG 246642

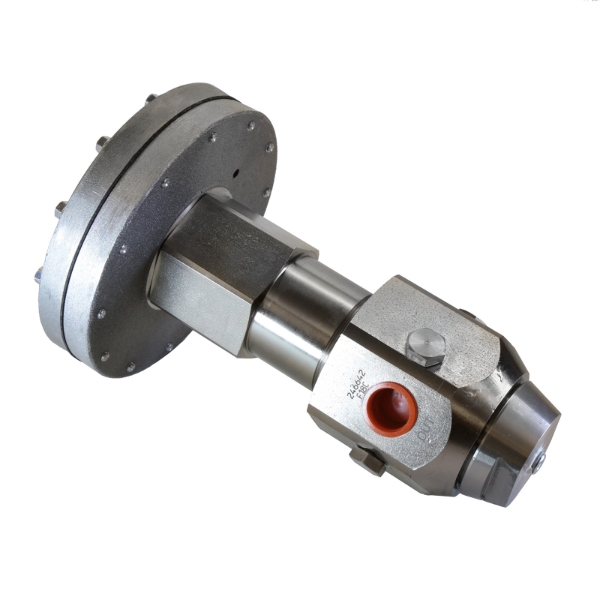

REGULATOR, MASTIC

Graco 246642 Air Operated Mastic Fluid Pressure Regulator

The mastic regulator is ideal for low to high viscosity sealants or adhesives

• Actuation Type: Air

• Flow Control Type: Regulation

• Gauge Port Size (cm): 1.905
• Gauge Port Size (in): 3/4
• Gauge Port Size (mm): 19.05

• Gauge Port Type: NPT

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 310
• Maximum Regulated Pressure (kPa): 31000
• Maximum Regulated Pressure (MPa): 31.0
• Maximum Regulated Pressure (psi): 4500

• Maximum Viscosity (cP): 80000

• Maximum Working Pressure (bar): 344
• Maximum Working Pressure (kPa): 34400
• Maximum Working Pressure (MPa): 34.4
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 7
• Minimum Regulated Pressure (kPa): 700
• Minimum Regulated Pressure (MPa): 0.7
• Minimum Regulated Pressure (psi): 100

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

GG 25R488

REGULATOR, BP, MECHANICAL, LOW-FLOW

Graco 25R488 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Mechanical, high wear, sanitary inlet/outlet

Graco's low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.

• Innovative flow path geometry provides industry-leading low shear capability
• Ultralife series ceramic coated seat and flow directors significantly increase wear resistance capability and service life
• Best-in-class performance holds pressure constant while flow rate changes

• Compatible Material: Waterborne, Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 3.8
• Inlet Size (in): 1.5
• Inlet Size (mm): 38

• Inlet Thread Type: Sanitary Flange

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 38

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Maximum Regulated Pressure (bar): 17.6
• Maximum Regulated Pressure (kg/cm²): 17.6
• Maximum Regulated Pressure (kPa): 1724
• Maximum Regulated Pressure (psi): 250

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21.1
• Maximum Working Pressure (kg/cm²): 21.1
• Maximum Working Pressure (kPa): 2068
• Maximum Working Pressure (psi): 300

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Regulated Pressure (bar): 1.8
• Minimum Regulated Pressure (kg/cm²): 1.8
• Minimum Regulated Pressure (kPa): 172
• Minimum Regulated Pressure (MPa): 0.17
• Minimum Regulated Pressure (psi): 25

• Outlet Size (cm): 3.8
• Outlet Size (in): 1.5
• Outlet Size (mm): 38
• Outlet Thread Type: Sanitary Flange

GG 288117

REGULATOR, BACK PRESSURE

Graco 288117 Pneumatic Corrosion Resistant Fluid Back Pressure Regulator, 20 gpm, 300 psi max fluid pressure, 1-1/4 npt inlet/outlet, with gauge

• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Hardened stainless steel seat ensure low wear and long life
• Air operated for remote automated control to eliminate operator interference

RR 74151-02

BB 845012

GG 234257

REGULATOR, PRESS, P10-RP, NPT

Graco 234257 Low Back Pressure Fluid Regulator, 145 Max psi, 15-145 psi Range, 4.6 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Limits the supply pressure to a set value by opening an outlet and guiding back excess material when the predetermined pressure has been achieved. Used in circulating systems.

• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 10
• Maximum Air Inlet Pressure (kPa): 100
• Maximum Air Inlet Pressure (psi): 145

• Maximum Flow Rate (GPM): 4.6
• Maximum Flow Rate (L/min): 17.5

• Maximum Regulated Pressure (bar): 10
• Maximum Regulated Pressure (kPa): 1000
• Maximum Regulated Pressure (psi): 145

• Maximum Working Pressure (bar): 10
• Maximum Working Pressure (kPa): 1000
• Maximum Working Pressure (psi): 145

• Minimum Regulated Pressure (bar): 1
• Minimum Regulated Pressure (kPa): 100
• Minimum Regulated Pressure (MPa): 0.1
• Minimum Regulated Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 237503

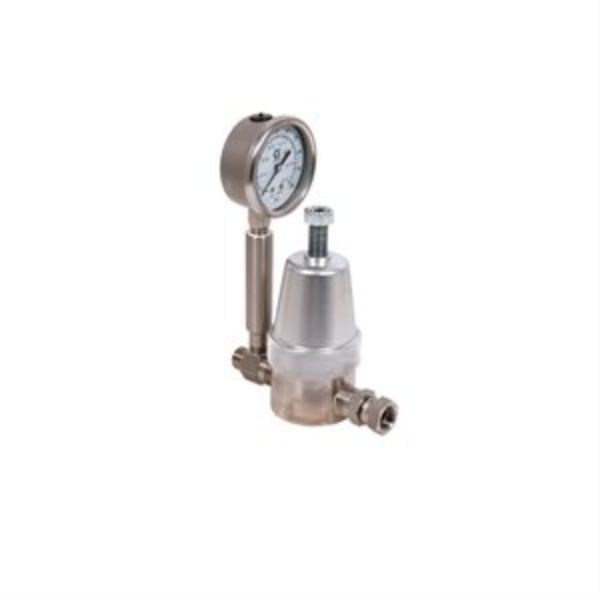

REGULATOR, BACK PRESSURE

Graco 237503 Back Pressure Regulator, Bare, Low Pressure, 180 Max psi, SST, Manual, 3/8 npt(f) inlet x 1/2 npt(f) outlet

237503 is the back pressure regulator only. Part number 236770 includes the gauge, tube, inlet adapter and outlet swivel union. Graco back pressure regulators maintain the system pressure, regardless of flow demand

• Compact and lightweight design saves space and reduces payload for small circulation systems
• Tungsten and carbide materials ensure low wear and long life
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 4.3
• Maximum Flow Rate (L/min): 16.28

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 30
• Minimum Regulated Pressure (MPa): 0.03
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 1.27
• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Type: NPT

GG 238889

REGULATOR, PRESSURE, FLUID

Graco 238889 Corrosion Resistant High Pressure Fluid Regulator, 500-3000 psi Range, 1.0 GPM, SST, Spring Type, 3/8(f) x 3/8(f), 1/4(f) Port

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Valve cartridge for quick cleaning and replacement – reduce downtime

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (MPa): 21
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 34
• Minimum Regulated Pressure (kPa): 3400
• Minimum Regulated Pressure (MPa): 3.4
• Minimum Regulated Pressure (psi): 500

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 248090

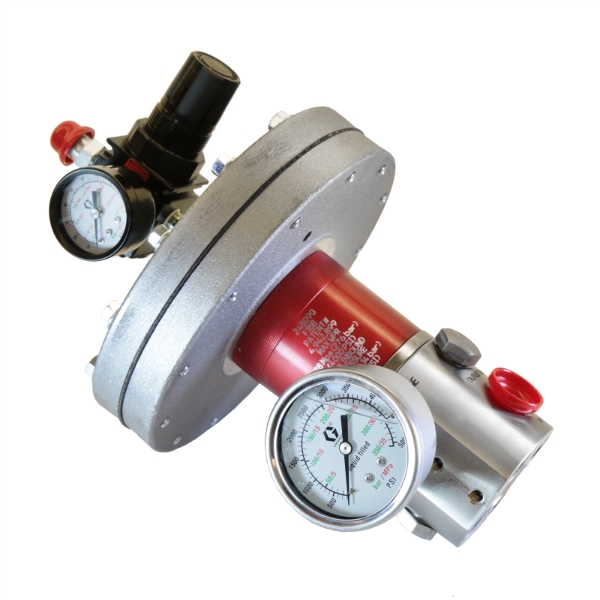

REGULATOR, PRESSURE, FLUID, AIR-OPER.

Graco 248090 Air-Operated Fluid Pressure Regulator

For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.

• Compatible with catalyst and waterborne materials
• Manual or air-operated
• Tungsten and carbide materials to resist wear
• Compact and lightweight – perfect for spray packages

• Actuation Type: Air

• Application: Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating

• Compatible Material: Waterborne

• Flow Control Type: Regulation

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Regulated Pressure (bar): 276
• Maximum Regulated Pressure (kPa): 27600
• Maximum Regulated Pressure (MPa): 28
• Maximum Regulated Pressure (psi): 4000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 34
• Minimum Regulated Pressure (kPa): 3400
• Minimum Regulated Pressure (MPa): 3.4
• Minimum Regulated Pressure (psi): 500

• Outlet Size (cm): 1.27
• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Type: NPT

GG 26C160

REGULATOR,PRESSURE,FLUID,SST(5/100

IW 8060B

RR 74151-11

BB 84-404

DD HGB-510-R4

DD HGB-609-9-R38

GG 16F267

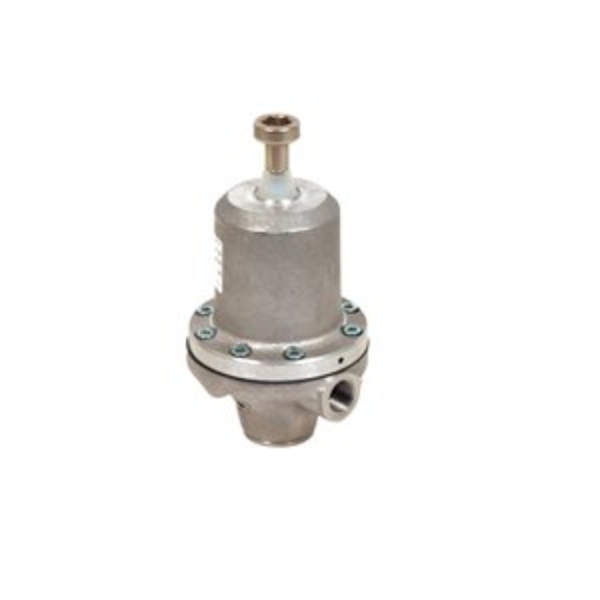

GG 234261

REGULATOR, PRESS, P20-RM DN1, NPT

Graco 234261 Low Back Pressure Fluid Regulator, 290 Max psi, 15-290 psi Range, 5.7 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Limits the supply pressure to a set value by opening an outlet and guiding back excess material when the predetermined pressure has been achieved. Used in circulating systems.

• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 2.54
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 5.7
• Maximum Flow Rate (L/min): 21.7

• Maximum Regulated Pressure (bar): 20
• Maximum Regulated Pressure (kPa): 2000
• Maximum Regulated Pressure (psi): 290

• Maximum Working Pressure (bar): 20
• Maximum Working Pressure (kPa): 2000
• Maximum Working Pressure (psi): 290

• Minimum Regulated Pressure (bar): 2
• Minimum Regulated Pressure (kPa): 200
• Minimum Regulated Pressure (MPa): 0.2
• Minimum Regulated Pressure (psi): 29

• Outlet Size (cm): 2.54
• Outlet Size (in): 1
• Outlet Size (mm): 25.4
