GG 209030
REGULATOR, PRESS, FLUID

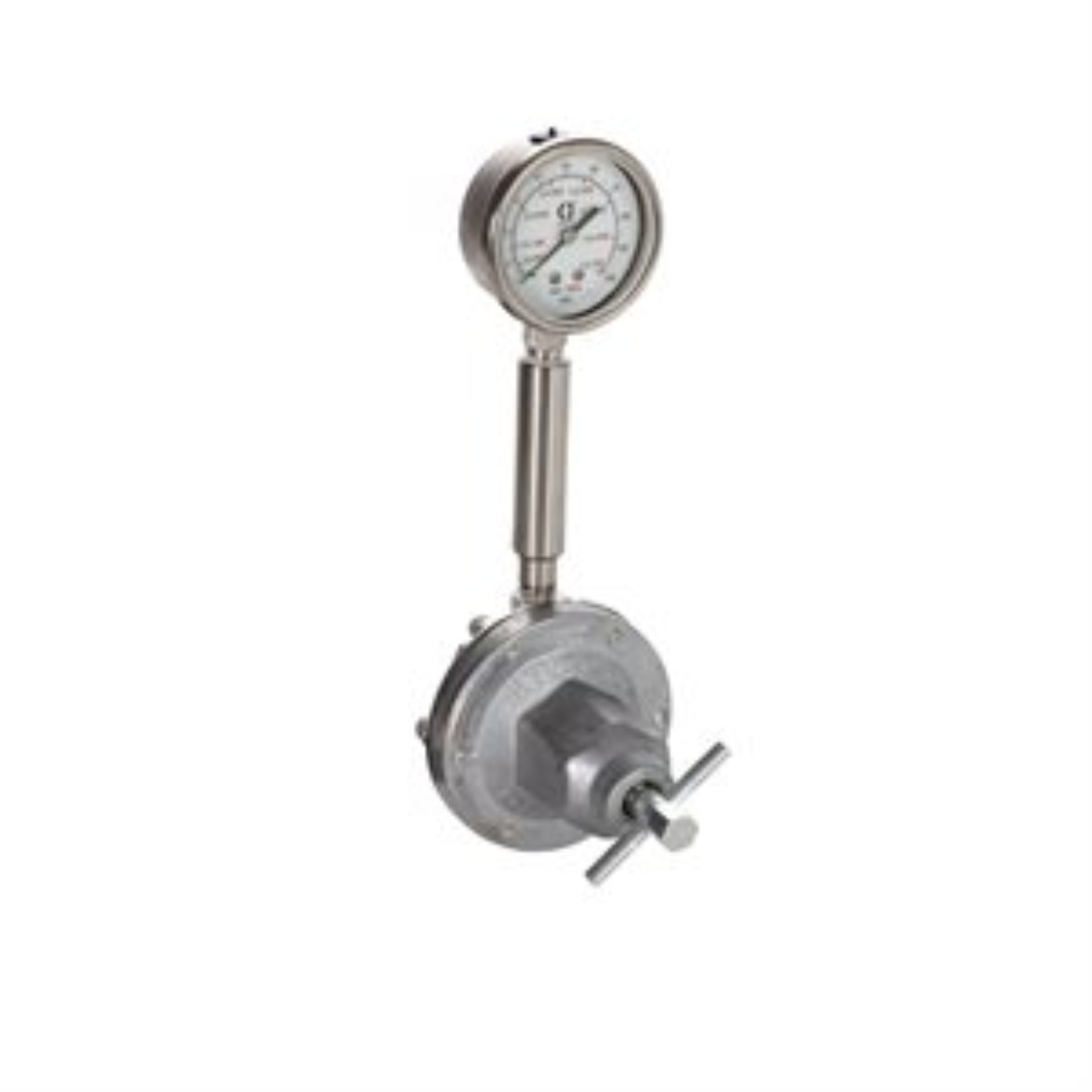

Graco 209030 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port
Use on circulating line drops to regulate fluid pressure to one air spray gun or dispensing valve
- Available with mechanical control or pneumatic control
- Suitable for fluids with low and high viscosities
- Models available with wetted parts made of stainless steel
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Thread Gender: Female
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.3
- Maximum Regulated Pressure (bar): 7
- Maximum Regulated Pressure (kPa): 700
- Maximum Regulated Pressure (MPa): 0.7
- Maximum Regulated Pressure (psi): 100
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 18
- Maximum Working Pressure (kPa): 1800
- Maximum Working Pressure (MPa): 1.8
- Maximum Working Pressure (psi): 250
- Minimum Regulated Pressure (bar): 0.4
- Minimum Regulated Pressure (kPa): 34
- Minimum Regulated Pressure (MPa): 0.034
- Minimum Regulated Pressure (psi): 5
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
