GG 214980
REGULATOR, PRESS FLUID

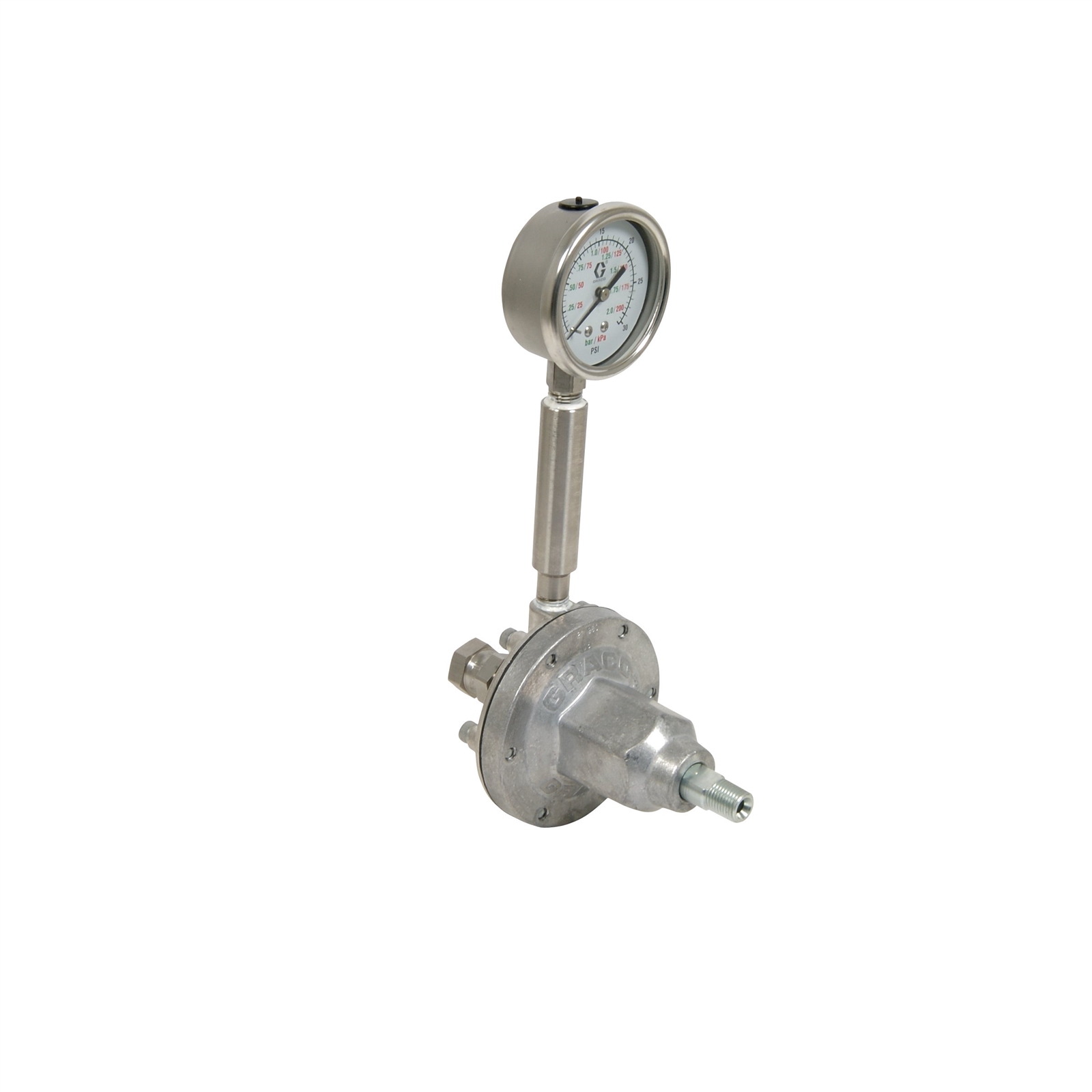

Graco 214980 Low Pressure Fluid Regulator, 250 Max psi, 0-30 psi Range, 3.0 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Removable adjustment key eliminates operator interference
- Manual quick flush mode ensures easy cleaning without impacting production settings
- Tungsten and carbide materials ensure low wear and long life
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Thread Gender: Female
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Regulated Pressure (bar): 2.1
- Maximum Regulated Pressure (kPa): 210
- Maximum Regulated Pressure (MPa): 0.21
- Maximum Regulated Pressure (psi): 30
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 18
- Maximum Working Pressure (kPa): 1800
- Maximum Working Pressure (MPa): 1.8
- Maximum Working Pressure (psi): 250
- Minimum Regulated Pressure (bar): 0
- Minimum Regulated Pressure (kPa): 0
- Minimum Regulated Pressure (MPa): 0
- Minimum Regulated Pressure (psi): 0
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Female
