GG 217576
REGULATOR, PRESSURE

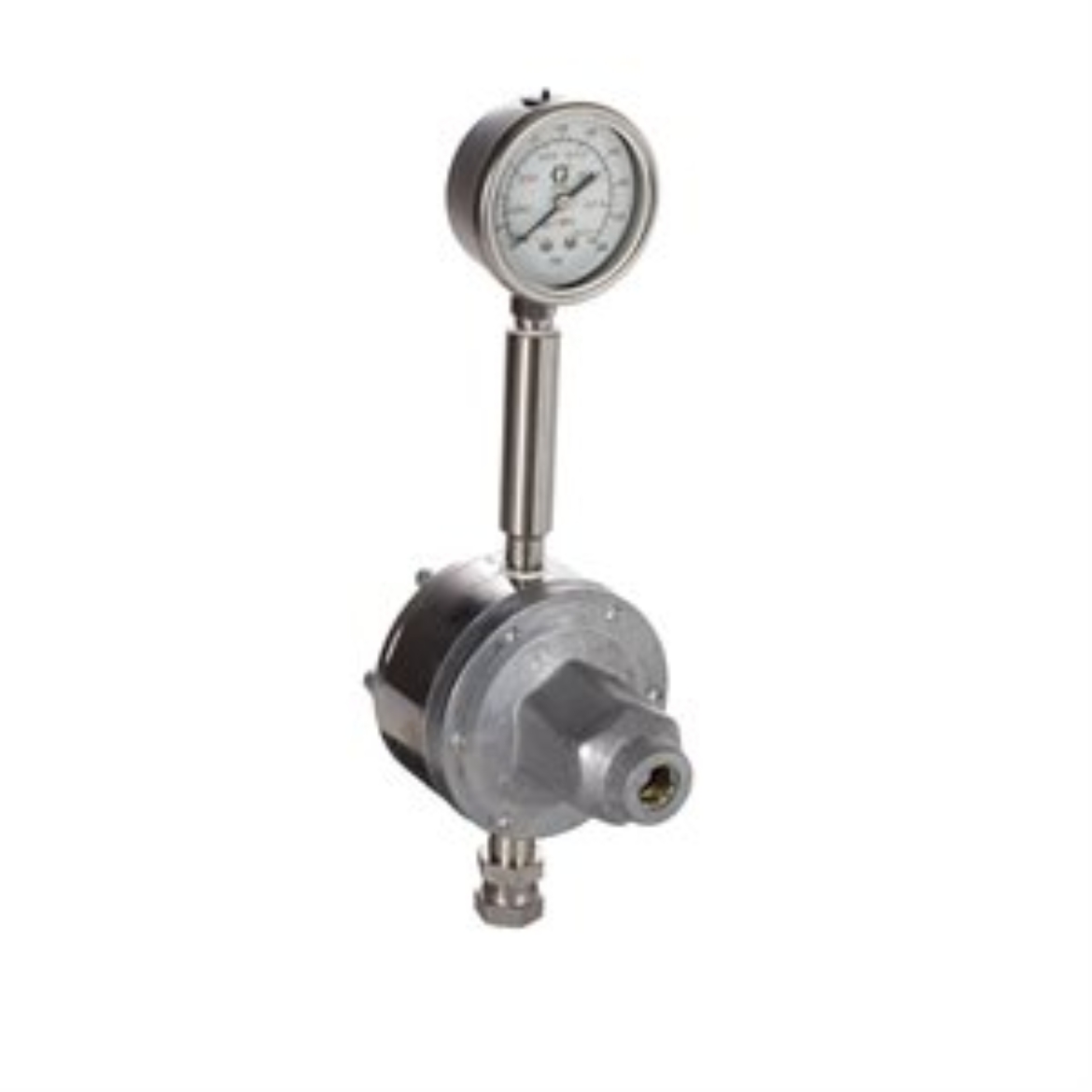

Graco 217576 High Pressure Fluid Regulator, 3000 Max psi, 200-1000 psi Range, 3.5 GP (m), SST, Spring Type, 3/8 (f) x 1/4 (f), 1/4 (f) Port
For use in airless spray systems to control and regulate fluid pressure to one spray gun, dispensing valve, or atomizing head
- Tungsten and carbide materials ensure low wear and long life
- Plated carbon steel housing is compatible with solvent-borne materials
- Laser-marked indication lines for easy pressure adjustment and process control
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Thread Gender: Female
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 3.5
- Maximum Flow Rate (L/min): 13.25
- Maximum Regulated Pressure (bar): 70
- Maximum Regulated Pressure (kPa): 7000
- Maximum Regulated Pressure (MPa): 7
- Maximum Regulated Pressure (psi): 1000
- Maximum Viscosity (cP): 500
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Minimum Regulated Pressure (bar): 14
- Minimum Regulated Pressure (kPa): 1400
- Minimum Regulated Pressure (MPa): 1.4
- Minimum Regulated Pressure (psi): 200
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Female
