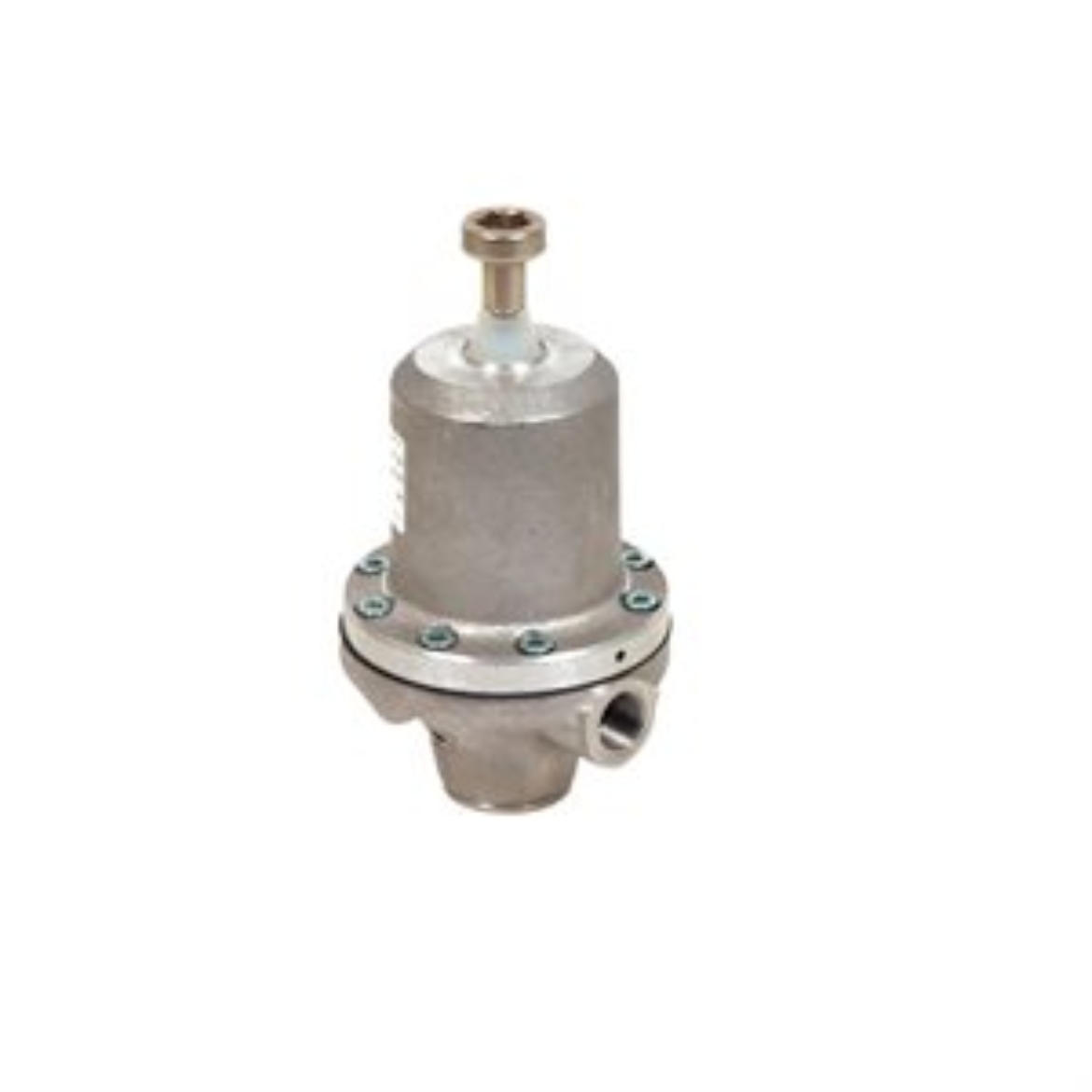

D/S Regulator, 3/8In, Ss, 14.5-145 psi

GG 234273

REGULATOR, PRESS, P10-VM, NPT

Graco 234273 Low Pressure Fluid Regulator, 580 Max psi, 15-145 psi Range, 7.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.

• Actuation Type: Spring

• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 7
• Maximum Flow Rate (L/min): 26.5

• Maximum Regulated Pressure (bar): 10
• Maximum Regulated Pressure (kPa): 1000
• Maximum Regulated Pressure (MPa): 1.0
• Maximum Regulated Pressure (psi): 145

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 40
• Maximum Working Pressure (kPa): 4000
• Maximum Working Pressure (MPa): 4
• Maximum Working Pressure (psi): 580

• Minimum Regulated Pressure (bar): 1
• Minimum Regulated Pressure (kPa): 10
• Minimum Regulated Pressure (MPa): 100
• Minimum Regulated Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
