Fluid Regulators

GG 234264

REGULATOR, PRESS, P200-VM, NPT

Graco 234264 High Pressure Fluid Regulator, 5000 Max psi, 1300-3000 psi Range, 8.2 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f)

Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.

• Actuation Type: Spring

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8.2
• Maximum Flow Rate (L/min): 31.04

• Maximum Regulated Pressure (bar): 200
• Maximum Regulated Pressure (kPa): 20000
• Maximum Regulated Pressure (MPa): 20
• Maximum Regulated Pressure (psi): 3000

• Maximum Working Pressure (bar): 360
• Maximum Working Pressure (kPa): 36000
• Maximum Working Pressure (MPa): 36
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 90
• Minimum Regulated Pressure (kPa): 9000
• Minimum Regulated Pressure (MPa): 9
• Minimum Regulated Pressure (psi): 1300

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 234267

REGULATOR, PRESS, P50-VM, NPT

Graco 234267 Low Pressure Fluid Regulator, 1015 Max psi, 145-725 psi Range, 9.8 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.

• Actuation Type: Spring

• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Regulated Pressure (bar): 50
• Maximum Regulated Pressure (kPa): 5000
• Maximum Regulated Pressure (MPa): 5.0
• Maximum Regulated Pressure (psi): 725

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 70
• Maximum Working Pressure (kPa): 7000
• Maximum Working Pressure (MPa): 7
• Maximum Working Pressure (psi): 1015

• Minimum Regulated Pressure (bar): 10
• Minimum Regulated Pressure (kPa): 1000
• Minimum Regulated Pressure (MPa): 1.0
• Minimum Regulated Pressure (psi): 145

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 234269

REGULATOR, PRESS, P200-RM, NPT

Graco 234269 High Pressure Fluid Back Pressure Regulator, 3400 Max psi, 1300-3000 psi Pressure Range, 13.1 GPM, SST, Spring Type, 3/8(f) x 3/8(f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Actuation Type: Spring

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 13.1
• Maximum Flow Rate (L/min): 49.59

• Maximum Regulated Pressure (bar): 200
• Maximum Regulated Pressure (kPa): 20000
• Maximum Regulated Pressure (MPa): 20.7
• Maximum Regulated Pressure (psi): 3000

• Maximum Working Pressure (bar): 235
• Maximum Working Pressure (kPa): 23500
• Maximum Working Pressure (MPa): 23.5
• Maximum Working Pressure (psi): 3400

• Minimum Regulated Pressure (bar): 90
• Minimum Regulated Pressure (kPa): 9000
• Minimum Regulated Pressure (MPa): 9
• Minimum Regulated Pressure (psi): 1300

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 234272

REGULATOR, PRESS, P10-VP, NPT

Graco 234272 Low Pressure Fluid Regulator, 580 Max psi, 6-145 psi Range, 7.0 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port

Our pneumatically operated fluid pressure regulators are designed primarily for use with highly viscous coatings

• Actuation Type: Air

• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 7
• Maximum Flow Rate (L/min): 26.5

• Maximum Regulated Pressure (bar): 10
• Maximum Regulated Pressure (kPa): 1000
• Maximum Regulated Pressure (MPa): 1.0
• Maximum Regulated Pressure (psi): 145

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 40
• Maximum Working Pressure (kPa): 4000
• Maximum Working Pressure (MPa): 4
• Maximum Working Pressure (psi): 580

• Minimum Regulated Pressure (bar): 0.4
• Minimum Regulated Pressure (kPa): 40
• Minimum Regulated Pressure (MPa): 0.04
• Minimum Regulated Pressure (psi): 6

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

RR 74151-06

GG 112348

GG 15C955

GG 176135

GG 17G386

GG 204500

GG 233809

REGULATOR, PRESSURE, P10-VP, OEM

Graco 233809 Low Pressure Pneumatic Fluid Regulator, 580 psi (40 bar) max fluid inlet pressure, 6-145 psi (0.4-10 bar) regulated pressure range

Our pneumatically operated fluid pressure regulators are designed primarily for use with highly viscous coatings

GG 233814

GG 234255

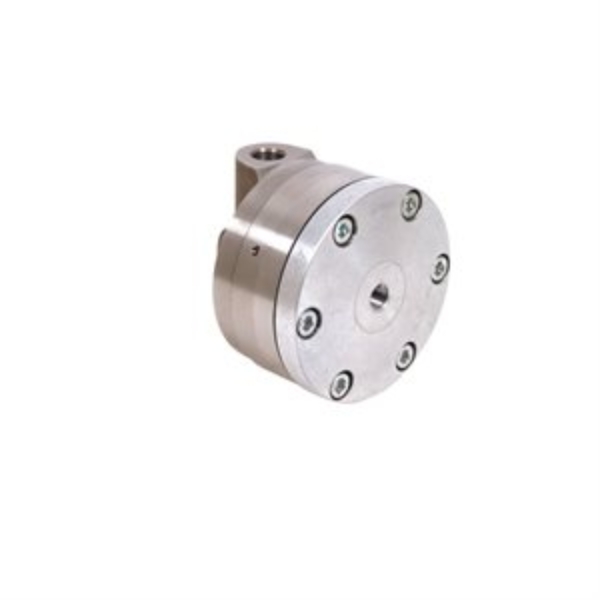

GG 234259

REGULATOR, PRESS, P250-VP, NPT

Graco 234259 High Pressure Pneumatically Adjustable Fluid Regulator, 580-3625 psi Max Pressure, 11 GPM, SST, Air Type, 3/4 (f) x 3/4 (f)

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 10.6
• Maximum Flow Rate (L/min): 40.13

• Maximum Regulated Pressure (bar): 250
• Maximum Regulated Pressure (kPa): 25000
• Maximum Regulated Pressure (MPa): 25
• Maximum Regulated Pressure (psi): 3600

• Maximum Working Pressure (bar): 360
• Maximum Working Pressure (kPa): 36000
• Maximum Working Pressure (MPa): 36
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 40
• Minimum Regulated Pressure (kPa): 4000
• Minimum Regulated Pressure (MPa): 4
• Minimum Regulated Pressure (psi): 600

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

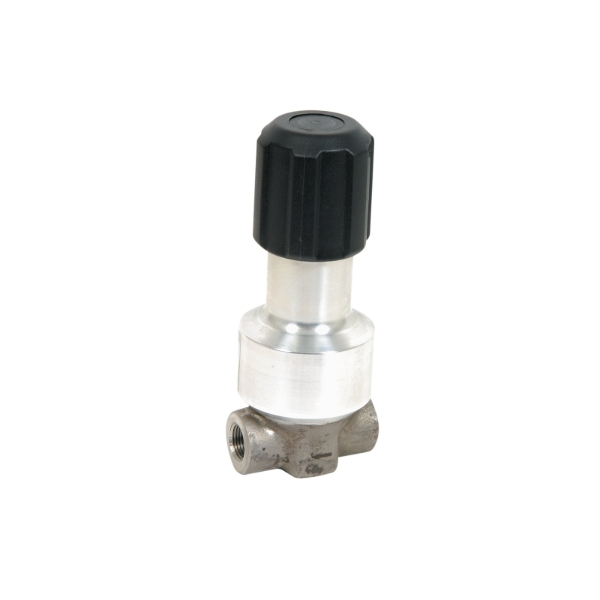

GG 234260

REGULATOR, PRESS, P100-VM, NPT

Graco 234260 High Pressure Fluid Regulator, 2600 Max psi, 600-1500 psi Range, 8.1 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f)

Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.

• Actuation Type: Spring

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8.1
• Maximum Flow Rate (L/min): 30.66

• Maximum Regulated Pressure (bar): 100
• Maximum Regulated Pressure (kPa): 10000
• Maximum Regulated Pressure (MPa): 10
• Maximum Regulated Pressure (psi): 1500

• Maximum Working Pressure (bar): 180
• Maximum Working Pressure (kPa): 18000
• Maximum Working Pressure (MPa): 18
• Maximum Working Pressure (psi): 2600

• Minimum Regulated Pressure (bar): 40
• Minimum Regulated Pressure (kPa): 4000
• Minimum Regulated Pressure (MPa): 4
• Minimum Regulated Pressure (psi): 600

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 234268

REGULATOR, PRESS, P100-RM, NPT

Graco 234268 High Pressure Fluid Back Pressure Regulator, 2500 Max psi, 600-1500 psi Pressure Range, 10.2 GPM, SST, Spring Type, 3/8(f) x 3/8(f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 10.2
• Maximum Flow Rate (L/min): 38.6

• Maximum Regulated Pressure (bar): 100
• Maximum Regulated Pressure (kPa): 10000
• Maximum Regulated Pressure (psi): 1500

• Maximum Working Pressure (bar): 170
• Maximum Working Pressure (kPa): 17000
• Maximum Working Pressure (psi): 2500

• Minimum Regulated Pressure (bar): 40
• Minimum Regulated Pressure (kPa): 4000
• Minimum Regulated Pressure (MPa): 4
• Minimum Regulated Pressure (psi): 600

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

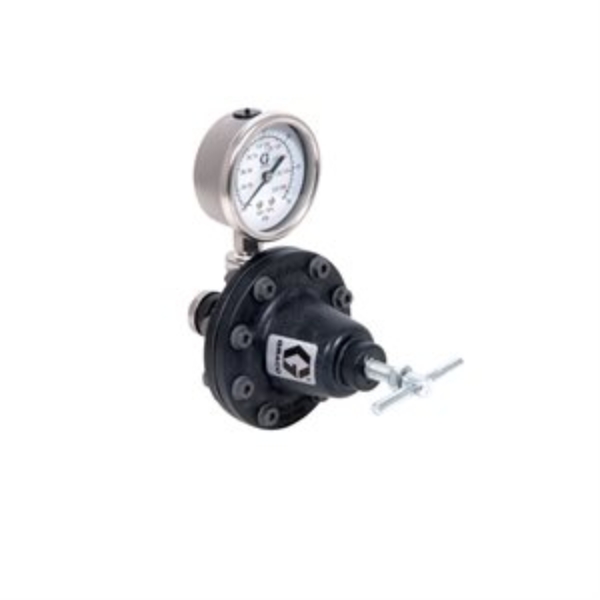

GG 236281

REGULATOR, PRESS, FLUID

Graco 236281 Low Pressure Lightweight Fluid Regulator, Gauge, 3-100 psi (0.2-7 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(m), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Lightweight composite material is compatible with waterborne materials
• PTFE, stainless steel seat, and carbide ball provide wear resistance
• Pressure adjustment key with locking mechanism protects production settings

• Actuation Type: Air

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Regulated Pressure (bar): 7.0
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Regulated Pressure (bar): 0.2
• Minimum Regulated Pressure (kPa): 20
• Minimum Regulated Pressure (MPa): 0.02
• Minimum Regulated Pressure (psi): 3

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35

GG 238724

GG 238892

REGULATOR, PRESSURE, FLUID

Graco 238892 Corrosion Resistant High Fluid Pressure Regulator, 3000-5000 psi Range, 1.0 gpm, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Valve cartridge for quick cleaning and replacement – reduce downtime

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Regulated Pressure (bar): 345
• Maximum Regulated Pressure (kPa): 34500
• Maximum Regulated Pressure (MPa): 34
• Maximum Regulated Pressure (psi): 5000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 207
• Minimum Regulated Pressure (kPa): 20700
• Minimum Regulated Pressure (MPa): 21
• Minimum Regulated Pressure (psi): 3000

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

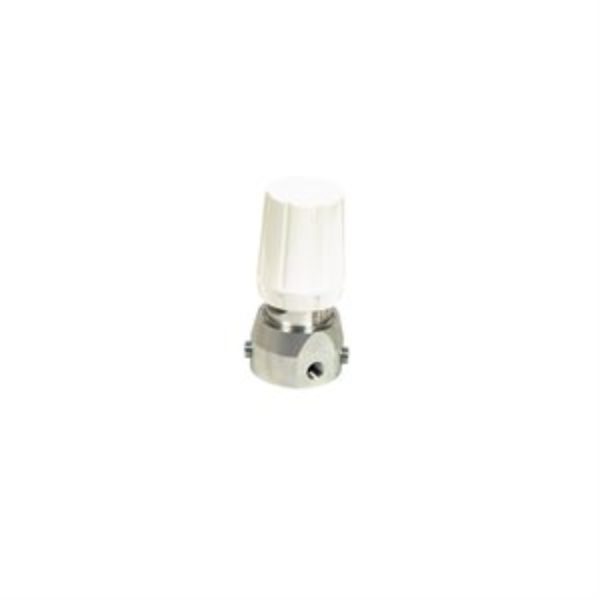

GG 238926

VALVE, BACK PRESSURE

Graco 238926 High Pressure Fluid Back Pressure Regulator, 3000 Max psi, SST, Spring Type, 1/4(f) x 1/4(f) inlet/outlet, gauge not included

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 70
• Minimum Regulated Pressure (kPa): 7000
• Minimum Regulated Pressure (MPa): 7
• Minimum Regulated Pressure (psi): 1000

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Type: NPT

GG 240198

GG 25R491

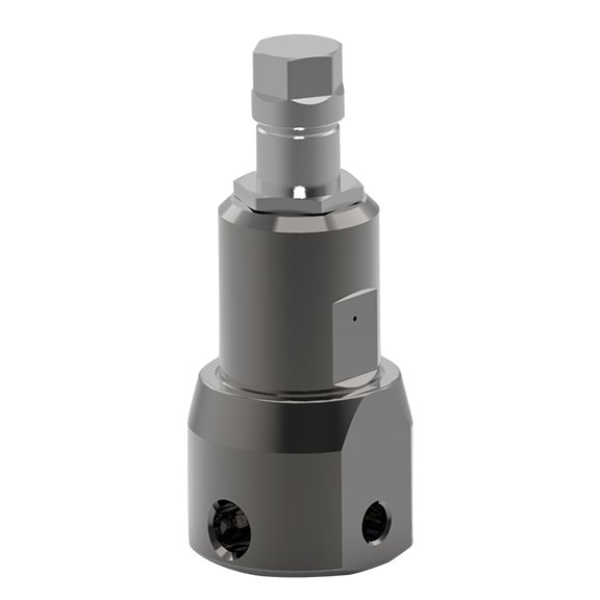

REGULATOR, BACK PRESS, MP, MECHANICAL

Graco 25R491 Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Mechanical with locking nut

Improve fluid control without having to add a compressed air line with this spring-operated back pressure regulator (BPR).

• Easy installation is another benefit of the mechanical medium pressure BPR.

• Compatible Material: Waterborne, Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.95
• Inlet Size (in): 0.375
• Inlet Size (mm): 9.5

• Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kg/cm²): 7
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kg/cm²): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 250

• Maximum Working Pressure (bar): 211
• Maximum Working Pressure (kg/cm²): 211
• Maximum Working Pressure (kPa): 20680
• Maximum Working Pressure (psi): 3000

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Regulated Pressure (bar): 17
• Minimum Regulated Pressure (kg/cm²): 17
• Minimum Regulated Pressure (kPa): 1720
• Minimum Regulated Pressure (psi): 250

• Outlet Size (cm): 0.95
• Outlet Size (in): 0.375
• Outlet Size (mm): 9.5
• Outlet Thread Type: NPT

GG 288262

REGULATOR, BACK PRESSURE

Graco 288262 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 2 inch tri-clamp

• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Hardened stainless steel seat ensure low wear and long life
• Air operated for remote automated control to eliminate operator interference

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 5.08
• Inlet Size (in): 2
• Inlet Size (mm): 50.8

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 70
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Regulated Pressure (bar): 17.2
• Maximum Regulated Pressure (kPa): 1720
• Maximum Regulated Pressure (psi): 250

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 1.7
• Minimum Regulated Pressure (kPa): 170
• Minimum Regulated Pressure (MPa): 0.017
• Minimum Regulated Pressure (psi): 25

• Outlet Size (cm): 5.08
• Outlet Size (in): 2
• Outlet Size (mm): 50.8

GG 288311

REGULATOR, BACK PRESSURE

Graco 288311 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 1-1/2 npt

• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Hardened stainless steel seat ensure low wear and long life
• Air operated for remote automated control to eliminate operator interference

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 3.81
• Inlet Size (in): 1-1/2
• Inlet Size (mm): 38.1

• Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 70
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Regulated Pressure (bar): 17.2
• Maximum Regulated Pressure (kPa): 1720
• Maximum Regulated Pressure (psi): 250

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 1.7
• Minimum Regulated Pressure (kPa): 170
• Minimum Regulated Pressure (MPa): 0.017
• Minimum Regulated Pressure (psi): 25

• Outlet Size (cm): 3.81
• Outlet Size (in): 1-1/2
• Outlet Size (mm): 38.1
• Outlet Thread Type: NPT

IW 8076B
