GG 234263

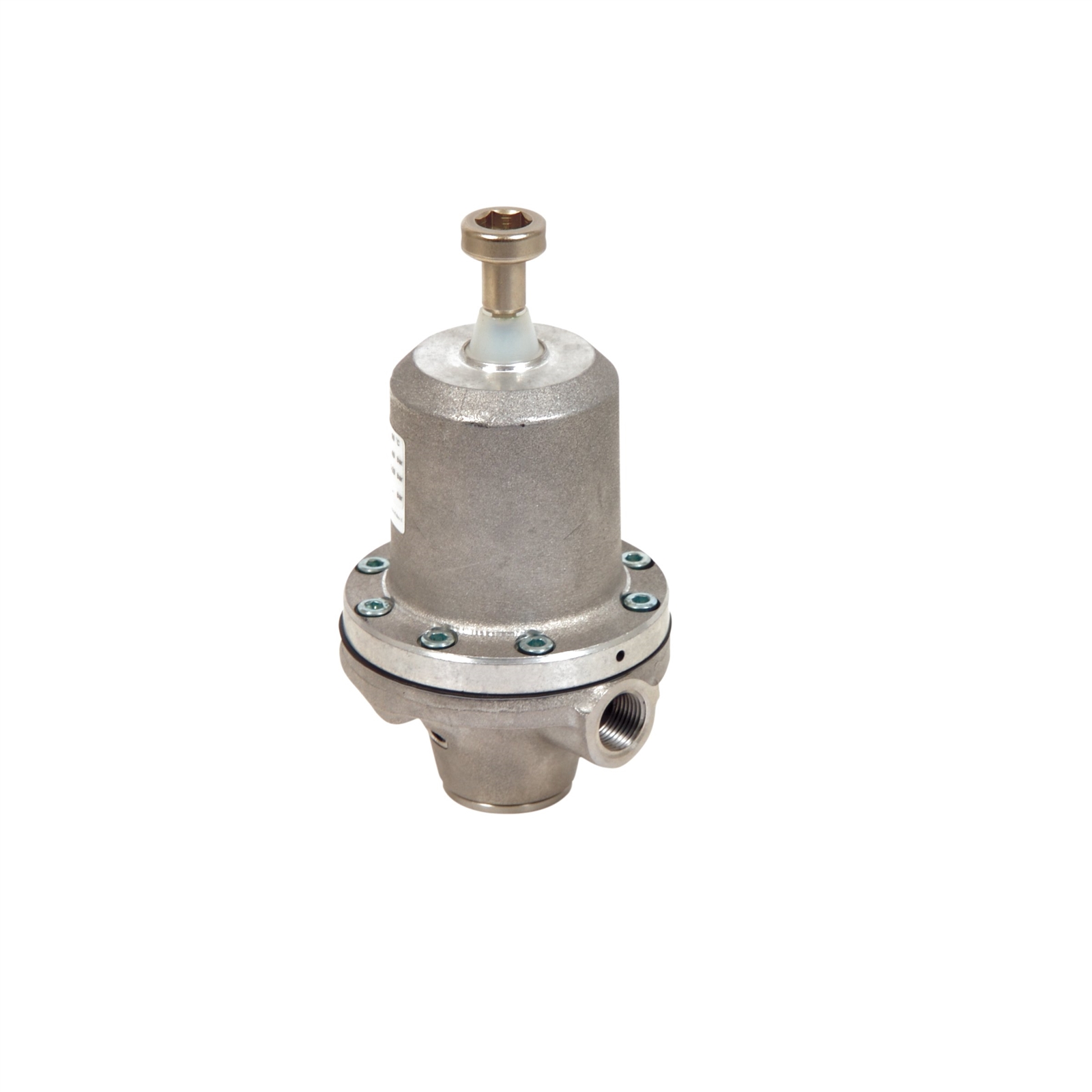

REGULATOR, PRESS, P20-VM, NPT
Graco 234263 Low Pressure Fluid Regulator, 580 Max psi, 15-290 psi Range, 7.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/8 in BSPP Port
Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
- Gauge Port Size (cm): 0.3175
- Gauge Port Size (in): 1/8
- Gauge Port Size (mm): 3.175
- Includes: Regulator Only
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Maximum Flow Rate (GPM): 7
- Maximum Flow Rate (L/min): 26.5
- Maximum Regulated Pressure (bar): 20
- Maximum Regulated Pressure (kPa): 2000
- Maximum Regulated Pressure (MPa): 2.0
- Maximum Regulated Pressure (psi): 290
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 40
- Maximum Working Pressure (kPa): 4000
- Maximum Working Pressure (MPa): 4
- Maximum Working Pressure (psi): 580
- Minimum Regulated Pressure (bar): 1
- Minimum Regulated Pressure (kPa): 10
- Minimum Regulated Pressure (MPa): 102
- Minimum Regulated Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
