Plural Component

GG AP2010

REACTOR 2 E-30 SYSTEM, 10KW, AP

Graco AP2010 Reactor 2 E-30 Proportioner Package, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 10 kW, 230/400 V

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

• Reactor 2 E-30 gives you:

  Compact footprint - more room in your spray rig

  Ergonomic design - easier to service

  Advanced control modules

  Better spraying performance compared to traditional electric Reactor systems

  Troubleshooting made quick and easy with QR codes

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Easy to reach, conveniently-placed electronics
• Advanced control modules

  Handles power fluctuations

• Sacrificial surge protector

  Protects your electronics against excessive power spikes

• Smooth, consistent spray performance - similar to hydraulic systems
• Three-year warranty

  Covers user display module, control modules and electric motor

  One of the best in the industry

• Model: Reactor 2
• Series: E-30
• Product Series: Non-Elite

• Amperage (A): 34 @ 350 to 415 V ac (3-Phase WYE), 50 @ 200 to 240 V ac (3-Phase Delta), 78 @ 200 to 240 V ac (1-Phase)
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Thread Type: JIC
• Component B Inlet Size (mm): #10
• Component B Outlet Size (in): 5/8
• Component B Outlet Size (mm): 15.875
• Component B Thread Type: JIC
• Component Type: Two Component

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 13.61
• Maximum Flow Rate (lb/min): 30

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature (

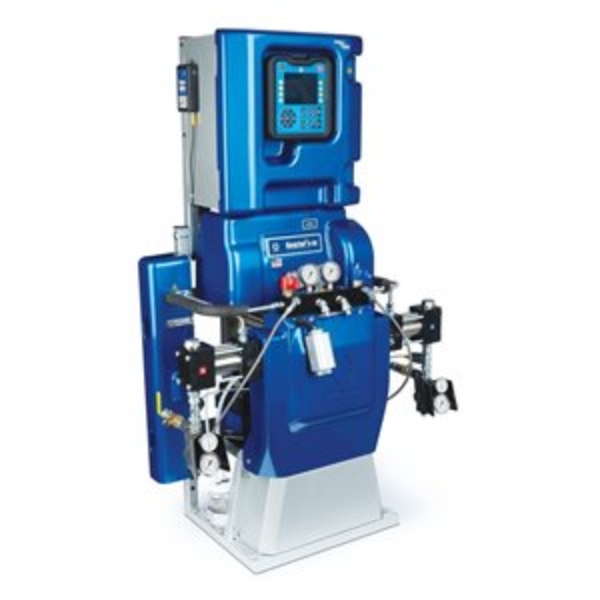

GG APH031

REACTOR 2 H-30 SYSTEM, 10KW, AP

Graco APH031 Reactor 2 H-30 Proportioner Package, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 10 kW, 230/400 V

Gracos hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector

  Protects your electronics against excessive power spikes

• Three-year warranty

  Covers user display and control modules

  One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Non-Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 46 @ 200 to 240 V ac (3-Phase Delta), 79 @ 200 to 240 V ac (1-Phase)
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 12.7
• Maximum Flow Rate (lb/min): 28

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Phase: 1, 3

• Power Rating (HP): 13.41
• Power Rating (kW): 10
• Power Rating (W): 10000
• Power Source: Hydraulic

• Pressur

GG APH062

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, AP

Graco APH062 Reactor 2 H-XP2 Proportioner Package, Fusion AP Gun, Heated Hose, 15 kW, 230/400V

Gracos hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:


  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips


  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology


  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector


  Protects your electronics against excessive power spikes

• Three-year warranty


  Covers user display and control modules

  One of the best in the industry

• Model: Reactor 2
• Series: H-XP2
• Product Series: Non-Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Fusion AP Gun, Heated Hose, Whip Hose

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 5680

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 5.7

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Phase: 1, 3

• Power

GG APH162

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, ELITE, AP

Graco APH162 Reactor 2 H-XP2 Elite Proportioner Package, Fusion AP Gun, Heated Hose, 15 kW, 230/400V

Gracos hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:


  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips


  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology


  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector


  Protects your electronics against excessive power spikes

• Three-year warranty


  Covers user display and control modules

  One of the best in the industry

• Elite Models

  Graco InSite included

  Inlet pressure and temperature sensors (interfaces with Graco InSite)

  Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package

• Model: Reactor 2
• Series: H-XP2
• Product Series: Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Fusion AP Gun, Heated Hose with Xtreme-Wrap, Heated Hose, Elite Kit

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 5680

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 5.7

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8

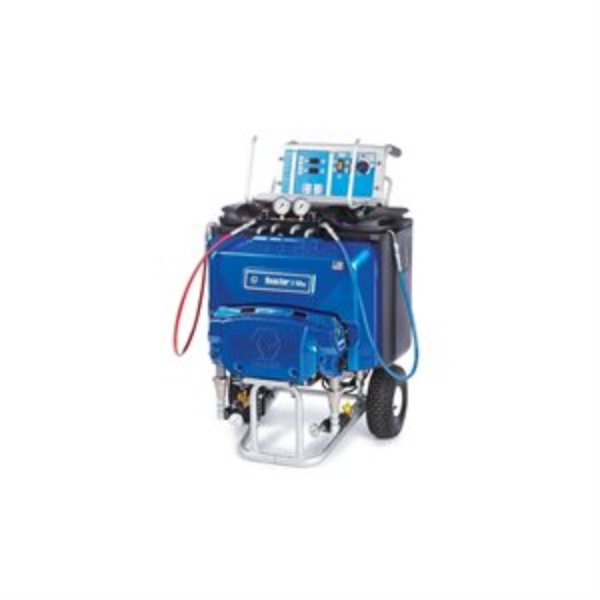

GG APT100

REACTOR E-10HP SYSTEM, CMPLT, 120V

Graco APT100 Reactor E-10 HP Proportioner Package, Fusion AP Gun, 120 V

The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. Its a smart, affordable investment that will help your business grow

• Digital heat controls

  Allows you to enter the exact temperatures you need

  Uses the same circuit boards as a standard Reactor

• Single knob motor operation

  Intuitive, easy to use

• Insulated tanks

  Double-wall insulated to retain heat

  Smooth interior lining for easy cleaning

  Improved seal design on lid for better moisture control

• Boost heat

  Directs unused power from the motor circuit to additional heater rods

  Additional heater power brings material to desired temperatures faster during recirculation mode

• Robust hybrid heater

  More power, faster material heating means more uptime

• Motor

  Offers 50% more power than the Reactor E-10

  Provides improved spray performance with reduced pressure drop

• Quick knockdown lower pumps

  Easy disassembly and maintenance

• Temperature gauges in Y-strainers

  Provides accurate tank temperature readings

• Portable

  Fits through standard doorways

  Plugs into standard 120V or 230V outlets

  Rugged wheels for extreme jobsites

  No need for generator

• Wide tank opening

  Easy material loading and easy to clean

• Model: Reactor
• Series: E-10hp

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Size (mm): 6.35
• Air Outlet Thread Type: NPSM

• Amperage (A): 20
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: Proportioner, Fusion AP Gun, Unheated Hose

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Temperature ( degree C): 77
• Maximum Fluid Temperature ( degree F): 170

• Maximum Fluid Temperature ( degree C): 77
• Maximum Fluid Temperature ( degree F): 170

• Maximum Mix Ratio: 1:1

• Maximum Spray Pressure (bar): 151.7

• Maximum Spray Pressure (kPa): 15170
• Maximum Spray Pressure (MPa): 15.2
• Maximum Spray Pressure (psi): 2200

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Overall Depth (cm): 91.4
• Overall Depth (in): 36
• Overall Depth (mm): 914

• Overall Height (cm): 116.8
• Overall Height (in): 46

GG ES2614

GG FHH174

REACTOR 2 H-XP3 SYSTEM, 230, 20KW, ELITE, PC

Graco FHH174 Reactor 2 H-XP3 Elite Proportioner Package, Fusion PC Gun, (6) Heated Hoses with Scuff Guard, 20 kW, 230 V, 3PH

Gracos hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes





  Drum level indicators

  • Sacrificial surge protector

    Protects your electronics against excessive power spikes

  • Three-year warranty

    Covers user display and control modules

    One of the best in the industry

  • Elite Models

    Graco InSite included

    Inlet pressure and temperature sensors (interfaces with Graco InSite)

    Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package




  • Model: Reactor 2
  • Series: H-XP3
  • Product Series: Elite
  • Amperage (A): 95 @ 200 to 240 V ac (3-Phase Delta)
  • Application: Protective Coatings
  • Applicator Type: Manual
  • Compatible Material: Plural Components
  • Component Type: Two Component
  • Flush Type: Solvent
  • Frequency (Hz): 50/60
  • Gun Type: Fusion PC
  • Hose Length (ft): 50, 10
  • Hose Length (m): 15.2, 3
  • Hose Package: Multi-Hose
  • Includes: Proportioner, Fusion PC Gun, Heated Hose with Scuff Guard, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors
  • Material Application: Polyurea
  • Maximum Flow Rate (cc/min): 9080
  • Maximum Flow Rate (GPM): 2.4
  • Maximum Flow Rate (L/min): 9.08
  • Maximum Fluid Temperature ( degree C): 88
  • Maximum Fluid Temperature ( degree F): 190
  • Maximum Fluid Temperature ( degree C): 88
  • Maximum Fluid Temperature ( degree F): 190
  • Maximum Mix Ratio: 1:1
  • Overall Depth (cm): 53
  • Overall Depth (in): 20.88
  • Overall Depth (mm): 530
  • Overall Height (cm): 160.8
  • Overall Height (in): 63.3
  • Overall Height (mm): 1608
  • Overall Width (cm): 83.7
  • Overall Width (in): 32.96
  • Overall Width (mm): 837
  • Phase: 3
  • Power Rating (HP): 26.82
  • Power Rating (kW): 20
  • Power Rating (W): 20000

GG FPH062

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, PC

Graco FPH062 Reactor 2 H-XP2 Proportioner Package, Fusion PC Gun, Heated Hose, 15 kW, 230/400V

Gracos hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:


  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips


  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology


  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector


  Protects your electronics against excessive power spikes

• Three-year warranty


  Covers user display and control modules

  One of the best in the industry

• Model: Reactor 2
• Series: H-XP2
• Product Series: Non-Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion PC

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Fusion PC Gun, Heated Hose, Whip Hose

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 5680

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 5.7

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Phase: 1, 3

• Power

GG FPH132

REACTOR 2 H-30 SYSTEM, 15KW, ELITE, PC

Graco FPH132 Reactor 2 H-30 Elite Proportioner Package, Fusion PC Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V

Gracos hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector

  Protects your electronics against excessive power spikes

• Three-year warranty

  Covers user display and control modules

  One of the best in the industry

• Model: Reactor 2
• Series: H-30
• Product Series: Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion PC

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Proportioner, Fusion PC Gun, Heated Hose with Scuff Guard, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 12.7
• Maximum Flow Rate (lb/min): 28

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Phase: 1, 3

• Power Rating (HP): 20.11
• Power Rating (kW): 15
• Power Rating (W): 15000
• Power Sour

GG FPH162

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, ELITE, PC

Graco FPH162 Reactor 2 H-XP2 Elite Proportioner Package, Fusion PC Gun, Heated Hose, 15 kW, 230/400V

Gracos hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:


  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips


  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology


  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector


  Protects your electronics against excessive power spikes

• Three-year warranty


  Covers user display and control modules

  One of the best in the industry

• Elite Models

  Graco InSite included

  Inlet pressure and temperature sensors (interfaces with Graco InSite)

  Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package

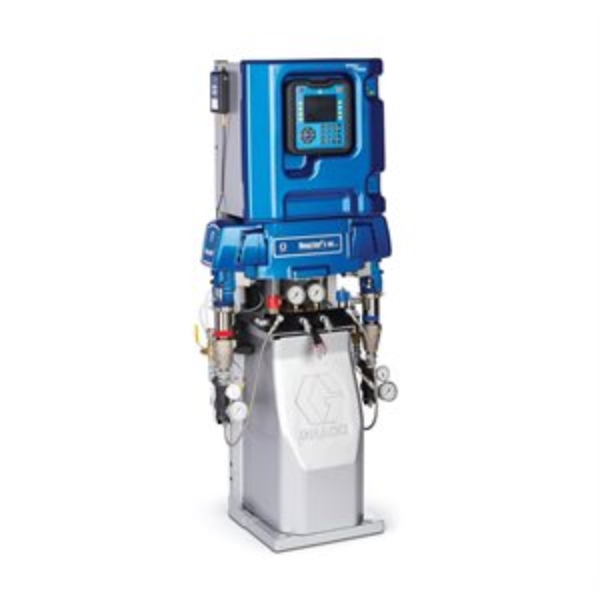

• Model: Reactor 2
• Series: H-XP2
• Product Series: Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion PC

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Single Hose
• Includes: Fusion PC Gun, Heated Hose with Xtreme-Wrap, Heated Hose, Elite Kit

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 5680

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 5.7

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8

GG FPH174

REACTOR 2 H-XP3 SYSTEM, 230, 20KW, ELITE, PC

Graco FPH174 Reactor 2 H-XP3 Elite Proportioner Package, Fusion PC Gun, Heated Hose with Scuff Guard, 20 kW, 230 V, 3PH

Gracos hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:

  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes





  Drum level indicators

  • Sacrificial surge protector

    Protects your electronics against excessive power spikes

  • Three-year warranty

    Covers user display and control modules

    One of the best in the industry

  • Elite Models

    Graco InSite included

    Inlet pressure and temperature sensors (interfaces with Graco InSite)

    Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package




  • Model: Reactor 2
  • Series: H-XP3
  • Product Series: Elite
  • Amperage (A): 95 @ 200 to 240 V ac (3-Phase Delta)
  • Application: Protective Coatings
  • Applicator Type: Manual
  • Compatible Material: Plural Components
  • Component Type: Two Component
  • Flush Type: Solvent
  • Frequency (Hz): 50/60
  • Gun Type: Fusion PC
  • Hose Length (ft): 50, 10
  • Hose Length (m): 15, 3
  • Hose Package: Single Hose
  • Includes: Proportioner, Fusion PC Gun, Heated Hose with Scuff Guard, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors
  • Material Application: Polyurea
  • Maximum Flow Rate (cc/min): 9080
  • Maximum Flow Rate (GPM): 2.4
  • Maximum Flow Rate (L/min): 9.08
  • Maximum Fluid Temperature ( degree C): 88
  • Maximum Fluid Temperature ( degree F): 190
  • Maximum Fluid Temperature ( degree C): 88
  • Maximum Fluid Temperature ( degree F): 190
  • Maximum Mix Ratio: 1:1
  • Maximum Working Pressure (bar): 241
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 24.1
  • Maximum Working Pressure (psi): 3500
  • Overall Depth (cm): 53
  • Overall Depth (in): 20.88
  • Overall Depth (mm): 530
  • Overall Height (cm): 160.8
  • Overall Height (in): 63.3
  • Overall Height (mm): 1608
  • Overall Width (cm): 83.7
  • Overall Width (in):

GG MC0502

PROMIX PD2K PROPORTIONER, SYS, PD1K, MANUAL, DP

Graco MC0502 ProMix PD2K Manual Proportioner, Dual Panel, Control Module Only

100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall.

• Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems
• Faster color changes and less material to flush mean less waste and less downtime
• Stalls under pressure for consistent, on-ratio results (within 1% accuracy)
• Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

• Model: ProMix
• Series: PD2K

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Component Type: Single Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Single Component

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 16

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100
• Measuring Type: Meter

• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: Up to 4
• Number of Color Valves: N/A

• Number of Resin Colors: Up to 30

• Power Source: Electric

• Pressure Type: Low or High Pressure
• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MC1000

PROMIX PD2K PROPORTIONER, SYSTEM, PD, MANUAL, LP

Graco MC1000 ProMix PD2K Manual Proportioner, Standard, Low Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump, 1 Solvent Valve

100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall.

• Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems
• Faster color changes and less material to flush mean less waste and less downtime
• Stalls under pressure for consistent, on-ratio results (within 1% accuracy)
• Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

• Model: ProMix
• Series: PD2K

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Plural Component

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 30

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100
• Measuring Type: Meter

• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: Up to 4
• Number of Color Valves: N/A

• Number of Resin Colors: Up to 30

• Power Source: Electric

• Pressure Type: Low Pressure
• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MC1002

PROMIX PD2K PROPORTIONER, SYS, DP, MANUAL, LP

Graco MC1002 ProMix PD2K Manual Proportioner, Dual Panel, Low Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump, 2 Solvent Valves

100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall.

• Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems
• Faster color changes and less material to flush mean less waste and less downtime
• Stalls under pressure for consistent, on-ratio results (within 1% accuracy)
• Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

• Model: ProMix
• Series: PD2K

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Plural Component

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 16

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100
• Measuring Type: Meter

• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: Up to 4
• Number of Color Valves: N/A

• Number of Resin Colors: Up to 30

• Power Source: Electric

• Pressure Type: Low Pressure
• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1002

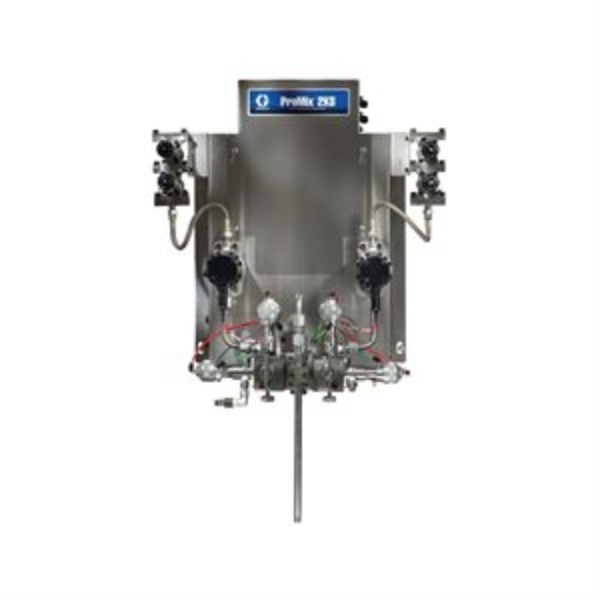

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1002 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 1 color, 1 catalyst, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 1 Valve
• Number of Colors: 1

• Number of Resin Colors: 1

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1003

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1003 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, Single Color, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 1 Valve
• Number of Colors: 1

• Number of Resin Colors: 1

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1004

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1004 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 1 Color, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 1 Valve
• Number of Colors: 1

• Number of Resin Colors: 1

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1101

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1101 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 2 colors LP, 1 catalyst, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1104

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1104 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 2 Colors LP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1111

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1111 ProMix 2KS Manual Wall Panel System, EasyKey with LCD display, G3000 A & B Meter, 2 colors LP, 2 catalysts LP, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1113

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1113 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 2 Colors LP, 2 Catalysts LP, 1 Air Flow Switch with 1 Gun Flush Box

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1114

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1114 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 2 Colors LP, 2 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1201

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1201 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 4 colors LP, 1 catalyst, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1202

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1202 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 4 colors LP, 1 catalyst, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1203

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1203 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 4 Colors LP, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic
