GG 247212
FUSION MP GUN, MR3535, RTM040

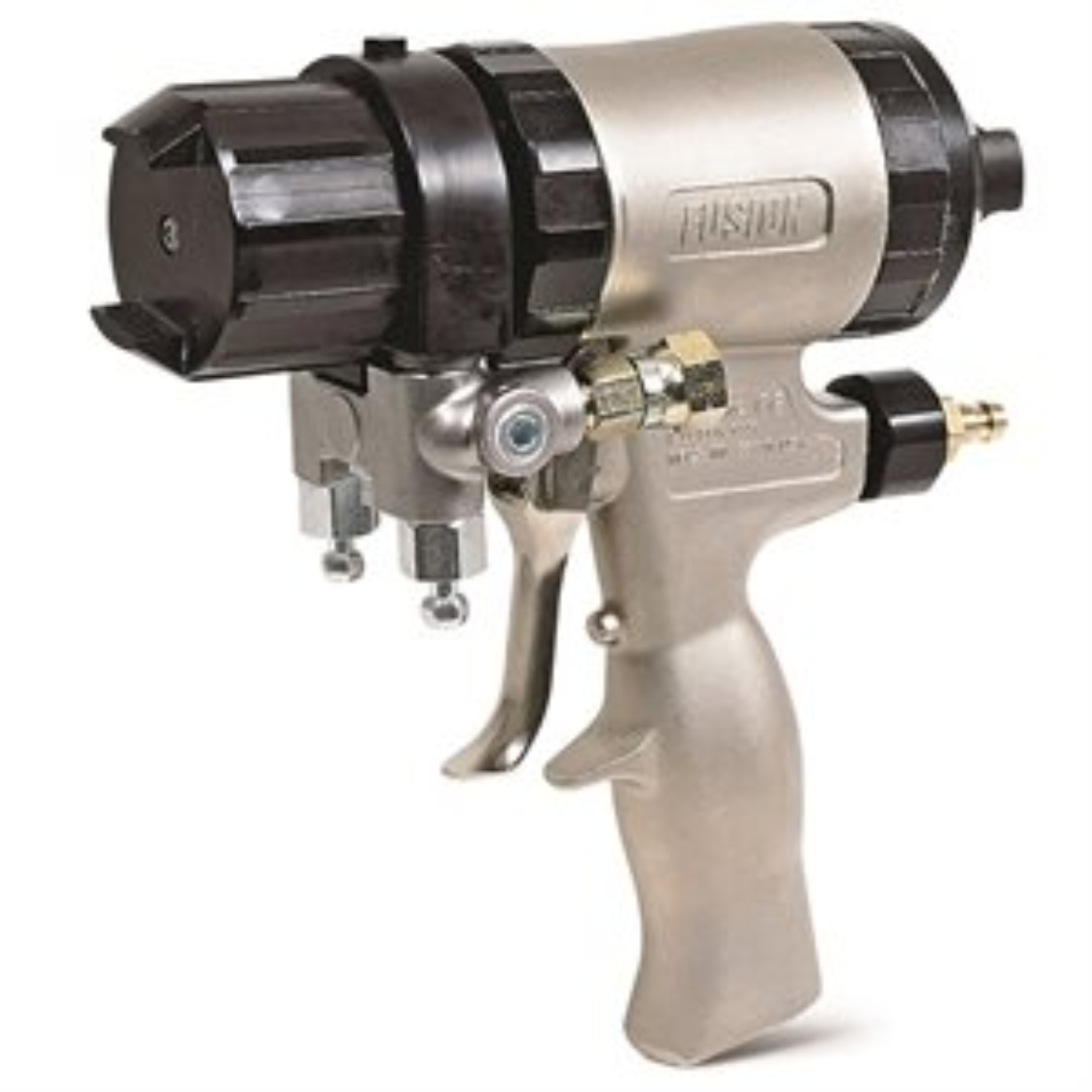

Graco 247212 Round Pattern Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Orifice Size and Mix Chamber with 0.035 in (0.89 mm) Impingement Port
Whether youre spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.
Application: For high output spray polyurethane foam and polyurea applications.
- Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
- Long-lasting PolyCarballoy mix module
- Advanced mix module and tip provides superior mixing capabilities
- Model: Fusion MP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.102
- Fluid Orifice Size (in): 0.040
- Fluid Orifice Size (mm): 1.02
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Mechanical-Purge
- Gun Weight (g): 1315
- Gun Weight (kg): 1.32
- Gun Weight (lb): 2.9
- Gun Weight (oz): 46.4
- Impingement Port Size (in): 0.035
- Impingement Port Size (mm): 0.89
- Impingement Type: Standard
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm):
