REACTOR E-10HP SYSTEM, CMPLT, 120V

Manufacturer: GRACO INC. S10595

GG APT100

REACTOR E-10HP SYSTEM, CMPLT, 120V

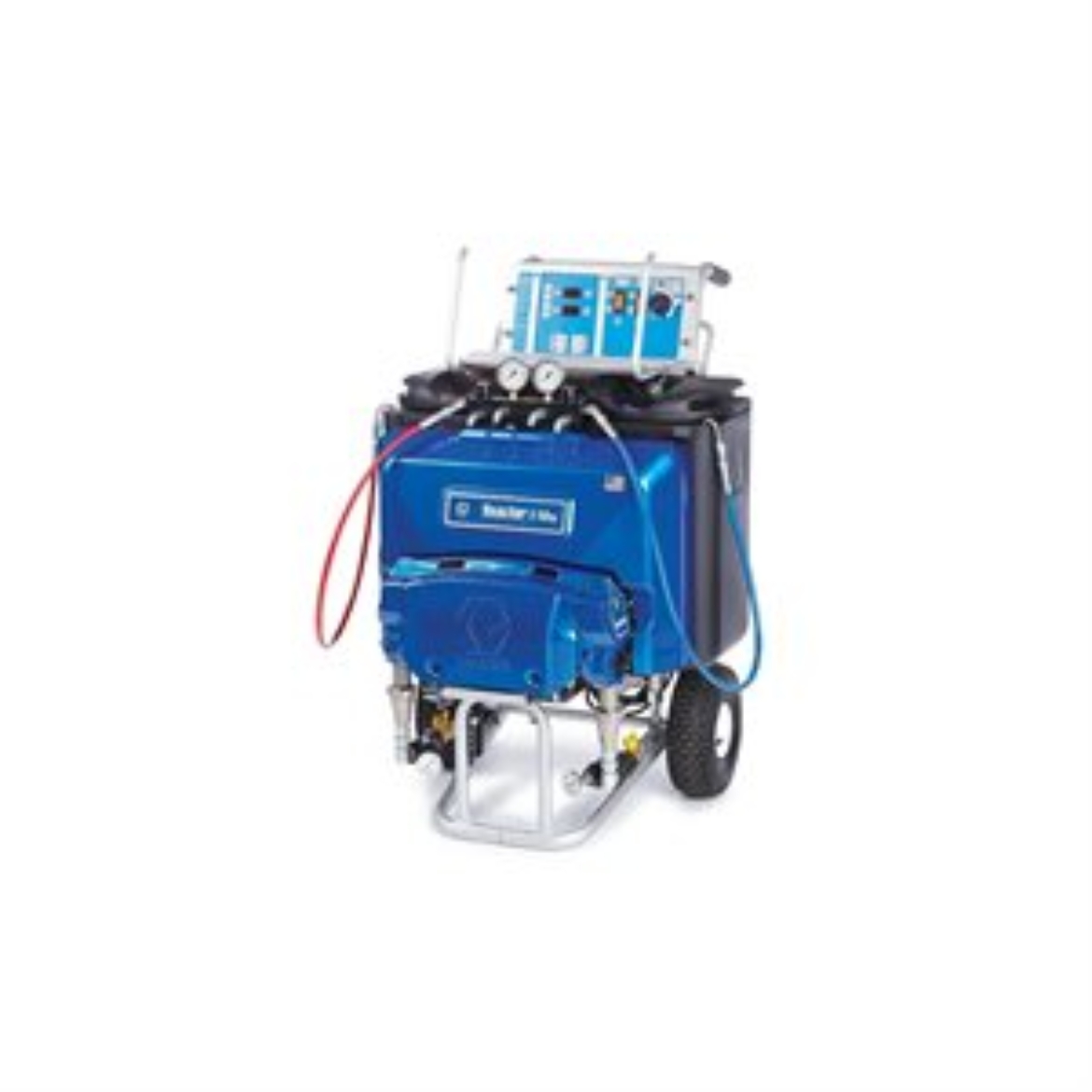

Graco APT100 Reactor E-10 HP Proportioner Package, Fusion AP Gun, 120 V

The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. It&prime, s a smart, affordable investment that will help your business grow

Application: Entry-level system for pure and hybrid polyurea coatings.
  • Digital heat controls

    Allows you to enter the exact temperatures you need

    Uses the same circuit boards as a standard Reactor

  • Single knob motor operation

    Intuitive, easy to use

  • Insulated tanks

    Double-wall insulated to retain heat

    Smooth interior lining for easy cleaning

    Improved seal design on lid for better moisture control

  • Boost heat

    Directs unused power from the motor circuit to additional heater rods

    Additional heater power brings material to desired temperatures faster during recirculation mode

  • Robust hybrid heater

    More power, faster material heating means more uptime

  • Motor

    Offers 50% more power than the Reactor E-10

    Provides improved spray performance with reduced pressure drop

  • Quick knockdown lower pumps

    Easy disassembly and maintenance

  • Temperature gauges in Y-strainers

    Provides accurate tank temperature readings

  • Portable

    Fits through standard doorways

    Plugs into standard 120V or 230V outlets

    Rugged wheels for extreme jobsites

    No need for generator

  • Wide tank opening

    Easy material loading and easy to clean


  • Model: Reactor
  • Series: E-10hp
  • Air Inlet Size (cm): 0.635
  • Air Inlet Size (in): 1/4
  • Air Inlet Size (mm): 6.35
  • Air Outlet Size (cm): 0.635
  • Air Outlet Size (in): 1/4
  • Air Outlet Size (mm): 6.35
  • Air Outlet Thread Type: NPSM
  • Amperage (A): 20
  • Application: Protective Coatings
  • Applicator Type: Manual
  • Compatible Material: Plural Components
  • Component Type: Two Component
  • Flush Type: Solvent
  • Frequency (Hz): 50/60
  • Gun Type: Fusion AP
  • Hose Length (ft): 35
  • Hose Length (m): 10.7
  • Includes: Proportioner, Fusion AP Gun, Unheated Hose
  • Material Application: Polyurea
  • Maximum Flow Rate (cc/min): 3790
  • Maximum Flow Rate (GPM): 1
  • Maximum Flow Rate (L/min): 3.79
  • Maximum Fluid Temperature (°C): 77
  • Maximum Fluid Temperature (°F): 170
  • Maximum Fluid Temperature (°C): 77
  • Maximum Fluid Temperature (°F): 170
  • Maximum Mix Ratio: 1:1
  • Maximum Spray Pressure (bar): 151.7
SKU: GG APT100
Availability:
Price: $34,950.00
