XP70 Non-Hazardous Spray Pack, Cart, 2:1 Mix Ratio, Hopper, Solvent Pump, Junction Box, XTR Gun, 240V

GG 576205

XP SYSTEM, 2:1, 115/58, BF, CH, HS, JB

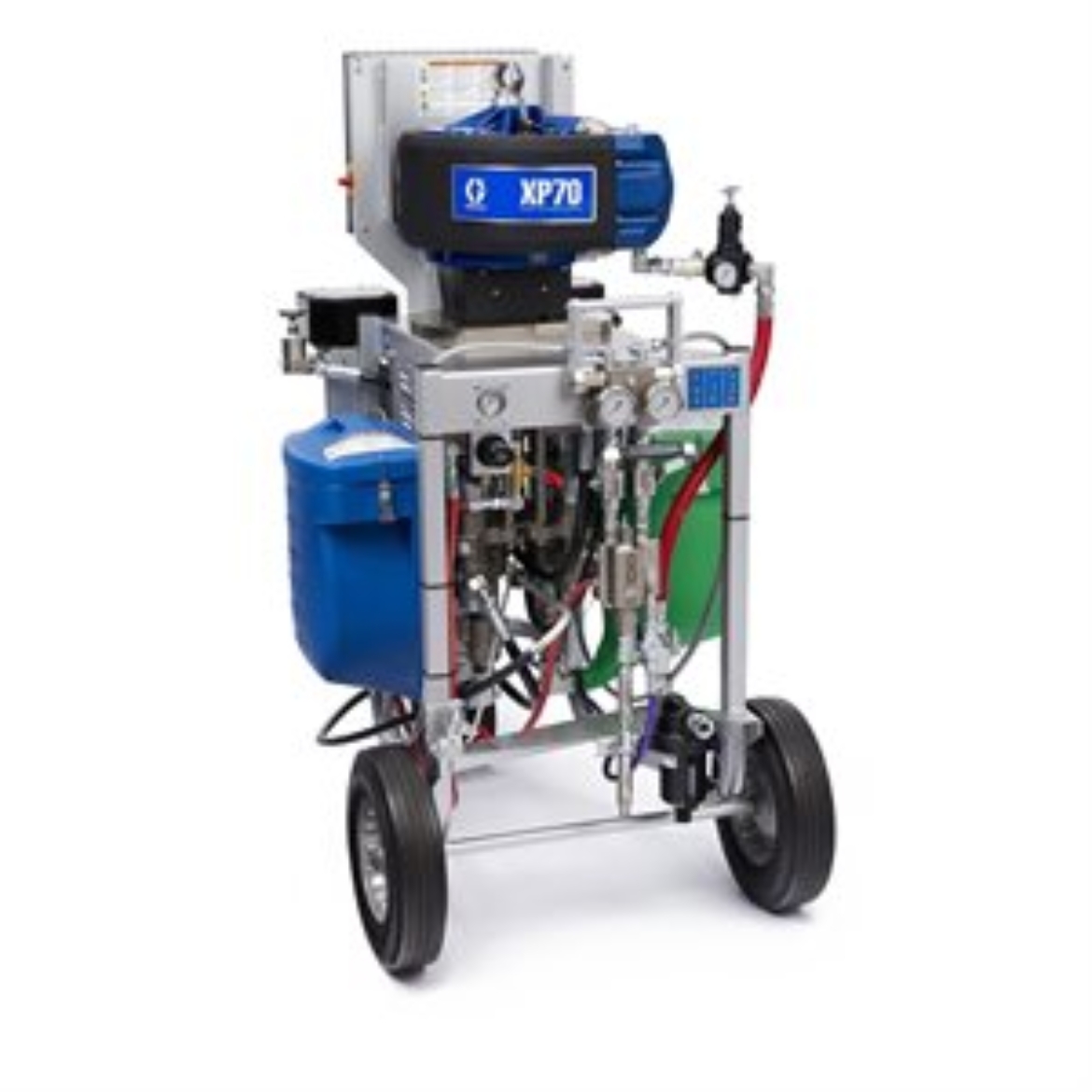

Graco 576205 XP70 Non-Hazardous Spray Package, Cart, 2:1 Mix Ratio, Hopper, Solvent Pump, Heaters, Junction Box, XTR Gun, 240V

Two-component spraying made easy and affordable. The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70's design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, youll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate - choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That's because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.

• Reduced material waste
• No more throwing away unused mixed material at the end of the day
• Save money by using less clean-up solvent
• Easy to operate - minimal training required
• Reduced maintenance costs
• Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths

• Series: XP70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic Airless, Manual Airless

• Compatible Material: Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents

• Component Type: Plural-Component
• Configuration: Cart Mount with 7 gallon (26.5 Liter) Hopper

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Solvent

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: Heaters, Solvent Flush Pump, Hoppers

• Material Application: Coatings, Paints, Primers

• Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (MPa): 1.21
• Maximum Air Inlet Pressure (psi): 175

• Maximum Cycle Rate (CPM): 40

• Maximum Flow Rate (cc/min): 6800

• Maximum Flow Rate (GPM): 1.8
• Maximum Flow Rate (L/min): 6.8

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Hose Length (ft): 300
• Maximum Hose Length (m): 91.4

• Maximum Operating Temperature ( degree C): 54
• Maximum Operating Temperature ( degree F): 130

• Maximum Spray Pressure (bar): 500

• Maximum Spray Pressure (kPa): 50000
• Maximum Spray Pressure (MPa): 50
• Maximum Spray Pressure (psi): 7250

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (MPa): 50
• Maximum Working Pressure (psi):
