Plural Component

GG MD1204

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1204 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 4 Colors LP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1214

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1214 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 4 Colors LP, 2 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1301

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1301 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 1 catalyst, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 7 Valves
• Number of Colors: 7

• Number of Resin Colors: 7

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1302

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1302 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 1 catalyst, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 7 Valves
• Number of Colors: 7

• Number of Resin Colors: 7

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1304

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1304 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 7 Colors LP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 7 Valves
• Number of Colors: 7

• Number of Resin Colors: 7

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1311

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1311 ProMix 2KS Manual Wall Panel System, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 2 catalysts LP, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 7 Valves
• Number of Colors: 7

• Number of Resin Colors: 7

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1312

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1312 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 7 colors LP, 2 catalysts LP, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 7 Valves
• Number of Colors: 7

• Number of Resin Colors: 7

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1314

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1314 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 7 Colors LP, 2 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 7 Valves
• Number of Colors: 7

• Number of Resin Colors: 7

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1403

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1403 ProMix 2KS Manual Wall Panel System, EasyKey, G3000 A & B Meter, 12 Colors LP, Single Catalyst, 1 Air Flow Switch with 1 Gun Flush Box

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 12 Valves
• Number of Colors: 12

• Number of Resin Colors: 12

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1411

GG MD1422

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1422 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 12 colors LP, 4 catalysts LP, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 4
• Number of Color Valves: 12 Valves
• Number of Colors: 12

• Number of Resin Colors: 12

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1424

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

Graco MD1424 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 12 Colors LP, 4 Catalysts LP, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 4
• Number of Color Valves: 12 Valves
• Number of Colors: 12

• Number of Resin Colors: 12

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1501

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1501 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 2 colors HP, 1 catalyst, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 2 Valves
• Number of Colors: 2

• Number of Resin Colors: 2

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1601

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1601 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 4 colors HP, 1 catalyst, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

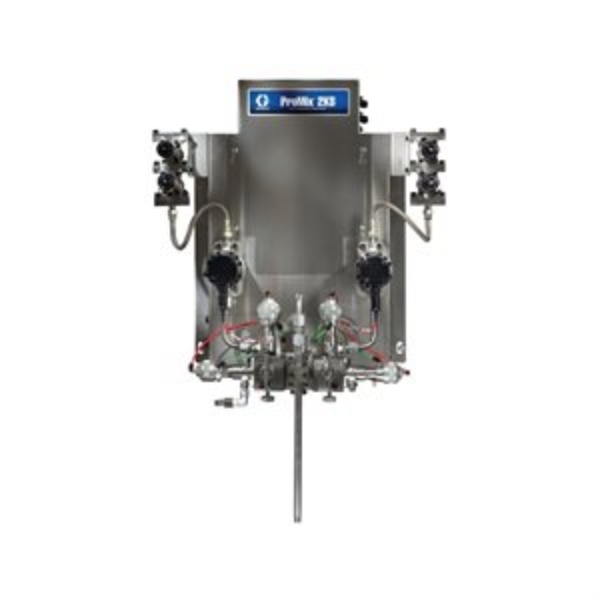

GG MD1602

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1602 ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 4 colors HP, 1 catalyst, and 2 Air Flow Switches

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1604

PROMIX 2KS PROPORTIONER, MANUAL

Graco MD1604 ProMix 2KS Manual Wall Panel, EasyKey, G3000 A & B Meter, 4 Colors HP, 1 Catalyst, 2 Air Flow Switches, 2 Gun Flush Boxes

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG MD1631

PROMIX 2KS PROPORTIONER MANUAL

Graco MD1631 ProMix 2KS Manual Wall Panel System, EasyKey with LCD display, G3000 A & B Meter, 4 colors HP, 2 catalysts HP, and 1 Air Flow Switch

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 12

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 2
• Number of Color Valves: 4 Valves
• Number of Colors: 4

• Number of Resin Colors: 4

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG ME1001

PROMIX 2KS PROPORTIONER MANUAL SYSTEM

Graco ME1001 ProMix 2KS Manual System for Acid Cat with G3000A Meter, 1 Airflow Switch, EasyKey Smart Control and Display

The ProMix 2KS meter-based dosing system for acid catalyzed materials can track the performance of one or two painters and manage a wide range of mix ratios. It's also easy to set up and manage without touchy adjustments to fluid pressure.

• The G3000A meter accurately measures fluid and withstands strong acid due to durable, high grade, stainless steel components, including gears with ceramic bearings.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: No Valves
• Number of Colors: 1

• Number of Resin Colors: 0

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

GG ME1004

PROMIX 2KS PROPORTIONER MANUAL

Graco ME1004 ProMix 2KS Manual System for Acid Cat with G3000A Meter, 2 Gun Flush Boxes, EasyKey Smart Control and Display

The ProMix 2KS meter-based dosing system for acid catalyzed materials can track the performance of one or two painters and manage a wide range of mix ratios. It's also easy to set up and manage without touchy adjustments to fluid pressure.

• The G3000A meter accurately measures fluid and withstands strong acid due to durable, high grade, stainless steel components, including gears with ceramic bearings.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: No Valves
• Number of Colors: 1

• Number of Resin Colors: 0

• Power Source: Electric

• Proportioner Type: Manual
• Proportioning Type: Manual Electronic

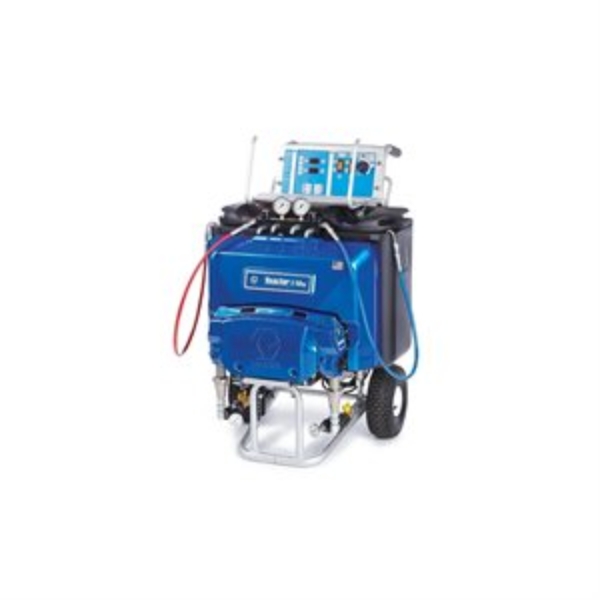

GG P2T900

REACTOR E-10HP SYSTEM, CMPLT, 230V(NA)

Graco P2T900 Reactor E-10 HP Proportioner Package, Probler P2 Gun, North American Cord Adapter, 230 V, 1PH

The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. Its a smart, affordable investment that will help your business grow.

• Digital heat controls

  Allows you to enter the exact temperatures you need

  Uses the same circuit boards as a standard Reactor

• Single knob motor operation

  Intuitive, easy to use

• Insulated tanks

  Double-wall insulated to retain heat

  Smooth interior lining for easy cleaning

  Improved seal design on lid for better moisture control

• Boost heat

  Directs unused power from the motor circuit to additional heater rods

  Additional heater power brings material to desired temperatures faster during recirculation mode

• Robust hybrid heater

  More power, faster material heating means more uptime

• Motor

  Offers 50% more power than the Reactor E-10

  Provides improved spray performance with reduced pressure drop

• Quick knockdown lower pumps

  Easy disassembly and maintenance

• Temperature gauges in Y-strainers

  Provides accurate tank temperature readings

• Portable

  Fits through standard doorways

  Plugs into standard 120V or 230V outlets

  Rugged wheels for extreme jobsites

  No need for generator

• Wide tank opening

  Easy material loading and easy to clean

• Model: Reactor
• Series: E-10hp

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: Quick-Disconnect Pin

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Thread Type: NPSM

• Amperage (A): 15
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Probler P2

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: Proportioner, Probler P2 Gun, Unheated Hose, North American Cord Adapter

• Material Application: Polyurea

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Temperature ( degree C): 77
• Maximum Fluid Temperature ( degree F): 170

• Maximum Fluid Temperature ( degree C): 77
• Maximum Fluid Temperature ( degree F): 170

• Maximum Mix Ratio: 1:1

• Maximum Spray Pressure (bar): 172.4

• Maximum Spray Pressure (kPa): 17240
• Maximum Spray Pressure (MPa): 17.2
• Maximum Spray Pressure (psi): 2500

• Overall Depth (cm): 91.4
• Overall Depth (in): 36
• Overall Depth (mm): 914

• Overall Height (cm): 116.8
• Overall Height (in): 46
• Overall Height (mm): 1168
• Overall Width (cm): 73.7
• Overall Width (in): 29
• O

GG PF2300

PCF SYSTEM, 016, CART, HR METER, IO

Graco PF2300 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and Discrete User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds - providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering

  Closed-loop real-timecontrol ensures a precise, continuous dispense - improves part quality and reduces material waste

  Intuitive user interface simplifies setup, reduces training time

  Integrated USB interface for easy data downloads - allows for further analysis of process data

  Multiple gun capabilities for additional productivity - lets you program up to four guns

  Compact modular design - easy to install, integrate and maintain

  Low cost of ownership - fewer wear parts compared to shot meters




  • Model: PCF
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Outlet Size (in): 5/32
  • Ambient/Warm Melt/Hot Melt: Ambient
  • Amperage (A): 1.4
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
  • Applicator Type: Automatic
  • Compatible Material: Sealants, Adhesives
  • Component Type: Single Component
  • Flow Control Type: Regulation, Control
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 17256.6929133858
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 1725.6692913386
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Frequency (Hz): 50/60
  • Gateway: Discrete User Interface
  • Gun Activation: Automatic
  • Includes: Regulator, Flow Meter, FCM Key Token
  • Maximum Air Inlet Pressure (bar): 8.27
  • Maximum Air Inlet Pressure (kPa): 827
  • Maximum Air Inlet Pressure (MPa): 0.83
  • Maximum Air Inlet Pressure (psi): 120
  • Maximum Ambient Temperature ( degree C): 49
  • Maximum Ambient Temperature ( degree F): 120
  • Maximum Flow Rate (cc/min): 7500
  • Maximum Flow Rate (GPM): 1.98
  • Maximum Flow Rate (L/min): 7.5
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Working Pressure (bar): 241
  • Maximum Fluid Working Pressure (MPa): 24
  • Maximum Fluid Working Pressure (psi): 3500
  • Maximum Operating Temperature ( degree C): 49
  • Maximum Operating Temperature ( degree F): 120
  • Maximum Working Pressure (bar): 414
  • Maximum Working Pressure (kPa): 41400

GG PF2420

PCF SYSTEM, 016, MAST, HR METER, EP

Graco PF2420 16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds - providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering

  Closed-loop real-timecontrol ensures a precise, continuous dispense - improves part quality and reduces material waste

  Intuitive user interface simplifies setup, reduces training time

  Integrated USB interface for easy data downloads - allows for further analysis of process data

  Multiple gun capabilities for additional productivity - lets you program up to four guns

  Compact modular design - easy to install, integrate and maintain

  Low cost of ownership - fewer wear parts compared to shot meters




  • Model: PCF
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Outlet Size (in): 5/32
  • Ambient/Warm Melt/Hot Melt: Ambient
  • Amperage (A): 1.4
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
  • Applicator Type: Automatic
  • Compatible Material: Sealants, Adhesives
  • Component Type: Single Component
  • Flow Control Type: Regulation, Control
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 17281.1023622047
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 1728.1102362205
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Frequency (Hz): 50/60
  • Gateway: EtherNet/IP User Interface
  • Gun Activation: Automatic
  • Includes: Regulator, Flow Meter, FCM Key Token
  • Maximum Air Inlet Pressure (bar): 8.27
  • Maximum Air Inlet Pressure (kPa): 827
  • Maximum Air Inlet Pressure (MPa): 0.83
  • Maximum Air Inlet Pressure (psi): 120
  • Maximum Ambient Temperature ( degree C): 49
  • Maximum Ambient Temperature ( degree F): 120
  • Maximum Flow Rate (cc/min): 7500
  • Maximum Flow Rate (GPM): 1.98
  • Maximum Flow Rate (L/min): 7.5
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Working Pressure (bar): 345
  • Maximum Fluid Working Pressure (MPa): 35
  • Maximum Fluid Working Pressure (psi): 5000
  • Maximum Operating Temperature ( degree C): 49
  • Maximum Operating Temperature ( degree F): 120
  • Maximum Working Pressure (bar): 345
  • Maximum Working Pressure (kPa): 34500

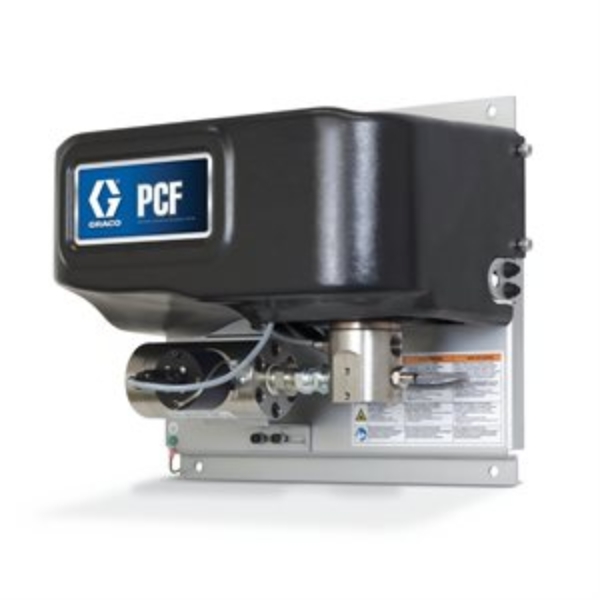

GG PF2421

PCF SYSTEM, 016, MAST, HR METER, EP

Graco PF2421 16 Styles 24 VDC Precision Flow System with Mastic Regulator, High Resolution Meter and EtherNet/IP User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds - providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering

  Closed-loop real-timecontrol ensures a precise, continuous dispense - improves part quality and reduces material waste

  Intuitive user interface simplifies setup, reduces training time

  Integrated USB interface for easy data downloads - allows for further analysis of process data

  Multiple gun capabilities for additional productivity - lets you program up to four guns

  Compact modular design - easy to install, integrate and maintain

  Low cost of ownership - fewer wear parts compared to shot meters




  • Model: PCF
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Outlet Size (in): 5/32
  • Ambient/Warm Melt/Hot Melt: Ambient
  • Amperage (A): 4
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
  • Applicator Type: Automatic
  • Compatible Material: Sealants, Adhesives
  • Component Type: Single Component
  • Flow Control Type: Regulation, Control
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 17281.1023622047
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 1728.1102362205
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Frequency (Hz): 50/60
  • Gateway: EtherNet/IP User Interface
  • Gun Activation: Automatic
  • Includes: Regulator, Flow Meter, FCM Key Token
  • Maximum Air Inlet Pressure (bar): 8.27
  • Maximum Air Inlet Pressure (kPa): 827
  • Maximum Air Inlet Pressure (MPa): 0.83
  • Maximum Air Inlet Pressure (psi): 120
  • Maximum Ambient Temperature ( degree C): 49
  • Maximum Ambient Temperature ( degree F): 120
  • Maximum Flow Rate (cc/min): 7500
  • Maximum Flow Rate (GPM): 1.98
  • Maximum Flow Rate (L/min): 7.5
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Working Pressure (bar): 345
  • Maximum Fluid Working Pressure (MPa): 35
  • Maximum Fluid Working Pressure (psi): 5000
  • Maximum Operating Temperature ( degree C): 49
  • Maximum Operating Temperature ( degree F): 120
  • Maximum Working Pressure (bar): 345
  • Maximum Working Pressure (kPa): 34500
  • Max

GG PF2440

PCF SYSTEM, 016, MAST, HR METER, PN

Graco PF2440 16 Styles 100-240 VAC Precision Flow System with Mastic Regulator, High Resolution Meter and PROFINET User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds - providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering

  Closed-loop real-timecontrol ensures a precise, continuous dispense - improves part quality and reduces material waste

  Intuitive user interface simplifies setup, reduces training time

  Integrated USB interface for easy data downloads - allows for further analysis of process data

  Multiple gun capabilities for additional productivity - lets you program up to four guns

  Compact modular design - easy to install, integrate and maintain

  Low cost of ownership - fewer wear parts compared to shot meters




  • Model: PCF
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Outlet Size (in): 5/32
  • Ambient/Warm Melt/Hot Melt: Ambient
  • Amperage (A): 1.4
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
  • Applicator Type: Automatic
  • Compatible Material: Sealants, Adhesives
  • Component Type: Single Component
  • Flow Control Type: Regulation, Control
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 17281.1023622047
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 1728.1102362205
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Frequency (Hz): 50/60
  • Gateway: PROFINET User Interface
  • Gun Activation: Automatic
  • Includes: Regulator, Flow Meter, FCM Key Token
  • Maximum Air Inlet Pressure (bar): 8.27
  • Maximum Air Inlet Pressure (kPa): 827
  • Maximum Air Inlet Pressure (MPa): 0.83
  • Maximum Air Inlet Pressure (psi): 120
  • Maximum Ambient Temperature ( degree C): 49
  • Maximum Ambient Temperature ( degree F): 120
  • Maximum Flow Rate (cc/min): 7500
  • Maximum Flow Rate (GPM): 1.98
  • Maximum Flow Rate (L/min): 7.5
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Temperature ( degree C): 49
  • Maximum Fluid Temperature ( degree F): 120
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Working Pressure (bar): 345
  • Maximum Fluid Working Pressure (MPa): 35
  • Maximum Fluid Working Pressure (psi): 5000
  • Maximum Operating Temperature ( degree C): 49
  • Maximum Operating Temperature ( degree F): 120
  • Maximum Working Pressure (bar): 345
  • Maximum Working Pressure (kPa): 34500
  • Ma

GG PF2500

PCF SYSTEM, 016, HTD REG/METER, IO

Graco PF2500 16 Styles 100-240 VAC Precision Flow System with Heated Mastic Regulator, Heated Standard Resolution Meter and Discrete User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds - providing your operation with a highly precise, continuous dispense.

• The next generation of precision metering

  Closed-loop real-timecontrol ensures a precise, continuous dispense - improves part quality and reduces material waste

  Intuitive user interface simplifies setup, reduces training time

  Integrated USB interface for easy data downloads - allows for further analysis of process data

  Multiple gun capabilities for additional productivity - lets you program up to four guns

  Compact modular design - easy to install, integrate and maintain

  Low cost of ownership - fewer wear parts compared to shot meters




  • Model: PCF
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Outlet Size (in): 5/32
  • Ambient/Warm Melt/Hot Melt: Warm-Melt, Hot-Melt
  • Amperage (A): 1.4
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
  • Applicator Type: Automatic
  • Compatible Material: Sealants, Adhesives
  • Component Type: Single Component
  • Flow Control Type: Regulation, Control
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 17281.1023622047
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 1728.1102362205
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Frequency (Hz): 50/60
  • Gateway: Discrete User Interface
  • Gun Activation: Automatic
  • Includes: Regulator, Flow Meter, FCM Key Token
  • Maximum Air Inlet Pressure (bar): 8.27
  • Maximum Air Inlet Pressure (kPa): 827
  • Maximum Air Inlet Pressure (MPa): 0.83
  • Maximum Air Inlet Pressure (psi): 120
  • Maximum Ambient Temperature ( degree C): 49
  • Maximum Ambient Temperature ( degree F): 120
  • Maximum Flow Rate (cc/min): 22500
  • Maximum Flow Rate (GPM): 5.94
  • Maximum Flow Rate (L/min): 22.5
  • Maximum Fluid Temperature ( degree C): 204
  • Maximum Fluid Temperature ( degree F): 400
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Temperature ( degree C): 204
  • Maximum Fluid Temperature ( degree F): 400
  • Maximum Fluid Viscosity (cP): 1000000
  • Maximum Fluid Working Pressure (bar): 241
  • Maximum Fluid Working Pressure (MPa): 24
  • Maximum Fluid Working Pressure (psi): 3500
  • Maximum Operating Temperature ( degree C): 204
  • Maximum Operating Temperature ( degree F): 400
  • Maximum Working Pressure (bar): 345
  • Maximum Working Press
