Proportioner, Auto System, Promix 2KS

GG AE100N

PROMIX 2KS PROPORTIONER AUTO SYSTEM

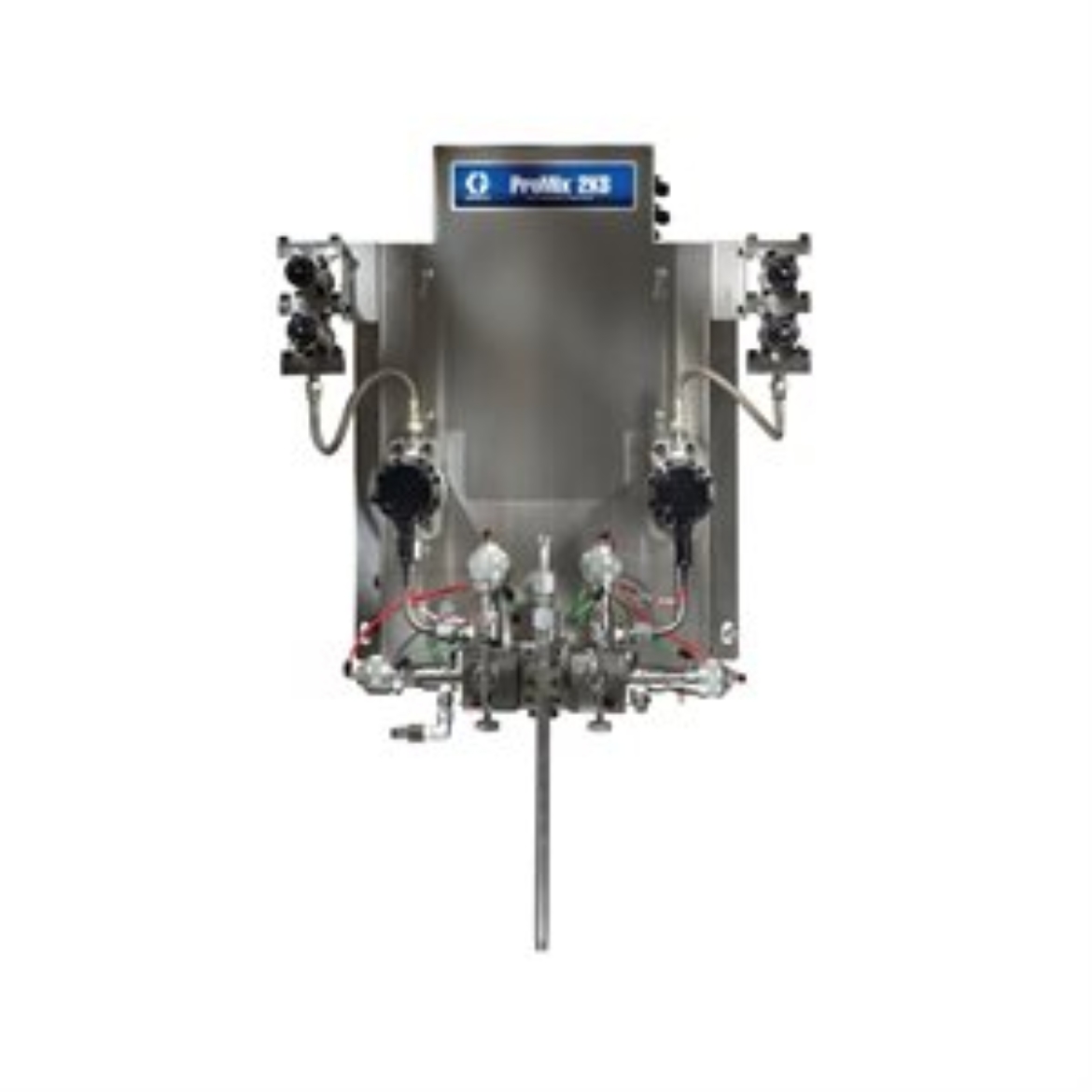

Graco AE100N ProMix 2KS Auto Wall Panel System, EasyKey, G3000 (A, B) Meter, Single Catalyst

Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Optional flow control is cleanly integrated without incorporating a mixed material line meter. Pressure and flow loops provide fast step changes with superior closed loop control.
• Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
• Intrinsically safe fluid panels easily integrate into hazardous areas
• Advanced web interface provides consolidated system management and reporting

• Model: ProMix
• Series: 2KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Automatic

• Component Type: Two Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Automatic

• Material Type: Two Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: No Valves
• Number of Colors: 1

• Number of Resin Colors: Up to 30

• Power Source: Electric

• Proportioner Type: Automatic Wall
• Proportioning Type: Automatic Electronic
