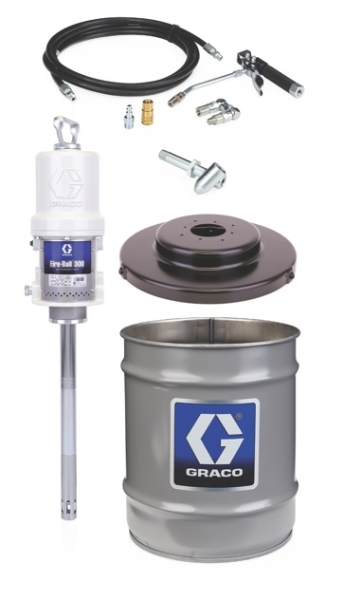

GG 225827

FIREBALL 300 LUBRICATOR, CHASSIS, 50-1

Graco 225827 Fire-Ball 300 Series 50:1 35 to 50 lb. (16 to 23 kg) Grease Pump - Stationary Pail Dispenser Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 50

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Dispense Kit, Cover, Pail

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

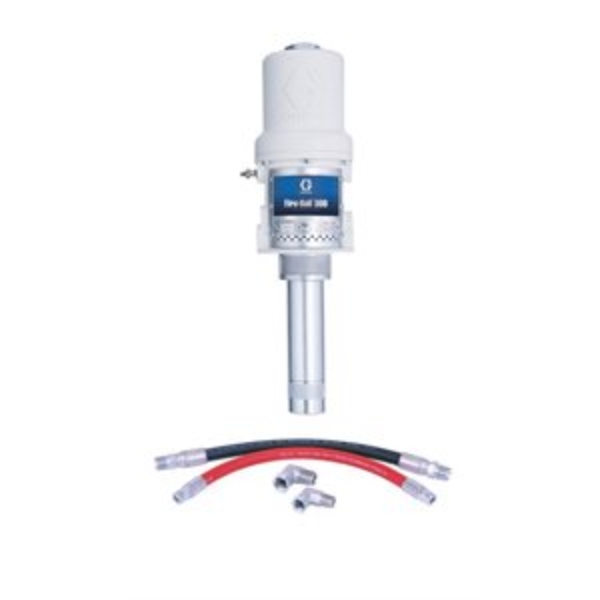

GG 225852

FIREBALL 300 PUMP, SUPPLY, 5-1

Graco 225852 Fire-Ball 300 Series 5:1 55 Universal Size Oil Pump - Universal Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): 55

• Compatible Material: Oil

• Container Size (lb): None

• Fluid Inlet Size (cm): 3.8100
• Fluid Inlet Size (in): 1.5
• Fluid Inlet Size (mm): 38.1000
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Hose Installation Kit

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (gpm @ 80 cpm): 2.8

• Maximum Fluid Working Pressure (psi): 900

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 5:1
• Pump Weight (lb): 17

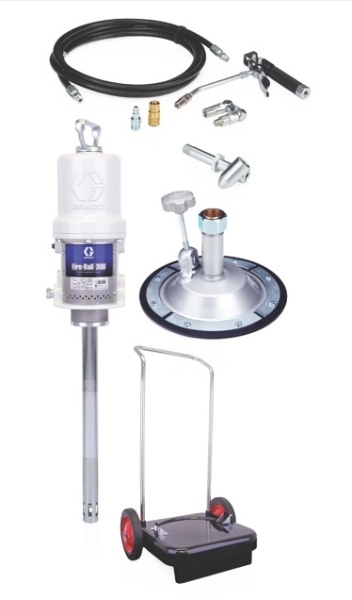

GG 226012

FIREBALL 300 LUBRICATOR, CHASSIS , 50.1

Graco 226012 Fire-Ball 300 Series 50:1 50 lb. (23 kg) Grease Pump - Cart-Mounted Pail Topper Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 50

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Portable Truck, Dispense Kit

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1

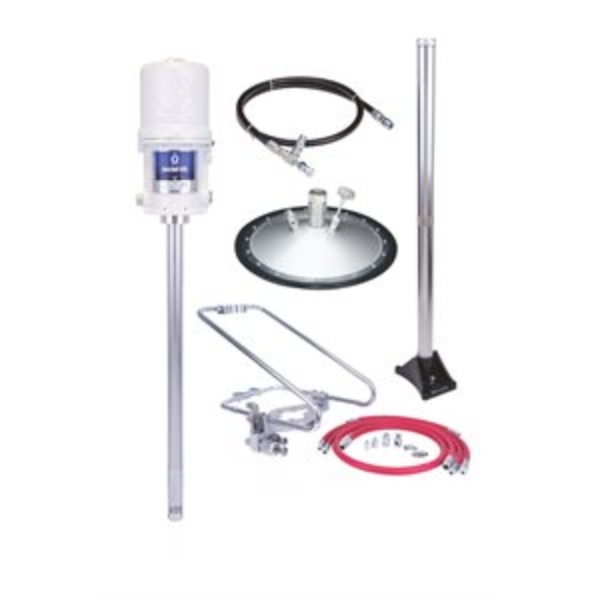

GG 226018

FIREBALL 425 PUMP, 50:1, TOPPER

Graco 226018 Fire-Ball 425 Series 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Topper-Inductor Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 425 Pump, Elevator, Inductor Plate Assembly

• Maximum Air Working Pressure (psi): 150

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm 2): 527.3
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 37

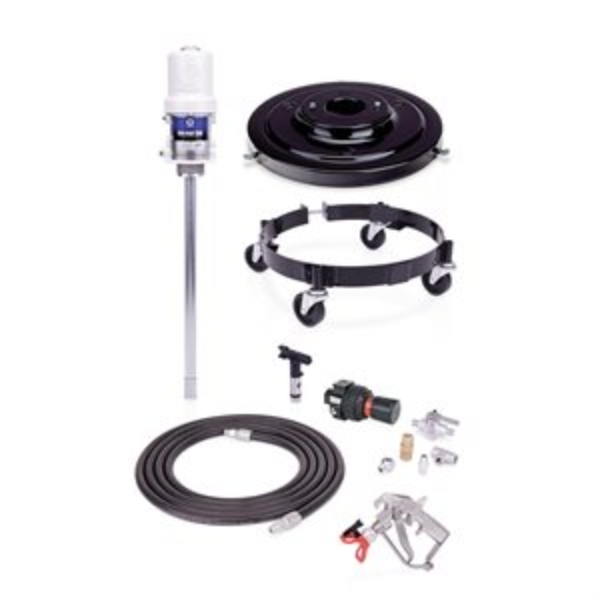

GG 226342

FIREBALL SPRAYER, U-COAT 15-1

Graco 226342 Fire-Ball 300 Series 15:1 Undercoating Pump Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Oil, Rustproofing, Undercoating

• Container Size (lb): 120

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: UCoat Installation Kit, Drum Cover

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (GPM): 0.7

• Maximum Fluid Working Pressure (psi): 2700

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 15:1
• Pump Weight (lb): 22

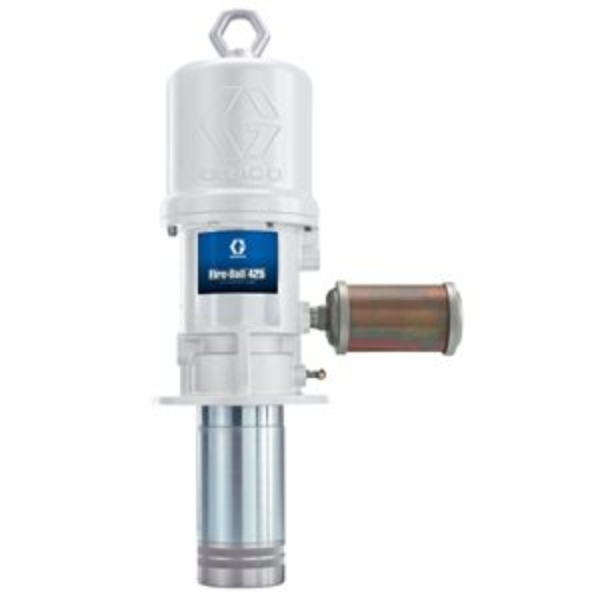

GG 237526

FIREBALL 425 PUMP, 3:1

Graco 237526 Fire-Ball 425 Series 3:1 Universal Size Oil Pump

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 6

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 66

• Maximum Intermittent Cycle Rate (CPM): 66

• Maximum Working Pressure (bar): 37
• Maximum Working Pressure (kPa): 3700
• Maximum Working Pressure (MPa): 3.7
• Maximum Working Pressure (psi): 540

• Power Type: Pneumatic

• Pump Ratio: 3:1

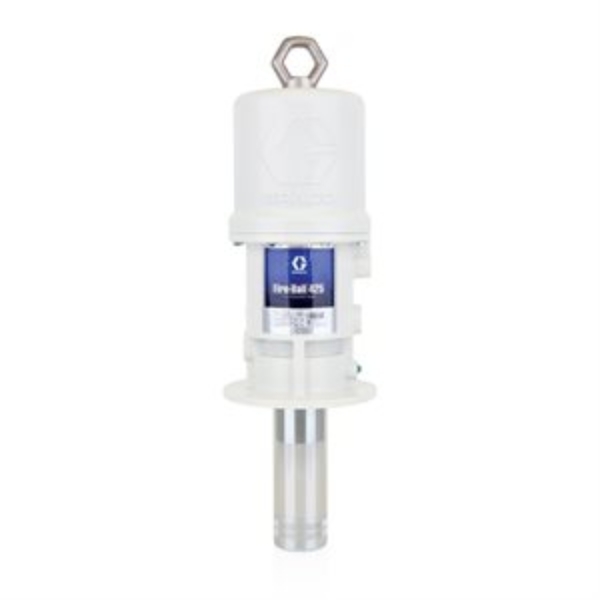

GG 238108

FIREBALL 425 PUMP, 6:1

Graco 238108 Fire-Ball 425 Series 6:1 Universal Size Oil Pump

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 12

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 66

• Maximum Intermittent Cycle Rate (CPM): 66

• Maximum Working Pressure (bar): 76
• Maximum Working Pressure (kPa): 7600
• Maximum Working Pressure (MPa): 7.6
• Maximum Working Pressure (psi): 1100

• Power Type: Pneumatic

• Pump Ratio: 6:1

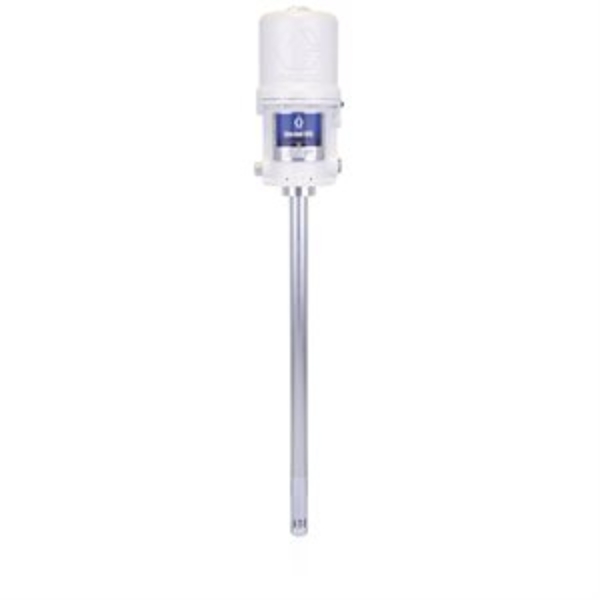

GG 239730

FIREBALL 425 PUMP, 75:1, 400 LB

Graco 239730 Fire-Ball 425 Series 75:1 350-400 lb (160-180 kg). Container Bare Grease Pump

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 165

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 0.33
• Maximum Flow Rate (L/min): 1.25

• Maximum Intermittent Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 75:1

GG 239883

GG 243818

FIREBALL 425 PUMP, 75:1, TRK PKG

Graco 243818 Fire-Ball 425 Series 75:1 400 lb. (181 kg) Open-Head Cover-Mounted Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 75:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit

• Maximum Air Working Pressure: 100

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Truck Mount

• Power Type: Pneumatic

• Pump Ratio: 75:1
• Pump Weight (lb): 37

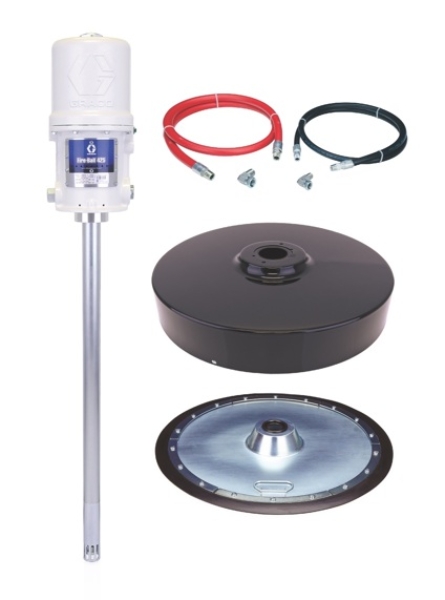

GG 244636

FIREBALL 425 SYSTEM, BULK GREASE

Graco 244636 Fire-Ball 425 Series 75:1 400 lb. (181 kg) 1/2 in. x 6 ft. (1.83 m) Grease Pump Stationary Cover-Mount Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fire-Ball 425 75:1 Pump, Hose and Fitting Kit, Drum Cover, Follower Plate

• Maximum Air Working Pressure (psi): 100

• Maximum Fluid Working Pressure (psi): 7500

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm 2): 527.3
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Cover Mount

• Power Type: Pneumatic

• Pump Ratio: 75:1
• Pump Weight (lb): 37

GG 244645

FIREBALL 300 SYSTEM, BULK GREASE

Graco 244645 Fire-Ball 300 Series 50:1 Grease Pump - Horizontal Mount Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): None

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fire-Ball 300 50:1 Pump, Air Shutoff Valve, Hose and Fitting Kit, Air Regulator, Nipple

• Maximum Air Working Pressure: 140

• Maximum Fluid Working Pressure (psi): 5000

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Horizontal Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

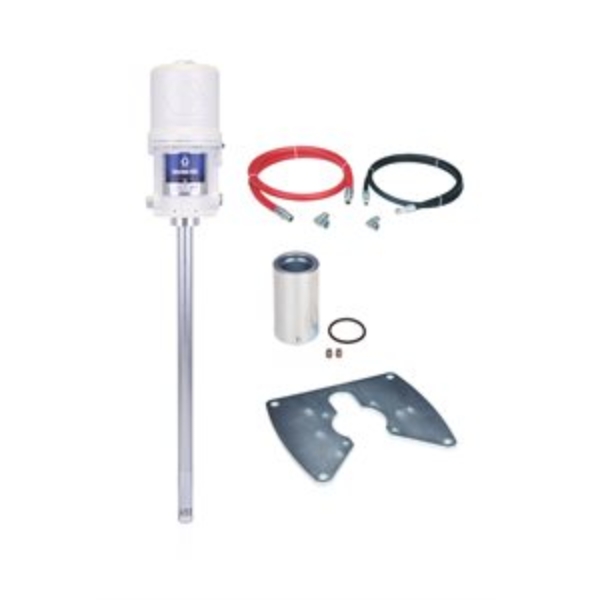

GG 244905

FIREBALL 425 SYSTEM, BULK GREASE

Graco 244905 Fire-Ball 425 Series 50:1 400 lb. (181 kg) Grease Pump Stationary Ram Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: 50:1 Fireball 425 Pump, Ram, Inductor Kit, Air Hose, Mounting Plate, Ram Plate Seal Kit

• Maximum Air Working Pressure: 150
• Maximum Air Working Pressure (psi): 80

• Maximum Fluid Working Pressure (psi): 4000

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Ram Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 37

GG 245695

FIREBALL 300 LUBRICATOR, CHASSIS, 50:1

Graco 245695 Fire-Ball 300 Series 50:1 35 to 50 lb. (16 to 23 kg) Grease Pump - Portable Pail Dispenser Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 50

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Portable Truck, Dispense Kit, Cover, Pail

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

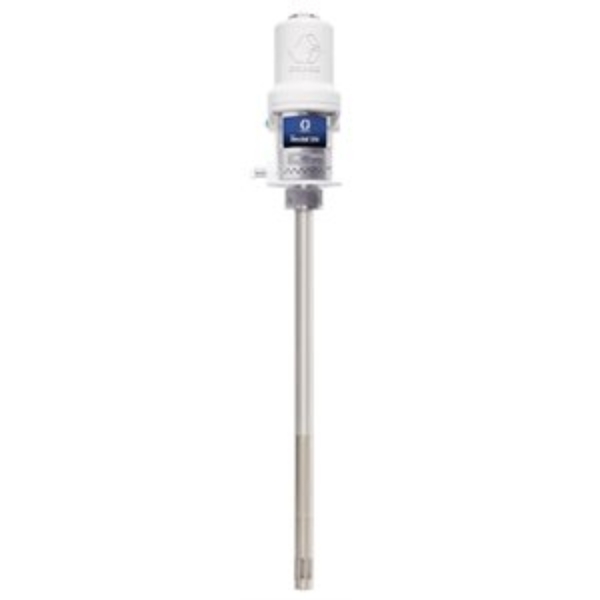

GG 246780

FIREBALL 225 PUMP, MINI , GR, 50:1

Graco 246780 Mini Fire-Ball 225 50:1 Pump for 120 lb (55 kg). Drum

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Grease

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Intermittent Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 246781

FIREBALL 225 PUMP, GREASE, 50:1, 400#

Graco 246781 Mini Fire-Ball 225 50:1 400 lb (180 kg). Grease Pump

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Grease

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Intermittent Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1

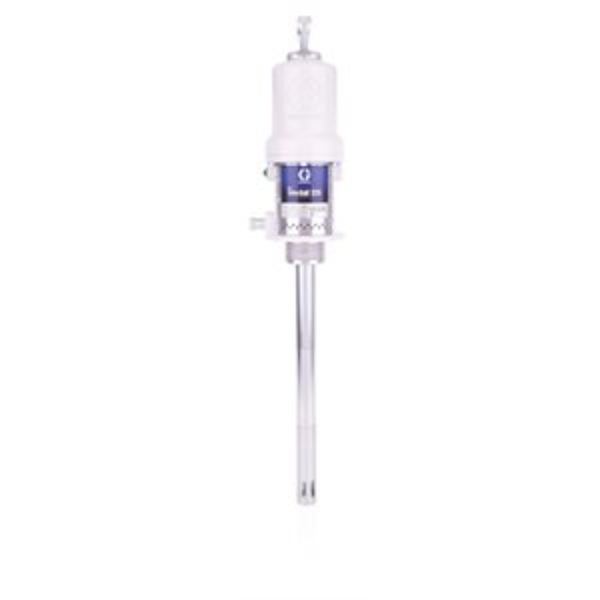

GG 246909

FIREBALL 225 PUMP, GREASE, 50:1 35#

Graco 246909 Mini Fire-Ball 225 50:1 35 lb (16 kg). Grease Pump

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Grease

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Intermittent Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 24A923

GL-32 INJECTOR, 3 INJECTOR MANIFOLD

Graco 24A923 GL-32 Grease-Injector, Carbon Steel, 3-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2

GG 24A924

GL-32 INJECTOR, 4 INJECTOR MANIFOLD

Graco 24A924 GL-32 Grease-Injector, Carbon Steel, 4-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2

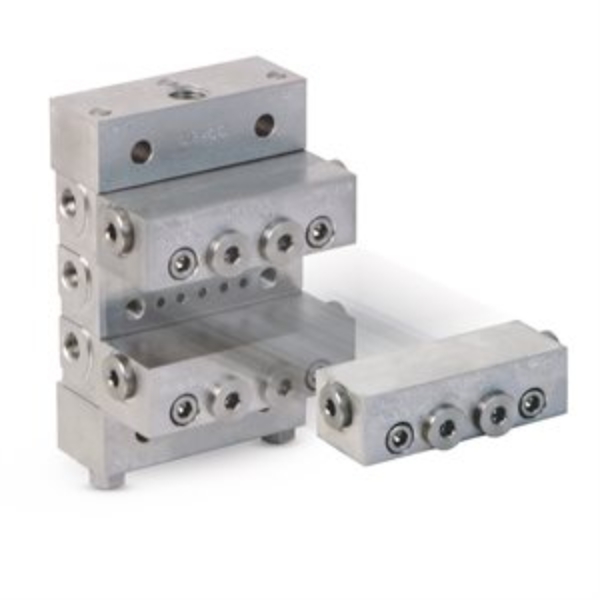

GG 24B480

MSP VALVE, ASSY MSP-15T-SS

Graco 24B480 Trabon MSP Stainless Steel Modular Divider Valve - MSP-15T-SS - 0.015 in cu (0.26 cm cu )

The Trabon MSP Stainless Steel Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best! You get more durability with the same high-quality performance and precision machining as the carbon steel version. The stainless steel MSP valves and accessories overcome harsh conditions, such as salty air or areas needing repetitive cleaning, with durable 303 materials and a design with proven success.

• Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
• Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
• Lubriquip part number 106-108-950

• Model: Trabon
• Series: MSP

• Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): 0.015

• Divider Valve Series: MSP

• Material: Stainless Steel

• Maximum Cycle Rate (cycles/min): 200

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 176
• Maximum Operating Temperature ( degree F): 350

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 14

• Minimum Working Pressure (psi): 200

• Number of Outlets: 2

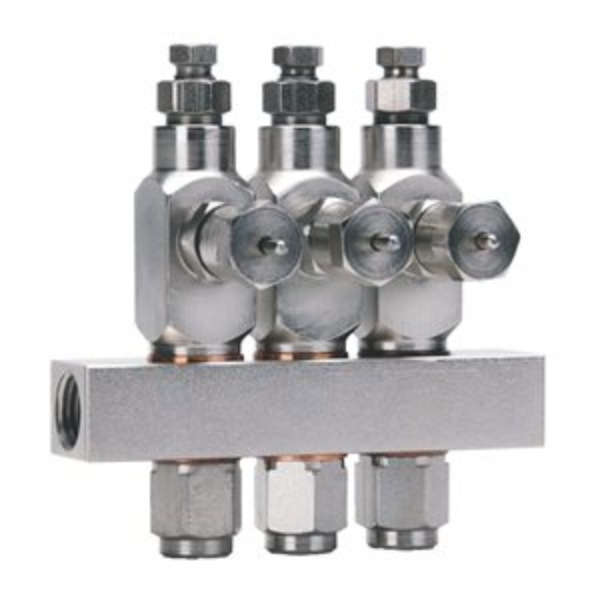

GG 24E243

GL-43 INJECTOR, 3 INJECTOR MANIFOLD

Graco 24E243 GL-43 Carbon Steel Oil 3-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-43 oil injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Handles low viscosity lubricants.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 750-1000 psi (52-69 bar) for optimal performance with low viscosity lubricants (#10 weight minimum)
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-43

• Compatible Material: Oil

• Maximum Working Pressure (bar): 68.9
• Maximum Working Pressure (kPa): 6890
• Maximum Working Pressure (psi): 1000

• Minimum Working Pressure (bar): 51.7
• Minimum Working Pressure (kPa): 5170

• Minimum Working Pressure (psi): 750

GG 24E244

GL-43 INJECTOR, 4 INJECTOR MANIFOLD

Graco 24E244 GL-43 Carbon Steel Oil 4-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-43 oil injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Handles low viscosity lubricants.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 750-1000 psi (52-69 bar) for optimal performance with low viscosity lubricants (#10 weight minimum)
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-43

• Compatible Material: Oil

• Maximum Working Pressure (bar): 68.9
• Maximum Working Pressure (kPa): 6890
• Maximum Working Pressure (psi): 1000

• Minimum Working Pressure (bar): 51.7
• Minimum Working Pressure (kPa): 5170

• Minimum Working Pressure (psi): 750

GG 24E393

GL-32 INJECTOR, 3 INJ MANIFOLD, SST

Graco 24E393 GL-32 Grease Injector, 304 Stainless Steel, 3-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2

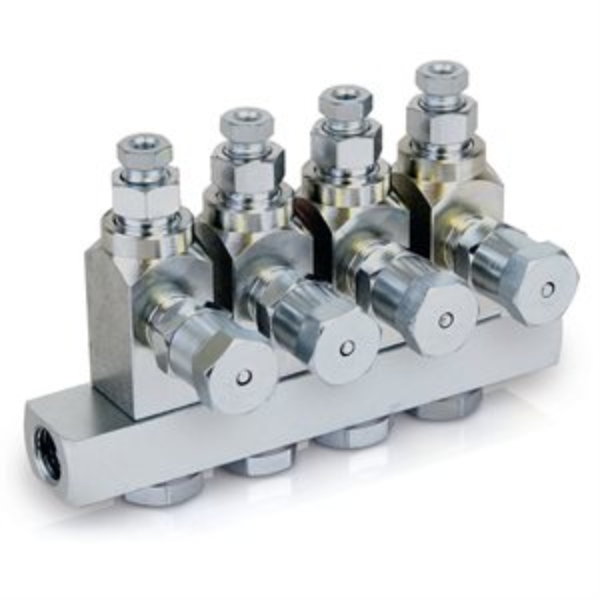

GG 24E394

GL-32 INJECTOR, 4 INJ MANIFOLD, SST

Graco 24E394 GL-32 Grease Injector, 304 Stainless Steel, 4-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2

GG 24G578

LD SERIES OIL PUMP, 3:1, UNIVERSAL, BSPT

Graco 24G578 LD Series 3:1 Universal Oil Pump with Bung Adapter - BSPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 3:1
