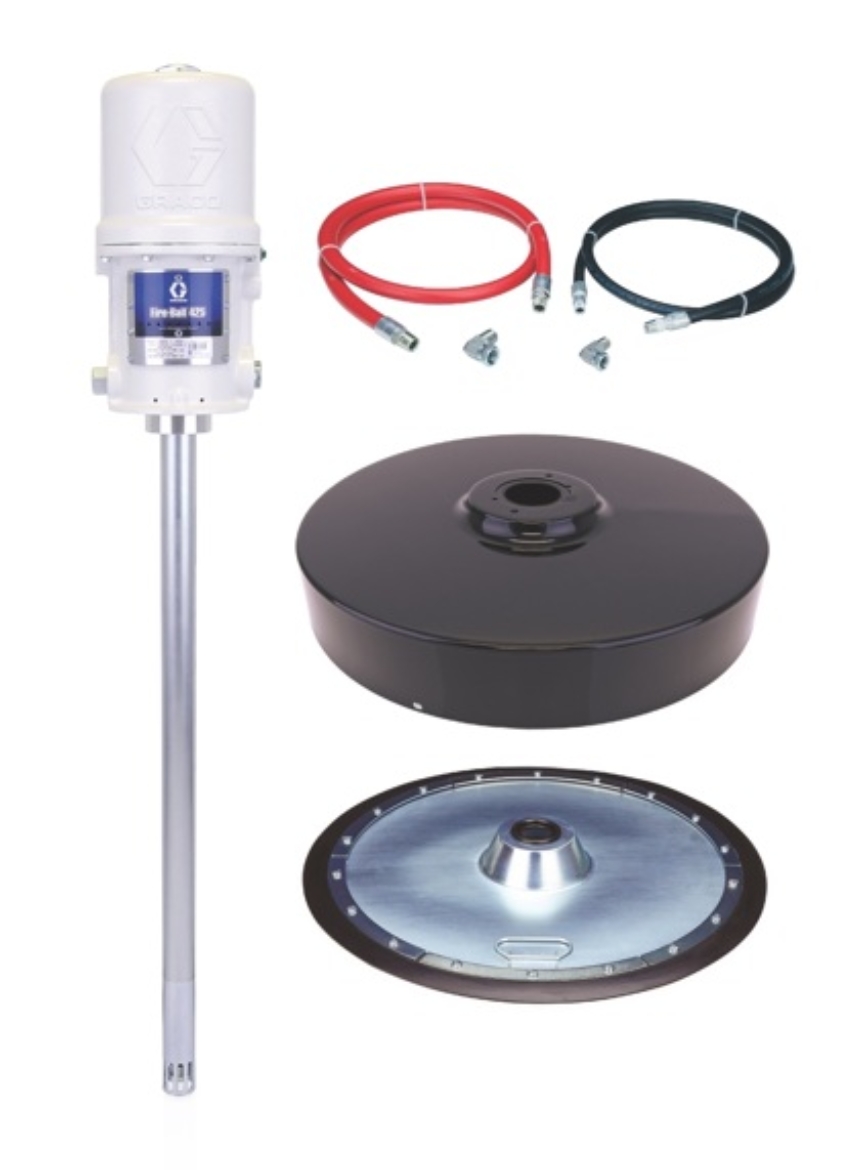

Fire-Ball 425 Series 75:1 400 lb. (181 kg) 1/2 in. x 6 ft. (1.83 m) Grease Pump Stationary Cover-Mount Package

GG 244636

FIREBALL 425 SYSTEM, BULK GREASE

Graco 244636 Fire-Ball 425 Series 75:1 400 lb. (181 kg) 1/2 in. x 6 ft. (1.83 m) Grease Pump Stationary Cover-Mount Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fire-Ball 425 75:1 Pump, Hose and Fitting Kit, Drum Cover, Follower Plate

• Maximum Air Working Pressure (psi): 100

• Maximum Fluid Working Pressure (psi): 7500

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm 2): 527.3
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Cover Mount

• Power Type: Pneumatic

• Pump Ratio: 75:1
• Pump Weight (lb): 37
