Lube

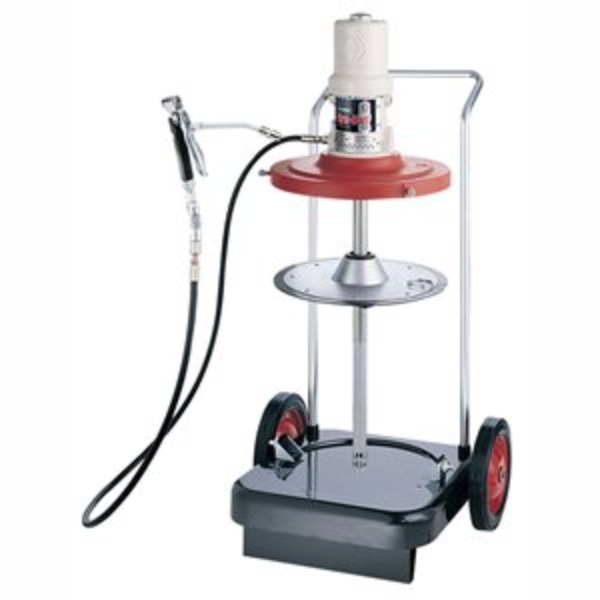

GG 240886

FIREBALL 300 LUBRICATOR, 50:1, CE

Graco 240886 Fire-Ball 300 Series 50:1 35 to 50 lb. (16 to 23 kg) Grease Pump - Cart-Mounted Pail Topper CE Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 50

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Portable Truck, Dispense Kit, Inductor, CE Installation Kit

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

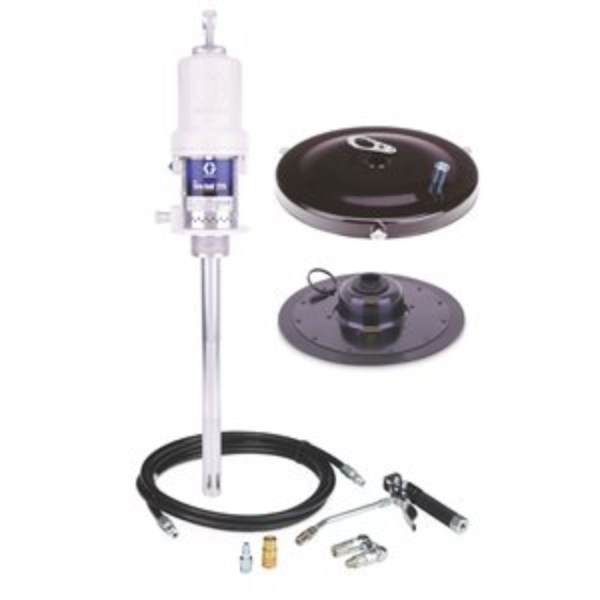

GG 246910

DISPENSER, PORT, FB 225, 50:1, 35#

Graco 246910 Mini Fire-Ball 225 50:1 35 lb. and 50 lb. (16 kg and 23 kg) Grease Pump - Portable Pail Dispenser Package

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 35 and 50

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Dispense Kit, Cover, Follow Plate, Handle

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 15

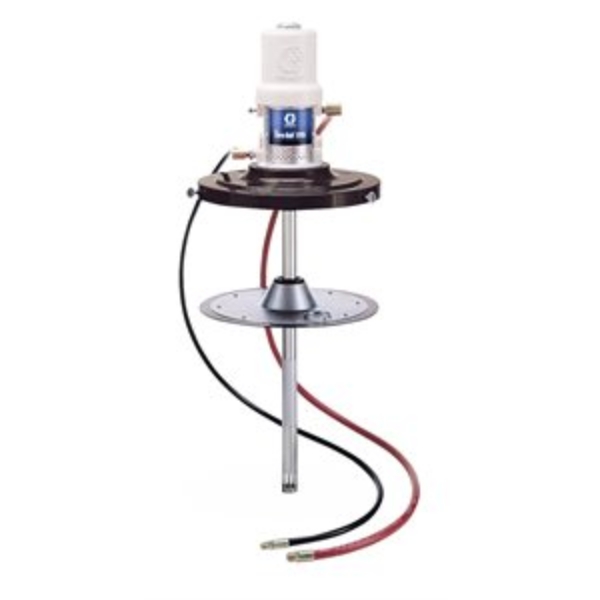

GG 246914

FIREBALL 225 PUMP, STAT, 50:1, 120#

Graco 246914 Mini Fire-Ball 225 50:1 120 lb. (54 kg) Grease Pump - Stationary Supply Package

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Mini Fireball 50:1 225 Pump, Hose and Fitting Kit, Cover, Follow Plate, Shim

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 15

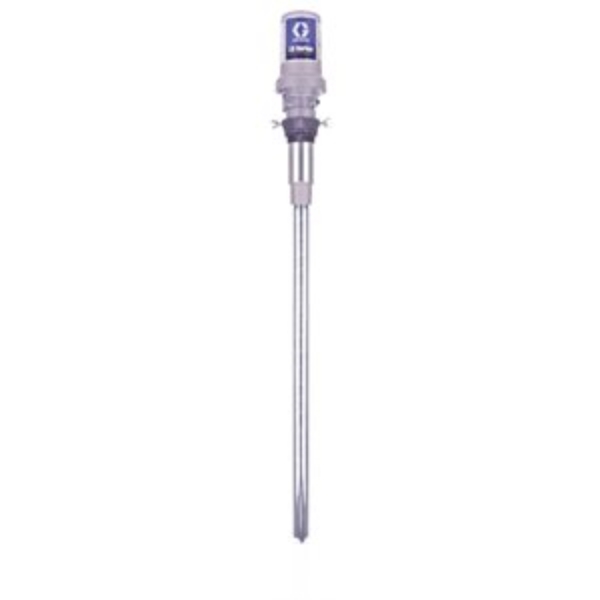

GG 24G582

LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT

Graco 24G582 LD 3:1 Oil Pump with 55 Gallon (200 Liter) Down Tube and Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• Includes 200L (55gal) drum down tube

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 24G600

LD SERIES GREASE PUMP, 50:1, 16 KG, NPT

Graco 24G600 LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• 35 lb (16 kg) Grease Pump - 50:1

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Grease

• Compatible Material: Grease

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 24G606

LD SERIES GREASE PUMP, 50:1, 180 KG, NPT

Graco 24G606 LD Series 50:1 Pump for 400 lb (180 kg). Pail - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• 400 lb (180 kg) Grease Pump - 50:1

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Grease

• Compatible Material: Grease

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 24J030

KIT, PACKAGE, 35# DRUM NPT

Graco 24J030 LD Series 50:1 35 lb (16 kg) Grease Pump - Stationary Package

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor - Provides more power to create better flow.
• Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Grease

• Compatible Material: Grease

• Container Size (lb): 35

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 24J495

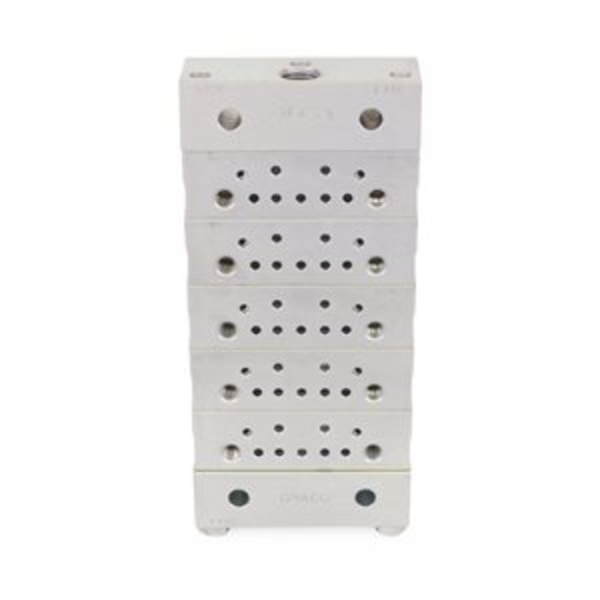

GG 24N917

PLATE, BASE, 5 SECTION MSP BSPP

Graco 24N917 Trabon MSP Divider Valve - 5 Section Base Plate Assemblies - BSPP

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve - and is still the best!

• Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime.
• Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.

• Model: Trabon
• Series: MSP

• Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): N/A

• Divider Valve Series: MSP

• Inlet Size (in): 1/4

• Inlet Thread Gender: Female
• Inlet Thread Type: BSPP

• Material: Carbon Steel

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 176
• Maximum Operating Temperature ( degree F): 350

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (psi): 3500

• Number of Outlets: 10

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175
• Outlet Thread Gender: Female
• Outlet Thread Type: BSPP

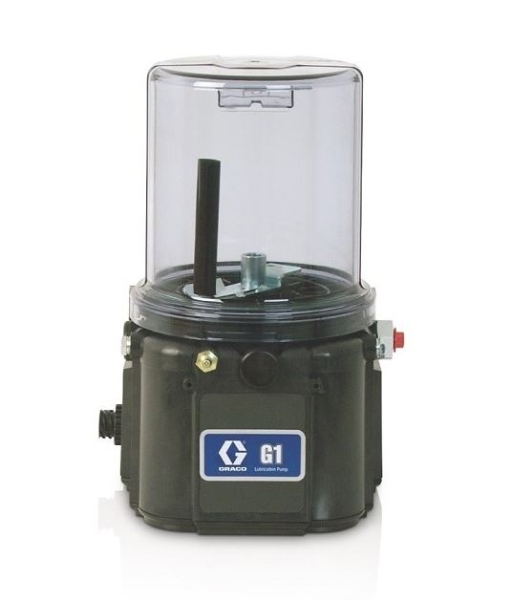

GG 94G039

G1 STANDARD PUMP, G-24NC-2L0A00-LD000000

Graco 94G039 G1 Standard Grease Lubrication Pump, 24 VDC, 2 Liter, DIN, Wiper, Low Level

Simple solution. Sophisticated results. Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.

• G1 Standard has no internal controller for a low cost solution.
• 2 liter reservoir
• Connect to 24 VDC
• Hard Working Pump - G1 comes with one pump element installed that reliably delivers lubricant when you need it.
• Achieve Uninterrupted Material Flow - With its advanced flow dynamics the contoured base flows lubricants directly to the pump inlet, significantly reducing stagnant areas where grease can separate.
• Experience Our Long Life Design - Engineered offset drive design minimizes load and stress on the motor and pump element.

• Model: G1
• Series: Standard

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Control Options: Standard

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• Includes: Wiper Arm, External Low Level

• IP Rating: IP69K

• Maximum Flow Rate (ci/min): 0.25

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V dc): 18

• Number of Pump Elements: 1

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Width (in): 8
• Overall Width (mm): 203

• Power Connection Type: DIN

• Power Type: Electric

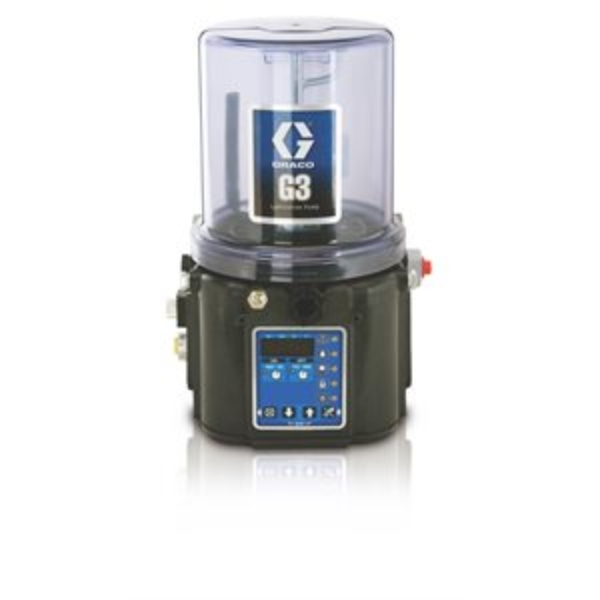

GG 96G079

G3 PRO PUMP, A-ACPR-2L0L00-0D000000

Graco 96G079 G3 Pro Oil Lubrication Pump, 90-240 VAC, 2 Liter, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Voltage (VDC): 220
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 1
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 amp, 10m VDC
• Alarm Relay Resistive Rated Load (A): 2

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Low Level

• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Material: Alloy Steel, Aluminum, Amorphous Polyamide, Bronze, Buna-N, Carbon Steel, Chemically Lubricated Acetal, Nickel-Plated Alnico, Nylon, PTFE, Stainless Steel, Zinc-Plated Steel

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum cST Grade (cST): 40

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Wi

GG 107411

GG 178872

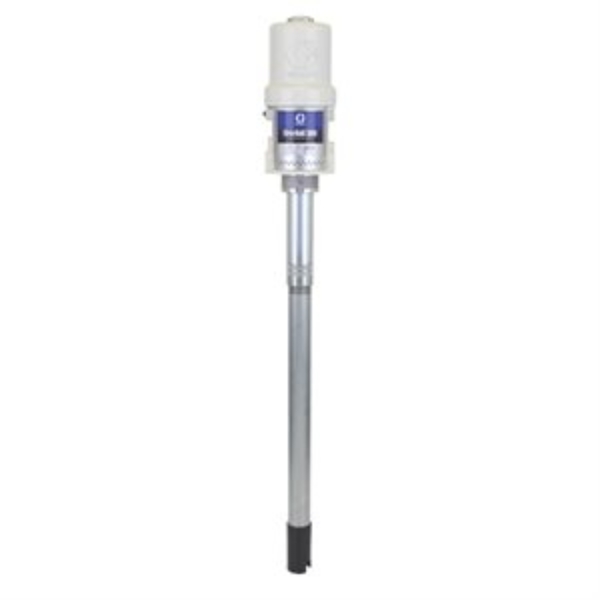

GG 203857

FIREBALL 300 PUMP, 5:1, 55 GL, COV MNT

Graco 203857 Fire-Ball 300 Series 5:1 Oil Pump, 55 Gallon (200 Liter) Drum Size - For Cover Mount

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 30

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM): 25
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 70

• Maximum Intermittent Cycle Rate (CPM): 70

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Power Type: Pneumatic

• Pump Ratio: 5:1

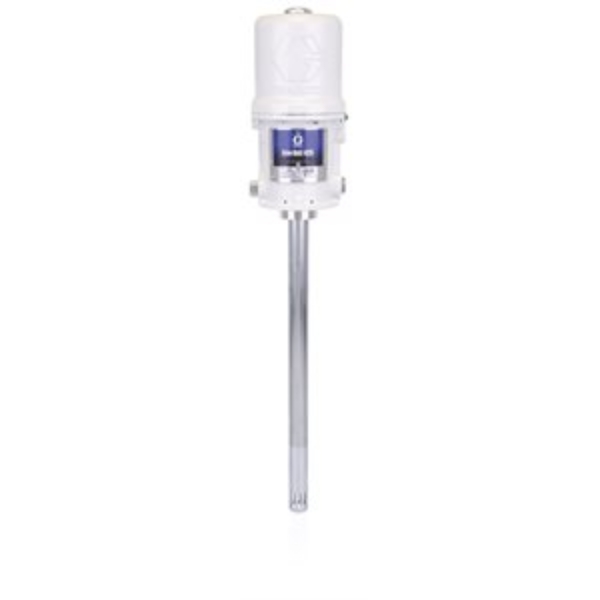

GG 205394

FIREBALL 425 PUMP, 50:1, 120LB

Graco 205394 Fire-Ball 425 Series 50:1 120 lb (55 kg). Grease Pump

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 110

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 50:1

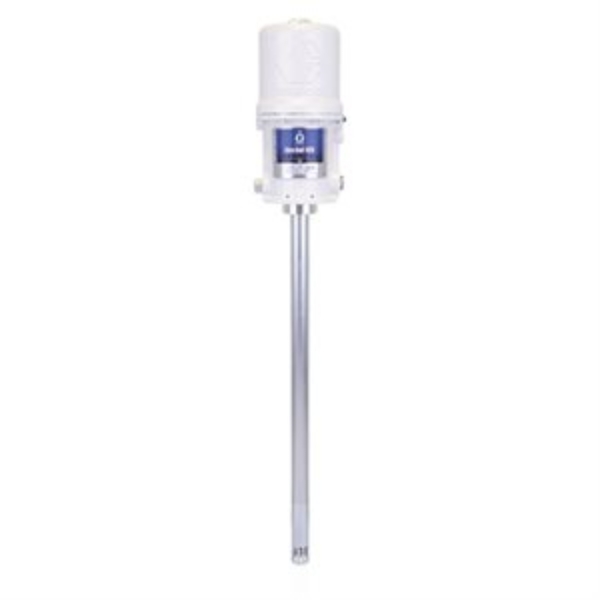

GG 205395

FIREBALL 425 PUMP, 50:1, 400LB

Graco 205395 Fire-Ball 425 Grease Pump for 400 lb (180 kg). Drum

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 110

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 50:1

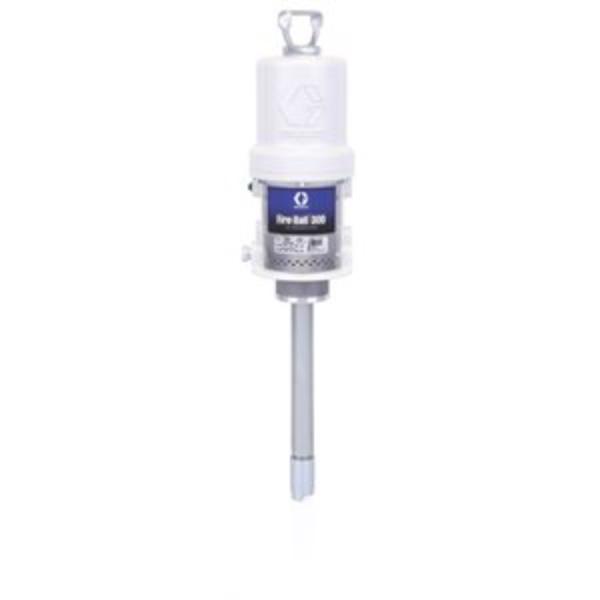

GG 206405

FIREBALL U-COAT PUMP, 300, 35 LB

Graco 206405 Fire-Ball 300 Series 15:1 Grease Pump For 35 lb (16 kg). Pail

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Grease, Rustproofing, Undercoating

• Cycles Per Gallon: 90

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Consumption (SCFM): 14
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 66

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Power Type: Pneumatic

• Pump Ratio: 15:1

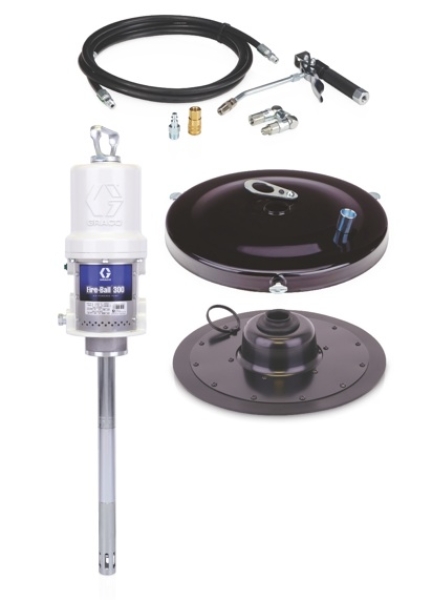

GG 222069

FIREBALL 300 LUBRICATOR, CHASSIS 50:1

Graco 222069 Fire-Ball 300 Series 50:1 25 to 50 lb. (11.3 to 23 kg) Grease Pump - Portable Pail Dispenser Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 50

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Dispense Kit, Cover, Follow Plate

• Maximum Air Working Pressure (psi): 180

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kg/cm 2): 351.5
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

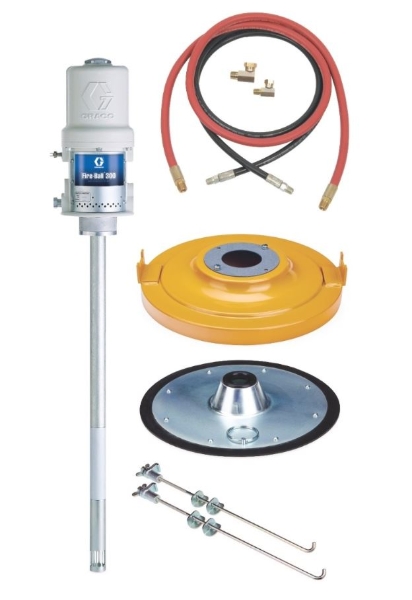

GG 222085

FIREBALL 300 PUMP, LUBT, HP

Graco 222085 Fire-Ball 300 Series 50:1 120 lb. (54 kg) Grease Pump - Lube Truck Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

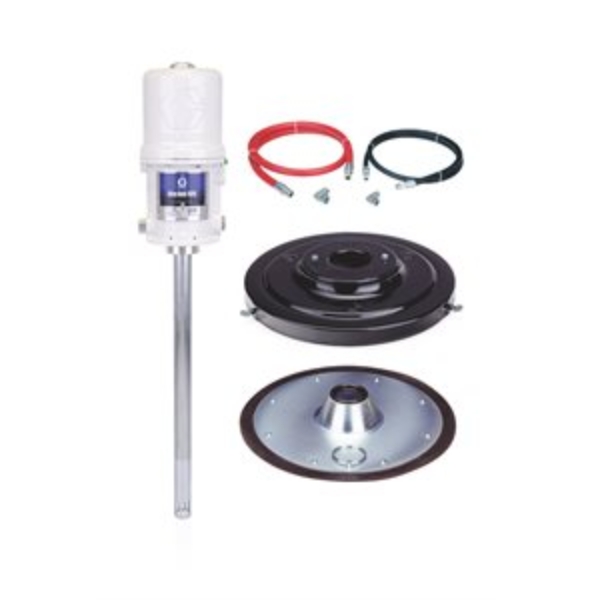

GG 223108

FIREBALL 425 PUMP, 50:1, PKG

Graco 223108 Fire-Ball 425 50:1 120 lb. (55 kg) Grease Pump - Stationary Supply Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate

• Maximum Air Working Pressure: 150

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 34

GG 225026

FIREBALL 300 LUBRICATOR, CHASSIS 50-1

Graco 225026 Fire-Ball 300 Series 50:1 120 lb. (54 kg) Grease Pump - Portable 2-Wheel Cart Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Dispense Kit, 2-wheel Truck, Cover, Follow Plate, Holster

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

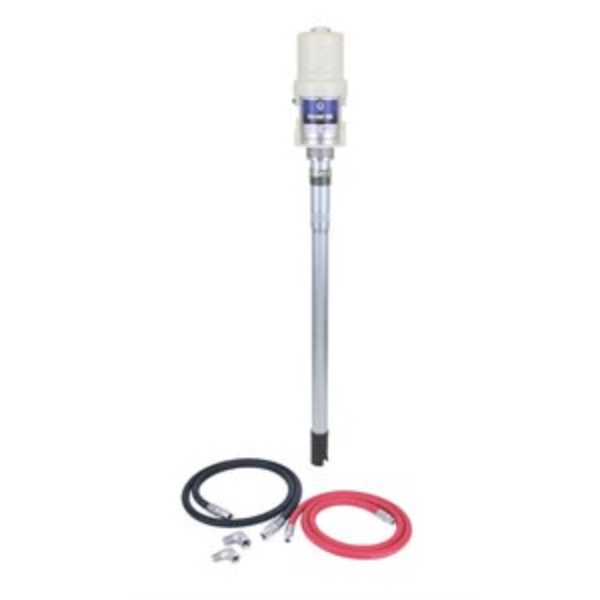

GG 225640

FIREBALL 300 PUMP, SUPPLY, 5-1

Graco 225640 Fire-Ball 300 Series 5:1 55 Gallon (200 Liter) Oil Pump - Bung-Mounted Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): 55

• Compatible Material: Oil

• Container Size (lb): None

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Hose Kit, Bung Adapter

• Maximum Air Working Pressure (psi): 180

• Maximum Flow Rate (gpm @ 80 cpm): 2.8

• Maximum Fluid Working Pressure (psi): 900

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kg/cm 2): 63.3
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 5:1
• Pump Weight (lb): 17

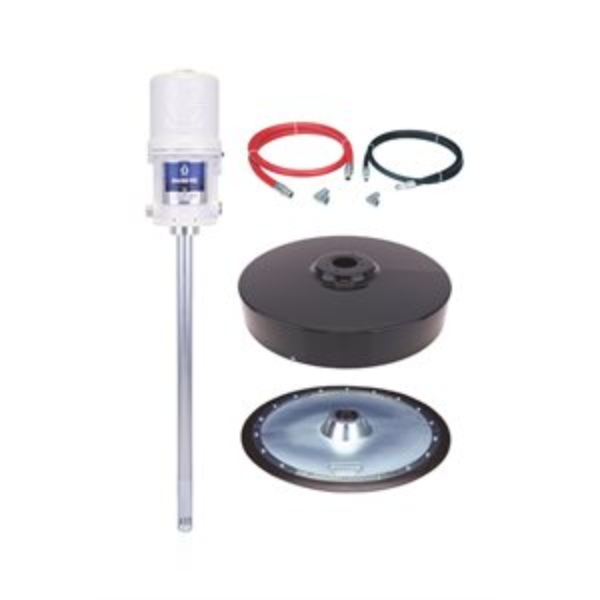

GG 225781

FIREBALL 425 PUMP, 50:1, PKG

Graco 225781 Fire-Ball 425 Series 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate

• Maximum Air Working Pressure (psi): 150

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kg/cm 2): 527.3
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 37

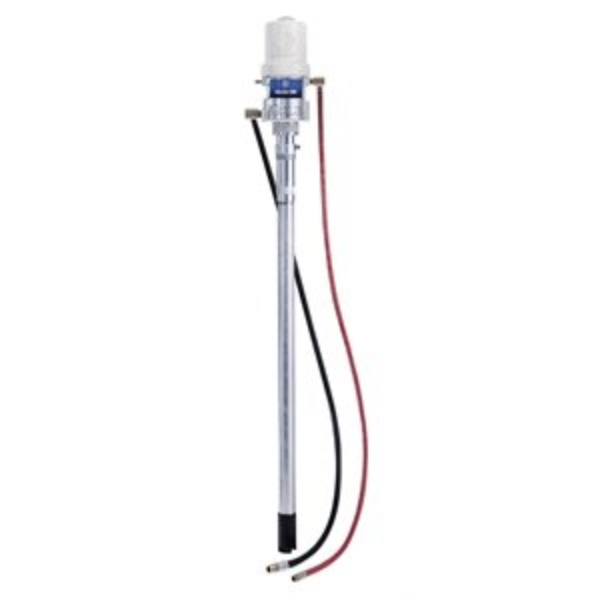

GG 225931

FIREBALL 300 PUMP

Graco 225931 Fire-Ball 300 Series 5:1 275 Gallon (1040 Liter) Oil Pump -Bung Mounted Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): 275

• Compatible Material: Oil

• Container Size (lb): None

• Fluid Inlet Size (cm): 3.8100
• Fluid Inlet Size (in): 1.5
• Fluid Inlet Size (mm): 38.1000
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Hose Kit

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (gpm @ 80 cpm): 2.8

• Maximum Fluid Working Pressure (psi): 900

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 5:1
• Pump Weight (lb): 17

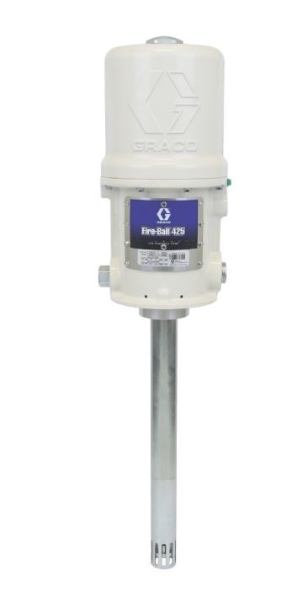

GG 239731

FIREBALL 425 PUMP, 75:1, 35 LB

Graco 239731 Fire-Ball 425 Series 75:1 35 lb (16 kg). Container Pail Length Grease Pump

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 165

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 0.33
• Maximum Flow Rate (L/min): 1.25

• Maximum Intermittent Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 75:1
