GG 24G585

LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT

Graco 24G585 LD 3:1 Oil Pump with 275 Gallon (1040 Liter) Steel Down Tube and Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• Includes 1040 liter (275gal) tote down tube

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 24G597

LD SERIES OIL PUMP, ASSEMBLY, 5:1, NPT

Graco 24G597 LD 5:1 Oil Pump with 275 Gallon (1040 Liter) Steel Down Tube and Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• Includes 1040 liter (275gal) tote down tube

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 5:1

GG 24H752

KIT, 3:1 CART W/ REEL-NPT

Graco 24H752 LD Series 3:1 275 Gallon (1040 Liter) Tote Mobile Oil Pump Package - Preset Meter

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4000

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Flow Rate (GPM): 7.8

• Maximum Working Pressure (bar): 52
• Maximum Working Pressure (kPa): 5200
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 24H870

KIT, 5:1 TOTE MOUNT TOP-NPT

Graco 24H870 LD Series 5:1 Stationary 275 Gallon (1040 Liter) Oil Pump Package - NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4000

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Flow Rate (GPM): 6.7

• Maximum Working Pressure (bar): 52
• Maximum Working Pressure (kPa): 5200
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Number of Pieces: 8

• Power Type: Pneumatic

• Pump Ratio: 5:1

GG 24V677

SD BLUE DEF SYSTEM, AODD, WALL, DISP, W/MTR

Graco 24V677 SD Blue Pump Tote Package - 5 ft (1.5 m) Suction Hose Length - Automatic Nozzle - SST Clamp Fittings

Gracos SD Series DEF solutions are built on versatility with a Husky 515 AODD pump delivering up to 15 gpm (57 lpm) and operating on as little as 30 to 50 psi (2.1 to 3.4 bar). Increasing productivity this powerful pneumatic design provides superior suction and lift in tanks, totes and drums. Whether a small garage or large dealership, Graco has a complete line of Diesel Exhaust Fluid (DEF) for every application, capable of higher outputs over longer runs.

Application: Typical applications include automotive and heavy-duty dealerships, mining, service and fast lube centers, fleet service facilities, in-plant, and lube trucks.

• Modular air valve with a stall-free, low-pulsation design for smooth and rapid changeover to increase efficiency and minimize downtime
• Robust design with bolt-through fluid cover design to eliminate leaks and provide safety and reliability
• Rugged construction built to resist corrosion for reliable performance and long life
• Center and end porting options available
• Up to 15 ft (4.57 m) of suction lift provides installation flexibility
• 5 year warranty. See manufacturers website for details.

• Model: SD

• Application: Industrial

• Compatible Material: Diesel Exhaust Fluid

• Fluid Inlet Size (cm): 1.9050
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: BSPP

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: BSPP

• For Use With: DEF

• Hose Length (ft): 5

• Includes: Air Operated Diaphragm Pump, Mounting Bracket, LD Automatic Nozzle with SST Spout, LD DEF Meter, Dispense Hose and 2 Clamps, Suction Hose and 2 Clamps, Air Safety Valve
• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Gender: Female
• Inlet Thread Type: BSPP

• Maximum Air Pressure (bar): 4

• Maximum Air Pressure (kPa): 40
• Maximum Air Pressure (psi): 50

• Maximum Cycle Rate (CPM): 400

• Maximum Fluid Pressure (bar): 3.4
• Maximum Fluid Pressure (kPa): 34
• Maximum Fluid Pressure (MPa): 0.3
• Maximum Fluid Pressure (psi): 50

• Maximum Fluid Pressure (bar): 3.4
• Maximum Fluid Pressure (kPa): 34
• Maximum Fluid Pressure (MPa): 0.3
• Maximum Fluid Pressure (psi): 50

• Maximum Solid Size (cm): 0.2381
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.3813

• Mount Location: Tote Mount

GG 24W498

GT 750 PUMP, GREASE, 36:1, STUBBY

Graco 24W498 GT 750 36:1 Universal Grease Transfer Pump with Bung Adapter- NPT

The GT 750 pump was engineered to perform in challenging applications and changing environments. The large 7.5-inch (190 mm) air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.

• Efficient Air Motor - Use less air to move more grease.
• High Flow Rates - Up to 32 lb/min (13.6 kg/min) of grease.
• High Volume Per Stroke - Pump more grease without having to drive pump too quickly to damage seals.
• Multiple Tank Options - Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.

• Model: GT 750

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 7.5

• Application: Grease

• Compatible Material: Grease

• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease up to NLGI 2

• Includes: 2 Inch (51 mm) Bung Adapter and Lift Ring, Universal Lower

• Maximum Air Consumption (SCFM): 130
• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 248.2
• Maximum Working Pressure (kPa): 24820
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

• Output Per Cycle (cm cu ): 180

• Pump Ratio: 36:1

GG 25R800

G-MINI PUMP, 24V, 1L, NC

Graco 25R800 G-Mini Grease Lubrication Pump, 24 VDC, 1 Liter

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It's rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag - boosting your productivity and profitability.

• Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element loading chamberis always full.
• 5-Wire CPC Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
• 1 liter reservoir option
• No Controller: pair with either an external controller or PLC.
• Rugged Construction - Designed to withstand the harshest of environments, IP69K rated.

• Model: G-Mini

• Application: Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy
• Approvals: CE, EAC

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: External Controller

• Fluid Inlet Type: Zerk Fitting to Fill Reservoir

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Series Progressive

• IP Rating: IP69K

• Maximum Flow Rate (ci/min): 3

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (psi): 4061

• Minimum Operating Temperature ( degree C): -15
• Minimum Operating Temperature ( degree F): 5

• Minimum Voltage (V dc): 18

• Number of Pump Elements: Up to 2

• Overall Depth (in): 6.57

• Overall Height (in): 12.2
• Overall Width (in): 6.97

• Power Connection Type: CPC

GG 25T473

DYNAMITE SUPPLY UNIT, 1 GAL, 22:1

Graco 25T473 DynaMite Supply Pump for 1 Gallon pails

The Graco Dynamite Supply Pumps are an ideal solution for delivering precise and consistent material feed from small 1 gallon pails.

Application: The Graco Dynamite Supply Pumps are an ideal solution for delivering precise and consistent material feed from small containers ranging from 300cc cartridges to 1 gallon pails. Extensive product lifecycle even for heavy duty applications using highly viscous and abrasive materials.With a minimum weight of 28kg, the mini extruders are suitably designed to reduce floor space allowing for greater flexibility.

• Features and Benefits:

  Proven Graco Merkur motor allows for compact and lightweight design

  Longer product lifecycle due to diamond-like carbon coating and improved rid and piston designs

  Simple and user-friendly control panel

  • Typical Markets:

    Automotive Electronics

    Telecommunication Electronics

    Consumer Electronics

    • Typical Fluids Handled:

      Thermal Interface Materials

      Silicon

      Colorants

      Grease

      Ink

      Adhesives




      • Model: DynaMite
      • Series: 22
      • Air Inlet Size (in): 0.314961
      • Air Inlet Thread Gender: None
      • Ambient/Warm Melt/Hot Melt: Ambient
      • Control Options: Standard
      • Fluid Outlet Size (in): 1/4
      • Fluid Outlet Thread Gender: Female
      • Fluid Outlet Thread Type: NPT
      • Material Container Volume (gal): 1
      • Material Container Volume (l): 3.79
      • Maximum Air Inlet Pressure (bar): 6.9
      • Maximum Air Inlet Pressure (kPa): 700
      • Maximum Air Inlet Pressure (psi): 100
      • Maximum Fluid Pressure (bar): 140
      • Maximum Fluid Pressure (MPa): 140
      • Maximum Fluid Pressure (psi): 0
      • Maximum Fluid Pressure (bar): 140
      • Maximum Fluid Pressure (MPa): 140
      • Maximum Fluid Pressure (psi): 0
      • Maximum Operating Temperature ( degree C): 60
      • Maximum Operating Temperature ( degree F): 140
      • Maximum Working Pressure (bar): 152
      • Maximum Working Pressure (MPa): 15.2
      • Maximum Working Pressure (psi): 2200
      • Number of Wipers: Single Ring
      • Plate Material: Rubber
      • Power Type: Pneumatic
      • Pump Type: Piston
      • Ram Post Diameter (mm): 172

GG 26A807

GREASE JOCKEY ELECTRIC SYSTEM,SPRNGPIN,STR TRK,14PT

GG 26C185

Fireball 300 Lubricator,Chassis 50-1 Flex

GG 26C186

Fireball 300 Lubricator,Chassis 50-1 Flex

GG 26C367

KIT, PUMP/CART/SDP8 FLEX

Graco 26C367 Pulse FC Roll-Around Package - SDP8 Oil Meter, Flexible Extension

Capture the true power of a wire-free system with a Pulse FC mobile roll-around package including LD pump, cart, meter, fluid hose and air regulator.

• Model: Pulse

• Product Type: Mobile Roll-Around Package

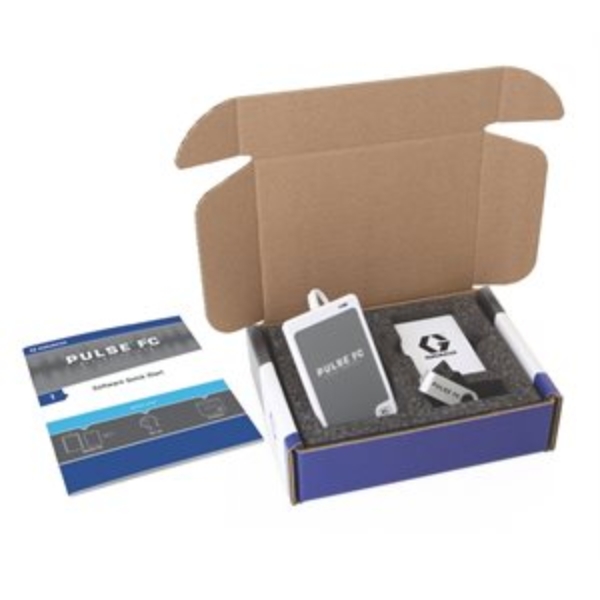

GG 26C401

KIT, PULSE FC UPGRADE

Graco 26C401 Pulse FC Starter Kit - Includes Software, Card Reader & Cards

Pulse FC Fluid Control provides service operations with accuracy and command to automate and regulate fluid dispenses for optimal accountability and profitability.

Application: With Pulse FC, dispense only precise volumes to create efficiencies for your entire shop operation. Monitor how much fluid youre using. Choose the amount of fluid each technician can dispense. Maintain accurate inventory. Streamline processes to improve productivity and uncover hidden profitability while adding transparency to everyday tasks.

• Easily upgrade from SD Preset meters to Pulse FC
• Control exactly how much fluid is dispensed to improve inventory management
• Fast, easy wire-free setup and configuration reduces installation costs
• Add fluids or dispense points seamlessly as your demands grow
• Easily upgrade to Pulse Pro for even more management, analytics and DMS integration

• Model: Pulse

• Product Type: Starter Kit

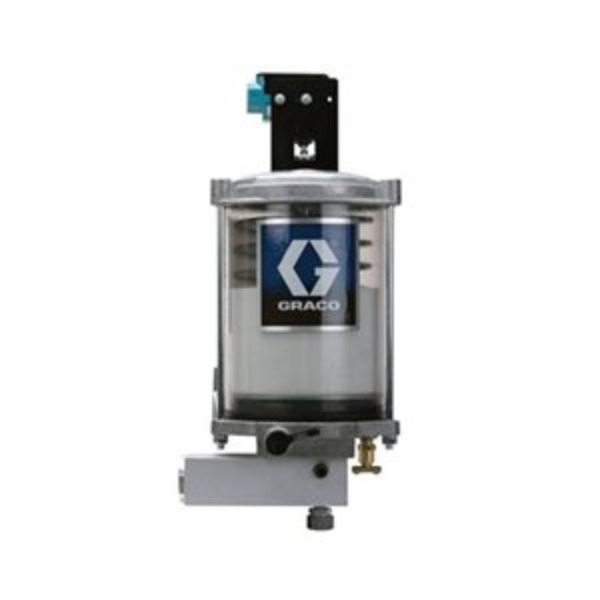

GG 563360

E-SERIES PUMP, RESV ASSY GRS LL

Graco 563360 E-Series Pump and Reservoir Assembly - 5 lb (2.26 kg) Plastic Grease, 1/4 in. NPSF, Low Level Switch

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

• Easy field installation of accessories without disturbing existing plumbing
• Smart pump design with few moving parts ensures long-lasting dependability
• Lubriquip part number 521-300-360

• Model: E-Series

• Air Inlet Size (in): 0.2502
• Air Inlet Size (mm): 6.35

• Application: In-Plant Machinery

• Compatible Material: Grease

• Maximum Working Pressure (bar): 24
• Maximum Working Pressure (kPa): 2400
• Maximum Working Pressure (MPa): 2.4
• Maximum Working Pressure (psi): 350

• Power Type: Pneumatic

GG 563579

LUBRISYSTEM PUMP, AIR (NO RES)

Graco 563579 LubriSystem Standard Air Operated Pump without Reservoir

Easy to design, modify and adjust for oil or grease applications large or small. Great for operation of piston distributors. Rugged construction maximizes your productivity - upgrading to the internal timer control completely automates the system. All packages include internal pressure relief, so no need to install extra parts with additional costs. Combine with LubriSystem injectors for easy, low cost system design solutions.

Application: Air Operated Pump for Single Line Parallel Systems

• Ability to serve large systems - up to 100 lube points or more
• Efficient design promotes increased productivity and less downtime
• No reservoir included

• Model: LubriSystem

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease
• Compatible Metering Device: Single Line Parallel

• Includes: Standard Pump

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Fluid Output Pressure (bar): 93
• Maximum Fluid Output Pressure (psi): 1350

• Maximum Fluid Output Pressure (bar): 93
• Maximum Fluid Output Pressure (psi): 1350

• Maximum NLGI Grade: #1

• Maximum Working Pressure (bar): 40
• Maximum Working Pressure (kPa): 4000
• Maximum Working Pressure (MPa): 4
• Maximum Working Pressure (psi): 580

• Minimum Air Inlet Pressure (psi): 40

• Power Type: Pneumatic

GG 82/0703/11

Grease,3Oz Tube

GG 965124

FIREBALL 425 PUMP, 10:1, STUBBY

Graco 965124 Fire-Ball 425 Series 10:1 400 lb (180 kg). Stubby Mount Air-Powered Grease Pump

The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Application: The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 20

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Intermittent Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 124
• Maximum Working Pressure (kPa): 12400
• Maximum Working Pressure (MPa): 12.4
• Maximum Working Pressure (psi): 1800

• Power Type: Pneumatic

• Pump Ratio: 10:1

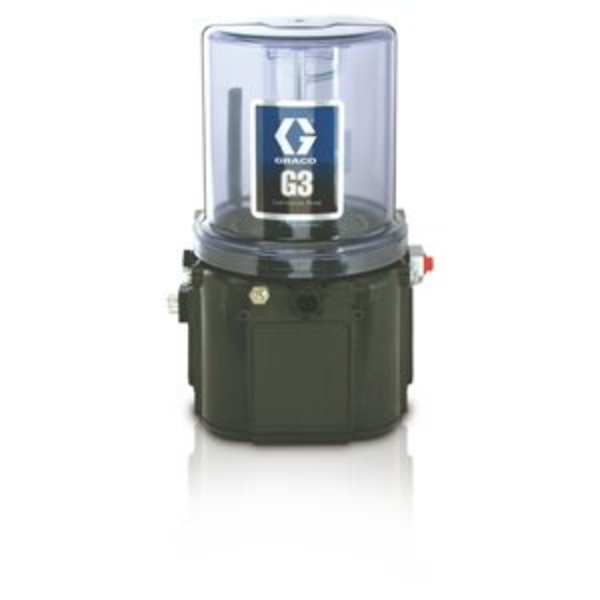

GG 96G008

G3 STANDARD PUMP, G-ACNC-2LFA00-LD000000

Graco 96G008 G3 Standard Grease Lubrication Pump, 90-240 VAC, 2 Liter, Follower Plate, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• No internal controller - use with separate or existing machine control for a low cost solution
• Capable of sending a low level signal to your external controller or PLC

• Model: G3
• Series: Standard

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Control Options: Standard

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Follower Plate, External Low Level

• IP Rating: IP69K

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Pump Elements: Up to 3

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Width (in): 8
• Overall Width (mm): 203

• Power Connection Type: DIN

• Power Type: Electric

GG 96G051

G3 STANDARD PUMP, A-24NC-4L0A00-L0C00000

Graco 96G051 G3 Standard Oil Lubrication Pump, 24 VDC, 4 Liter, External Low Level, CPC

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• No internal controller - use with separate or existing machine control for a low cost solution
• Capable of sending a low level signal to your external controller or PLC

• Model: G3
• Series: Standard

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Control Options: Standard

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: External Low Level

• IP Rating: IP69K

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum cST Grade (cST): 40

• Minimum Voltage (V dc): 18

• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 36.8
• Overall Height (in): 14.5
• Overall Height (mm): 368
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection Type: CPC

• Power Type: Electric

GG 96G058

G3 STANDARD PUMP, G-ACNC-160A00-LD000000

Graco 96G058 G3 Standard Grease Lubrication Pump, 90-240 VAC, 16 Liter, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• No internal controller - use with separate or existing machine control for a low cost solution
• Capable of sending a low level signal to your external controller or PLC

• Model: G3
• Series: Standard

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Control Options: Standard

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• Includes: Wiper Arm, External Low Level

• IP Rating: IP69K

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 69.9
• Overall Height (in): 27.5
• Overall Height (mm): 699
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection Type: DIN

• Power Type: Electric

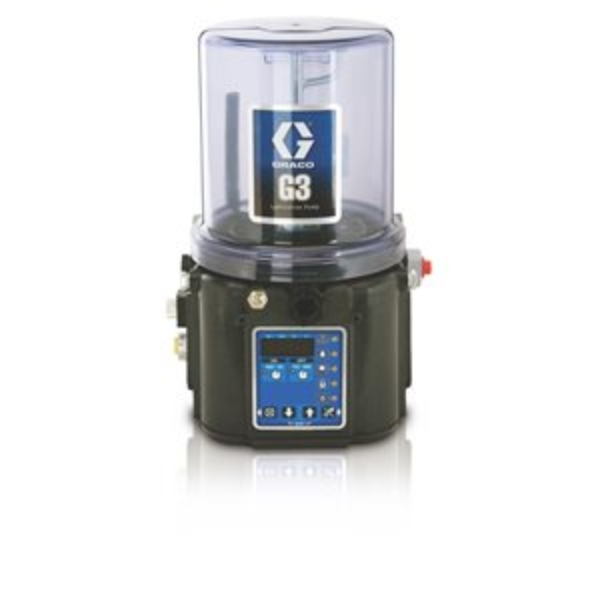

GG 96G076

G3 PRO PUMP, G-ACPR-8L0L00-0D000000

Graco 96G076 G3 Pro Grease Lubrication Pump, 90-240 VAC, 8 Liter, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 0.2
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 amp, 10m VDC
• Alarm Relay Resistive Rated Load (A): 0.4

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Wiper Arm, Low Level

• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 47
• Overall Height (in): 18.5
• Overall Height (mm): 470
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection

GG 96G077

G3 PRO PUMP, G-ACPR-120L00-0D000000

Graco 96G077 G3 Pro Grease Lubrication Pump, 90-240 VAC, 12 Liter, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 0.2
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 amp, 10m VDC
• Alarm Relay Resistive Rated Load (A): 0.4

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Wiper Arm, Low Level

• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 58.4
• Overall Height (in): 23
• Overall Height (mm): 584
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection

GG 96G080

G3 PRO PUMP, A-ACPR-4L0L00-0D000000

Graco 96G080 G3 Pro Oil Lubrication Pump, 90-240 VAC, 4 Liter, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Voltage (VDC): 220
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 1
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 amp, 10m VDC
• Alarm Relay Resistive Rated Load (A): 2

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Low Level

• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum cST Grade (cST): 40

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 36.8
• Overall Height (in): 14.5
• Overall Height (mm): 368
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection Type: DIN

• Power Type: Electric

• Pump Output with 0 Spacers (cu in/

GG 96G082

G3 PRO PUMP, G-ACPR-4LFL00-0D000000

Graco 96G082 G3 Pro Grease Lubrication Pump, 90-240 VAC, 4 Liter, Follower Plate, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 0.2
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 amp, 10m VDC
• Alarm Relay Resistive Rated Load (A): 0.4

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Input Cycle Rate (Hz): 8
• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 36.8
• Overall Height (in): 14.5
• Overall Height (mm): 368
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connecti

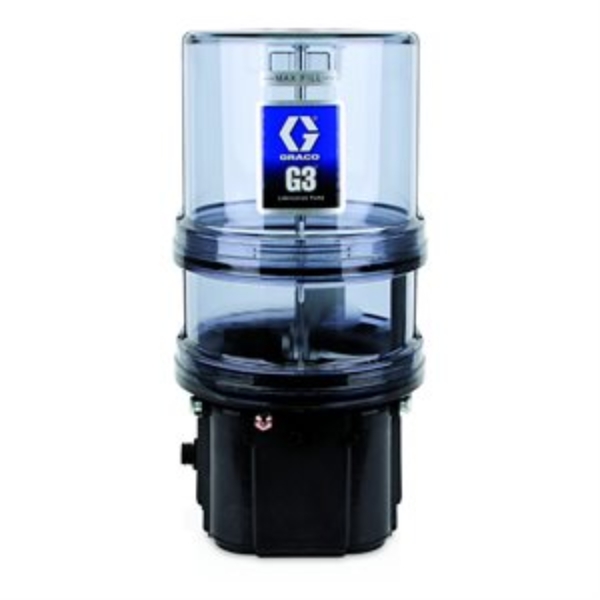

GG 96G138

G3 PRO PUMP, G-24PR-8L0000-00C00000

Graco 96G138 G3 Pro Grease Lubrication Pump, 24 VDC, 8 Liter, CPC

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VDC): 220
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 1
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Rated Load (A): 2

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Wiper Arm

• Input Cycle Rate (Hz): 8
• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V dc): 18

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 47
• Overall Height (in): 18.5
• Overall Height (mm): 470
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection Type: CPC

• Power Type: Electric

• Pump Output with 0 Spacers (cu in/min): 0.25
• Pump Output with 1 Sp
