FIREBALL 425 PUMP, 6:1

Manufacturer: GRACO INC. S10595

GG 238108

FIREBALL 425 PUMP, 6:1

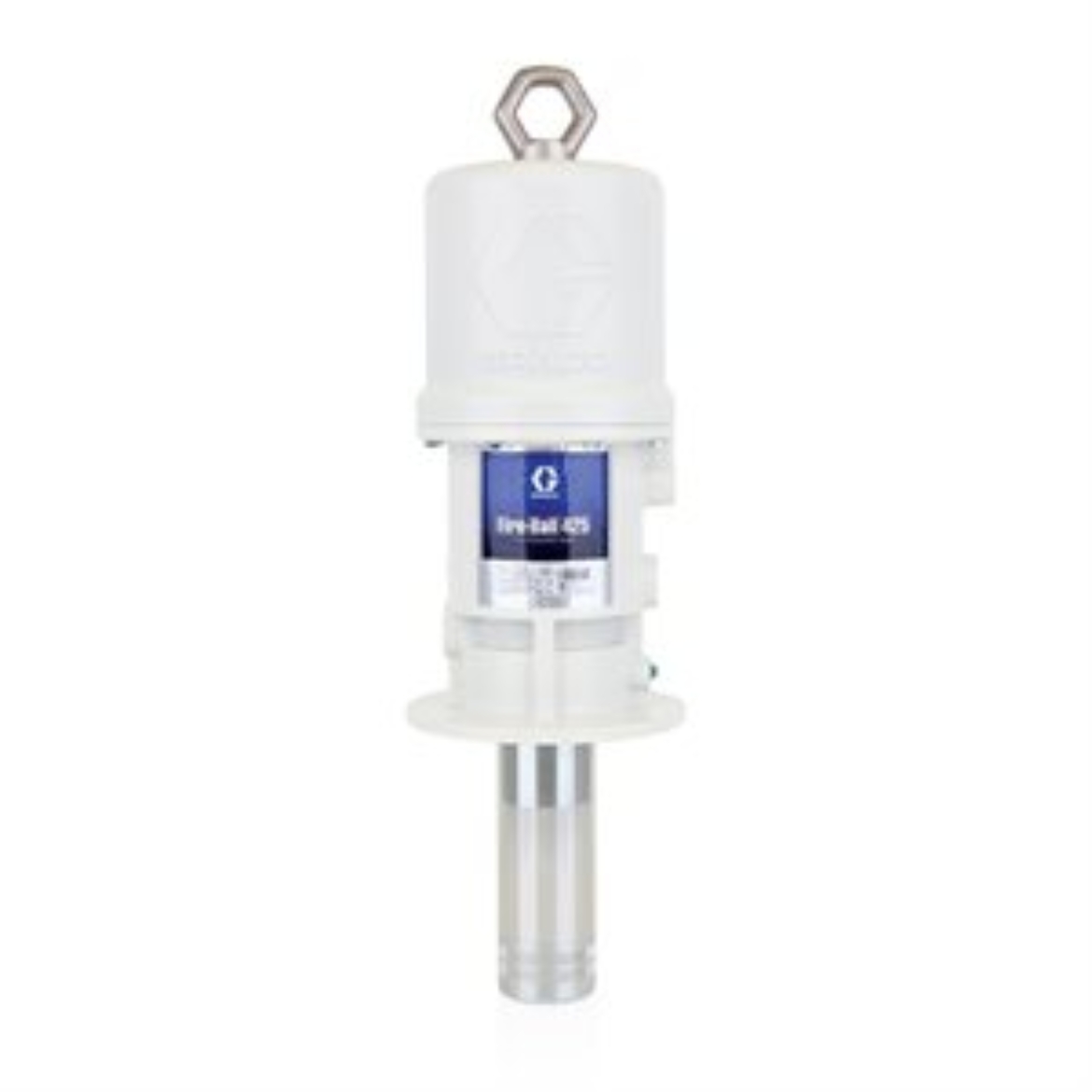

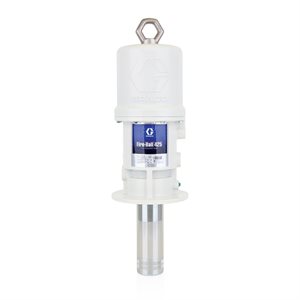

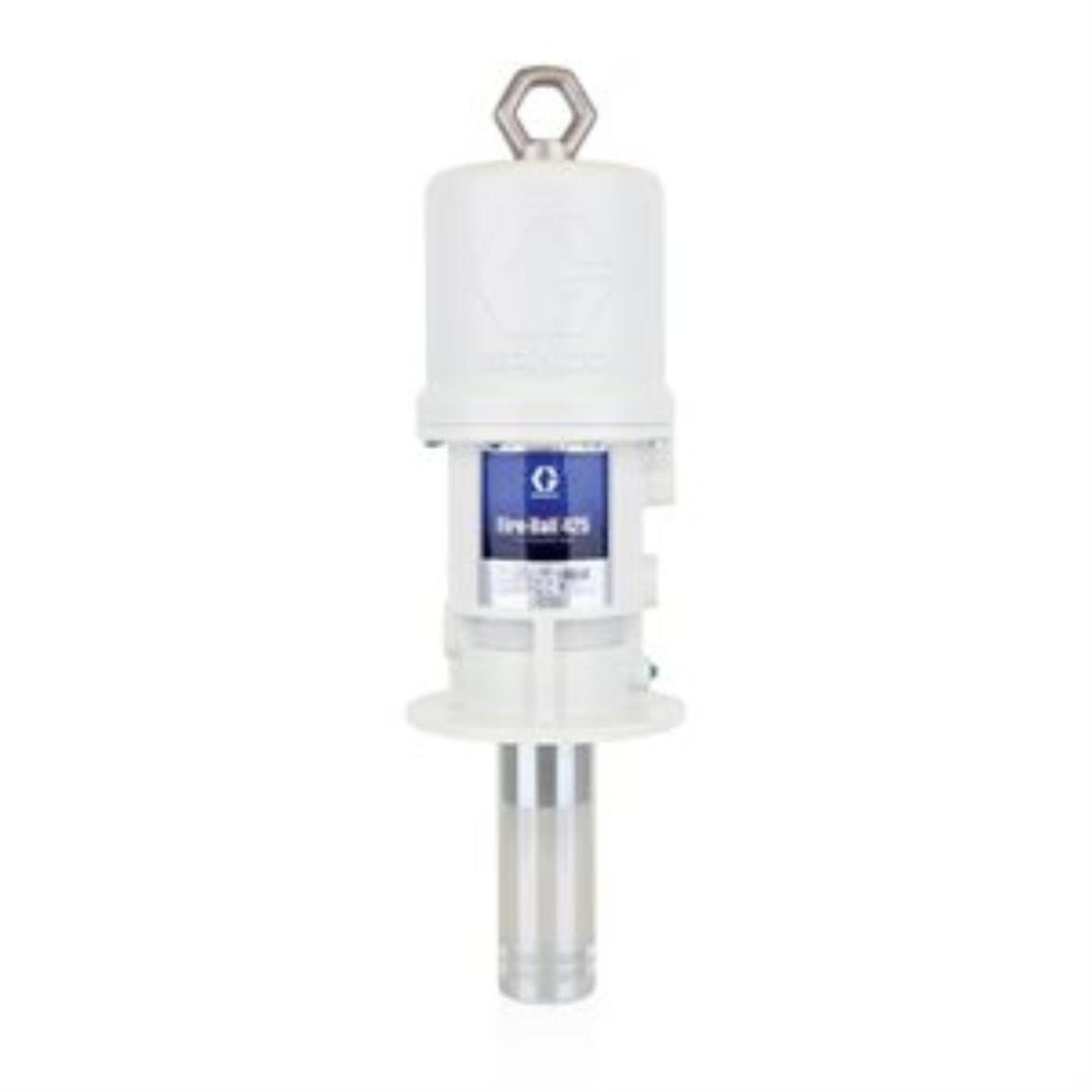

Graco 238108 Fire-Ball® 425 Series 6:1 Universal Size Oil Pump

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

Application: The Fire-Ball 425 is the pump of choice for your most demanding high volume applications - an ideal choice for applications such as truck fleet service facilities and in-plant applications where multiple dispenses happen at the same time.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated &Prime, dirty&Prime, air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.


  • Model: Fire-Ball
  • Series: 425
  • Air Inlet Size (in): 0.5
  • Air Inlet Size (mm): 12.7
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Motor Effective Diameter (in): 4.25
  • Application: Industrial
  • Compatible Material: Oil
  • Cycles Per Gallon: 12
  • Fluid Inlet Size (in): 1-1/2
  • Fluid Inlet Size (mm): 38.1
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 19.05
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)
  • Maximum Air Inlet Pressure (bar): 12.41
  • Maximum Air Inlet Pressure (kPa): 1241
  • Maximum Air Inlet Pressure (psi): 180
  • Maximum Continuous Cycle Rate (CPM): 66
  • Maximum Intermittent Cycle Rate (CPM): 66
  • Maximum Working Pressure (bar): 76
  • Maximum Working Pressure (kPa): 7600
  • Maximum Working Pressure (MPa): 7.6
  • Maximum Working Pressure (psi): 1100
  • Power Type: Pneumatic
  • Pump Ratio: 6:1
SKU: GG 238108
Availability:
Price: $6,040.00
