GG 244038

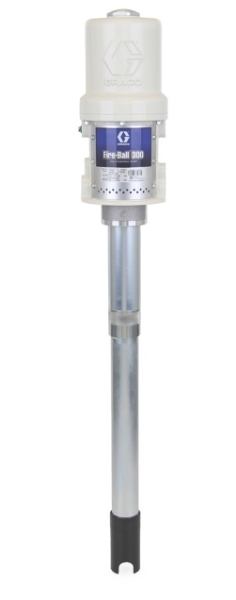

FIREBALL 300 SYSTEM, DISPENSE, BULK OIL

Graco 244038 Fire-Ball 300 Series 5:1 Oil Bulk Oil Dispensing Pump Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): None

• Compatible Material: Oil

• Container Size (lb): None

• Fluid Inlet Size (cm): 3.8100
• Fluid Inlet Size (in): 1.5
• Fluid Inlet Size (mm): 38.1000
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fire-Ball 300 5:1 Pump, Regulator/Gauge, Nipple, Bung Adapter, SD Series Reel with Hose, SDP5 Meter

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (gpm @ 80 cpm): 2.8

• Maximum Fluid Working Pressure (psi): 900

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Motor Type: Pneumatic

• Mount Location: Universal

• Power Type: Pneumatic

• Pump Ratio: 5:1
• Pump Weight (lb): 17

GG 244628

FIREBALL 425 SYSTEM, BULK OIL

Graco 244628 Fire-Ball 425 Series 6:1 Universal Size Oil Pump - Wall-Mounted Package

The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Oil

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fire-Ball 425 6:1 Pump, Filter Regulator, Hose and Fitting Kit, Air Shutoff Valve, Fluid Shutoff, Wall Mount Bracket

• Maximum Air Working Pressure (psi): 180

• Maximum Flow Rate (gpm @ 80 cpm): 6.6

• Maximum Fluid Working Pressure (psi): 1100

• Maximum Working Pressure (bar): 76
• Maximum Working Pressure (kPa): 7600
• Maximum Working Pressure (MPa): 7.6
• Maximum Working Pressure (psi): 1100

• Motor Type: Pneumatic

• Mount Location: Wall Mount

• Power Type: Pneumatic

• Pump Ratio: 6:1
• Pump Weight (lb): 35

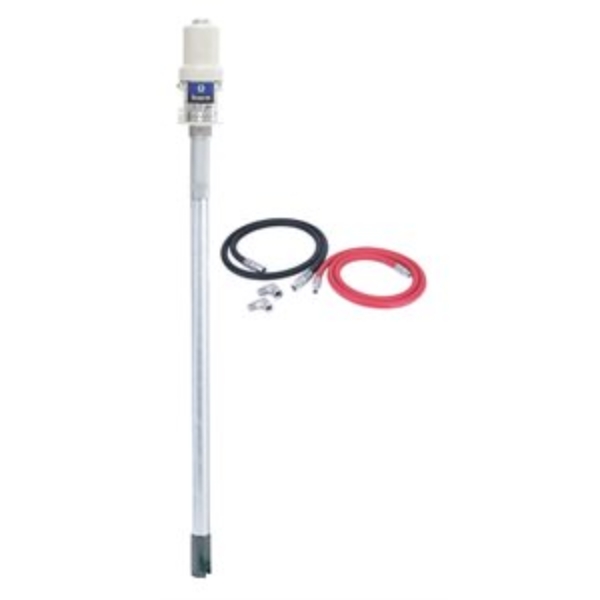

GG 246907

FIREBALL 225 PUMP, 3:1 , BUNG MT, 55/275 GAL

Graco 246907 Mini Fire-Ball 225 3:1 55 Gallon (200 Liter) Oil Pump - Bung Mounted Package

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 43.5

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Includes: Hose Installation Kit

• Maximum Air Consumption (SCFM): 20
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 37
• Maximum Working Pressure (kPa): 3700
• Maximum Working Pressure (MPa): 3.7
• Maximum Working Pressure (psi): 540

• Power Type: Pneumatic

• Pump Ratio: 3:1

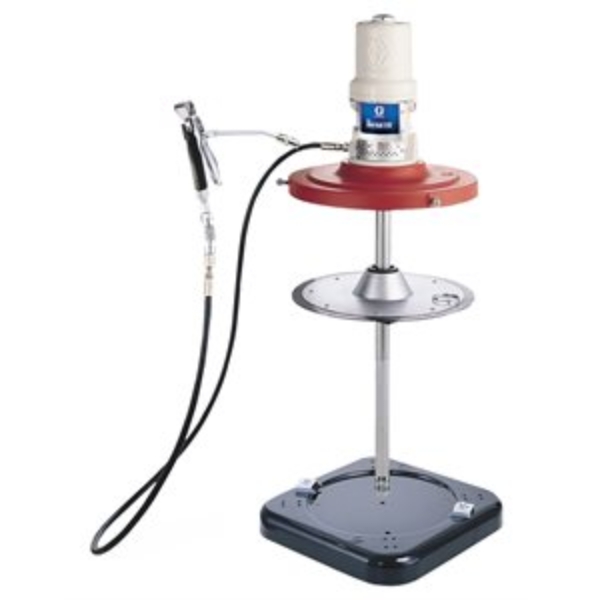

GG 246915

FIREBALL 225 PUMP, BASE, 50:1, 120#

Graco 246915 Mini Fire-Ball 225 50:1 120 lb. (54 kg) Grease Pump - Portable Package Caster Base

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Mini Fireball 50:1 225 Pump, Dispense Kit, Cover, Follow Plate, Holster, Portable Base, Shim

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 15

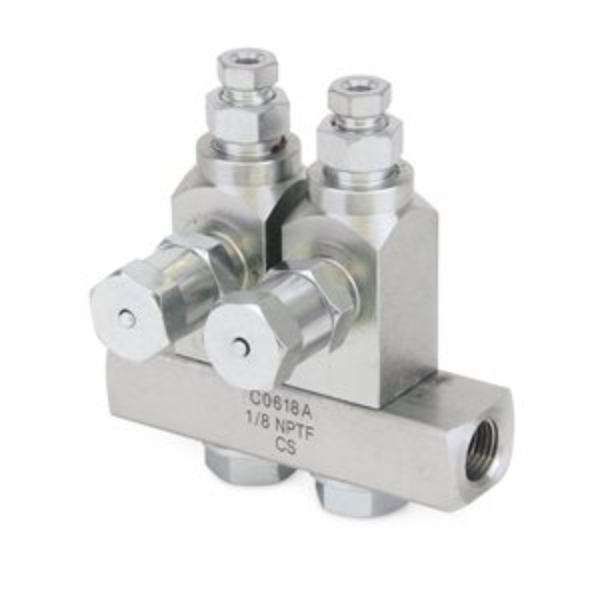

GG 24E242

GL-43 INJECTOR, 2 INJECTOR MANIFOLD

Graco 24E242 GL-43 Carbon Steel Oil 2-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-43 oil injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Handles low viscosity lubricants.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 750-1000 psi (52-69 bar) for optimal performance with low viscosity lubricants (#10 weight minimum)
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-43

• Compatible Material: Oil

• Maximum Working Pressure (bar): 68.9
• Maximum Working Pressure (kPa): 6890
• Maximum Working Pressure (psi): 1000

• Minimum Working Pressure (bar): 51.7
• Minimum Working Pressure (kPa): 5170

• Minimum Working Pressure (psi): 750

• Number of Injectors: 2

GG 24E391

GL-32 INJECTOR, 1 INJ MANIFOLD, SST

Graco 24E391 GL-32 Grease Injector, 304 Stainless Steel, 1-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2

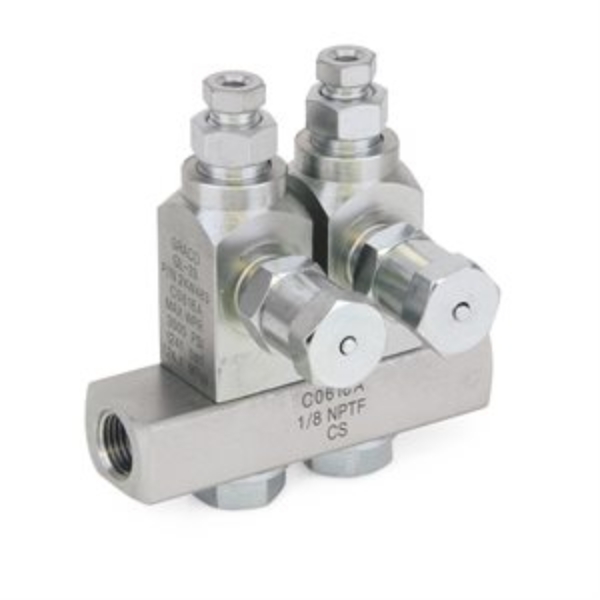

GG 24E392

GL-32 INJECTOR, 2 INJ MANIFOLD, SST

Graco 24E392 GL-32 Grease Injector, 304 Stainless Steel, 2-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2

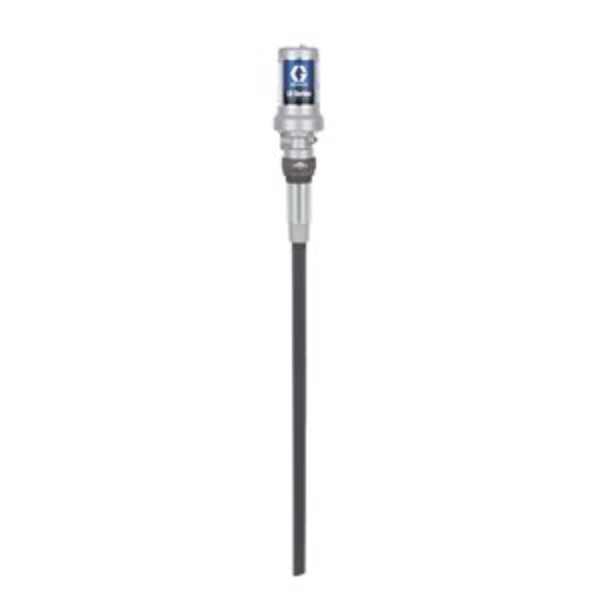

GG 24G579

LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT

Graco 24G579 LD 3:1 Oil Pump with Cut-to-Length PVC Downtube and Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• Includes cut-to-length downtube

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 24G588

LD SERIES OIL PUMP, 5:1, UNIVERSAL, NPT

Graco 24G588 LD Series 5:1 Universal Oil Pump with Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 5:1

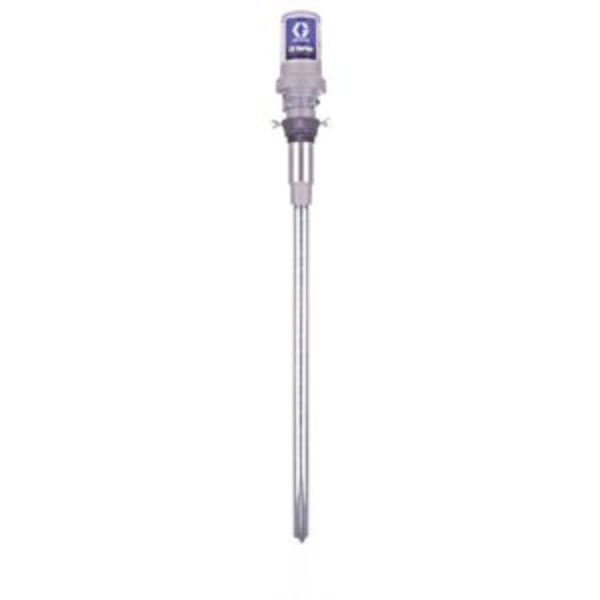

GG 24G594

LD SERIES OIL PUMP, ASSEMBLY, 5:1, NPT

Graco 24G594 LD 5:1 Oil Pump with 55 Gallon (200 Liter) Steel Down Tube and Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• Includes 200L (55gal) drum down tube

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 5:1

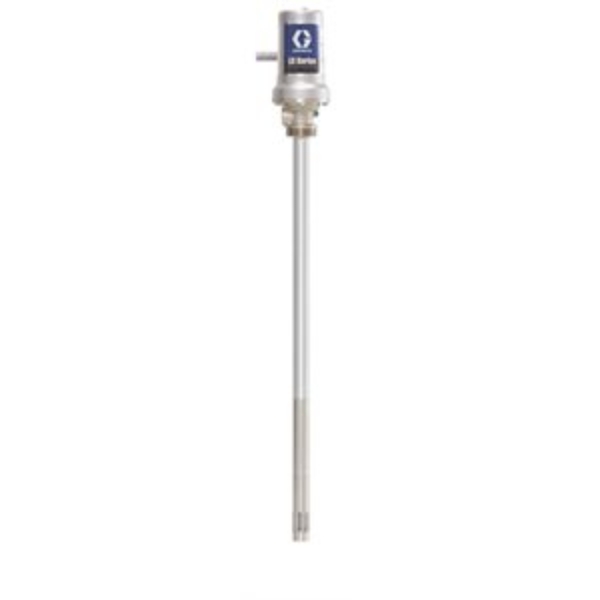

GG 24G603

LD SERIES GREASE PUMP, 50:1, 55 KG, NPT

Graco 24G603 LD Series 50:1 Pump for 120 lb (55 kg). Pail - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
• 120 lb (55 kg) Grease Pump - 50:1

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Grease

• Compatible Material: Grease

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 517
• Maximum Working Pressure (kPa): 51700
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Power Type: Pneumatic

• Pump Ratio: 50:1

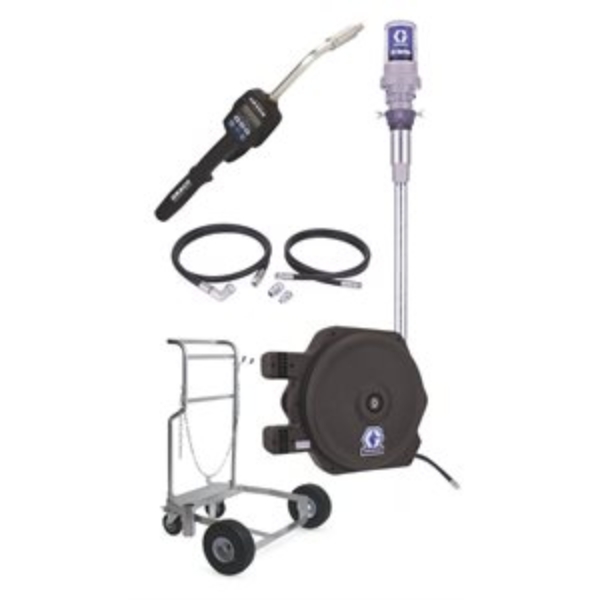

GG 24H753

KIT, 3:1 CART W/ REEL-NPT

Graco 24H753 LD Series 3:1 Mobile Oil Pump Package - Preset Meter Type

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor - Provides more power to create better flow.
• Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Working Pressure (psi): 150

• Maximum Flow Rate (GPM): 7.8

• Maximum Working Pressure (bar): 52
• Maximum Working Pressure (kPa): 5200
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Mount Location: Cart Mount

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 24J496

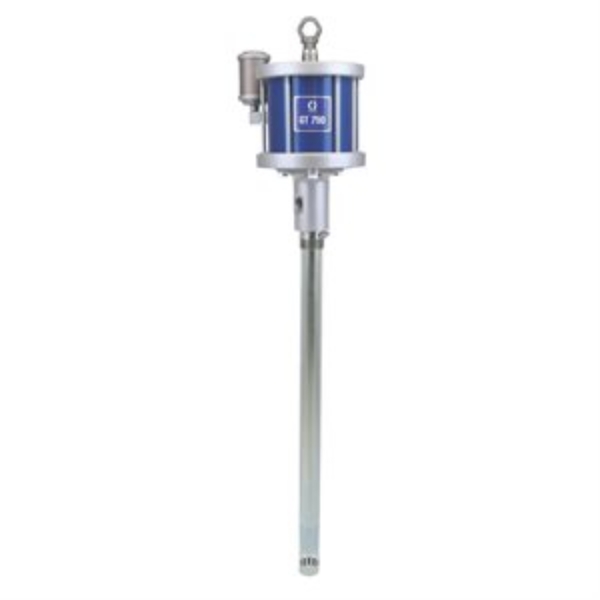

GG 24W337

GT 750 PUMP, GREASE, 36:1, 400 LB

Graco 24W337 GT 750 36:1 Grease Transfer Pump for 400 lb (180 kg). Pail with Bung Adapter - NPT

The GT 750 pump was engineered to perform in challenging applications and changing environments. The large 7.5-inch (190 mm) air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.

• Efficient Air Motor -Use less air to move more grease.
• High Flow Rates - Up to 32 lb/min (13.6 kg/min) of grease.
• High Volume Per Stroke - Pump more grease without having to drive pump too quickly to damage seals.
• Multiple Tank Options - Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.

• Model: GT 750

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 7.5

• Application: Grease

• Compatible Material: Grease

• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease up to NLGI 2

• Includes: 2 Inch Bung Adapter and Lift Ring, 400 lb (181 kg) Lower

• Maximum Air Consumption (SCFM): 130
• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 248.2
• Maximum Working Pressure (kPa): 24820
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

• Output Per Cycle (cm cu ): 180

• Pump Ratio: 36:1

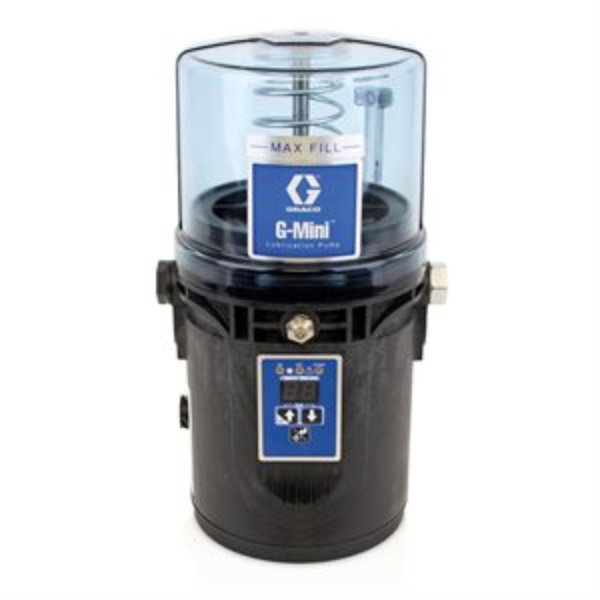

GG 25R801

G-MINI PUMP, 24V, 1L, CONTROLLER

Graco 25R801 G-Mini Grease Lubrication Pump with Controller, 24 VDC, 1 Liter

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It's rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag - boosting your productivity and profitability.

• Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element loading chamberis always full.
• M12 Input - M12 cycle or proximity switch input standard on all pumps with a controller.
• 5-Wire CPC Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
• One Pump Element - 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
• Easy-to-program controller can be utilized for both time based and cycle based systems and provides low level alert and alarm.
• Rugged Construction - Designed to withstand the harshest of environments, IP69K rated.

• Model: G-Mini

• Application: Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy
• Approvals: CE, EAC

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Internal Controller

• Fluid Inlet Type: Zerk Fitting to Fill Reservoir

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• IP Rating: IP69K

• Maximum Flow Rate (ci/min): 3

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (psi): 4061

• Minimum Operating Temperature ( degree C): -15
• Minimum Operating Temperature ( degree F): 5

• Minimum Voltage (V dc): 18

• Number of Pump Elements: Up to 2

• Number of Sensor Inputs: 1

• Overall Depth (in): 6.57

• Overall Height (in): 12.2
• Overall Width (in): 6.97

• Power Connection Type: CPC

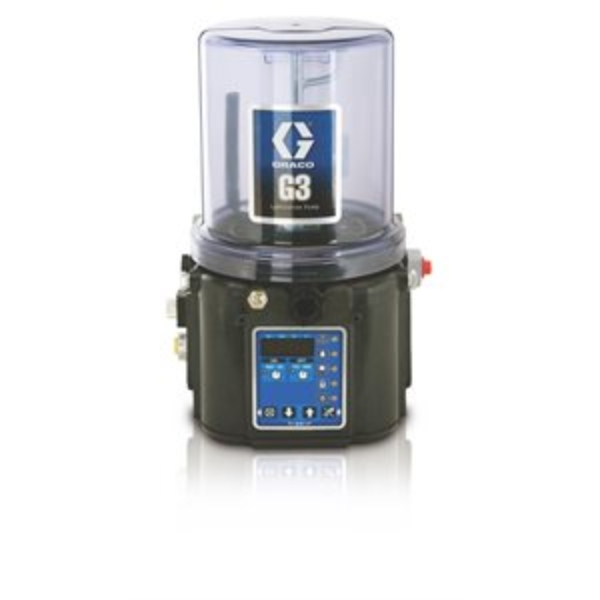

GG 96G013

G3 PRO PUMP, G-ACPR-2L0L00-0D000000

Graco 96G013 G3 Pro Grease Lubrication Pump, 90-240 VAC, 2 Liter, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 0.2
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 amp, 10m VDC
• Alarm Relay Resistive Rated Load (A): 0.4

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Wiper Arm, Low Level

• Input Cycle Rate (Hz): 8
• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Width (in): 8
• Overall Width (mm): 20

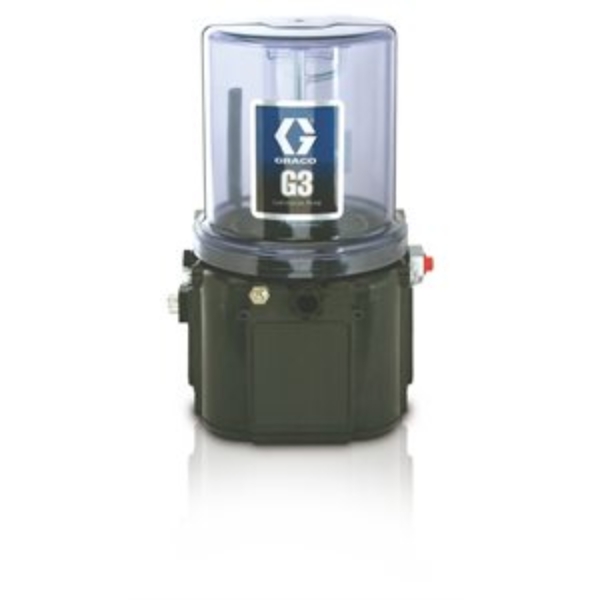

GG 96G048

G3 STANDARD PUMP, G-24NC-4L0A00-L0C00000

Graco 96G048 G3 Standard Grease Lubrication Pump, 24 VDC, 4 Liter, External Low Level, CPC

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• No internal controller - use with separate or existing machine control for a low cost solution
• Capable of sending a low level signal to your external controller or PLC

• Model: G3
• Series: Standard

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Control Options: Standard

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Wiper Arm, External Low Level

• IP Rating: IP69K

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V dc): 18

• Number of Pump Elements: Up to 3

• Overall Depth (cm): 25.4
• Overall Depth (in): 10
• Overall Depth (mm): 254

• Overall Height (cm): 36.8
• Overall Height (in): 14.5
• Overall Height (mm): 368
• Overall Width (cm): 23.5
• Overall Width (in): 9.25
• Overall Width (mm): 235

• Power Connection Type: CPC

• Power Type: Electric

GG 0553-6

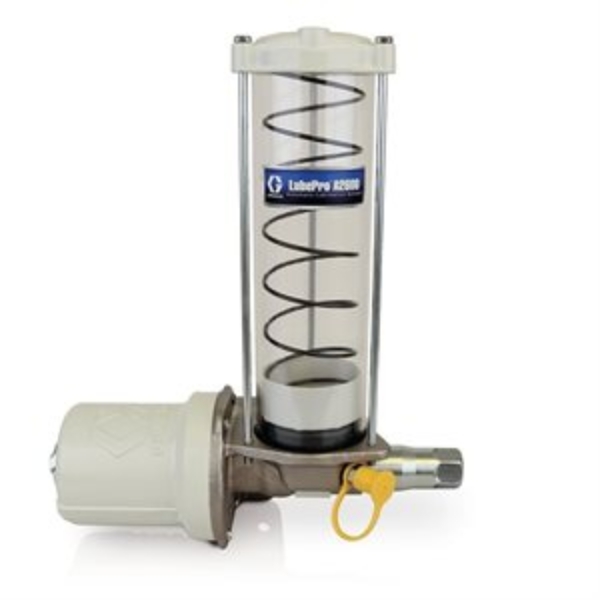

GG 17C751

LUBEPRO A2600 PUMP, LL, GREASE

Graco 17C751 LubePro A2600 Horizontal Grease Pump, 2 L Reservoir, Normally Open, Low Level - NPT

Without proper lubrication your factorys machines can suffer from downtime and reduced life, which impacts your companys bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Gracos Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2600 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 26:1
• A2600 delivers a greater output than competitive models at 2.2 in cu (36.05 cm cu ) per stroke
• Optional Low Level Detection available, factory installed
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2600

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Size (mm): 19.0500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 9.31
• Maximum Air Inlet Pressure (kPa): 931
• Maximum Air Inlet Pressure (psi): 135

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Height (cm): 47.3
• Overall Height (in): 18.62
• Overall Height (mm): 473

• Power Type: Pneumatic

GG 203872

FIREBALL 300 PUMP, 5:1, 16 GL, COV MNT

Graco 203872 Fire-Ball 300 Series 5:1 Oil Pump, 16 Gallon (60 Liter) Drum Size - For Cover Mount

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 30

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM): 25
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 70

• Maximum Intermittent Cycle Rate (CPM): 70

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Power Type: Pneumatic

• Pump Ratio: 5:1

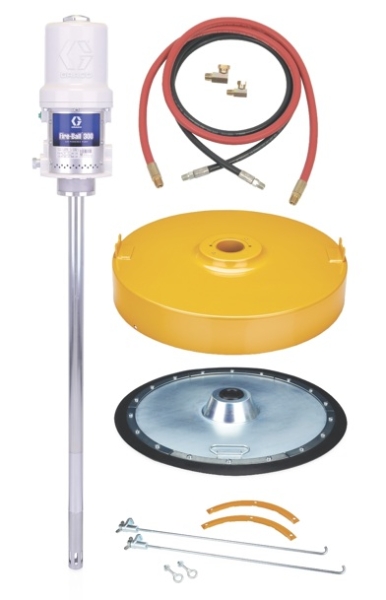

GG 222071

FIREBALL 300 PUMP, 50:1

Graco 222071 Fire-Ball 300 Series 50:1b 400 lb. (181 kg) Grease Pump - Lube Truck Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit

• Maximum Air Working Pressure: 180

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount, Truck Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

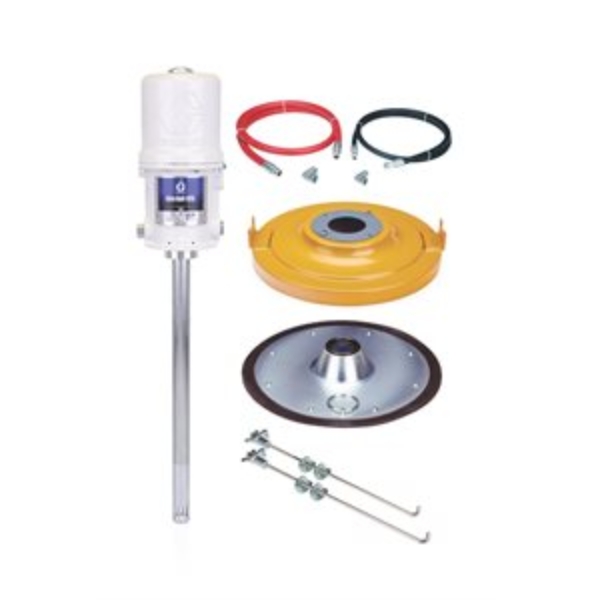

GG 223107

FIREBALL 425 PUMP, LUBT, HP (LUBERANGR)

Graco 223107 Fire-Ball 425 Series 50:1 120 lb. (54 kg) Grease Pump - Lube Truck Package

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 425 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit

• Maximum Air Working Pressure: 150

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 34

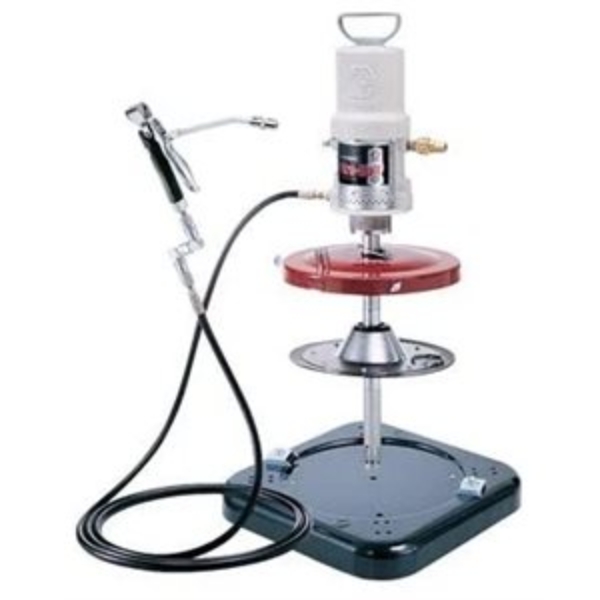

GG 225006

FIREBALL 300 LUBRICATOR, CHASSIS 50-1

Graco 225006 Fire-Ball 300 Series 50:1 120 lb. (54 kg) Grease Pump Portable Package with Caster Base

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Portable Truck, Dispense Kit, Cover, Follow Plate

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

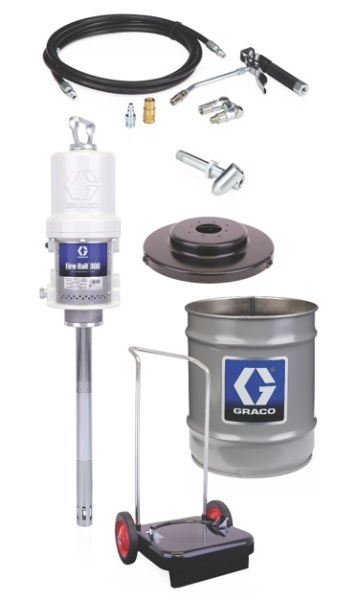

GG 225773

FIREBALL 300 LUBRICATOR, CHASSIS, 50-1

Graco 225773 Fire-Ball 300 Series 50:1 25 to 50 lb. (11.3 to 23 kg) Grease Pump - Portable Pail Dispenser Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 50

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 300 50:1 Pump, Portable Truck, Dispense Kit, Cover, Pail

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

GG 225786

FIREBALL 425 PUMP, 10:1, PKG

Graco 225786 Fire-Ball 425 Series 10:1 55 Gallon (200 Liter) Oil Pump - Bung-Mounted Package

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Oil

• Fluid Inlet Size (cm): 3.8100
• Fluid Inlet Size (in): 1.5
• Fluid Inlet Size (mm): 38.1000
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

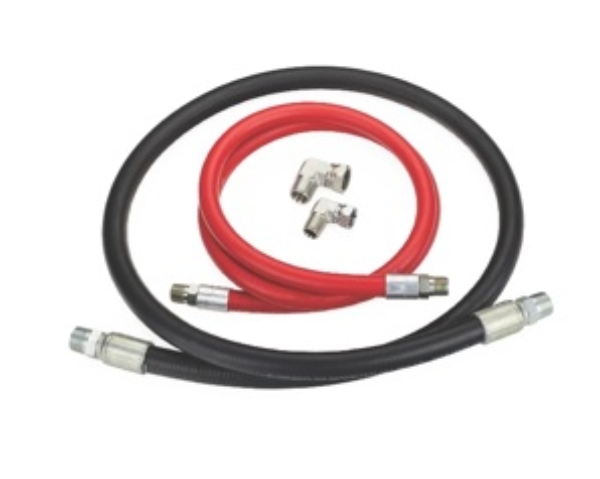

• Includes: Hose Kit, Bung Adapter

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (gpm @ 80 cpm): 4.1

• Maximum Fluid Working Pressure (psi): 1800

• Maximum Working Pressure (bar): 124
• Maximum Working Pressure (kPa): 12400
• Maximum Working Pressure (MPa): 12.4
• Maximum Working Pressure (psi): 1800

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 10:1
• Pump Weight (lb): 28.7
