GG 25R800
G-MINI PUMP, 24V, 1L, NC

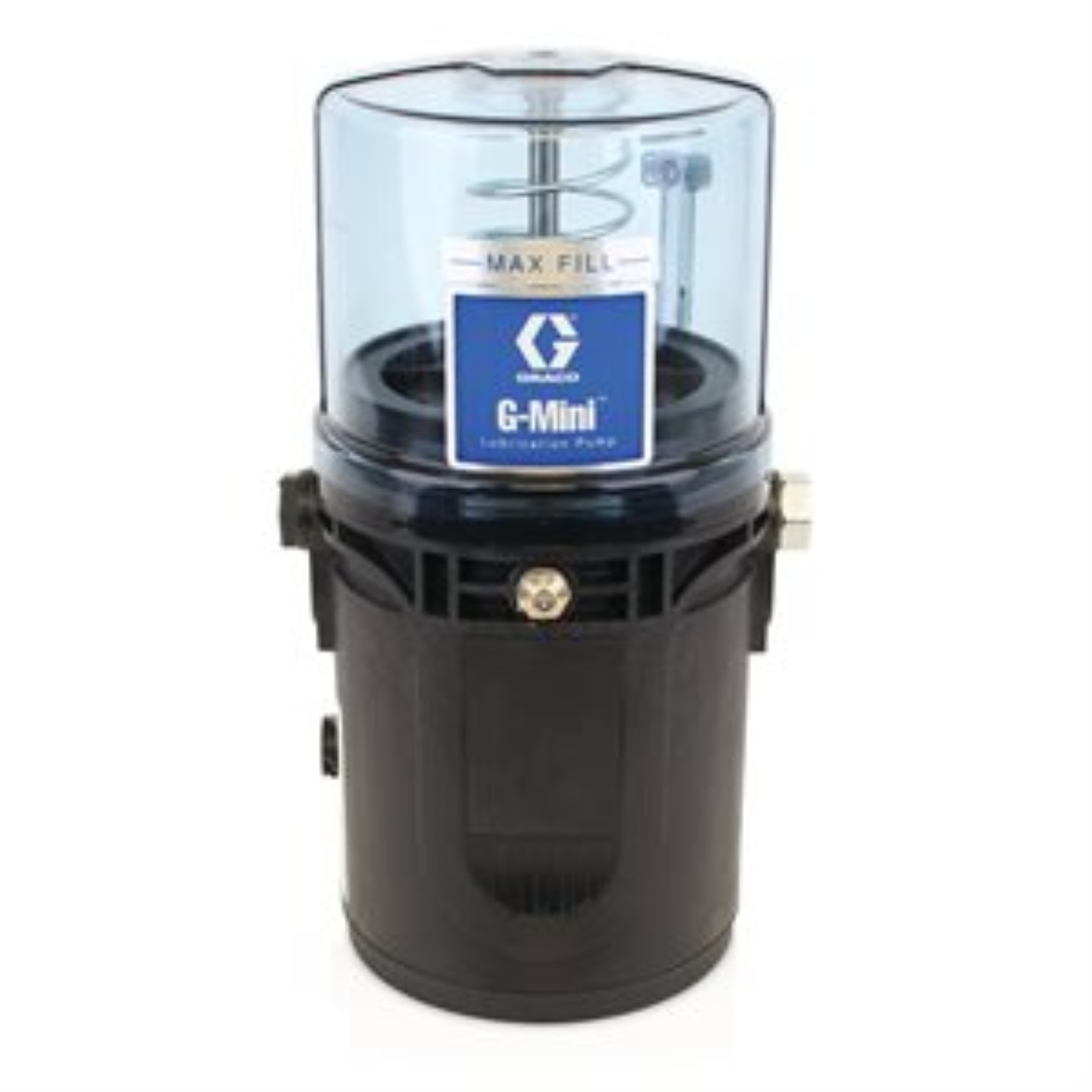

Graco 25R800 G-Mini® Grease Lubrication Pump, 24 VDC, 1 Liter
Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It’s rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
- Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element &Prime, loading chamber&Prime, is always full.
- 5-Wire CPC Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- 1 liter reservoir option
- No Controller: pair with either an external controller or PLC.
- Rugged Construction - Designed to withstand the harshest of environments, IP69K rated.
- Application: Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy
- Approvals: CE, EAC
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Control Options: External Controller
- Fluid Inlet Type: Zerk Fitting to Fill Reservoir
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPSF
- For Use With: Series Progressive
- Maximum Flow Rate (ci/min): 3
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Voltage (V dc): 32
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (psi): 4061
- Minimum Operating Temperature (°C): -15
- Minimum Operating Temperature (°F): 5
- Minimum Voltage (V dc): 18
- Number of Pump Elements: Up to 2
- Overall Height (in): 12.2
- Overall Width (in): 6.97
- Power Connection Type: CPC
