Dynamite Supply Unit,1 Gal,22:1

GG 25T473

DYNAMITE SUPPLY UNIT, 1 GAL, 22:1

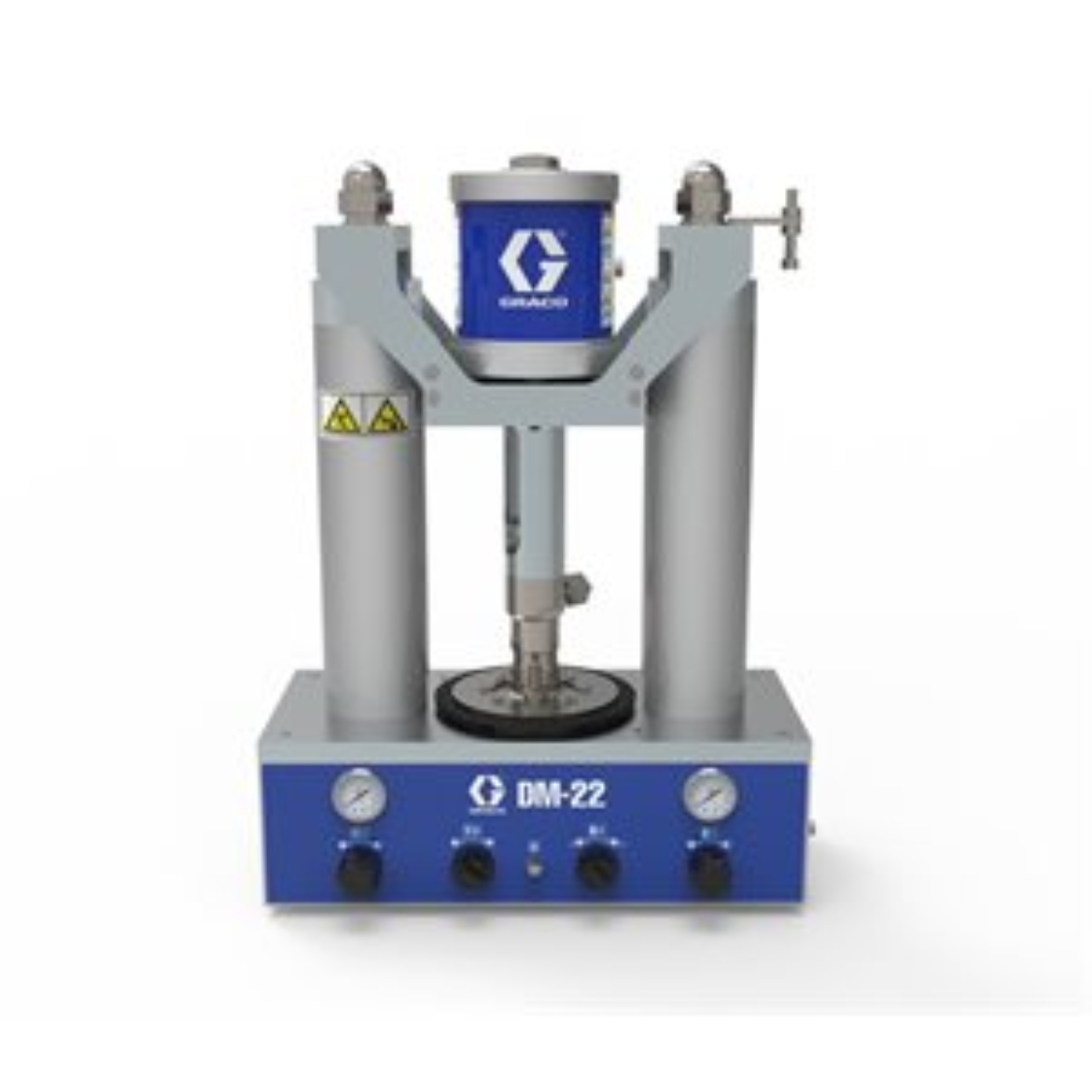

Graco 25T473 DynaMite Supply Pump for 1 Gallon pails

The Graco Dynamite Supply Pumps are an ideal solution for delivering precise and consistent material feed from small 1 gallon pails.

Application: The Graco Dynamite Supply Pumps are an ideal solution for delivering precise and consistent material feed from small containers ranging from 300cc cartridges to 1 gallon pails. Extensive product lifecycle even for heavy duty applications using highly viscous and abrasive materials.With a minimum weight of 28kg, the mini extruders are suitably designed to reduce floor space allowing for greater flexibility.

• Features and Benefits:

  Proven Graco Merkur motor allows for compact and lightweight design

  Longer product lifecycle due to diamond-like carbon coating and improved rid and piston designs

  Simple and user-friendly control panel

  • Typical Markets:

    Automotive Electronics

    Telecommunication Electronics

    Consumer Electronics

    • Typical Fluids Handled:

      Thermal Interface Materials

      Silicon

      Colorants

      Grease

      Ink

      Adhesives




      • Model: DynaMite
      • Series: 22
      • Air Inlet Size (in): 0.314961
      • Air Inlet Thread Gender: None
      • Ambient/Warm Melt/Hot Melt: Ambient
      • Control Options: Standard
      • Fluid Outlet Size (in): 1/4
      • Fluid Outlet Thread Gender: Female
      • Fluid Outlet Thread Type: NPT
      • Material Container Volume (gal): 1
      • Material Container Volume (l): 3.79
      • Maximum Air Inlet Pressure (bar): 6.9
      • Maximum Air Inlet Pressure (kPa): 700
      • Maximum Air Inlet Pressure (psi): 100
      • Maximum Fluid Pressure (bar): 140
      • Maximum Fluid Pressure (MPa): 140
      • Maximum Fluid Pressure (psi): 0
      • Maximum Fluid Pressure (bar): 140
      • Maximum Fluid Pressure (MPa): 140
      • Maximum Fluid Pressure (psi): 0
      • Maximum Operating Temperature ( degree C): 60
      • Maximum Operating Temperature ( degree F): 140
      • Maximum Working Pressure (bar): 152
      • Maximum Working Pressure (MPa): 15.2
      • Maximum Working Pressure (psi): 2200
      • Number of Wipers: Single Ring
      • Plate Material: Rubber
      • Power Type: Pneumatic
      • Pump Type: Piston
      • Ram Post Diameter (mm): 172
