LD Series Stationary 275 Gallon Oil Pump Package

GG 24H870

KIT, 5:1 TOTE MOUNT TOP-NPT

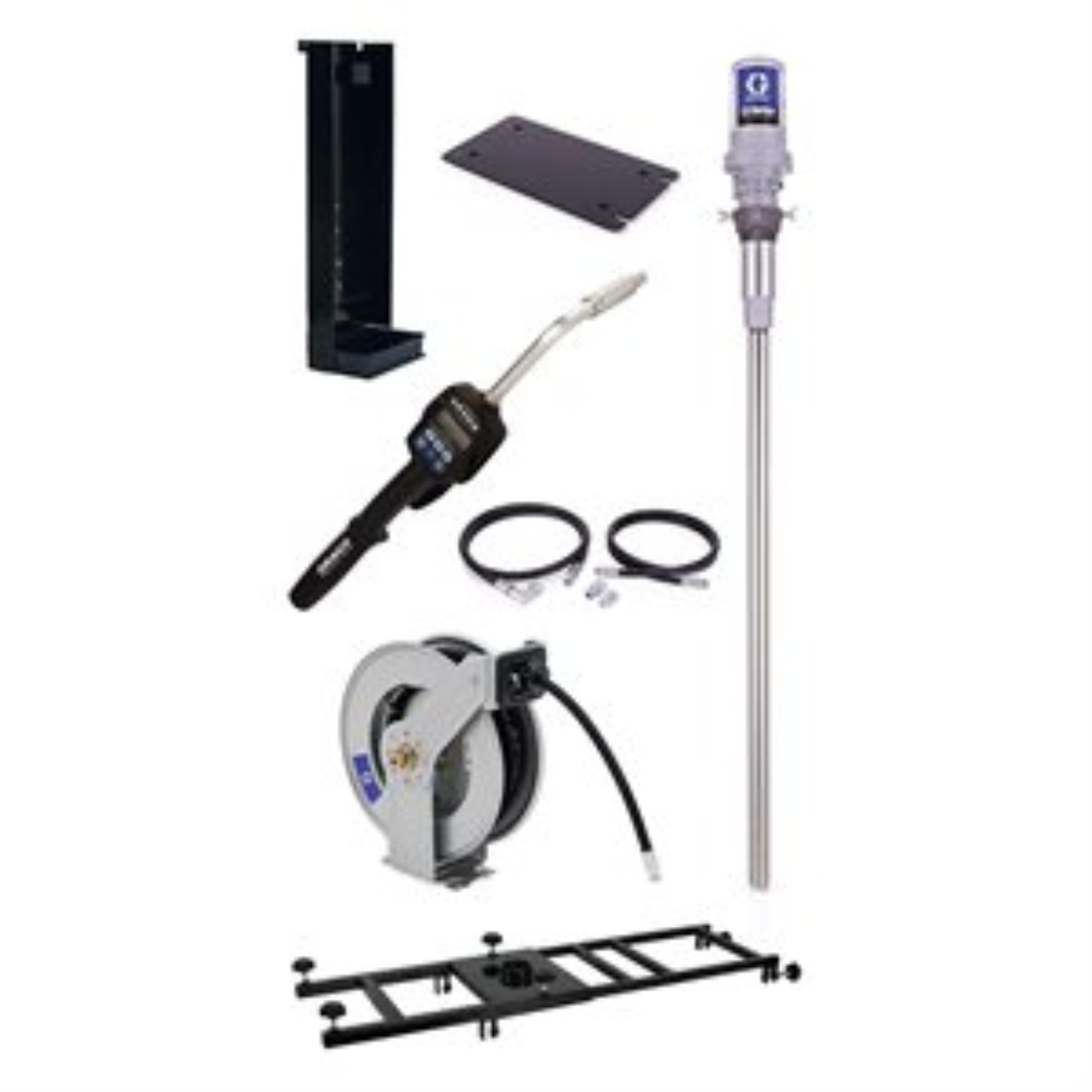

Graco 24H870 LD Series 5:1 Stationary 275 Gallon (1040 Liter) Oil Pump Package - NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4000

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Flow Rate (GPM): 6.7

• Maximum Working Pressure (bar): 52
• Maximum Working Pressure (kPa): 5200
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Number of Pieces: 8

• Power Type: Pneumatic

• Pump Ratio: 5:1
