Gl-32 Injector,2 Inj Manifold,Sst

GG 24E392

GL-32 INJECTOR, 2 INJ MANIFOLD, SST

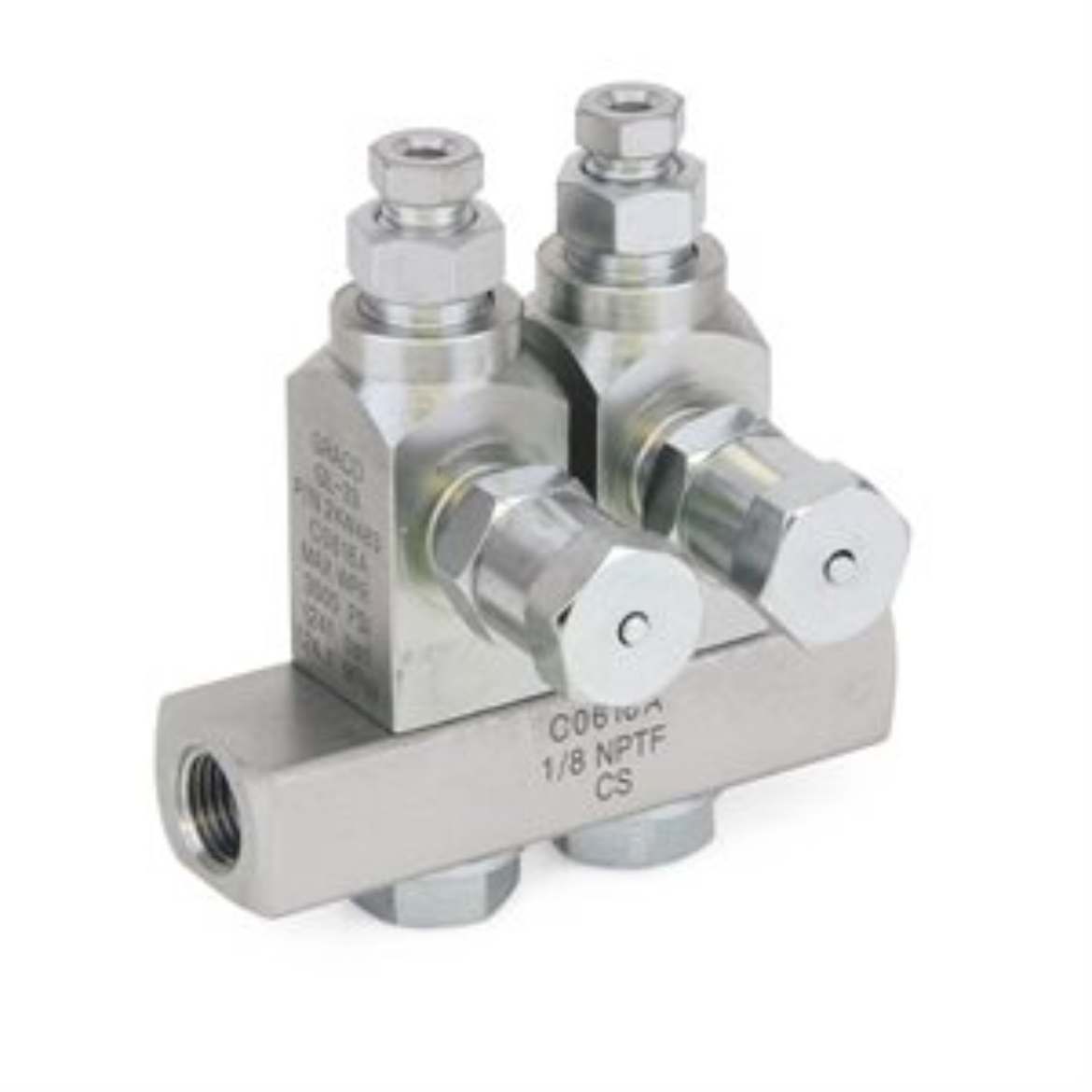

Graco 24E392 GL-32 Grease Injector, 304 Stainless Steel, 2-Injector Manifold, 1/4 NPT

With its one piece design, Gracos GL-32 grease injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Easily handles up to NLGI #2 grease.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 1200 - 3500 psi (83 - 241 bar) for optimal performance with up to NLGI #2 grease
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-32
• Adjustable: Adjustable

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Single Line Parallel

• Cycle Indicator: Visual Pin

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Working Pressure (bar): 53
• Minimum Working Pressure (kPa): 5300
• Minimum Working Pressure (MPa): 5.3

• Minimum Working Pressure (psi): 750

• Outlet Size (cm): 0.32
• Outlet Size (in): 0.125
• Outlet Size (mm): 3.2
