Lubepro A2600 Pump,Ll,Grease

GG 17C751

LUBEPRO A2600 PUMP, LL, GREASE

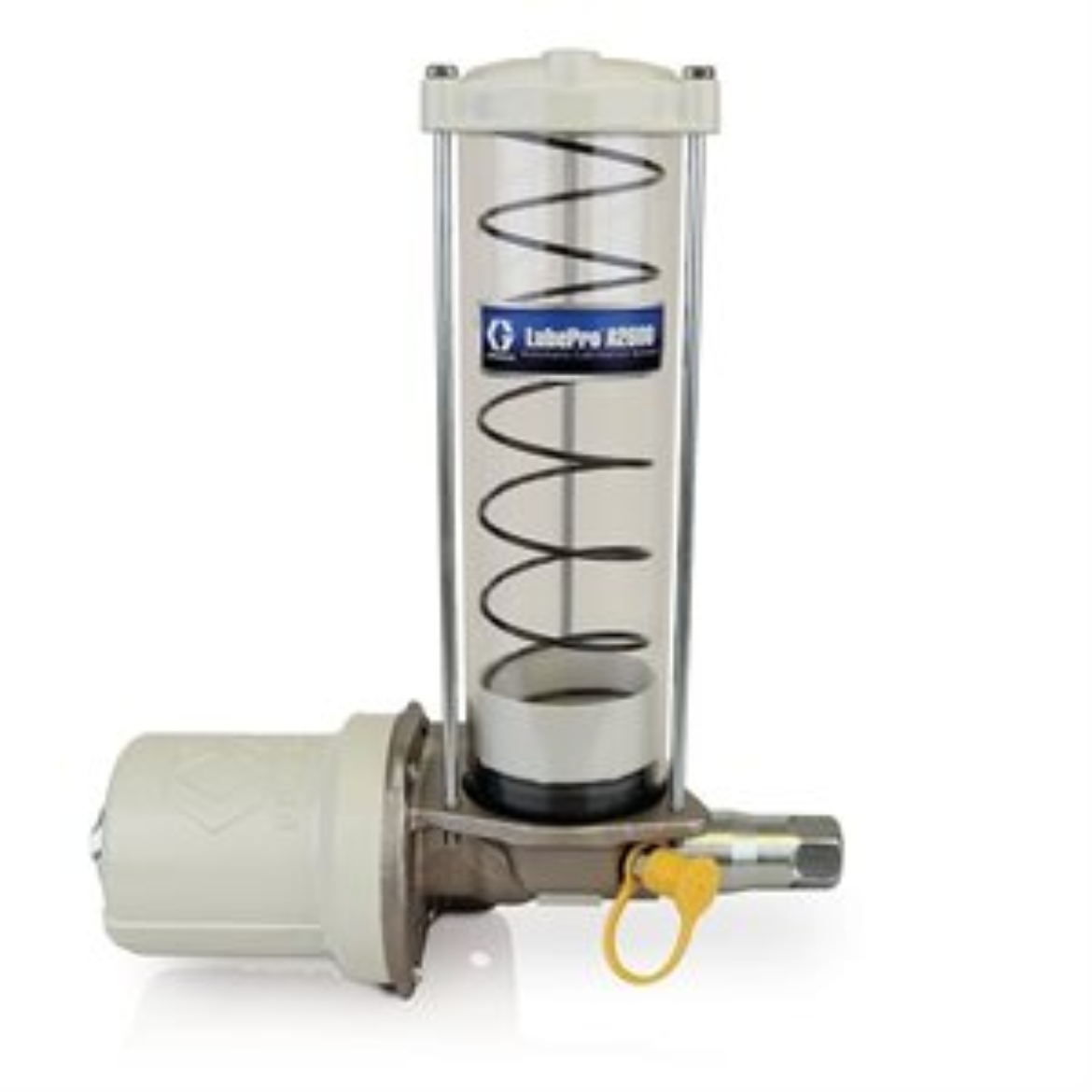

Graco 17C751 LubePro A2600 Horizontal Grease Pump, 2 L Reservoir, Normally Open, Low Level - NPT

Without proper lubrication your factorys machines can suffer from downtime and reduced life, which impacts your companys bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Gracos Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2600 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 26:1
• A2600 delivers a greater output than competitive models at 2.2 in cu (36.05 cm cu ) per stroke
• Optional Low Level Detection available, factory installed
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2600

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Size (mm): 19.0500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 9.31
• Maximum Air Inlet Pressure (kPa): 931
• Maximum Air Inlet Pressure (psi): 135

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Overall Height (cm): 47.3
• Overall Height (in): 18.62
• Overall Height (mm): 473

• Power Type: Pneumatic
