GG 96G013
G3 PRO PUMP, G-ACPR-2L0L00-0D000000

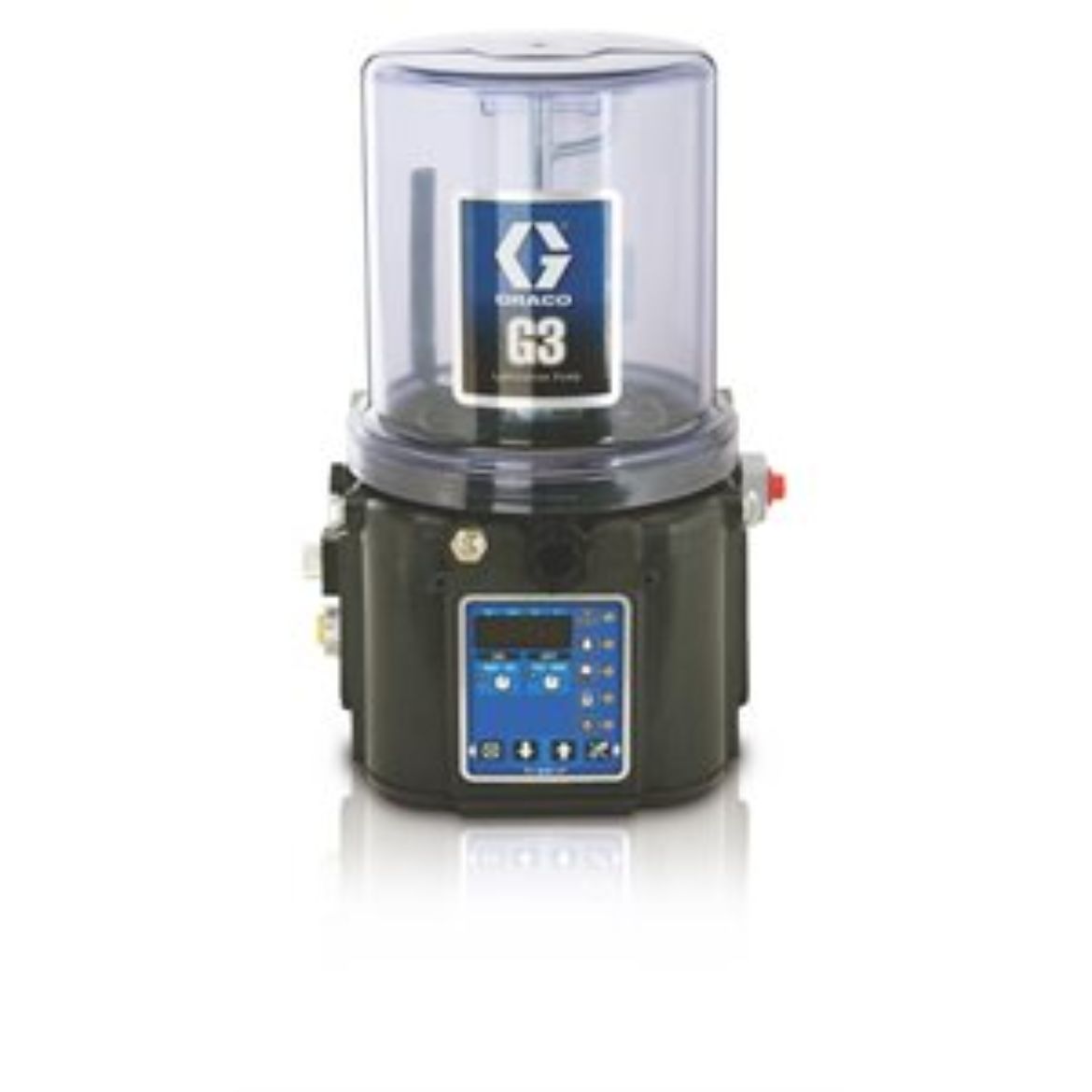

Graco 96G013 G3™ Pro Grease Lubrication Pump, 90-240 VAC, 2 Liter, Low Level with Controller, DIN
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.
- Built-in controller with selectable pump on/pump off timer
- Low level indicator provides low warning and shut-down alarm
- Manual run initiates lube cycle on-demand (remote option also available)
- Pre-lube function can initiate lube cycle on start-up
- Alarm Relay Inductive Maximum Operating Current (A): 1.5
- Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
- Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
- Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
- Alarm Relay Inductive Rated Load (A): 0.2
- Alarm Relay Resistive Maximum Operating Current (A): 3
- Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
- Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
- Alarm Relay Resistive Minimum Permissible Load: 10 µA, 10m VDC
- Alarm Relay Resistive Rated Load (A): 0.4
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPSF
- For Use With: Injector-Based Systems, Series Progressive Systems
- Includes: Wiper Arm, Low Level
- Input Cycle Rate (Hz): 8
- Input Impedance: 1.1
- Input Load Current (mA @ 24 VDC): 22
- Input Maximum Off Current (mA): 1.5
- Input Maximum Residual Voltage (V): 4
- Input Required Switch Type: Normally Open
- Input Response Time (ms): 60
- Input Sensor Voltage (VDC): 24
- Low Level Carry Current (A): 1.2
- Low Level Contact Rating (W): 10
- Low Level Switch Rating (VDC): 200
- Low Level Switching Current (A): 0.5
- Maximum Fill Inlet Pressure (bar): 344.7
- Maximum Fill Inlet Pressure (kPa): 34470
- Maximum Fill Inlet Pressure (psi): 5000
- Maximum Run Time (min): 30
- Maximum Voltage (V ac): 264
- Maximum Working Pressure (bar): 351.6
- Maximum Working Pressure (kPa): 35160
- Maximum Working Pressure (MPa): 35.1
- Maximum Working Pressure (psi): 5100
- Minimum Voltage (V ac): 88
- Number of Machine Count Sensor Inputs: 1
- Number of Pressure and Cycle Sensor Inputs: 3
- Number of Pump Elements: Up to 3
- Overall Depth (cm): 22.9
- Overall Depth (in): 9
<
