Gt 750 Pump,Grease,36:1,400 Lb

GG 24W337

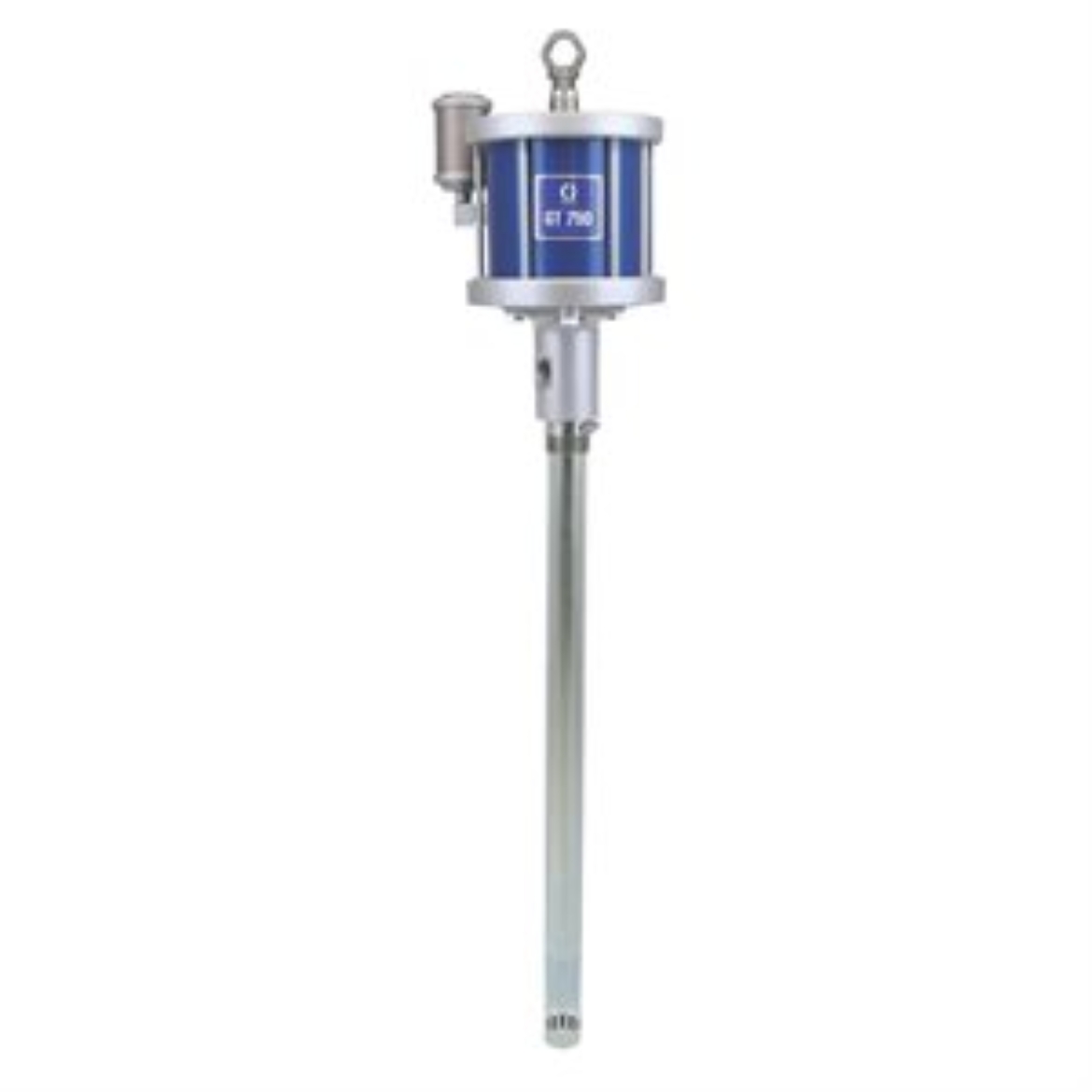

GT 750 PUMP, GREASE, 36:1, 400 LB

Graco 24W337 GT 750 36:1 Grease Transfer Pump for 400 lb (180 kg). Pail with Bung Adapter - NPT

The GT 750 pump was engineered to perform in challenging applications and changing environments. The large 7.5-inch (190 mm) air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.

• Efficient Air Motor -Use less air to move more grease.
• High Flow Rates - Up to 32 lb/min (13.6 kg/min) of grease.
• High Volume Per Stroke - Pump more grease without having to drive pump too quickly to damage seals.
• Multiple Tank Options - Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.

• Model: GT 750

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 7.5

• Application: Grease

• Compatible Material: Grease

• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease up to NLGI 2

• Includes: 2 Inch Bung Adapter and Lift Ring, 400 lb (181 kg) Lower

• Maximum Air Consumption (SCFM): 130
• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 248.2
• Maximum Working Pressure (kPa): 24820
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

• Output Per Cycle (cm cu ): 180

• Pump Ratio: 36:1
