G-Mini, Grease Lubrication Pump W/ Controller, 24 VDC, 1 Liter

GG 25R801

G-MINI PUMP, 24V, 1L, CONTROLLER

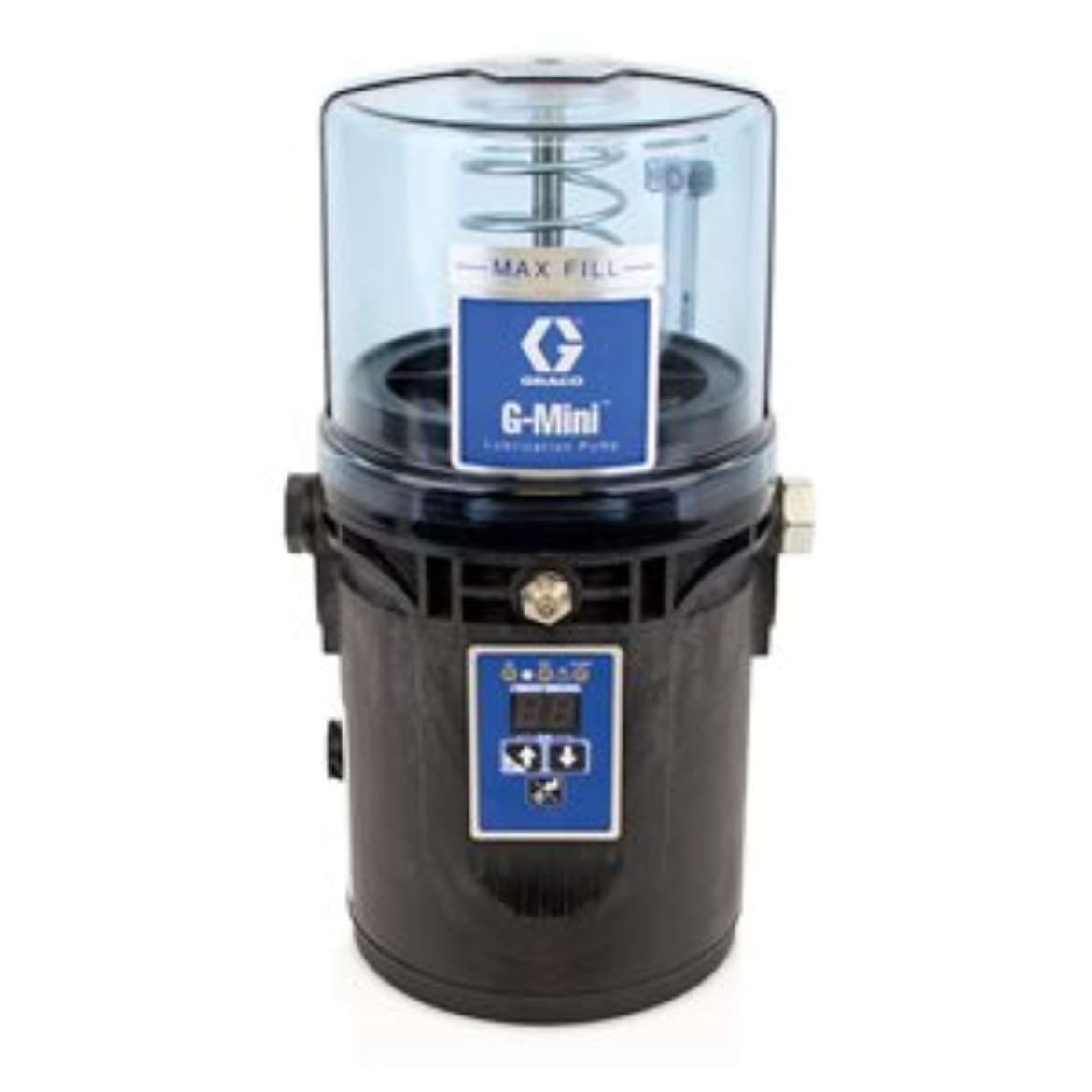

Graco 25R801 G-Mini Grease Lubrication Pump with Controller, 24 VDC, 1 Liter

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It's rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag - boosting your productivity and profitability.

• Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element loading chamberis always full.
• M12 Input - M12 cycle or proximity switch input standard on all pumps with a controller.
• 5-Wire CPC Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
• One Pump Element - 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
• Easy-to-program controller can be utilized for both time based and cycle based systems and provides low level alert and alarm.
• Rugged Construction - Designed to withstand the harshest of environments, IP69K rated.

• Model: G-Mini

• Application: Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy
• Approvals: CE, EAC

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Internal Controller

• Fluid Inlet Type: Zerk Fitting to Fill Reservoir

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• IP Rating: IP69K

• Maximum Flow Rate (ci/min): 3

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (psi): 4061

• Minimum Operating Temperature ( degree C): -15
• Minimum Operating Temperature ( degree F): 5

• Minimum Voltage (V dc): 18

• Number of Pump Elements: Up to 2

• Number of Sensor Inputs: 1

• Overall Depth (in): 6.57

• Overall Height (in): 12.2
• Overall Width (in): 6.97

• Power Connection Type: CPC
