LD Series 3:1 Mobile Oil Pump Package - Preset Meter Type

GG 24H753

KIT, 3:1 CART W/ REEL-NPT

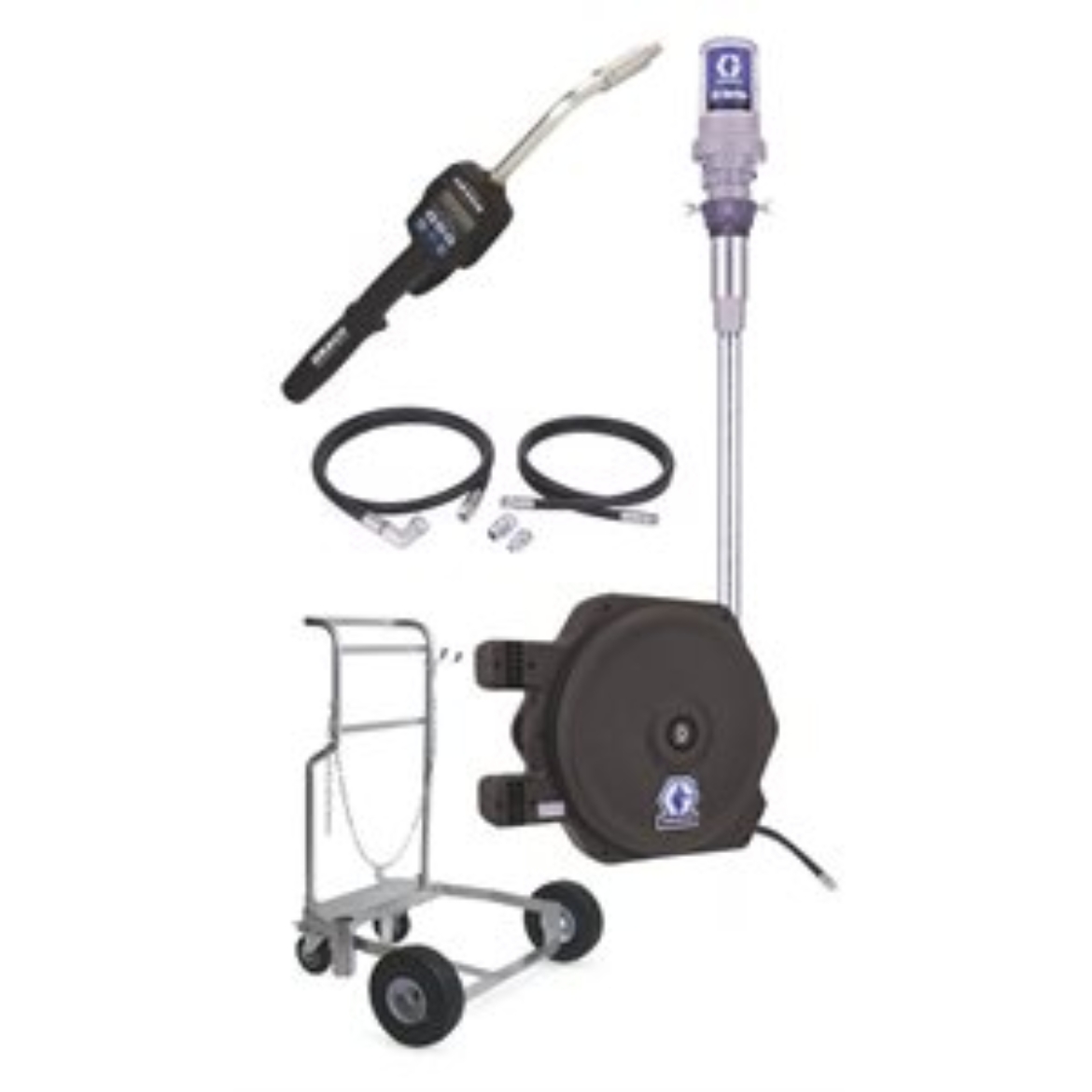

Graco 24H753 LD Series 3:1 Mobile Oil Pump Package - Preset Meter Type

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor - Provides more power to create better flow.
• Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Working Pressure (psi): 150

• Maximum Flow Rate (GPM): 7.8

• Maximum Working Pressure (bar): 52
• Maximum Working Pressure (kPa): 5200
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Mount Location: Cart Mount

• Power Type: Pneumatic

• Pump Ratio: 3:1
