GG 244628
FIREBALL 425 SYSTEM, BULK OIL
Graco 244628 Fire-Ball® 425 Series 6:1 Universal Size Oil Pump - Wall-Mounted Package
The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
Application: The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.
- Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated &Prime, dirty&Prime, air environments for long life without repair.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Model: Fire-Ball
- Series: 425
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT

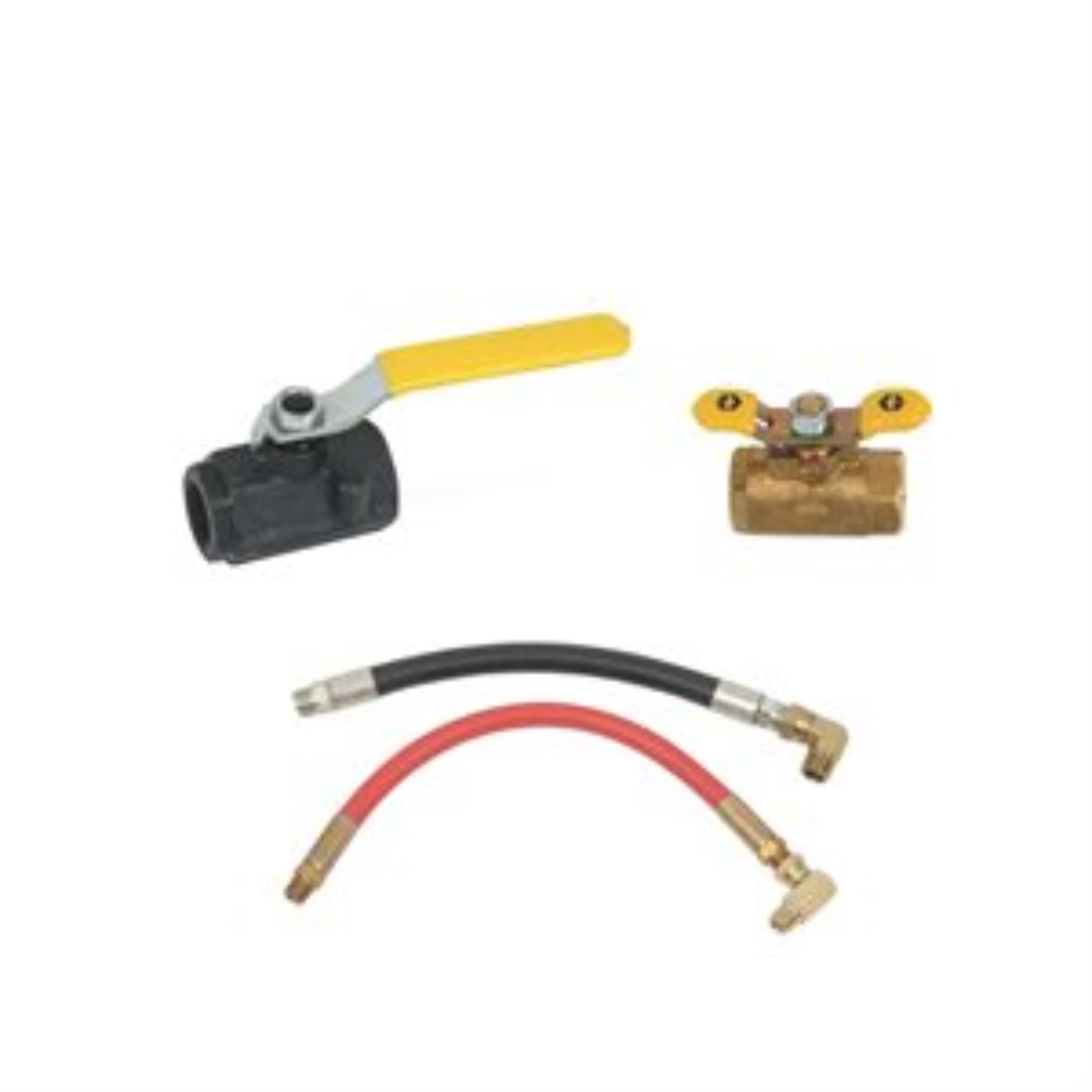

- Includes: Fire-Ball 425 6:1 Pump, Filter Regulator, Hose and Fitting Kit, Air Shutoff Valve, Fluid Shutoff, Wall Mount Bracket
- Maximum Air Working Pressure (psi): 180
- Maximum Flow Rate (gpm @ 80 cpm): 6.6
- Maximum Fluid Working Pressure (psi): 1100
- Maximum Working Pressure (bar): 76
- Maximum Working Pressure (kPa): 7600
- Maximum Working Pressure (MPa): 7.6
- Maximum Working Pressure (psi): 1100
- Mount Location: Wall Mount
- Pump Ratio: 6:1
- Pump Weight (lb): 35
