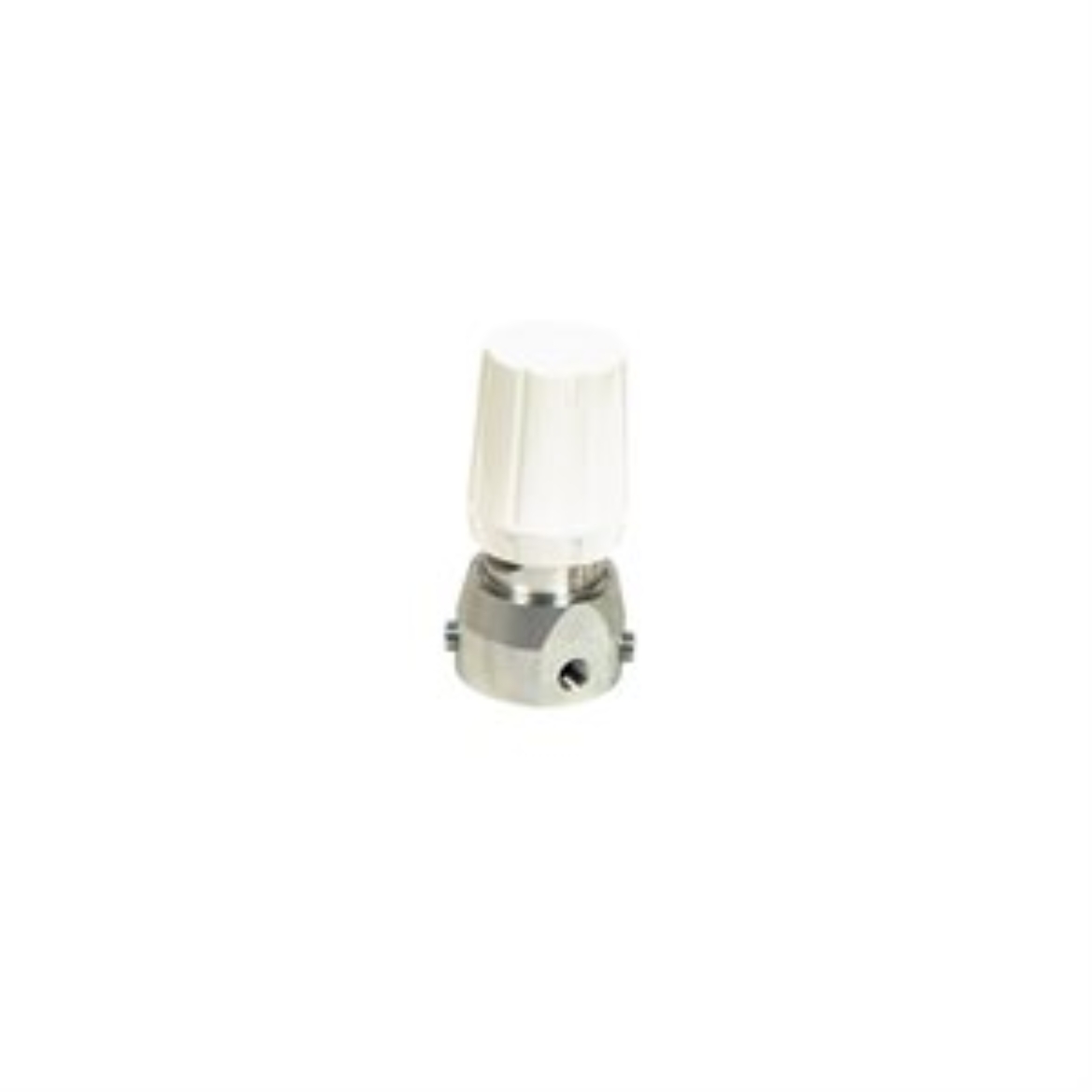

B/P Regulator,1/4in,SS,1000-3000 psi

GG 238926

VALVE, BACK PRESSURE

Graco 238926 High Pressure Fluid Back Pressure Regulator, 3000 Max psi, SST, Spring Type, 1/4(f) x 1/4(f) inlet/outlet, gauge not included

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 70
• Minimum Regulated Pressure (kPa): 7000
• Minimum Regulated Pressure (MPa): 7
• Minimum Regulated Pressure (psi): 1000

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Type: NPT
