GG 234260
REGULATOR, PRESS, P100-VM, NPT

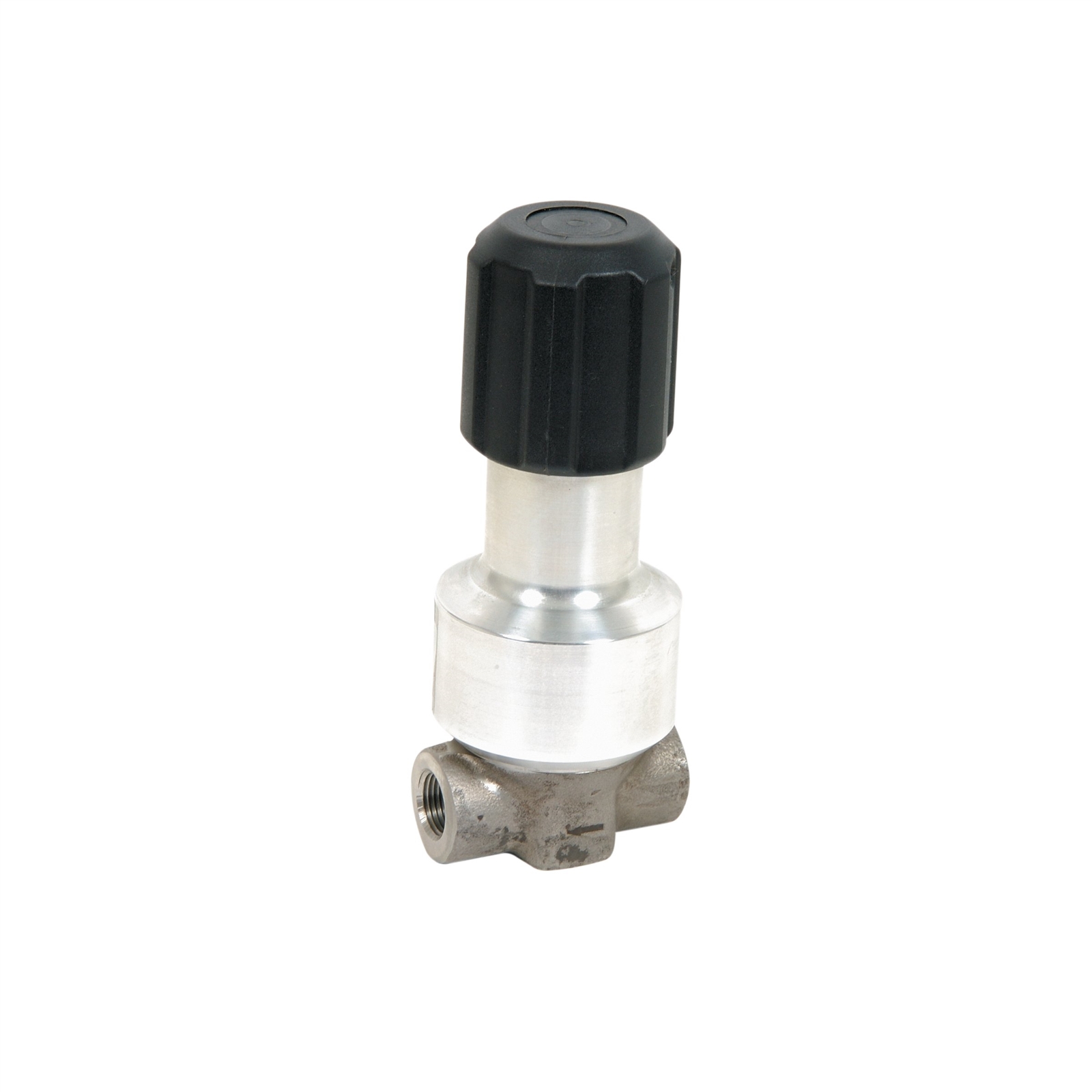

Graco 234260 High Pressure Fluid Regulator, 2600 Max psi, 600-1500 psi Range, 8.1 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f)
Mechanically operated fluid pressure regulators designed primarily for use with low to medium viscosity fluids.
- Includes: Gauge
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Maximum Flow Rate (GPM): 8.1
- Maximum Flow Rate (L/min): 30.66
- Maximum Regulated Pressure (bar): 100
- Maximum Regulated Pressure (kPa): 10000
- Maximum Regulated Pressure (MPa): 10
- Maximum Regulated Pressure (psi): 1500
- Maximum Working Pressure (bar): 180
- Maximum Working Pressure (kPa): 18000
- Maximum Working Pressure (MPa): 18
- Maximum Working Pressure (psi): 2600
- Minimum Regulated Pressure (bar): 40
- Minimum Regulated Pressure (kPa): 4000
- Minimum Regulated Pressure (MPa): 4
- Minimum Regulated Pressure (psi): 600
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
