Regulator, Pressure, NPT, P250-Vp

GG 234259

REGULATOR, PRESS, P250-VP, NPT

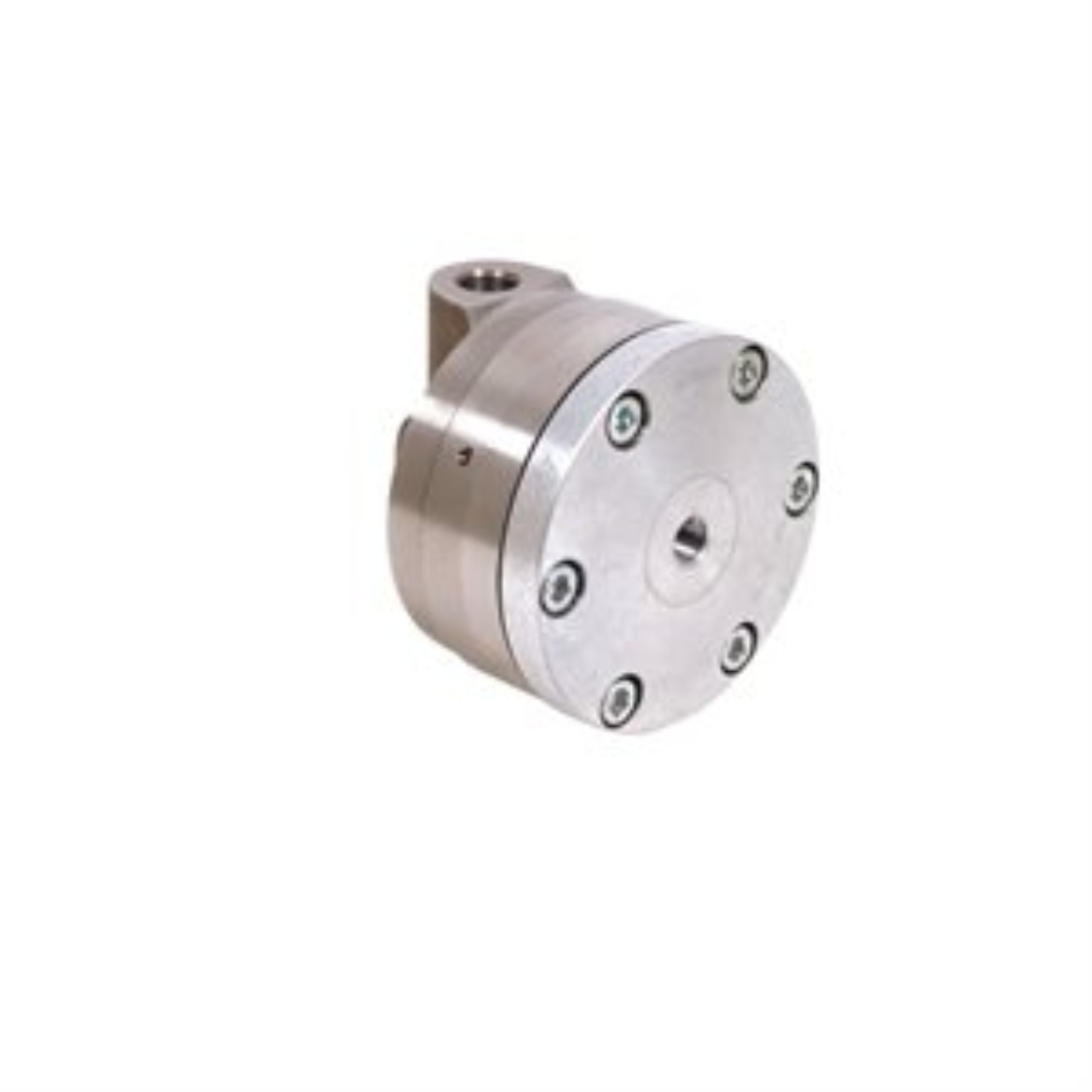

Graco 234259 High Pressure Pneumatically Adjustable Fluid Regulator, 580-3625 psi Max Pressure, 11 GPM, SST, Air Type, 3/4 (f) x 3/4 (f)

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 10.6
• Maximum Flow Rate (L/min): 40.13

• Maximum Regulated Pressure (bar): 250
• Maximum Regulated Pressure (kPa): 25000
• Maximum Regulated Pressure (MPa): 25
• Maximum Regulated Pressure (psi): 3600

• Maximum Working Pressure (bar): 360
• Maximum Working Pressure (kPa): 36000
• Maximum Working Pressure (MPa): 36
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 40
• Minimum Regulated Pressure (kPa): 4000
• Minimum Regulated Pressure (MPa): 4
• Minimum Regulated Pressure (psi): 600

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
