Back Pressure Regulator

GG 288262

REGULATOR, BACK PRESSURE

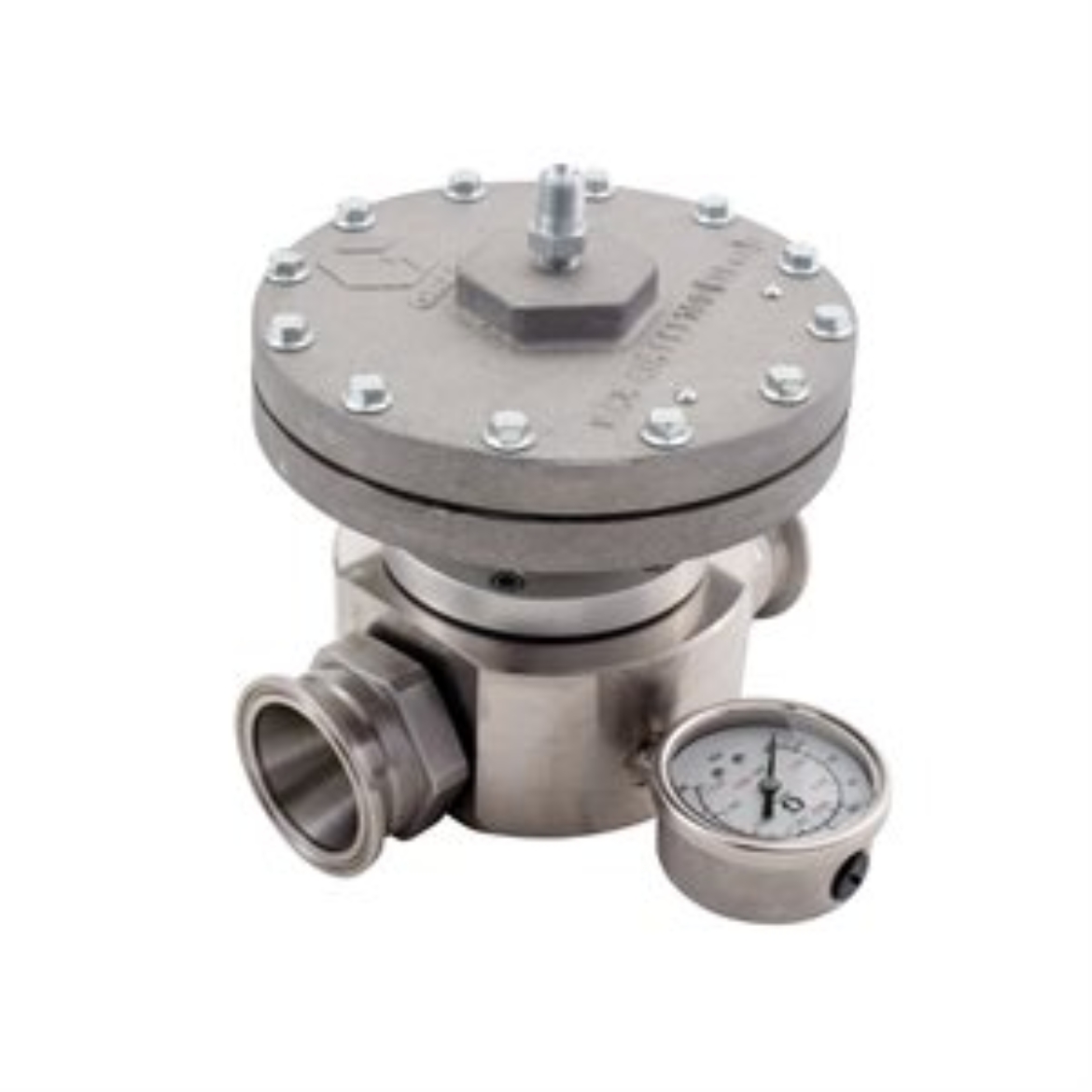

Graco 288262 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 2 inch tri-clamp

• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Hardened stainless steel seat ensure low wear and long life
• Air operated for remote automated control to eliminate operator interference

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 5.08
• Inlet Size (in): 2
• Inlet Size (mm): 50.8

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 70
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Regulated Pressure (bar): 17.2
• Maximum Regulated Pressure (kPa): 1720
• Maximum Regulated Pressure (psi): 250

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 1.7
• Minimum Regulated Pressure (kPa): 170
• Minimum Regulated Pressure (MPa): 0.017
• Minimum Regulated Pressure (psi): 25

• Outlet Size (cm): 5.08
• Outlet Size (in): 2
• Outlet Size (mm): 50.8
