REGULATOR, BACK PRESSURE

Manufacturer: GRACO INC. S10595

GG 288311

REGULATOR, BACK PRESSURE

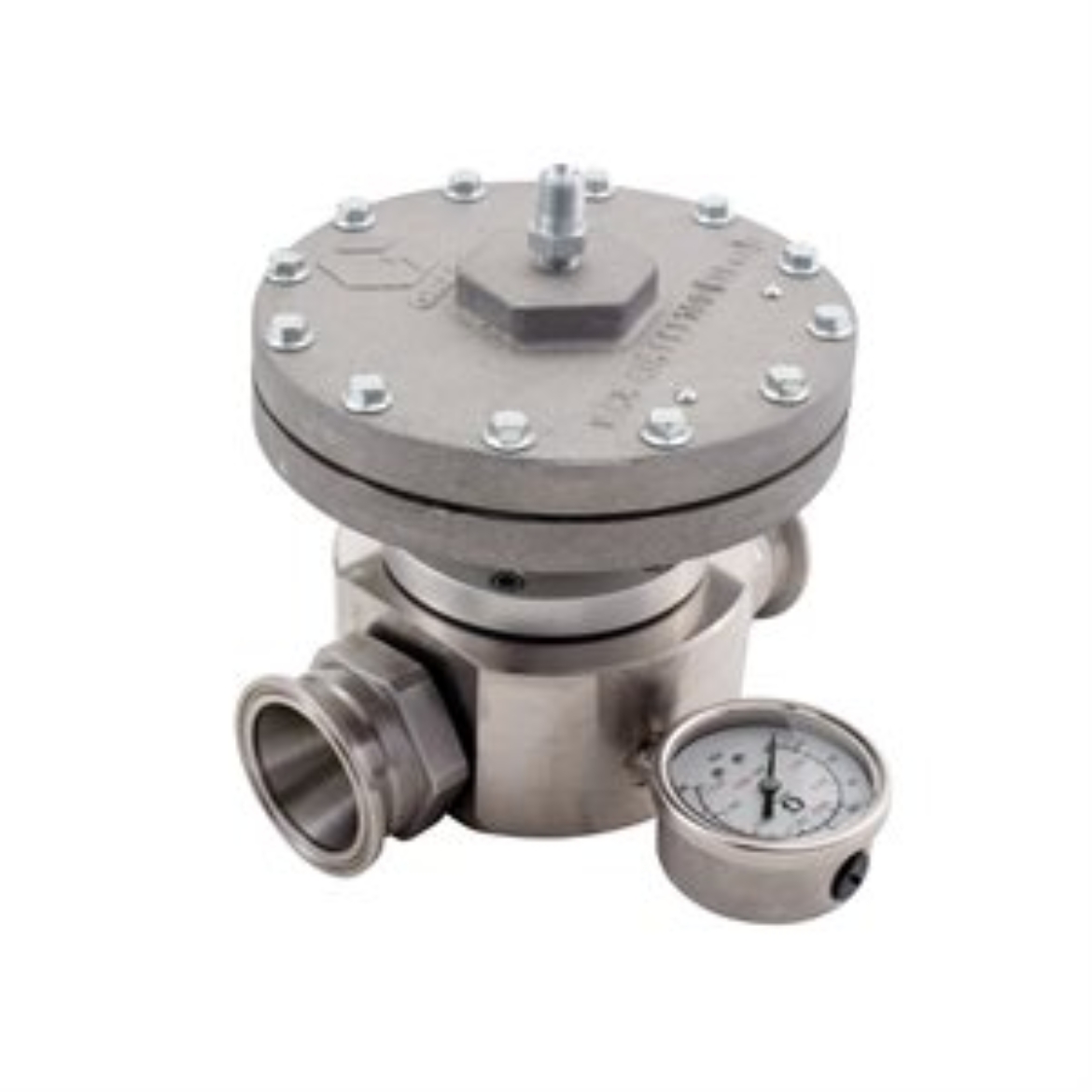

Graco 288311 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 1-1/2 npt

  • PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
  • Stainless steel wetted materials are compatible with catalyst and waterborne materials
  • Hardened stainless steel seat ensure low wear and long life
  • Air operated for remote automated control to eliminate operator interference


  • Compatible Material: Catalyst, Waterborne
  • Gauge Port Size (cm): 0.635
  • Gauge Port Size (in): 1/4
  • Gauge Port Size (mm): 6.35
  • Gauge Port Type: NPT
  • Includes: Gauge
  • Inlet Size (cm): 3.81
  • Inlet Size (in): 1-1/2
  • Inlet Size (mm): 38.1
  • Inlet Thread Type: NPT
  • Maximum Air Inlet Pressure (bar): 7
  • Maximum Air Inlet Pressure (kPa): 70
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Flow Rate (GPM): 20
  • Maximum Flow Rate (L/min): 75.7
  • Maximum Regulated Pressure (bar): 17.2
  • Maximum Regulated Pressure (kPa): 1720
  • Maximum Regulated Pressure (psi): 250
  • Maximum Viscosity (cP): 1000
  • Maximum Working Pressure (bar): 21
  • Maximum Working Pressure (kPa): 2100
  • Maximum Working Pressure (psi): 300
  • Minimum Regulated Pressure (bar): 1.7
  • Minimum Regulated Pressure (kPa): 170
  • Minimum Regulated Pressure (MPa): 0.017
  • Minimum Regulated Pressure (psi): 25
  • Outlet Size (cm): 3.81
  • Outlet Size (in): 1-1/2
  • Outlet Size (mm): 38.1
  • Outlet Thread Type: NPT
SKU: GG 288311
Availability:
Price: $4,160.00
